McConnel Products

Click on a product picture below for more information

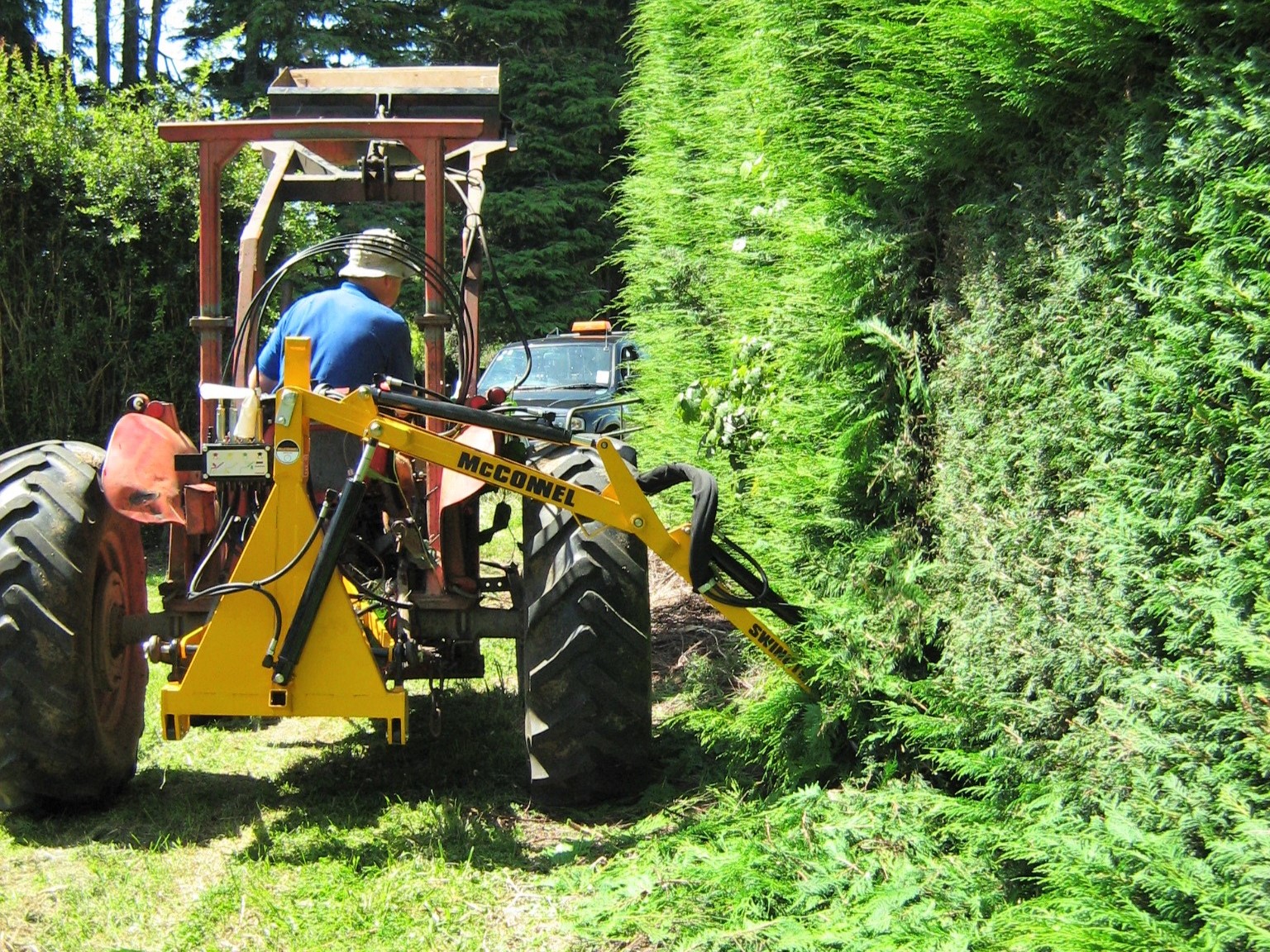

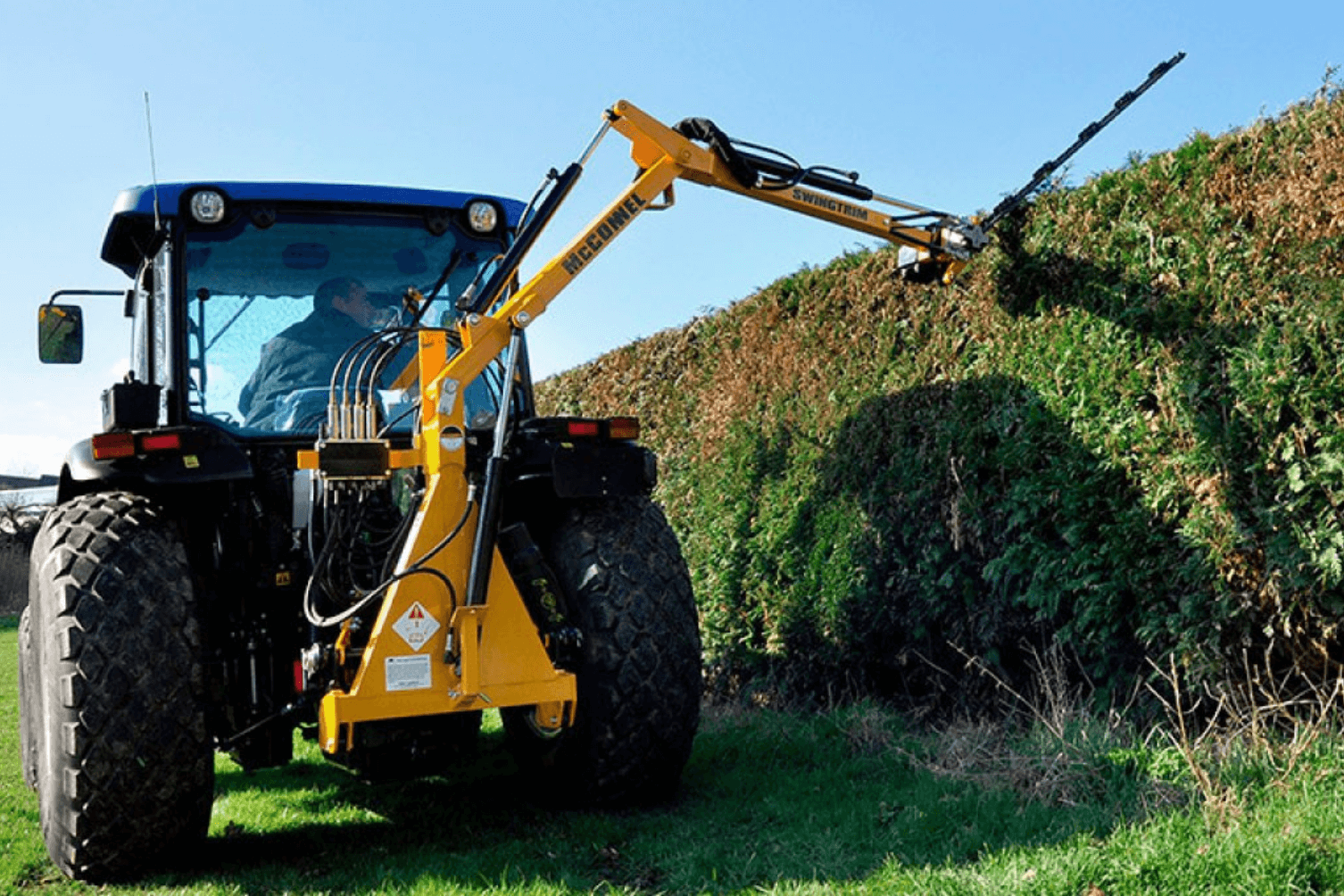

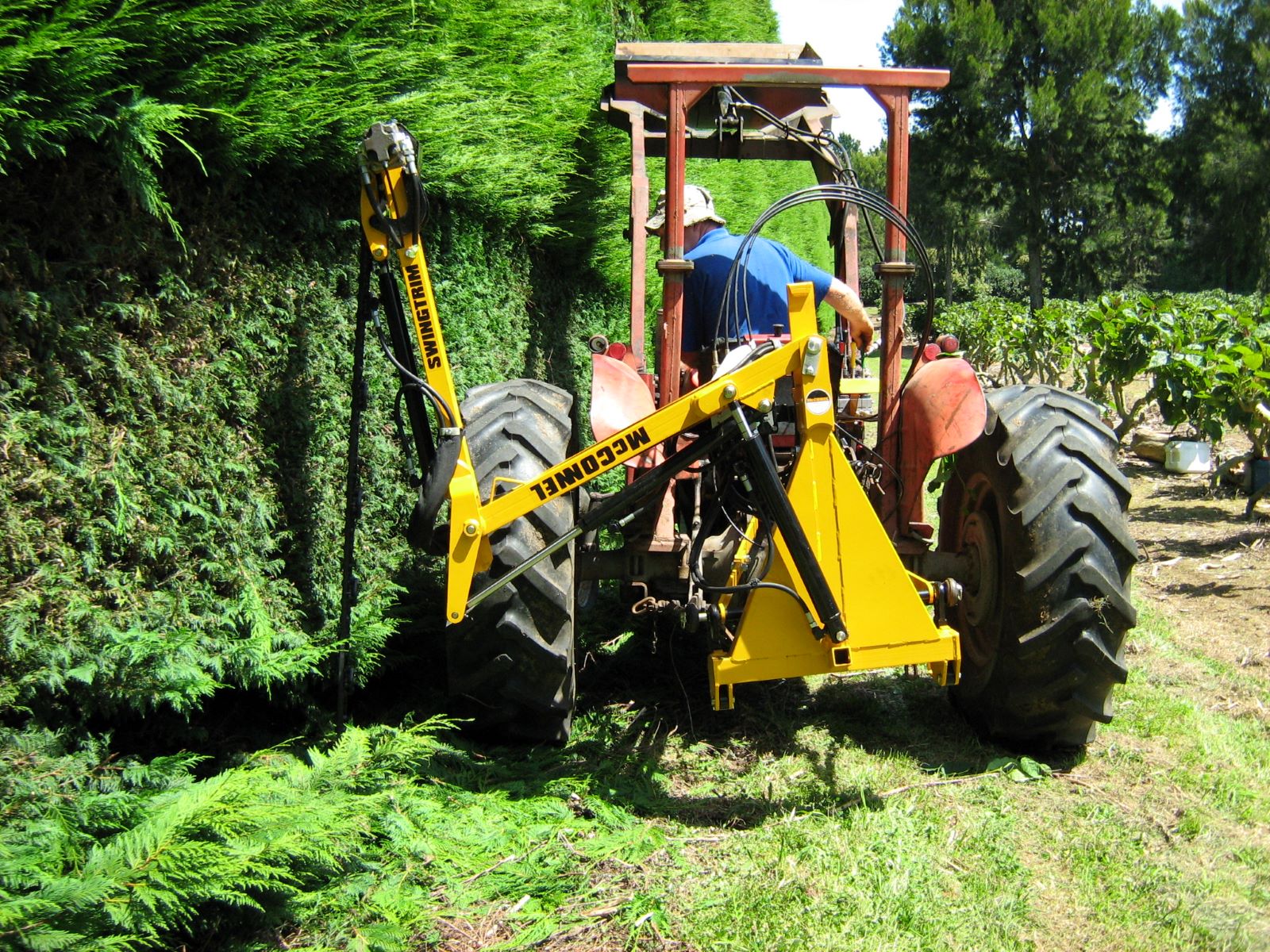

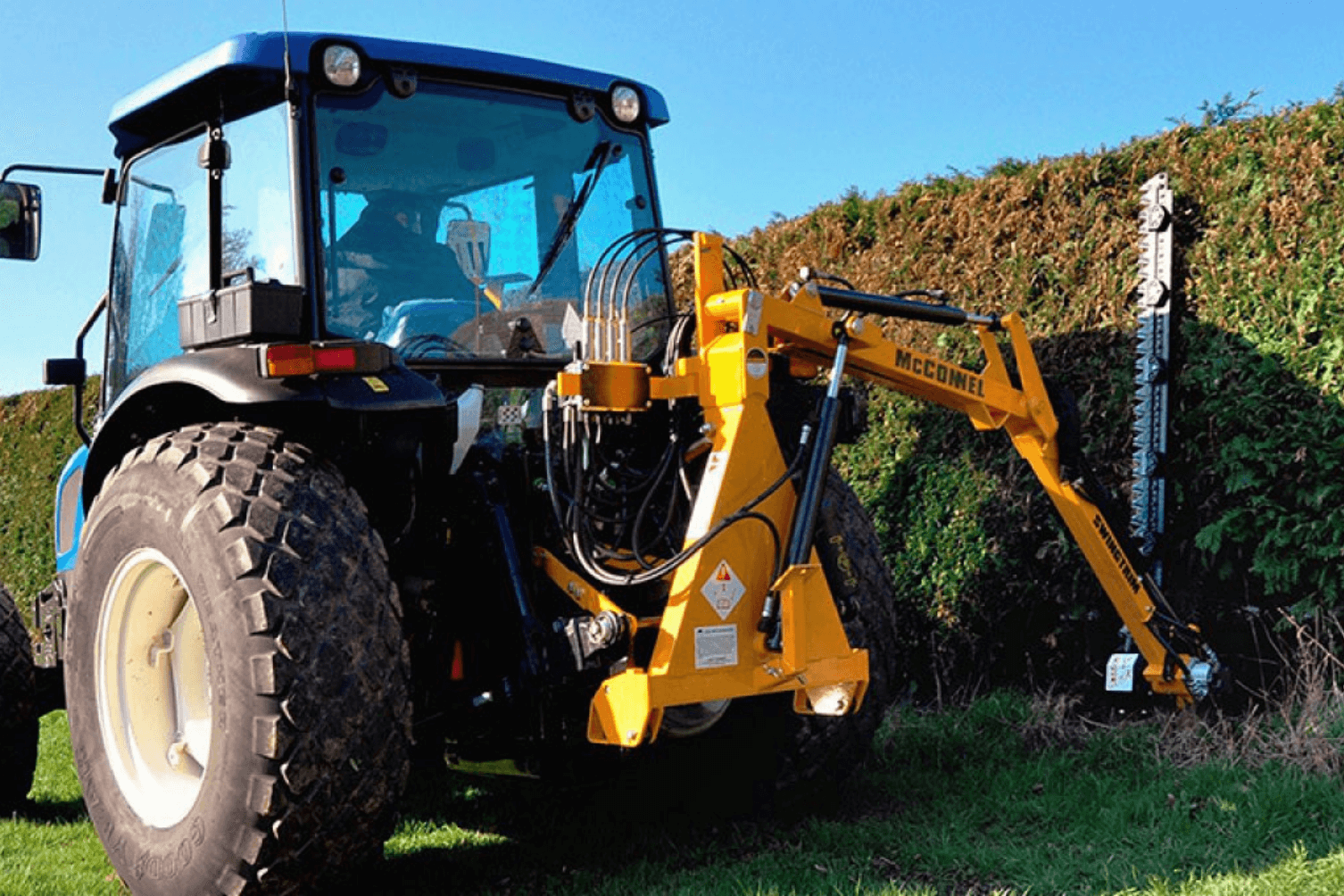

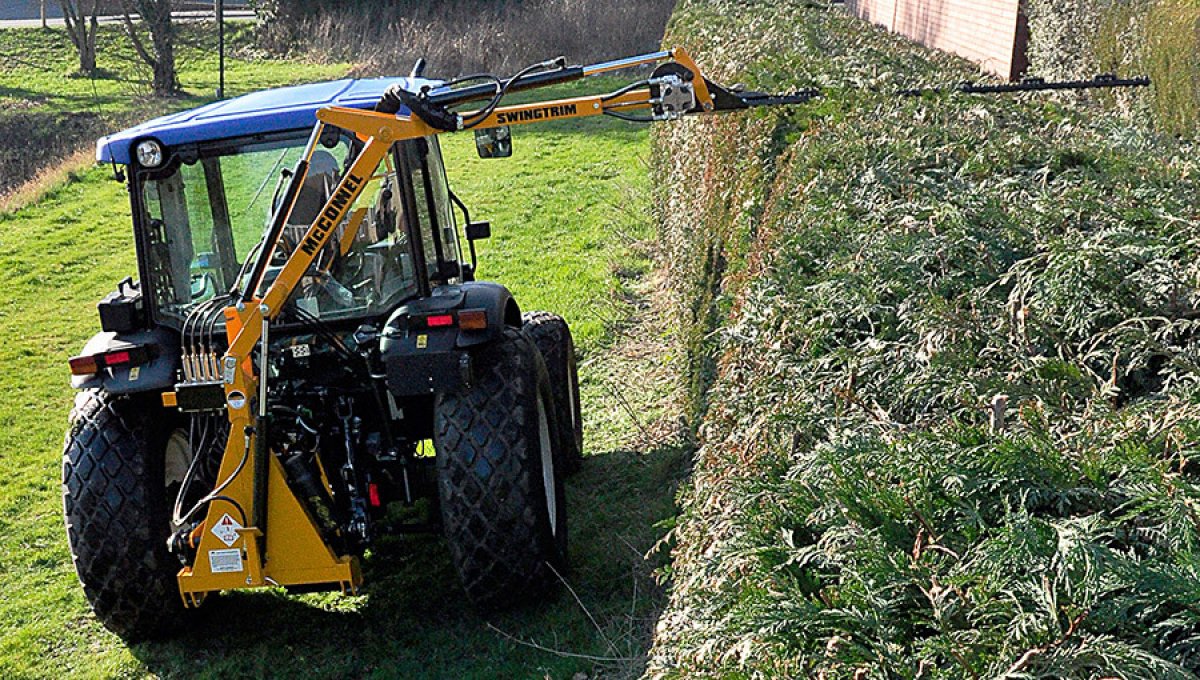

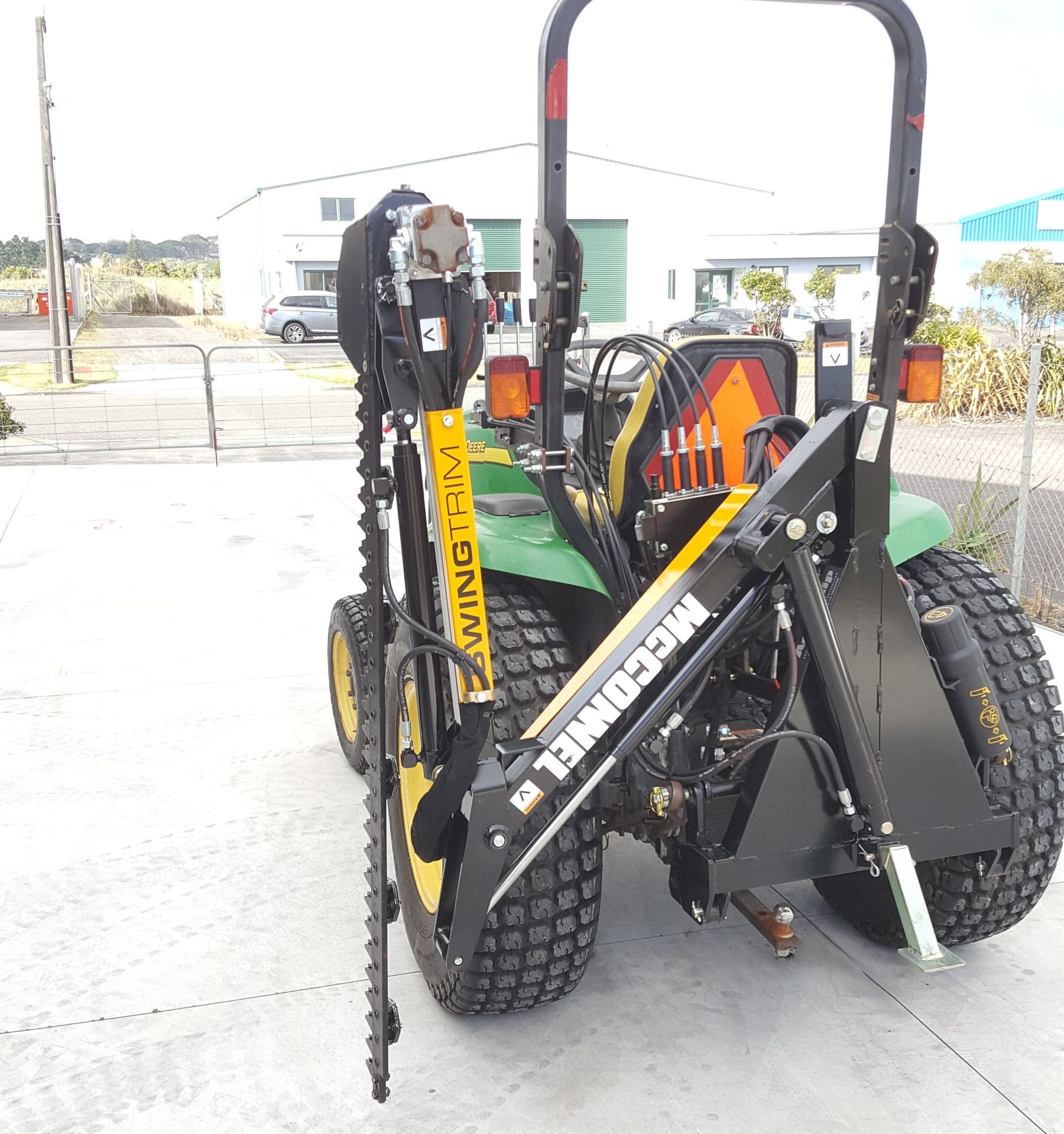

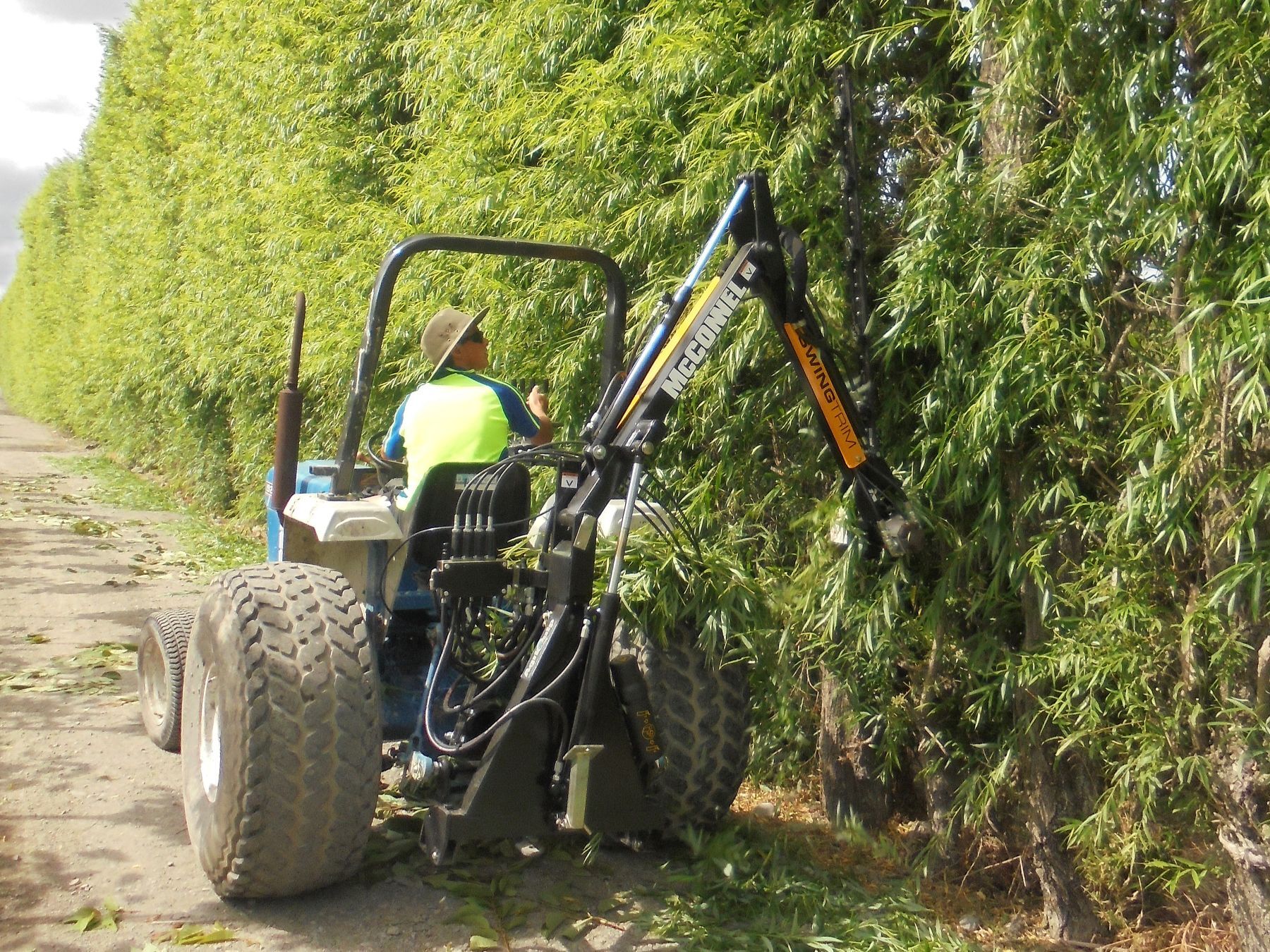

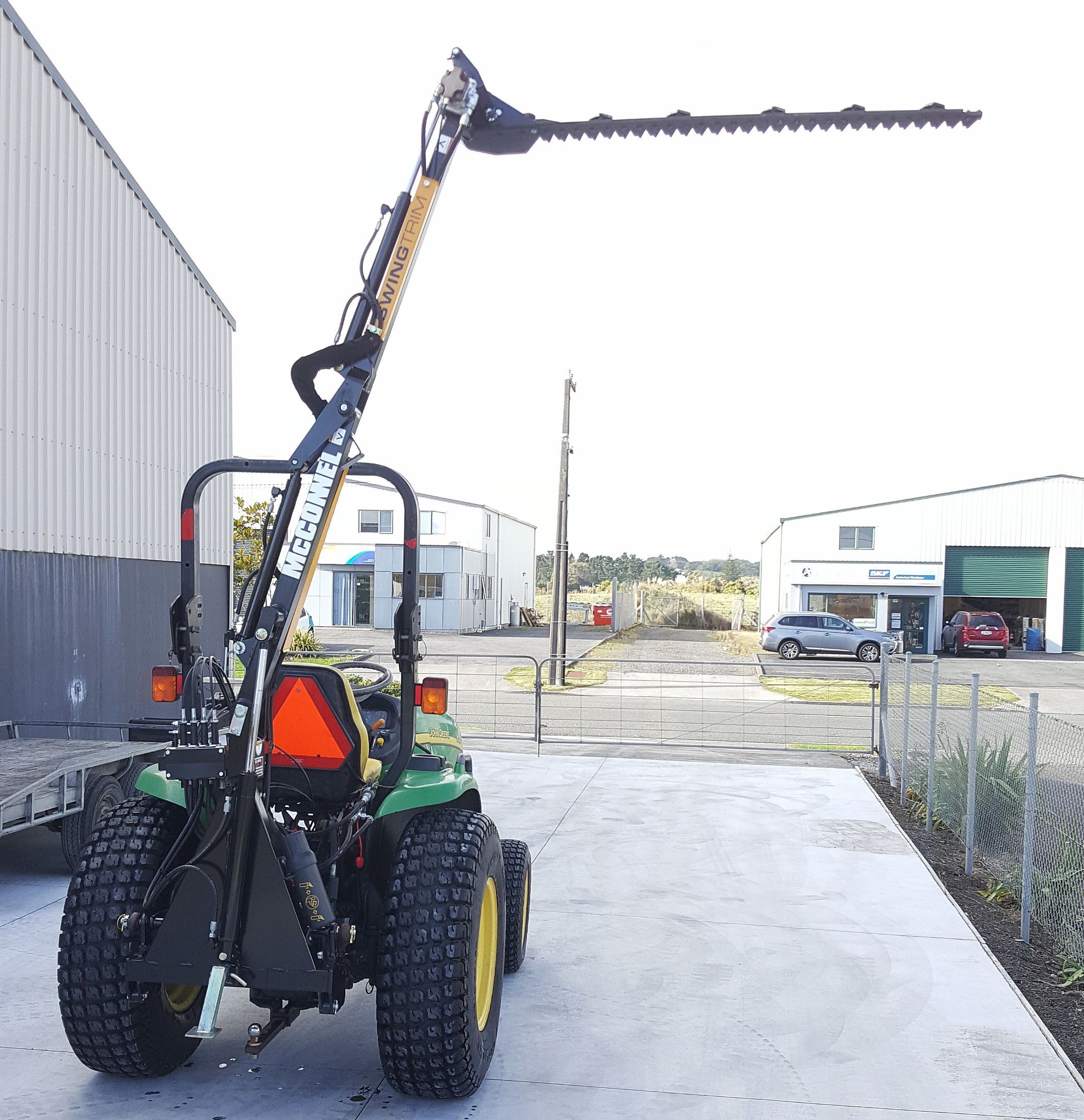

SWINGTRIM

Compact, light and maneuverable, the Swingtrim has been created for contractors and local government teams working in the amenities, landscape and ground-care sectors.

A specialist Power Arm with an innovative swing-over action, McConnel's Swingtrim comes equipped with a high-performance cutterbar, reach of up to 3.5 m, and the freedom to cut on either side of the tractor.

FEATURES

  • • 3.5 m reach
  • • Energy-efficient hydraulics
  • • Optional pump & tank kit
  • • Three-point linkage mounting
  • • Front and rear mounting
  • • Front DIN plate mounting option
  • • Left & right-hand cutting
  • • Mechanical safety breakaway

Productivity

The innovative swing-over function allows operators to work on either side of the tractor, increasing working speeds and convenience while saving time and fuel. The arm moves through 270-degrees and can be switched from left to right-hand cutting in seconds.

Versatility

The Swingtrim can be mounted to the front or rear of the tractor - giving operators more choice and flexibility. Front-mounting is ideal for those who require the best in visibility, safety and comfort, allowing operators to keep their eyes fixed on the road ahead.

BENEFITS

  • • Up to 10 times faster than hand-trimming
  • • Removes risk of white-finger vibration injuries
  • • Ideal for working in tight spaces
  • • Highly versatile with dual cutting and front and rear mounting option
  • • Over-fence hedgecutting
  • • Fuel efficient
  • • Low tractor horsepower requirement

SPECIFICATIONS

Swingtrim 350
Reach       3.5 m
Machine weight*       195 kg
Tractor hp requirement      15 HP
Tractor weight requirement               550 kg

*depending on machine specifications excluding attachment and oil

PHOTO GALLERY

(click photo to enlarge)



Back to Top

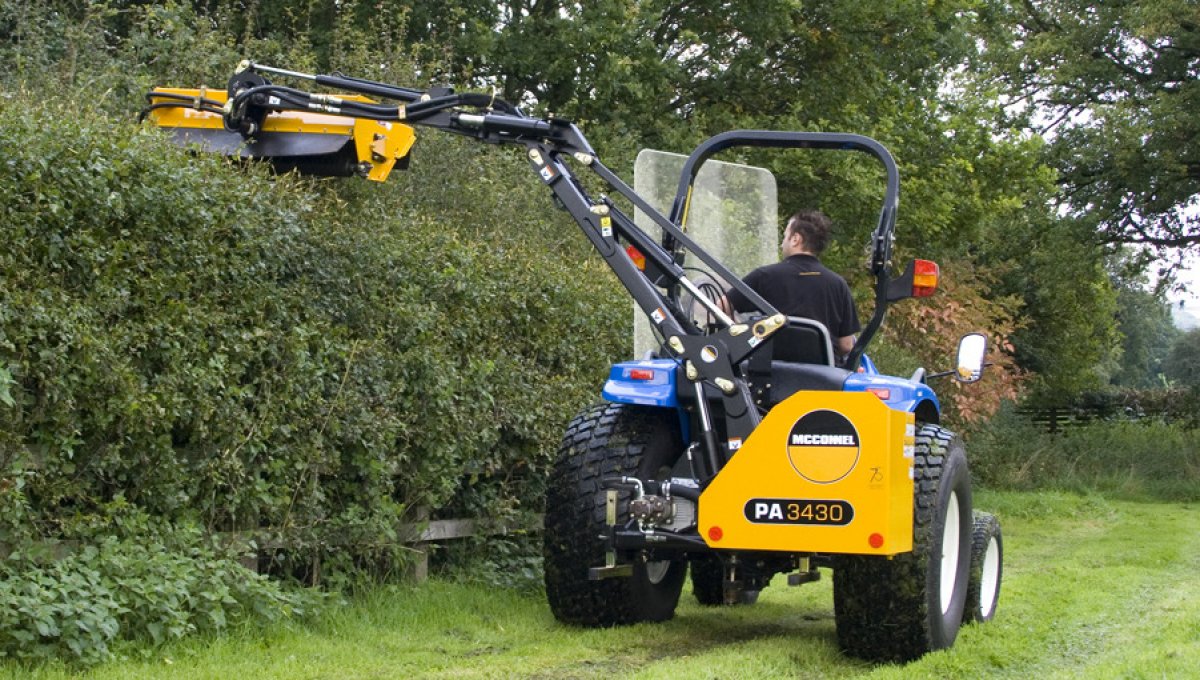

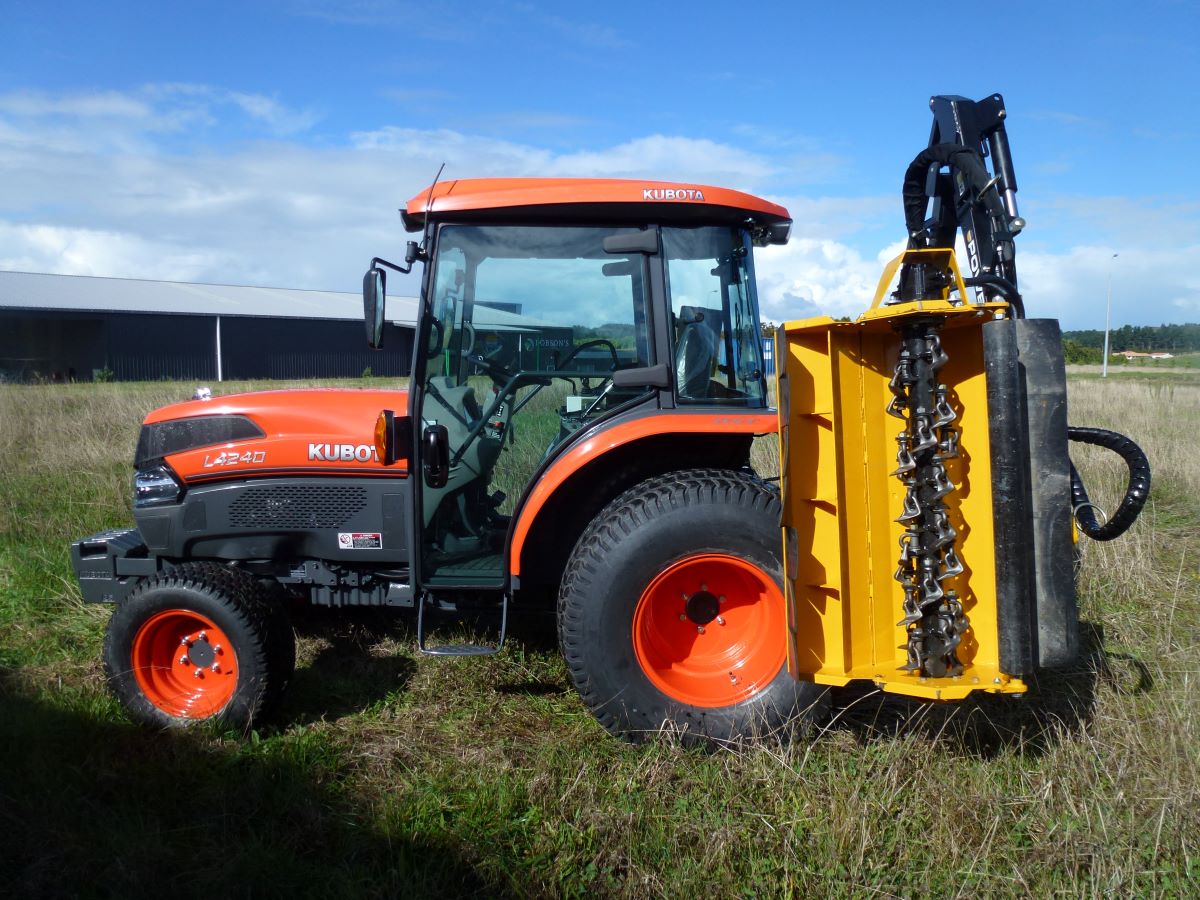

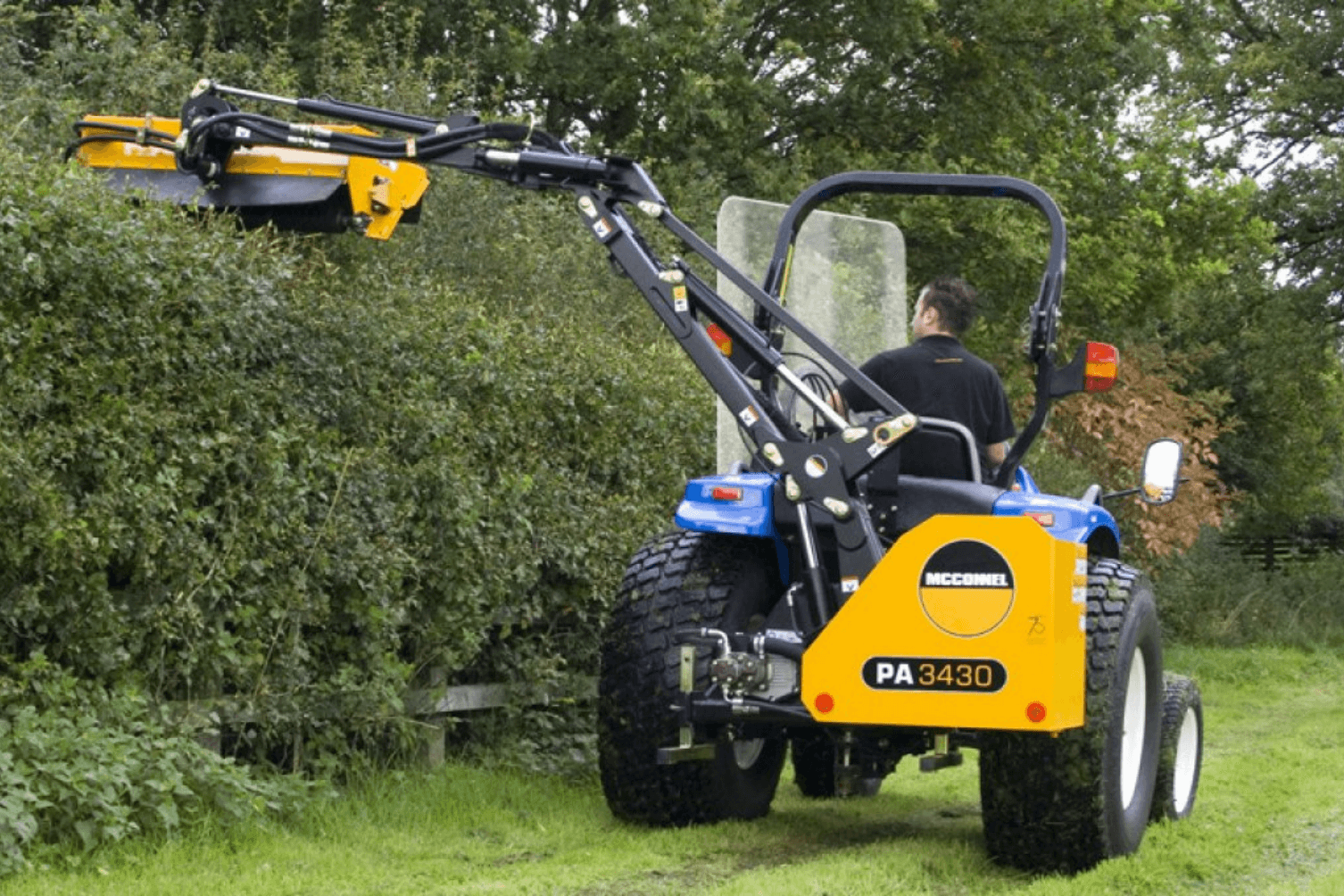

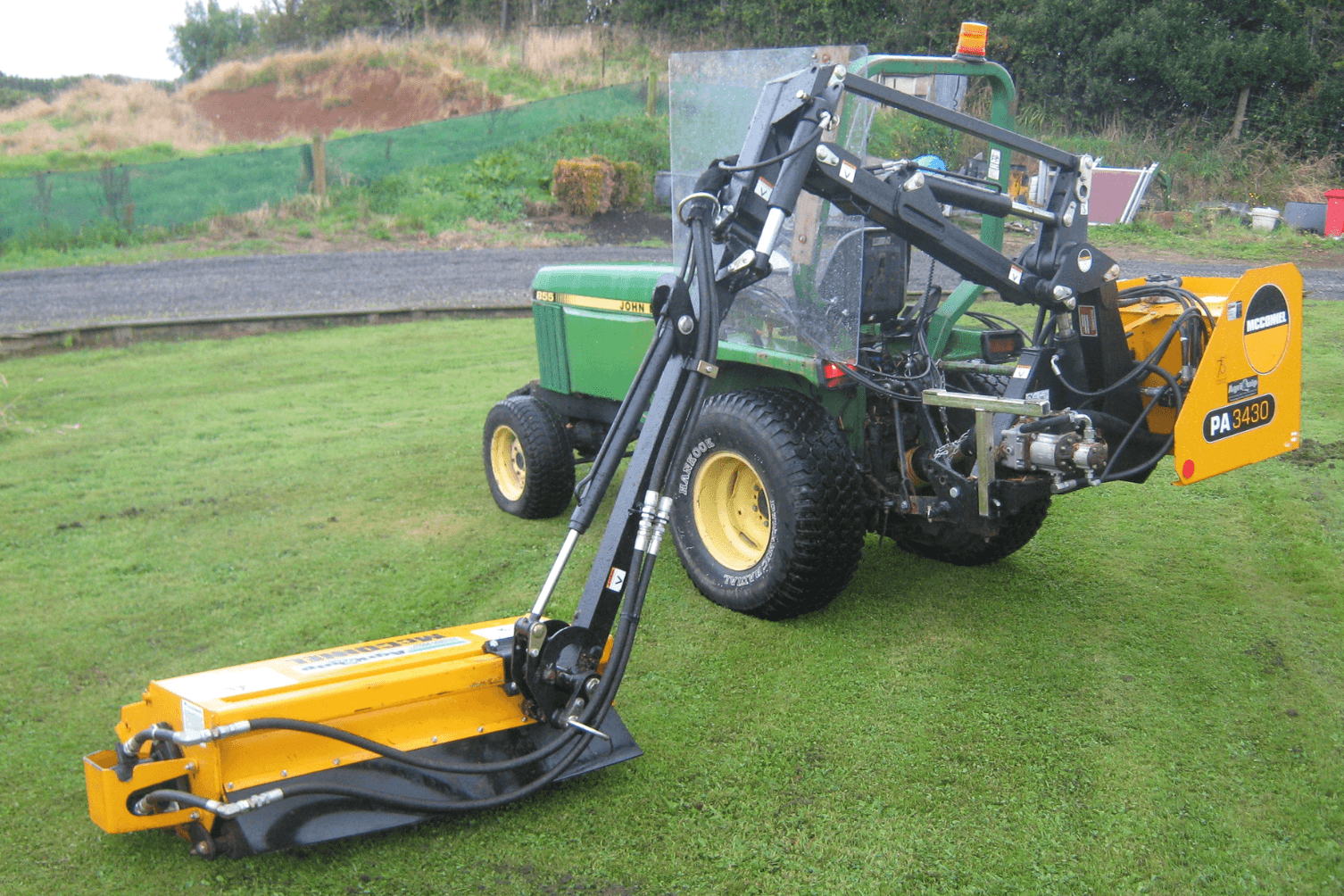

30-Series

PA3430, PA4330

McConnel's specialist compact Power Arm series combines the benefits of a light, fuel efficient design with outstanding maneuverability and precision.

Offering a choice of reach from 3.4 m to 4.3 m and deceptively powerful 30 HP hydraulics, 30-series Power Arms can be fitted to a wide range of utility vehicles and compact tractors.

Designed for the landscape, amenities and ground-care sectors, 30-series machines thrive in confined areas, parks and public grounds, and in sites with extensive street furniture.

They are also ideal for specialist contractors, local government, and small-scale farmers looking for a cost-effective hedgecutter for their own land.

FEATURES

  • • 3.4 m & 4.3 reach
  • • Choice of electric & cable rotor control
  • • 30 Hp hydraulics
  • • Choice of three-point linkage or front din-plate mounting
  • • Parallel arm geometry
  • • Lift & angle float kits
  • • Hydraulic safety breakaway
  • • Low power requirement
  • • Operator friendly
  • • Storage support legs

Maneuverability

30-series Power Arms are light, compact and highly maneuverable. Equipped with the latest parallel arm geometry and a choice of proportional controls, the machines offer exceptional precision and a neat fine cut.

Low power requirements

The 30-series delivers the benefits of McConnel's advanced hedge and verge-cutting technology for customers with compact and low horsepower tractors. The PA3430 is compatible with machines of just 35 HP.

BENEFITS

  • • Low running costs
  • • Delivers a fine cut
  • • Equally adept a hedge-cutting & verge-mowing
  • • Can handle one & two year's growth
  • • Easy to master
  • • Intuitive control
  • • Easy to maneuver
  • • Low maintenance
  • • Durable

Power Arm Overview

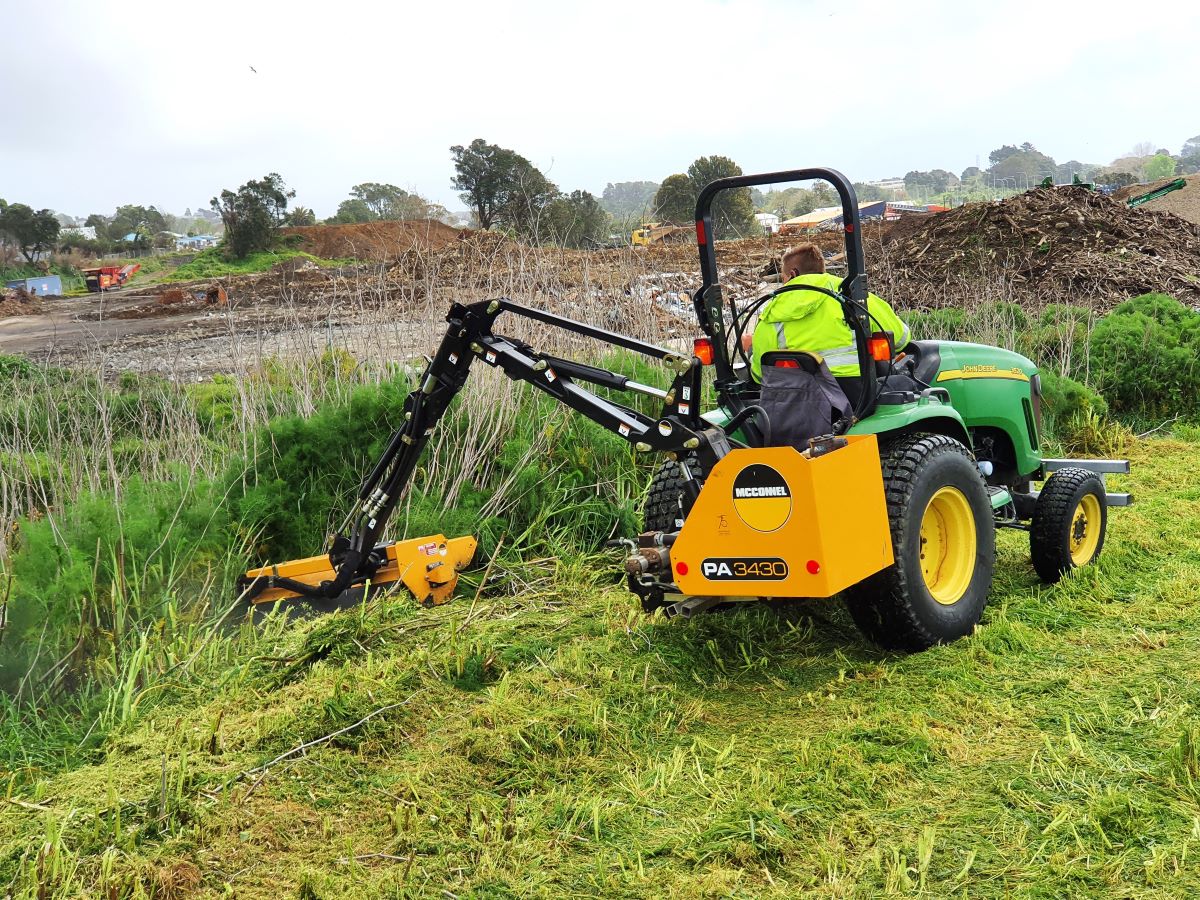

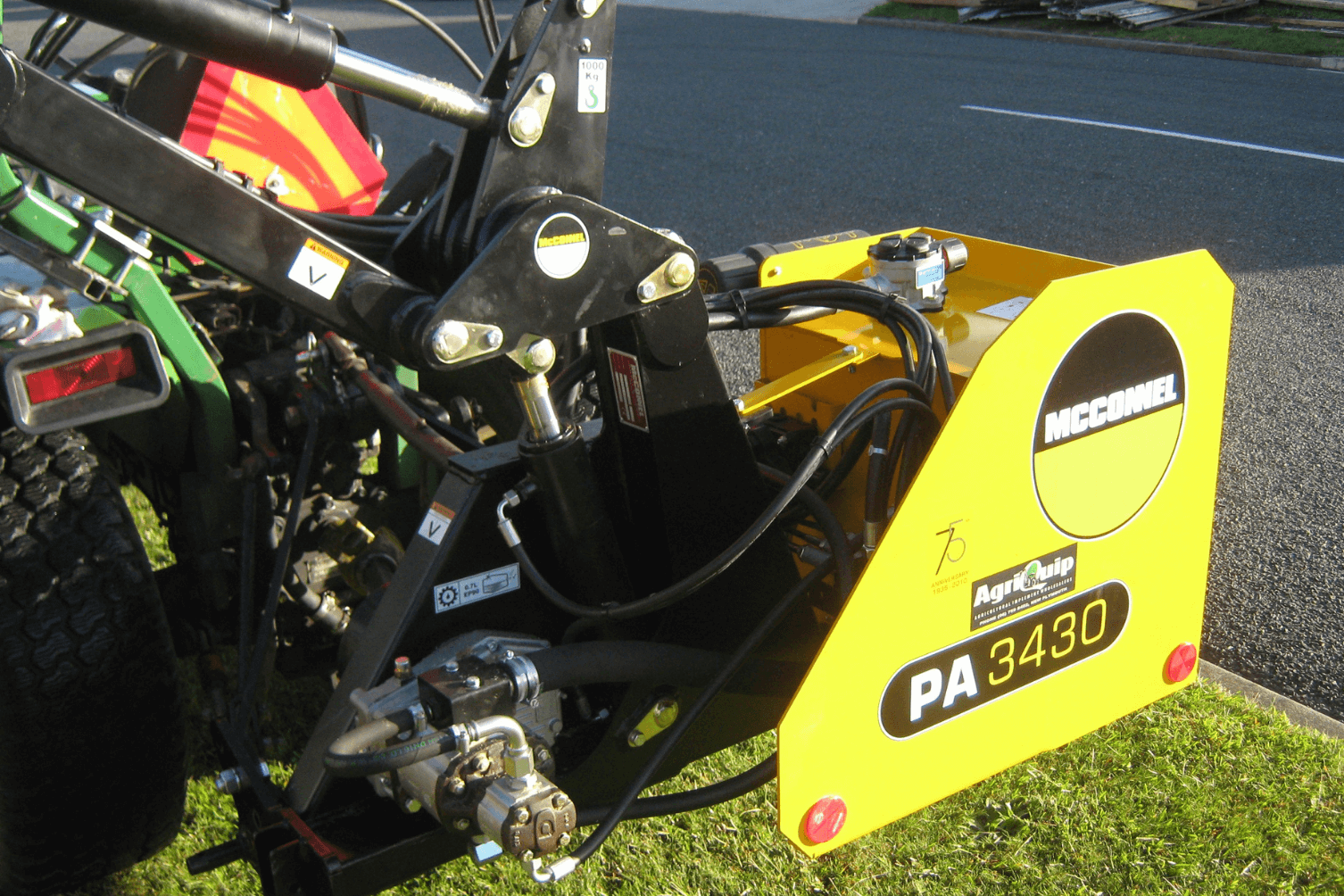

PA3430

3.4 m horizontal reach, 3.8 m vertical reach, three-point linkage mounted c/w stabilizer frame for rigid mounting for tractors from 35 HP (1300 kg) upwards, cable controls 25 HP independent hydraulic system and 1.0 m wide flail head.

PA4330

As above but with 4.3 m horizontal reach, 4.2 m vertical reach.

SPECIFICATIONS

PA3430                 PA4330
Reach  3.4 m 4.3 m
Machine weight*             400 kg 523 kg
Tractor HP requirement               35 HP 55 HP
Tractor weight requirement               1300 kg 2000 kg

*depending on machine specification excluding attachment and oil

WATCH 30-SERIES POWER ARMS IN ACTION

PHOTO GALLERY

(click photo to enlarge)









Back to Top

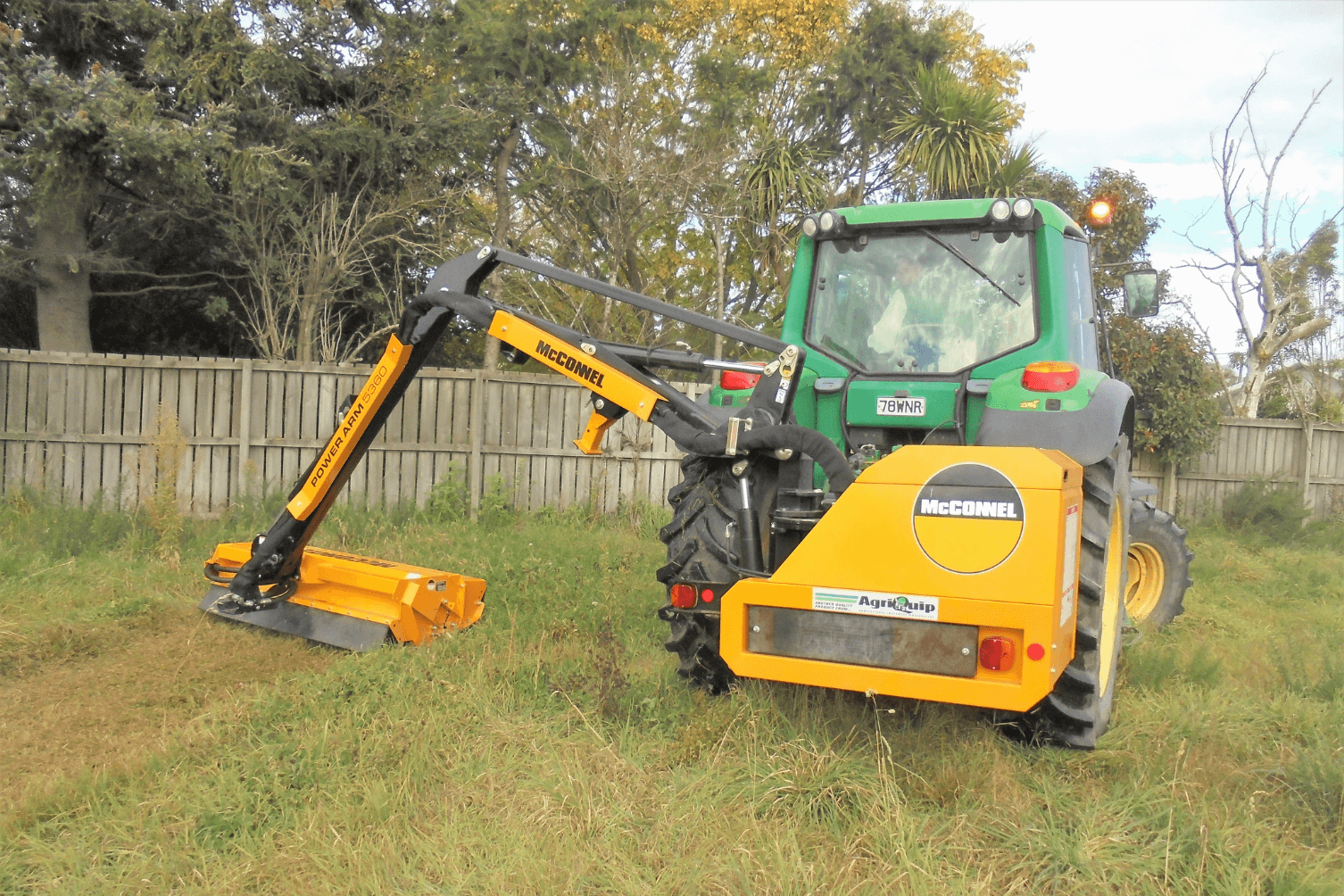

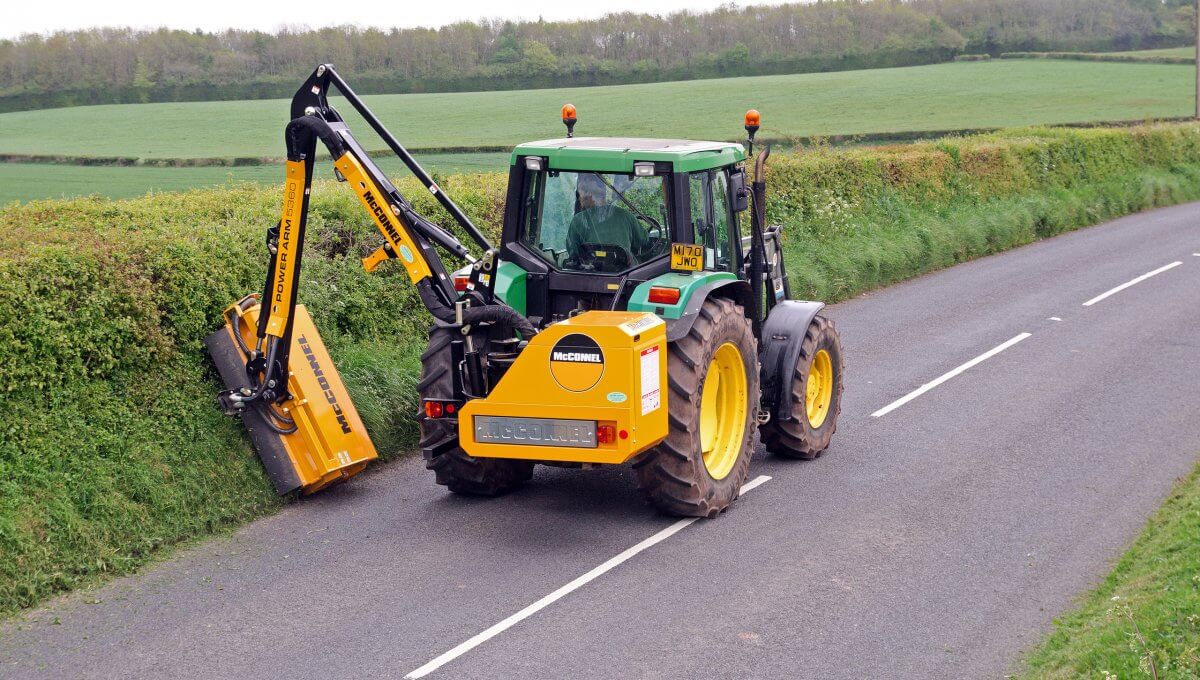

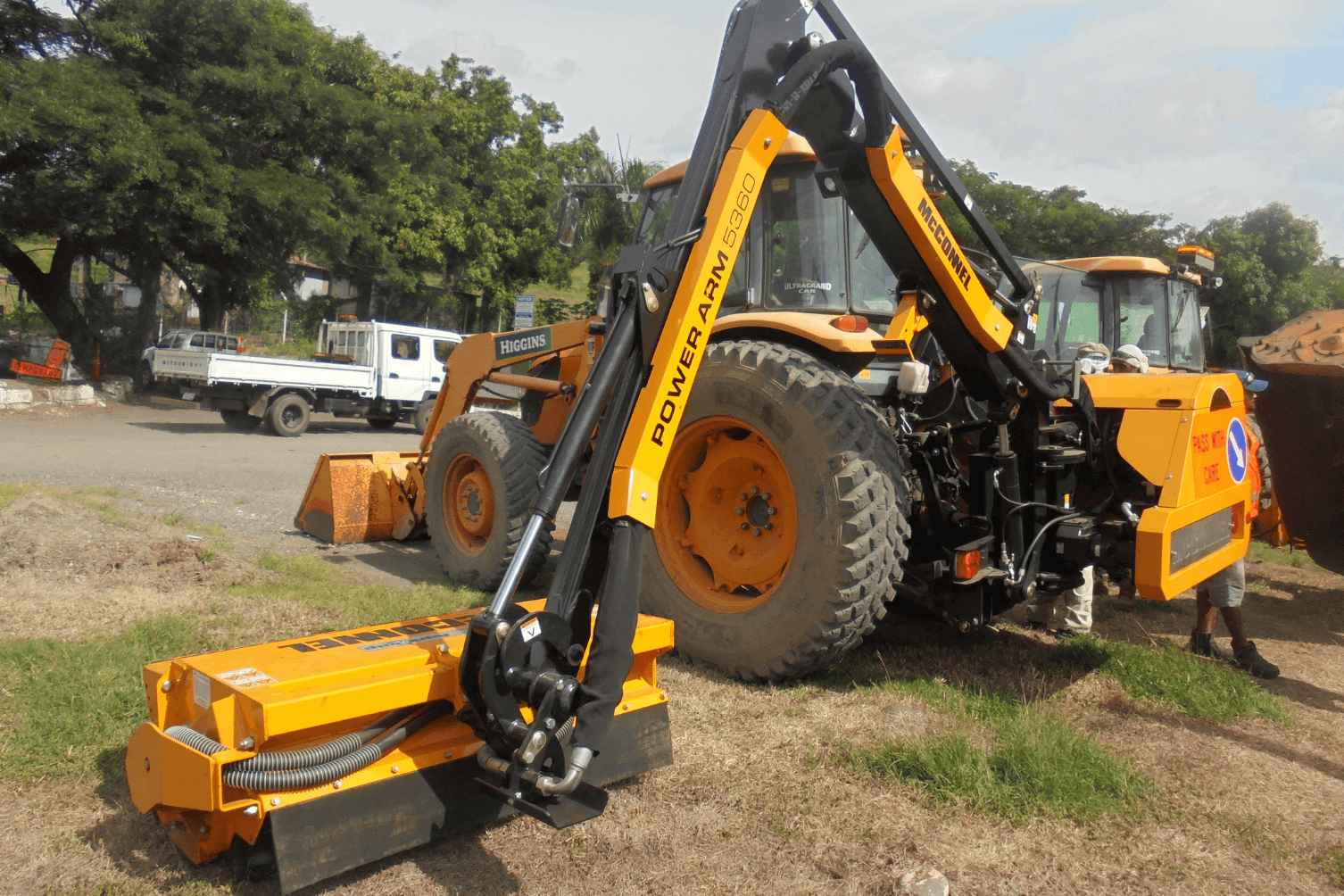

60-Series

PA5360

Created for large-scale farmers, contractors and local government green maintenance teams, the 60-series is tough and durable and includes such enhancements as tapered seam-welded arms for strength and lightness, a cushioned top link for comfort in transport, and an axle-mounting option.

While retaining the price of a mid-range machine, the 60-series allows access to a series of performance-enhancing features such as McConnel's award winning Easy Drive System and state-of-the-art Revolution controls.

FEATURES

  • • 5.3 m reach
  • • High-performance 60 HP hydraulics
  • • Variable Forward Reach
  • • Easy Drive System
  • • Tapered seam-welded arms
  • • Hydraulic safety breakaway
  • • Power Slew
  • • Lift & angle float kits
  • • The most advanced feature-set of any mid-range machine on the market

BENEFITS

  • • Enhanced visibility and comfort
  • • Outstanding feature set
  • • Verge-mowing speeds up to 4.5 times faster
  • • Enhanced visibility and safety
  • • State-of-the-art controls
  • • Robust build quality
  • • Great combination of performance and value
  • • Versatile work platform
  • • Enhanced comfort in transit

PA5360

5.3m horizontal reach, 6.3 m vertical reach, three point linkage mounted c/w stabiliser frame for rigid mounting. Heavy duty construction with parallel arm geometry and power slew. Cast iron 60 horsepower independent hydraulic system and 1.2 m flail head with T-flails, rear roller, rubber flaps front and rear, XTC electric controls. Available with optional 1.5 m head.

SPECIFICATIONS

PA 5360
Reach      5.3 m
Machine weight*              1015 kg
Tractor HP requirement              80 HP
Tractor weight requirement                       3500 kg

*depending on machine specification excluding attachment and oil.

Back to Top

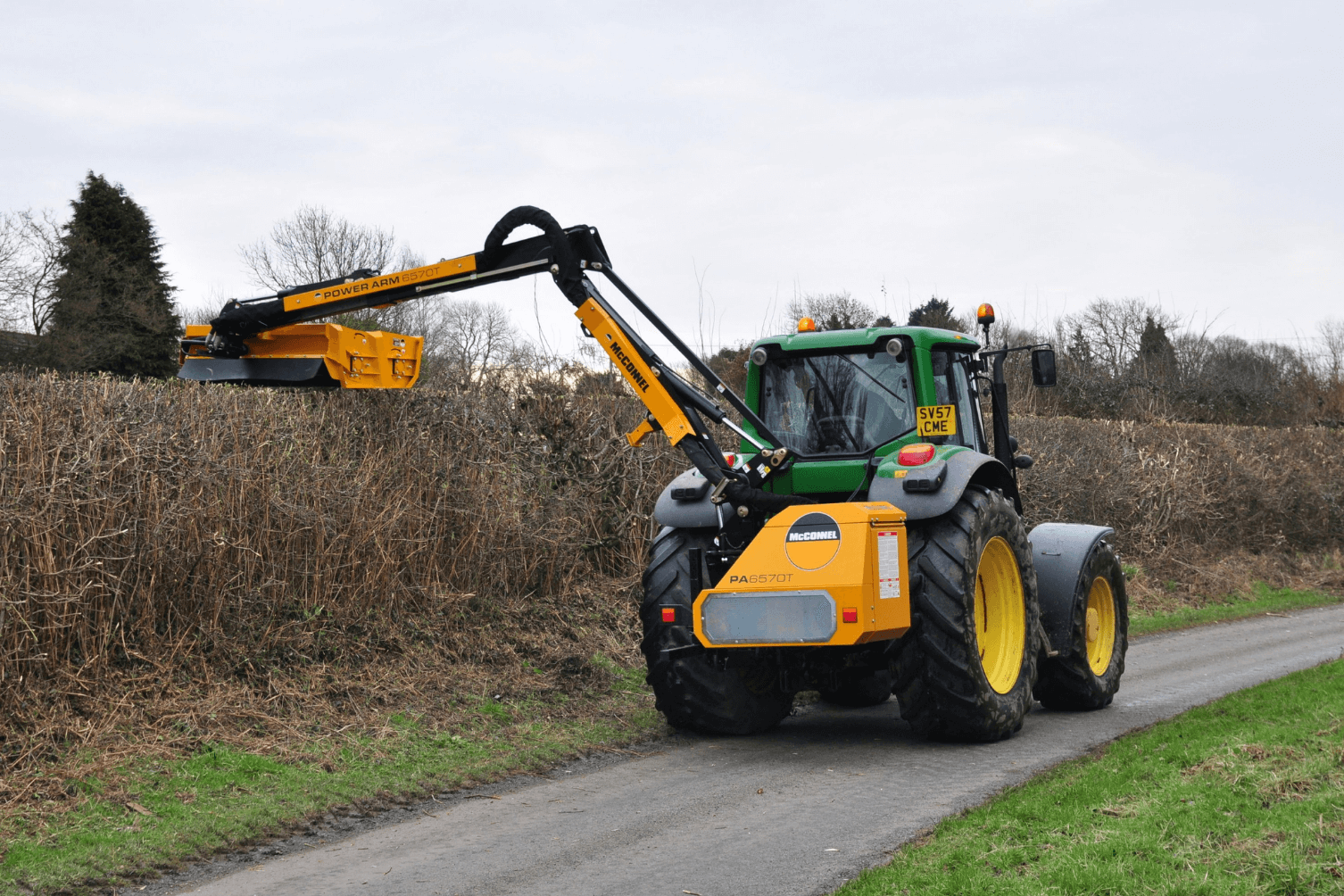

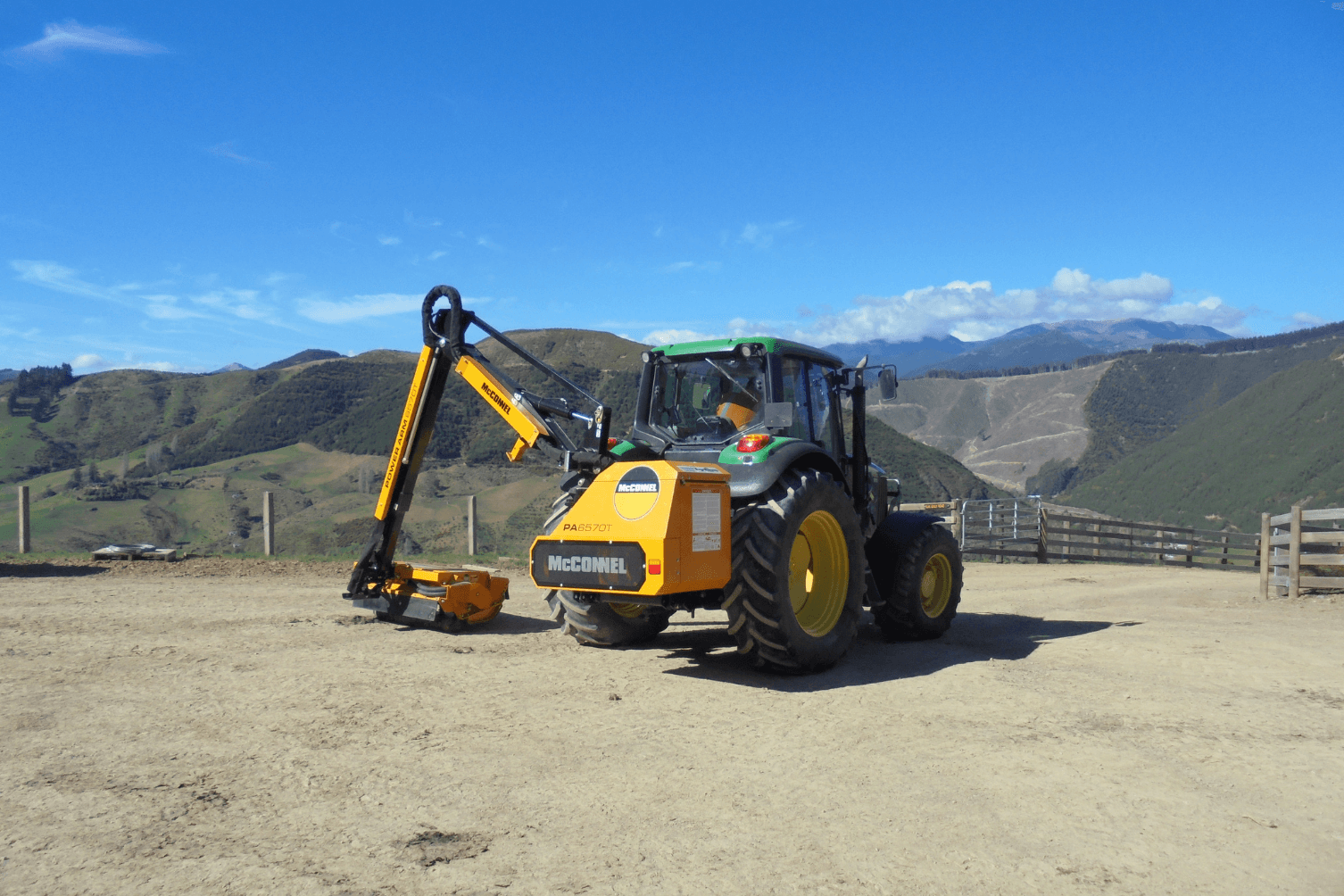

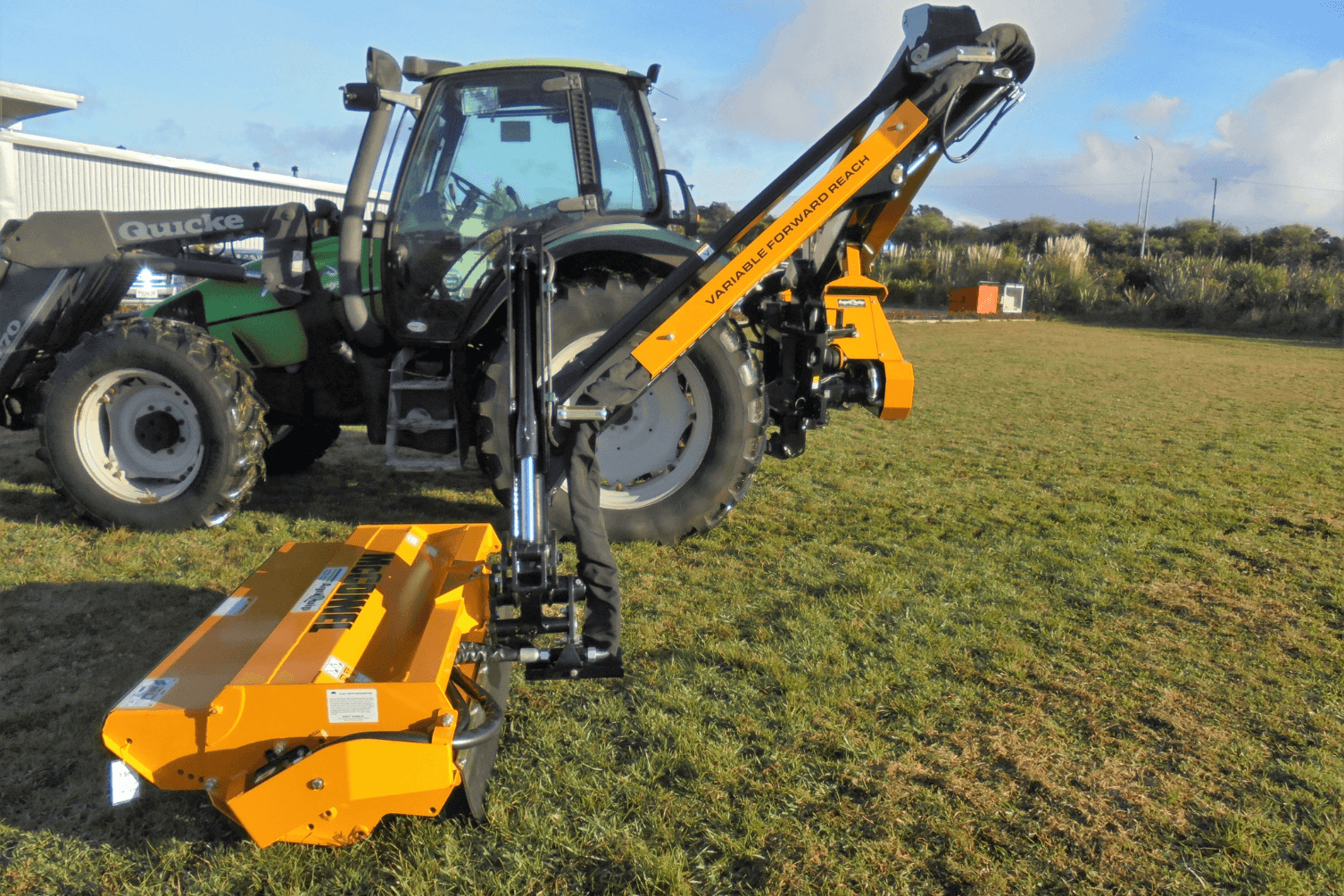

70-Series

PA6570T

Exceptional build quality ensures the machines can withstand the heavy workloads of professional contractors, while advanced features and arm-set technology deliver consistently outstanding performance.

The high performance 70-hp hydraulics system delivers the power you need for even the most challenging green maintenance tasks.

OVERVIEW

Specifically designed for large-scale farmers, contractors, and local government, 70-series machines come with a host of features to enhance performance, efficiency and safety - as well as state-of-the-art controls, flailheads and cutting attachments.

Created from super-strength Domex steel and boasting an advanced feature set with hundreds of different build and customization options, the series is the perfect choice for professional verge-mowers and hedge-cutters, and its versatility enables operators to customize a machine precisely to their needs.

FEATURES

  • • 7.0m reach
  • • High-performance 70hp hydraulics
  • • Three-point linkage or five-point axle mounting
  • • Telescopic armset options
  • • Tapered seam-welded arms for strength and lightness
  • • Easy Drive System
  • • Rugged Domex steel construction
  • • SoftStart rotor engagement
  • • Hydraulic power slew
  • • Hydraulic safety breakaway

Technology

70-series Power Arms can be specced with the very latest hedge-cutting and verge-mowing technology including EDS, TwinCut and McConnel's acclaimed Variable Foward Reach armset, which delivers the best in comfort, visibility and precision

BENEFITS

  • • Easy Drive System dramtically boosts mowing speeds and eases fatigue
  • • Enhanced visibility and comfort with VFR
  • • Durable and reliable
  • • Ideal for both verge-mowing and hedge-cutting
  • • Heavy duty transport stop for enhanced cab protection in transit.

Power Arm Overview

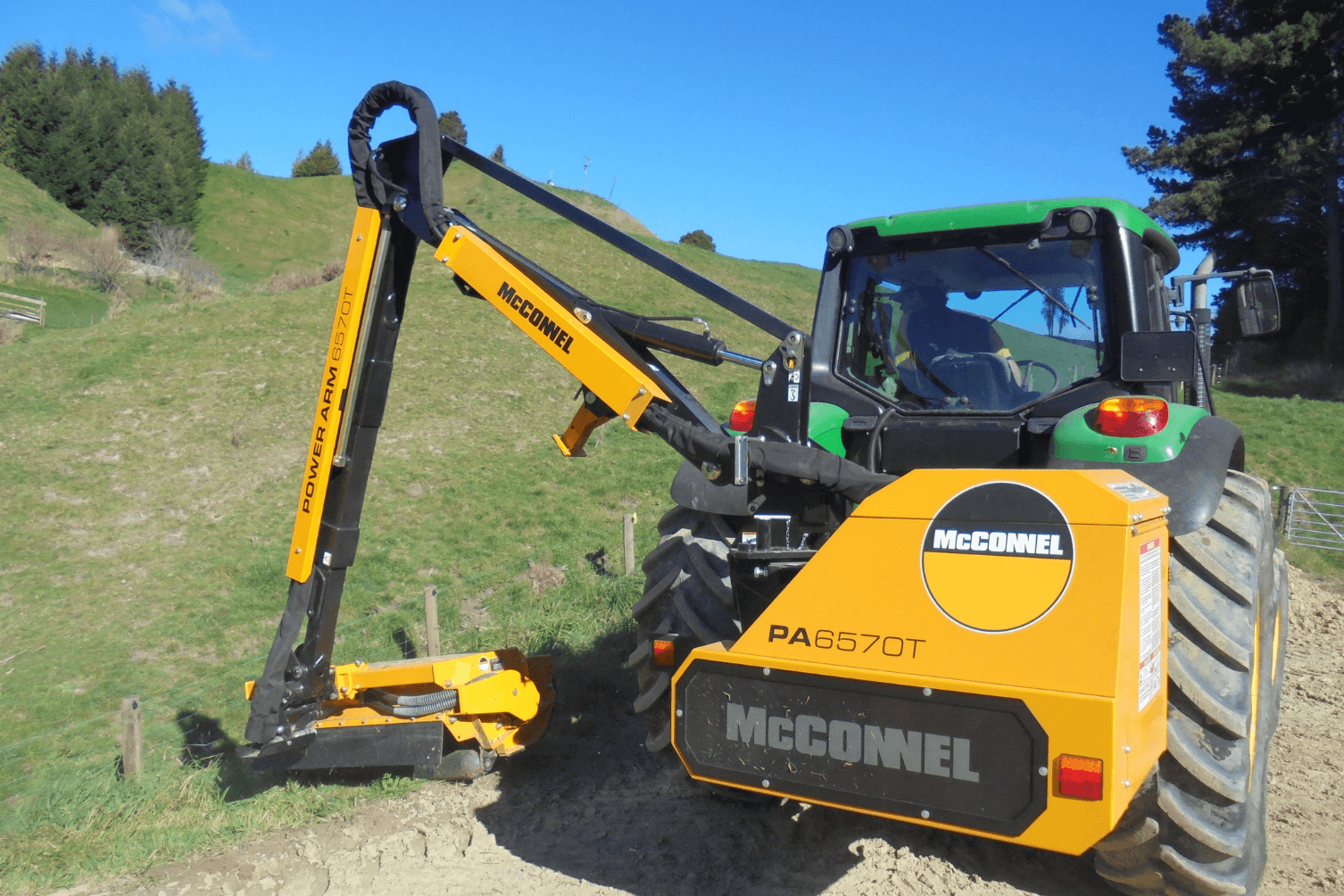

PA6570T

6.5 metre horizontal reach, 7.5 metre vertical reach and a telescopic second boom. Axle bracket mounted heavy cut hedge/grass cutter. Suitable for tractors of 100 horsepower and over 4500kg. Heavy duty multicut 1.2 metre flailhead with T-Flail, rear roller and rubber flaps front and rear. 70 horsepower hydraulic system c/w cast iron pumps and motor, direct drive motor. Parallel arm geometry, joystick proportional electric controls. Power slew and rear lighting kit fitted standard.

SPECIFICATIONS

Reach                                                  6.5m
Machine weight* 1214kg
Tractor HP requirement 100HP
Tractor weight requirement 4500kg

*depending on machine specification excluding attachment and oil.

Back to Top

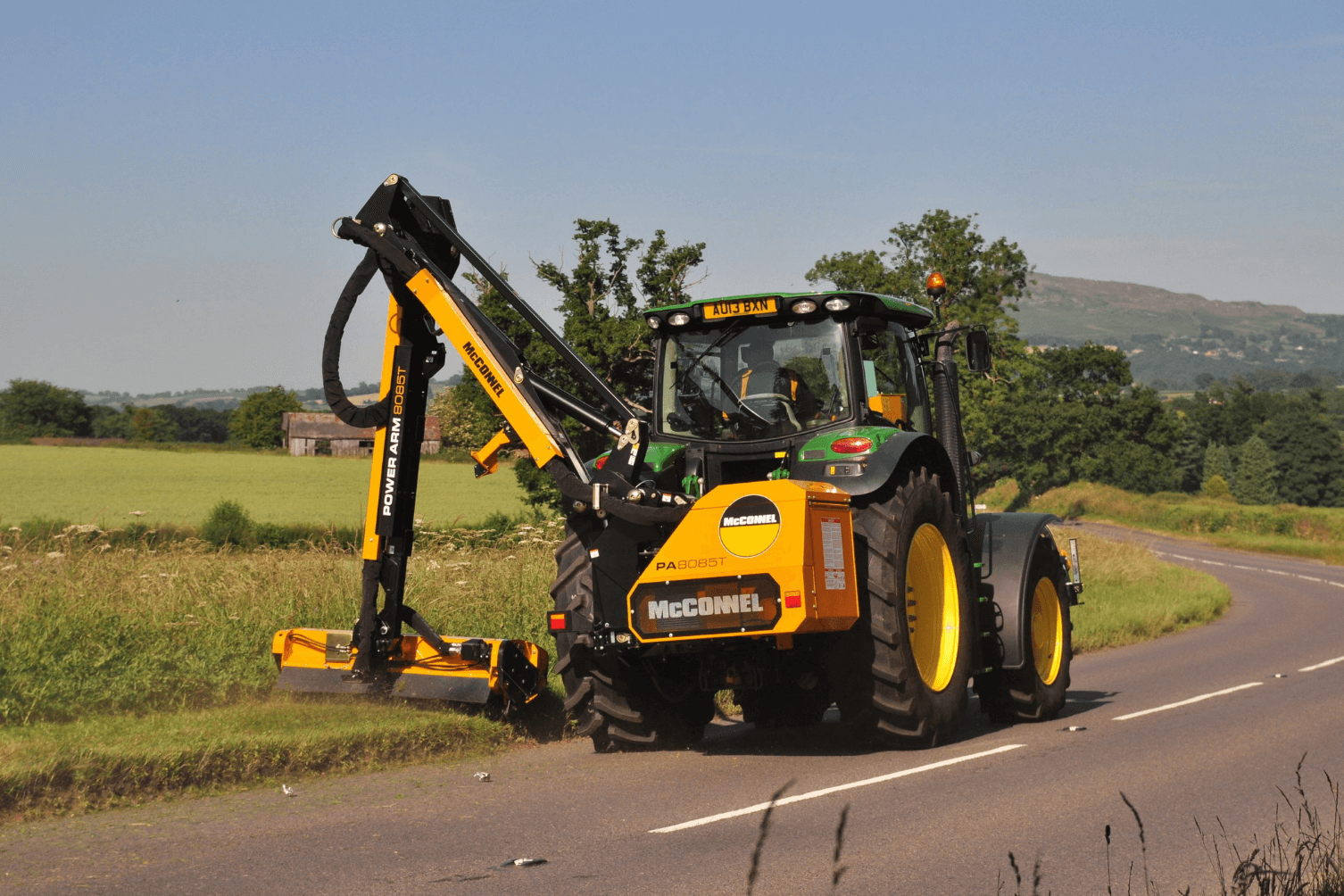

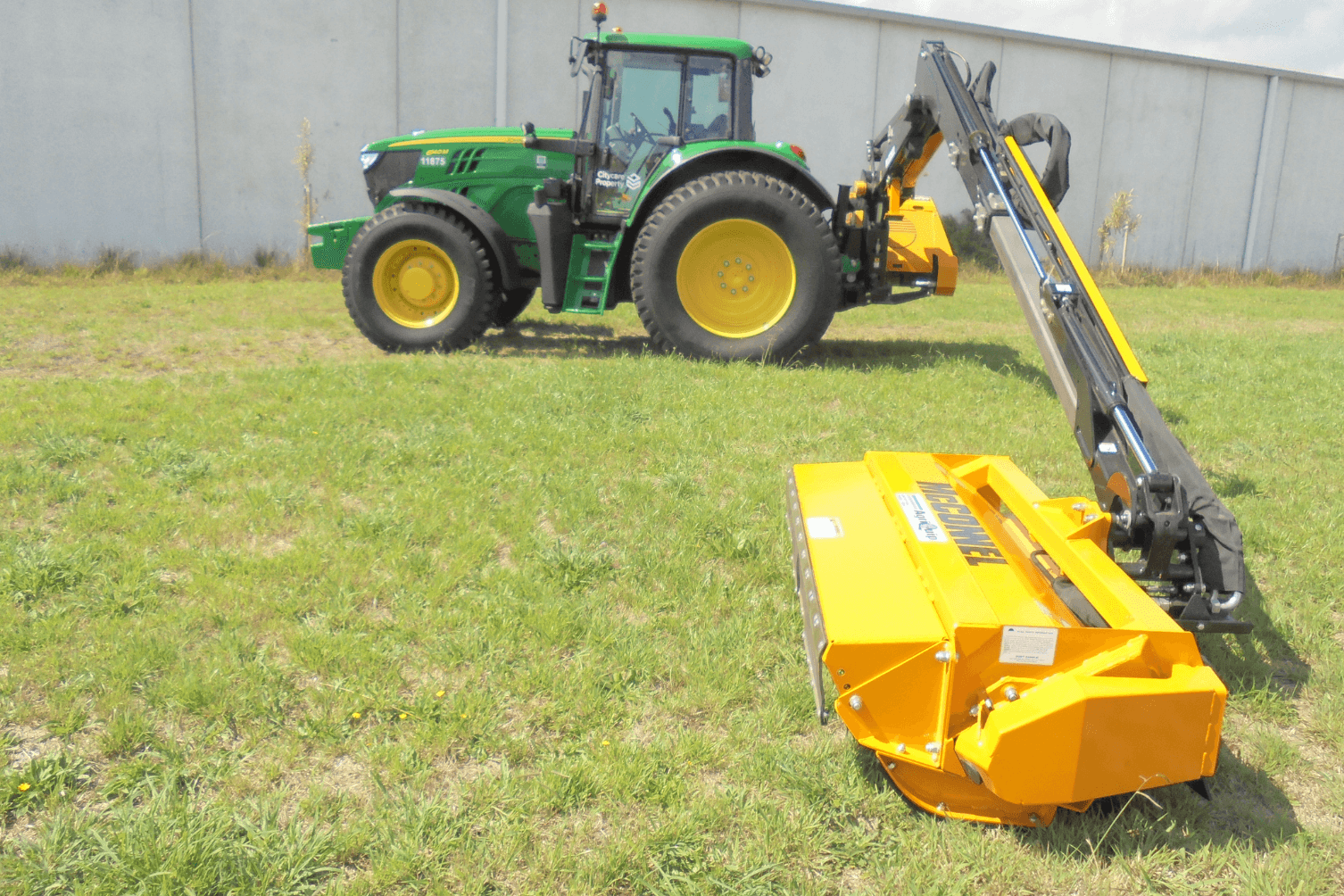

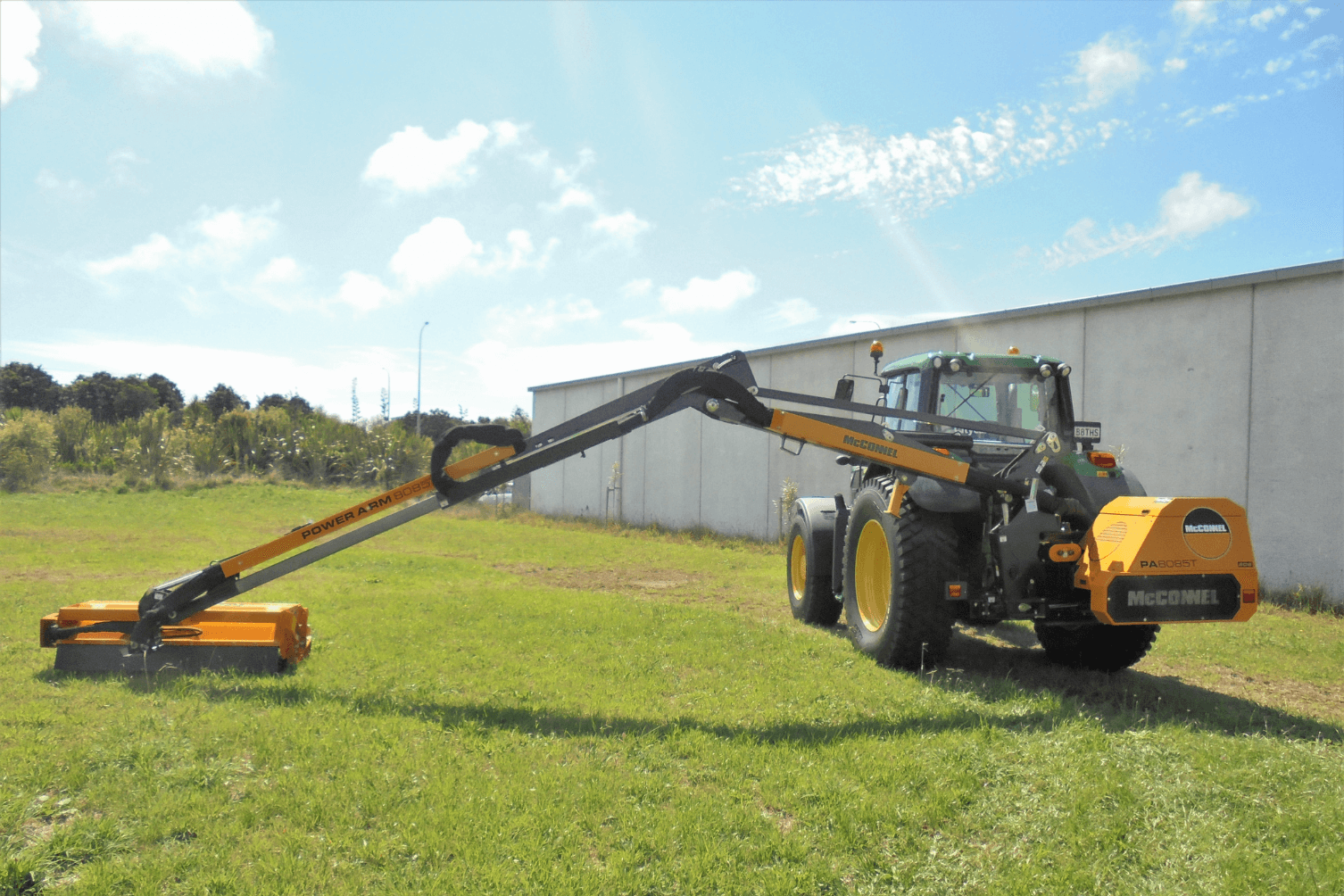

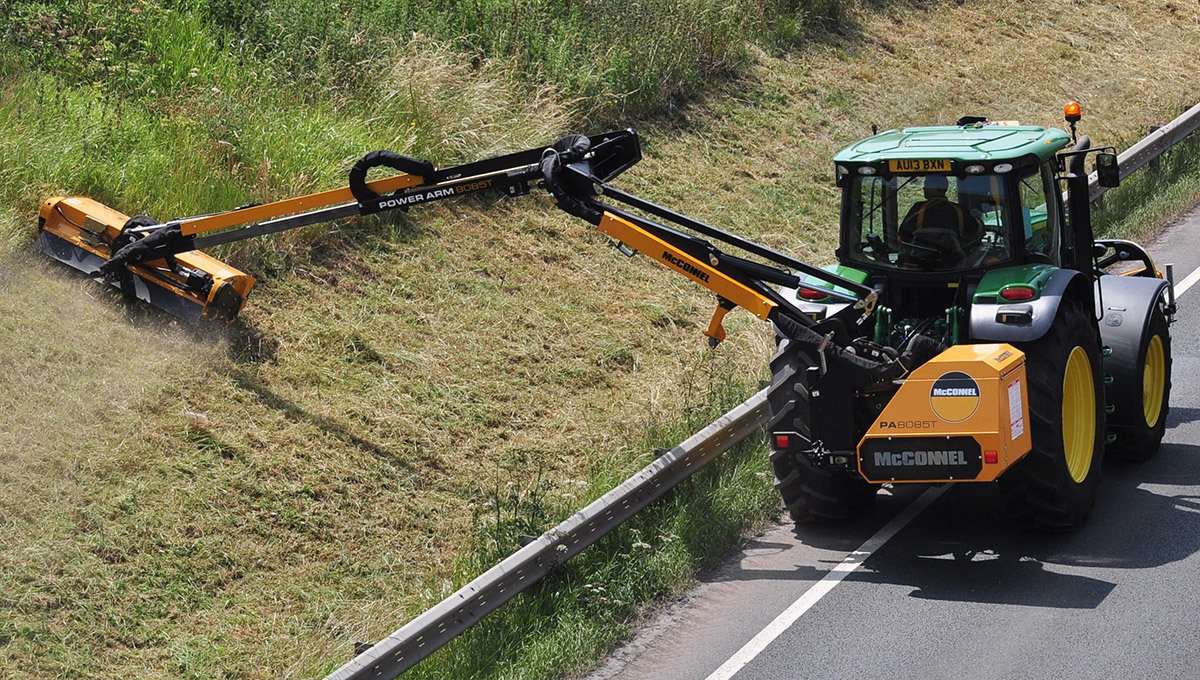

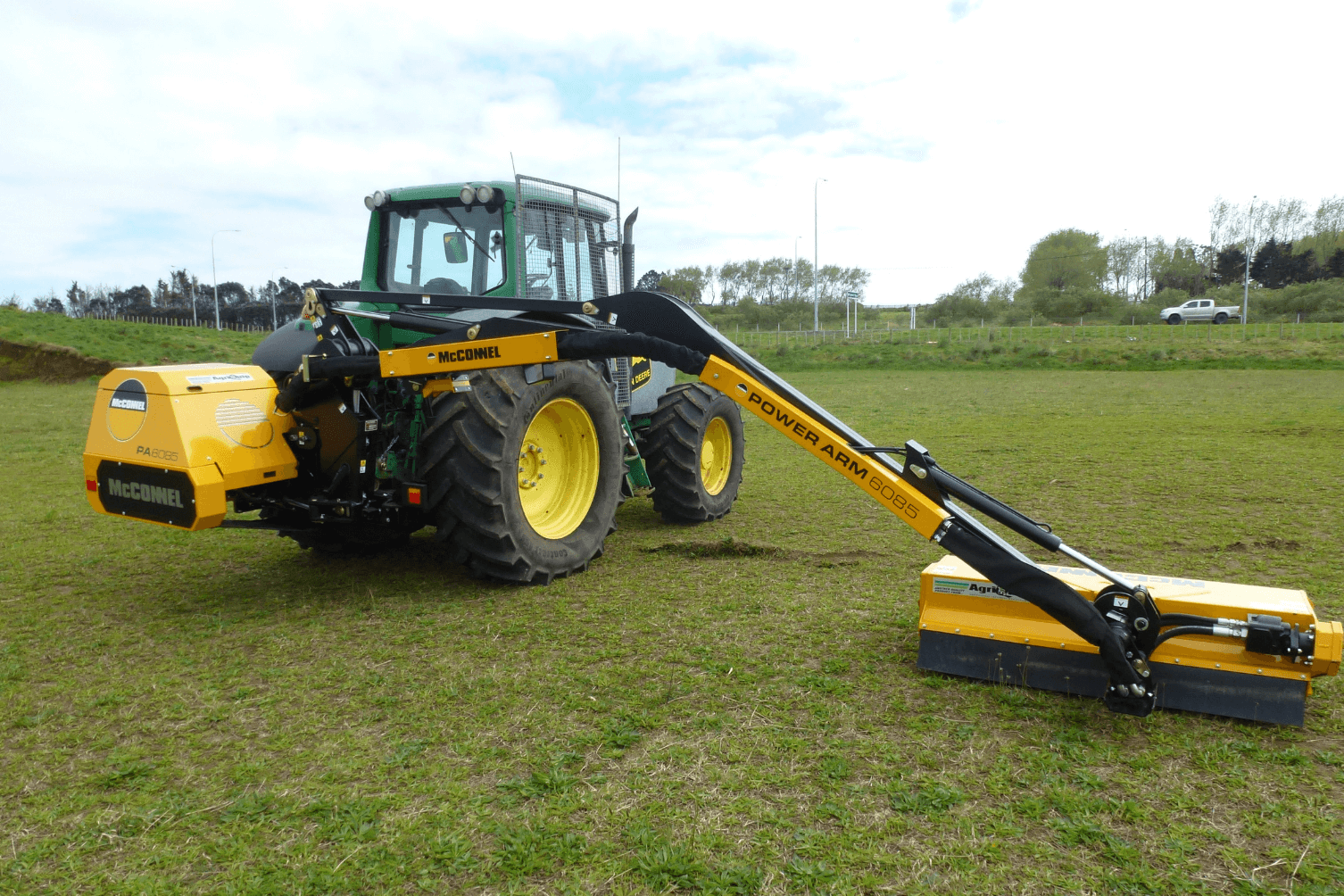

85-Series

PA6085, PA6585T, PA8085T

McConnel's flagship range of Power Arms is precision-engineered from super-strength Domex steel for the best in quality and durability - setting new standards for productivity, reliability and versatility.

Offering reach options from 6.0 m to 8.0 m and peak-performance 85 HP hydraulics, the 85-series offers the most advanced feature set on the market - including: Variable Forward Reach; McConnel's award-winning Easy Drive System; POWERBOOST; and the new Tele-VFR armset.

85-series Power Arms also come with a choice of next-generation control systems which enable precise and intuitive proportional control, programmable control sets, and a smooth learning curve.

OVERVIEW

Specifically designed for professional users, the 85-series delivers an exceptional performance and has been built to thrive on heavy workloads - making it ideal for large-scale farmers, professional contractors and highway verge-mowing teams.

85-series Power Arms are compatible with a comprehensive range of attachments, including Cutterbars, Rotary Heads, Ditch and Grip Cleaners, - enhancing their functionality and enabling contractors to offer a broader range of green maintenance services.

FEATURES

  • • 6.0 m, 6.5 m, 8 m reach
  • • High-performance 85 HP hydraulics
  • • Choice of three-point linkage (PA6085 & PA6585 only) or five-point axle mounting
  • • Telescopic armset available
  • • Variable Forward Reach
  • • The new Tele-VFR armset
  • • Tapered seam-welded arms for strength and lightness
  • • Easy Drive System
  • • POWERMATCH
  • • Rugged Domex steel construction
  • • SoftStart rotor engagement
  • • Hydraulic Power Slew
  • • Hydraulic safety breakaway

Durability

Built from Domex steel, 85-series Power Arms are the toughest mainstream machines on the market, with a suite of advanced features to enhance durability. These include: SoftStart rotor engagement, hydraulic safety breakaway, cushioned top link, and tapered seam-welded arms.

Performance

Powered by 85 HP hydraulics, these machines can tackle even the toughest green maintenance challenges. Performance enhancing options include EDS, POWERBOOST.

BENEFITS

  • • Work up to four and a half times faster with EDS
  • • Arm extension speed is up to three times faster with POWERBOOST
  • • Improved visibility and comfort with VFR and Tele-VFR
  • • McConnel's most powerful and durable Power Arm
  • • Comprehensive choice of working attachments
  • • Available with REVOLUTION, the most advanced Power Arm control system in the world
  • • Ideal for both verge-mowing and hedge-cutting
  • • Heavy-duty transport stop for enhanced cab protection in transit

Power Arm Overview

PA6085

6.0 m horizontal reach, 7.1 m vertical reach. Axle bracket mounted, heavy duty hedge/grass cutter. Heavy duty multicut 1.2 m flail head with T-flails, rear roller and rubber flaps front and rear. 85 HP hydraulic system c/w cast iron pumps and motor, direct drive motor. Parallel arm geometry, joystick proportional electric controls. Power slew and rear lighting kit fitted standard.

PA6585T

As above but with 6.5 m horizontal reach, 6.8 m vertical reach

PA8085T

8 m horizontal reach, 7.9 m vertical reach and a telescopic second boom. Axle bracket mounted heavy duty hedge/grass cutter. Heavy duty multicut 1.2 m flail head with T-flails, rear roller and rubber flaps front and rear. 65 Hp hydraulic system c/w cast iron pumps and motor, direct drive motor. Parallel arm geometry, joystick proportional electric controls. Power slew and rear lighting kit fitted standard.

SPECIFICATIONS

PA6085               PA6585T              PA8085T
Reach     6.0 m 6.5 m 8.0 m
Machine weight* 1340 kg 1650 kg 1800 kg
Tractor HP requirement                      120 HP 120 HP 120 HP
Tractor weight requirement 5000 kg 5500 kg 5500 kg

*depending on machine specification excluding attachment and oil.

PHOTO GALLERY

(click photo to enlarge)







Back to Top


1000-Series

Designed to thrive on the busy workloads of professional contractors and local government teams, 1000-series machines are robust, reliable and highly productive.

A long time favourite of contractors around the world, 1000-series machines excel at hedge-cutting, verge-mowing, and vegetation clearance.

Created from super-strength Domex steel and boasting an advanced feature set with hundreds of different build and customization options, the series is the perfect choice for professional verge-mowers and hedge-cutters.

FEATURES

  • • 5.6 m reach
  • • Variable Forward Reach option
  • • Five-point axle mounting
  • • Telescopic armset options
  • • Tapered seam-welded arms for strength and lightness
  • • Easy Drive System
  • • Rugged Domex steel construction
  • • Hydraulic Power Slew
  • • Hydraulic safety breakaway

Productivity

The 1000-series helps you work harder, smarter and faster thanks to an innovative range of features and attachments such as EDS and VFR which are proven in the field and enhance safety, comfort and productivity.

Versatility

1000-series machines are among the most versatile in the McConnel product portfolio with a comprehensive choice of attachments including Ditch cleaners, Rotary heads and Cutterbars.

BENEFITS

  • • Easy Drive System dramatically boosts mowing speeds and eases fatigue
  • • Greater cutting flexibility with Telescopic arm models
  • • Durable and reliable
  • • Available with REVOLUTION, the most advanced Power Arm control system in the world
  • • Ideal for both verge-mowing and hedge-cutting
  • • Heavy duty transport stop for enhanced cab protection in transit

SPECIFICATIONS

PA5600
Reach 5.6 m
Machine weight*                1500 kg
Tractor HP requirement  75 HP
Tractor weight requirement              4000 kg

*depending on machine specification excluding attachment and oil.

PHOTO GALLERY

(click photo to enlarge)
