POWER GENERATION SOLUTION

PTO Generators

AgriQuip's PTO Generators offer a cost-effective, top-quality power generation solution for your emergency power needs.

The advantage of the PTO generator is that it does not have another diesel engine to maintain - your tractor provides the motive power to run it and seeing as you probably already have a tractor, why go to the unnecessary expense of buying and maintaining another engine... Why not use your tractor?

2-Year Warranty

We understand that when you buy a farm implement, you want to have that assurance that who you purchased the product from will have you back, and that's what we do at AgriQuip, we back our Generators with a 2-year warranty to give you peace of mind.

Guaranteed Safe Power

With increasing amount of sensitive electronics in cow sheds around New Zealand these days, you will be concerned about whether or not these will be safe if you power your shed with a PTO driven Generator. Well we can assure you that if you use an AgriQuip PTO Generator there is NO RISK! With the technology standard in our gensets, the power can even be more clean than the power from the grid! We have sold hundreds of gensets into dairy farms and not one have had an issue.

Durability through Quality

Built in Italy from only the highest quality components, including a Mecc Alte alternator and Bima gearbox, you can be sure that an AgriQuip PTO Genset will power-up your dairy milking shed when you're in a time of need, and for many, may years to come. Mounted on a very robust hot-dipped galvanised frame ensuring that the generator is protected during transport and on the job.

We have the Expertise

When buying a generator for your dairy shed, you want to do so from someone that knows what they're talking about right? Well that's what we can offer you at AgriQuip, we know what we are talking about. Give us a call today to discuss your requirements.

100% Customer Satisfaction

Since 2011, we've supplied over 600 PTO Generators to dairy farms across New Zealand — and we’re proud to say we've received 100% positive feedback and customer satisfaction.

We Go the Extra Mile

When you buy from AgriQuip, you're not just getting a generator — you're gaining a reliable partner for the long haul.
Our team knows farming doesn't wait, which is why we’re with you every step: from helping you choose the right model for your shed, to delivering it ready to go — and backing you with support for the lifetime of the generator.

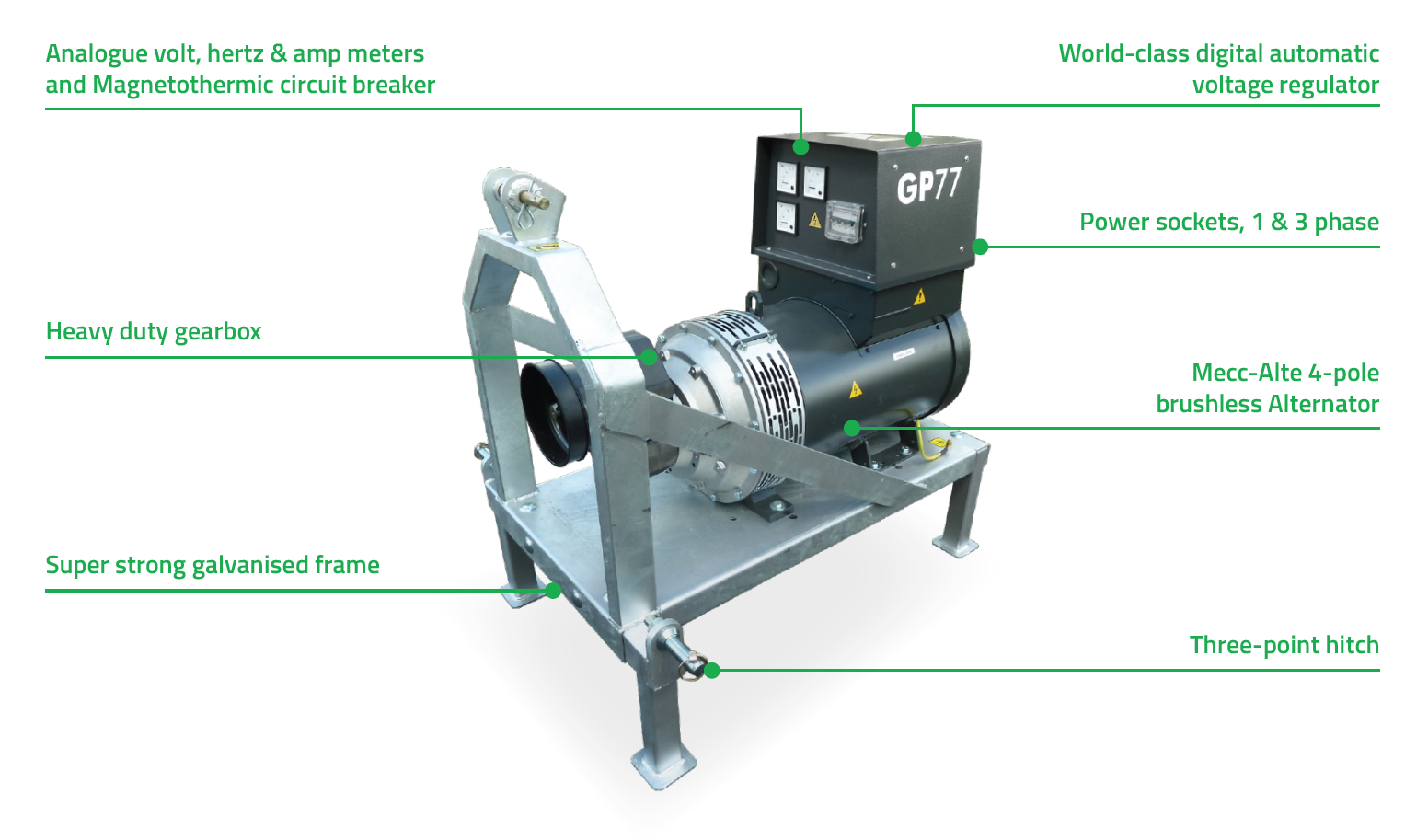

Digital AVR

World-class digital automatic voltage regulator to automatically control output voltage

Mecc Alte 4 pole alternator

Providing more accurate power delivery.

Wiring to NZS3000 standard

3 phase protection mccb and single-phase protection mc.

Volt, amp & hertz meter

Ensures good visual clarity from the tractor seat.

2 Year Warranty

Giving you piece of mind

PTO Shaft Included

High quality PTO drive shaft is included

Quality gearbox

Heavy-duty and oil-filled Bima step up gearbox.

Single + 3 phase socket

Single & 3-phase outlets (GP115 has a terminal board), all meeting NZ Standards for electrical socket outlets.

Galvanised Frame

Mounted on a super strong galvanised frame

GP33 TR/S GP55 TR/S GP77 TR/S GP95 TR/SF GP115 TR/SF

kVA Prime

GP33 TR/S 30kVA

GP55 TR/S 50kVA

GP77 TR/S 75kVA

GP95 TR/SF 85kVA

GP115 TR/SF 100kVA

kW Prime

GP33 TR/S 24kW

GP55 TR/S 40kW

GP77 TR/S 60kW

GP95 TR/SF 68kW

GP115 TR/SF 80kW

kVA Standby

GP33 TR/S 33kVA

GP55 TR/S 55kVA

GP77 TR/S 77kVA

GP95 TR/SF 94kVA

GP115 TR/SF 115kVA

Rated Current @ 50Hz

GP33 TR/S 43.3A

GP55 TR/S 72.2A

GP77 TR/S 108A

GP95 TR/SF 126.4A

GP115 TR/SF 144.5A

PTO Speed (RPM)

GP33 TR/S 430

GP55 TR/S 430

GP77 TR/S 430

GP95 TR/SF 835

GP115 TR/SF 835

Generator Speed (RPM)

GP33 TR/S 1500

GP55 TR/S 1500

GP77 TR/S 1500

GP95 TR/SF 1500

GP115 TR/SF 1500

Alternator Type

GP33 TR/S Brushless

GP55 TR/S Brushless

GP77 TR/S Brushless

GP95 TR/SF Brushless

GP115 TR/SF Brushless

Voltage Output (V)

GP33 TR/S 400/230

GP55 TR/S 400/230

GP77 TR/S 400/230

GP95 TR/SF 400/230

GP115 TR/SF 400/230

Weight (kg)

GP33 TR/S 217

GP55 TR/S 395

GP77 TR/S 454

GP95 TR/SF 506

GP115 TR/SF 572

Tractor Power Required (Approx)

GP33 TR/S 60-80hp

GP55 TR/S 80-100hp

GP77 TR/S 110-130hp

GP95 TR/SF 130-150hp

GP115 TR/SF 160-200hp

What size Generator do I need to run a Dairy Shed?

The best way to establish what size generator you need to run you dairy shed is to ask your electrician to give you a total power requirement for your shed in kVA. This can be done by adding up the starting and running Watts of each appliance, motor, pump and other electrical devices or computers. The total will give you the minimum you will need, add 12% onto this as a buffer and you have your ideal generator size. To convert from Watts to kVA, Watts / Power Factor (0.8) = KVA so, Watts / 0.8 = KVA

See also our blog on choosing the right sized generator

Can I safely run all sensitive electronic components with the PTO Genset?

Yes, our PTO Generators can be used to power all sensitive electronics such as computers etc as they produce such clean power, far cleaner than the grid. AgriQuip generators come standard with a digital AVR (Automatic Voltage Regulator) which maintains the generator output terminal voltage at a set value, or simply put, it stabilises the power output.

Who manufactures these PTO generators?

Our generators are made by Green Power Systems SRL in Italy, with the alternator being made by Mecc Alte, the largest independant alternator manufacturer in the world and also an Italian company

What's the advantages of a PTO driven generator over a diesel or petrol powered one?

Cost-effectiveness: PTO generators are often more cost-effective compared to standalone diesel or petrol generators. Since they use existing power sources (e.g. your tractor), there is no need to invest in a separate engine, reducing the overall cost of the system.
Maintenance and service: With PTO generators, there is no need to maintain a separate engine as the power source. This can simplify maintenance and reduce the number of parts that need servicing or replacement, potentially leading to cost savings over time.
Fuel efficiency: PTO generators utilize the power from an existing engine, which is usually optimized for fuel efficiency. This can result in lower fuel consumption compared to dedicated diesel or petrol engines in standalone generators.
Versatility and availability: PTO generators can be used with a variety of equipment that has a PTO connection, such as tractors, trucks, or industrial machinery. This makes them highly versatile and easily adaptable to different settings, especially in rural or agricultural areas where tractors are commonly used.
Reduced noise and emissions: Since PTO generators use the existing engine, they generally produce lower noise levels and emissions compared to dedicated diesel or petrol generators. This can be beneficial for environments where noise and emissions need to be minimized.
Power output flexibility: PTO generators can be coupled to different power sources, allowing users to adjust the power output based on the specific needs of the application. This flexibility can be advantageous in various scenarios.
