Bomford Falcon Evo

HIGH-QUALITY EQUIPMENT

Bomford Products

Bomford’s products are of the highest quality due to the fact that their machinery range is conceptualised, designed, built, and tested on-site. Everything is monitored, from start to finish, by their team of dedicated experts. Every single Bomford manufactured machine is powder-coated to guarantee the utmost durability and strength of the exterior finish. This level of strength matches the interior rigidity of the machines so they have the longest possible life. This, in turn, lowers the overall operating cost for buyers.

Our range of Bomford products

Select a product to learn more about the specifications & features.

REAR-MOUNTED ARM MOWER

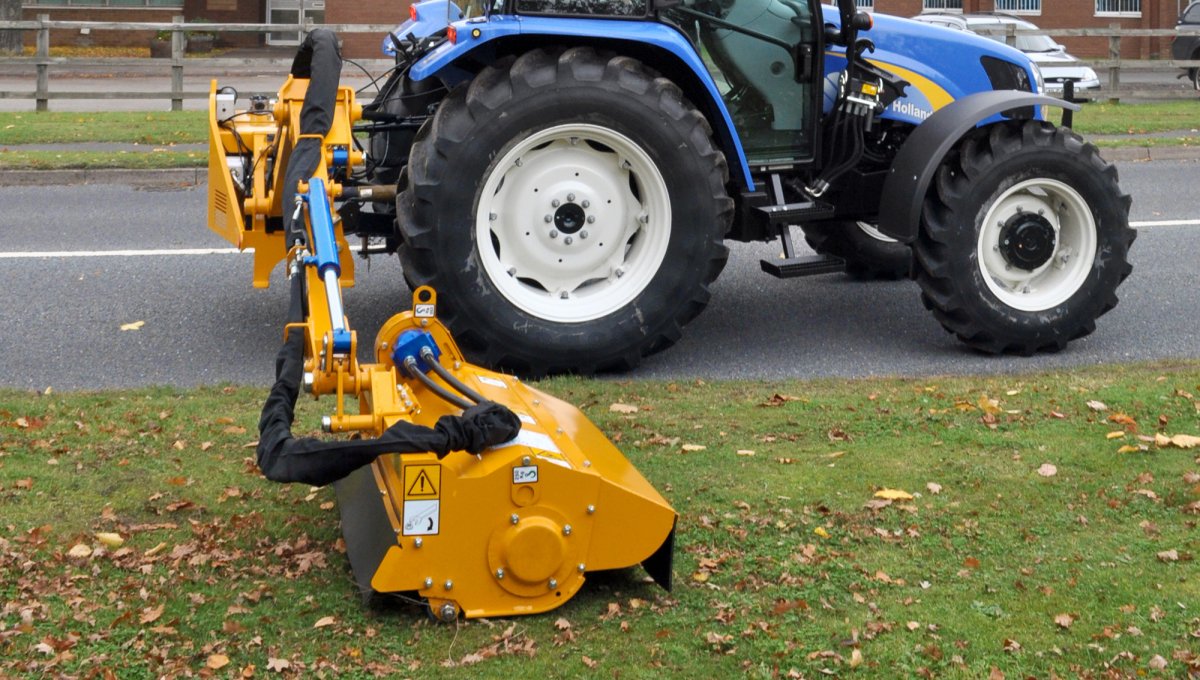

Raven 47

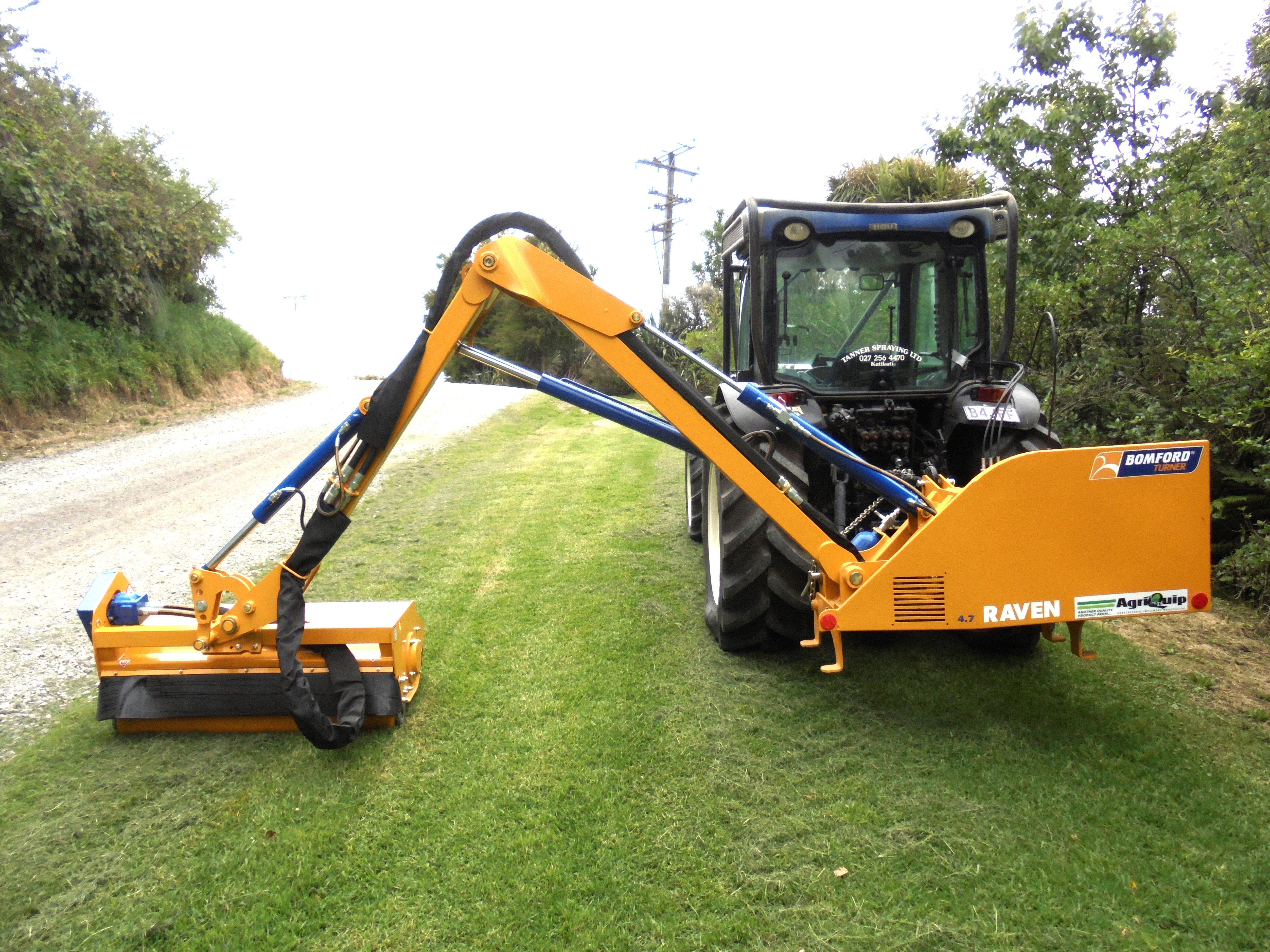

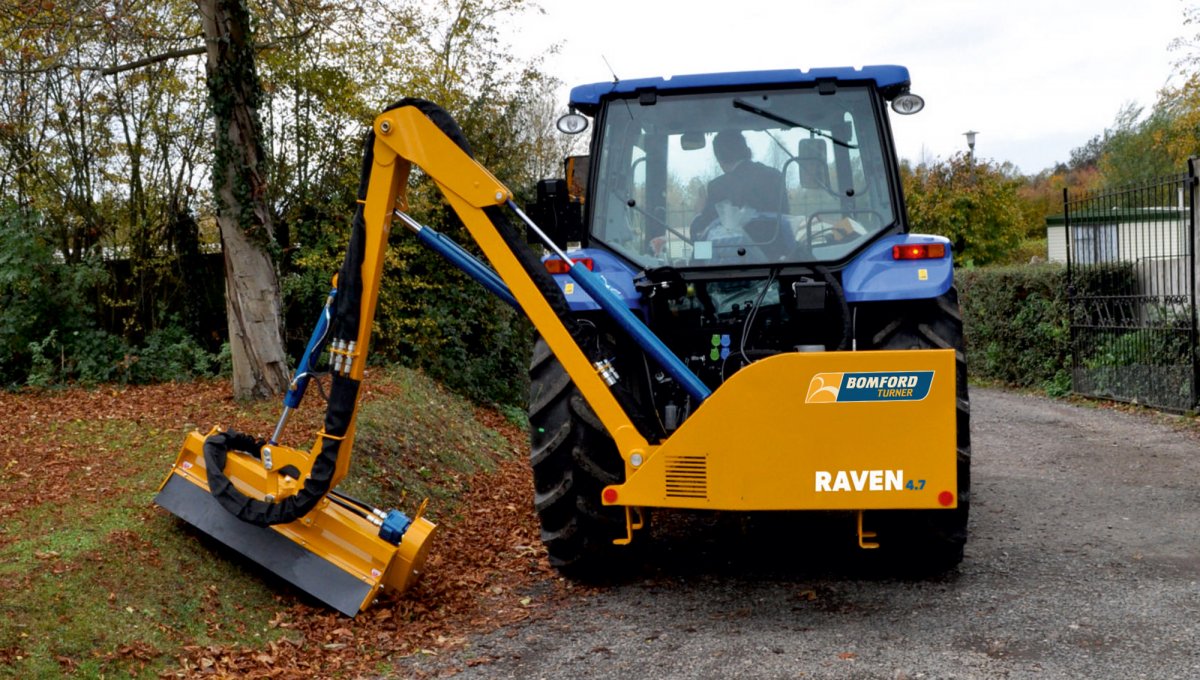

The Raven is a rear-mounted arm mower designed to meet the demands of smaller agricultural, horticultural, landscape, and amenity customers. The rugged design ensures excellent performance for a small, compact machine and is suitable for any tractor over 40HP.

Downloads

Download Bomford Brochure
Download Bomford Parts Manual
Raven 47 Raven 47 Raven 47
1/3

Raven 47 Features

4.7 m reach

Direct drive cutting head or cutter bar.

Cable Control

With low-pressure hydraulics optional and tubular 3 point linkage kit.

1.0 m flail head

Choice of 3 flails.

Raven 47 Specifications
Raven 47
Minimum HP
Raven 47 45 HP
Minimum weight
Raven 47 2000 kg
Machine weight with head and oil
Raven 47 680 kg
Capacity of oil tank
Raven 47 130 L
Weight of machine with oil but without head
Raven 47 530 kg

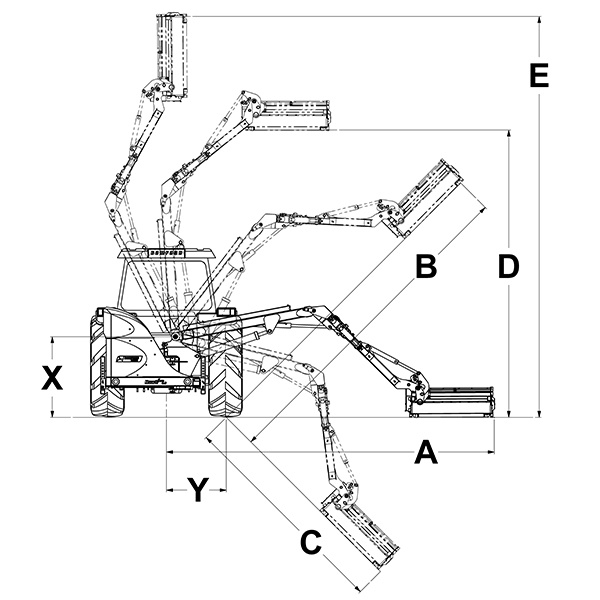

Raven 47 Reach Dimensions
A
4.7m
B
4.24m
C
3.17m
D
3.38m
E
4.81m
X
1.00m
Y
1.34m

Head used for calculations: 1.2 Pro-Cut

Falcon Evo Reach Dimensions Key

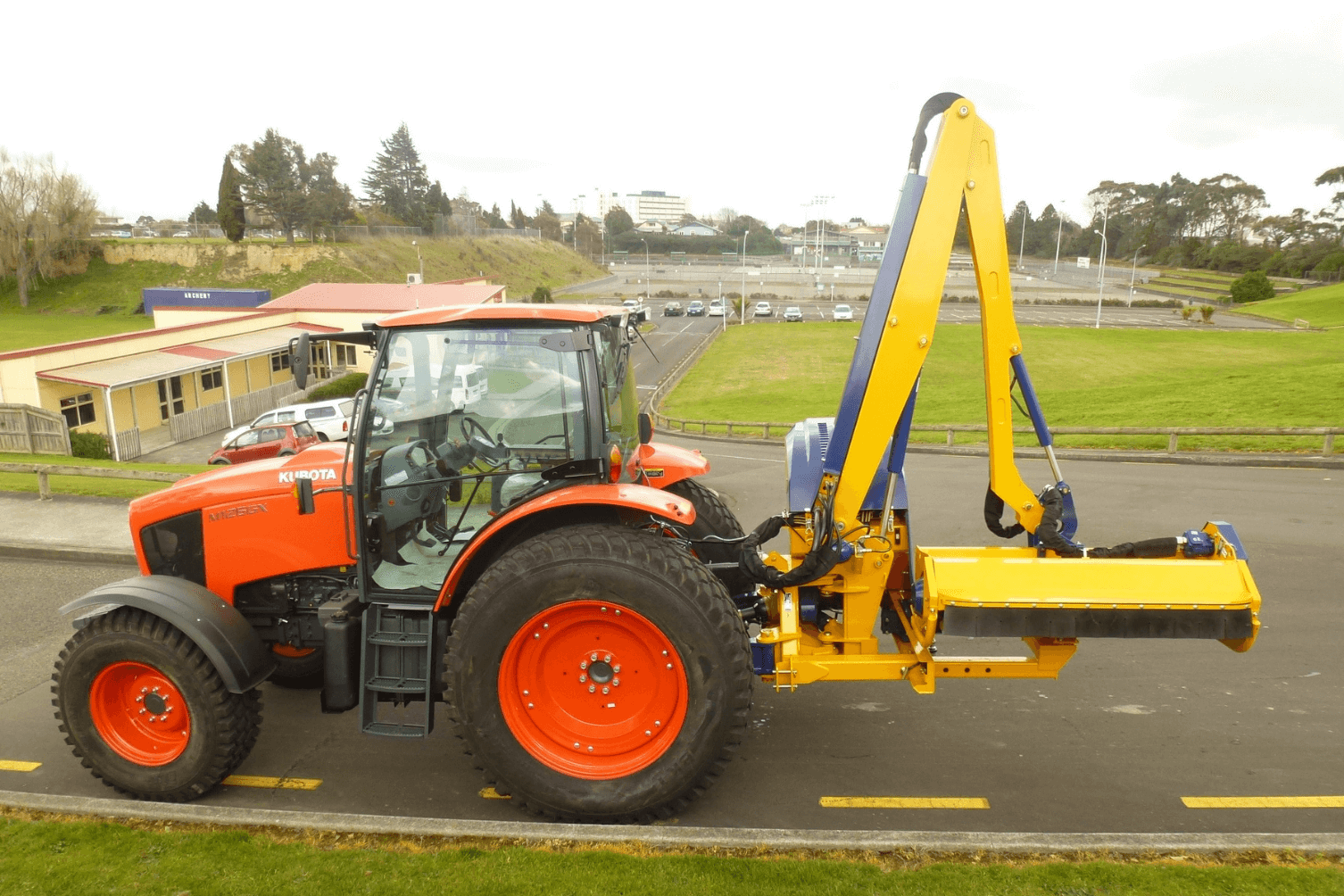

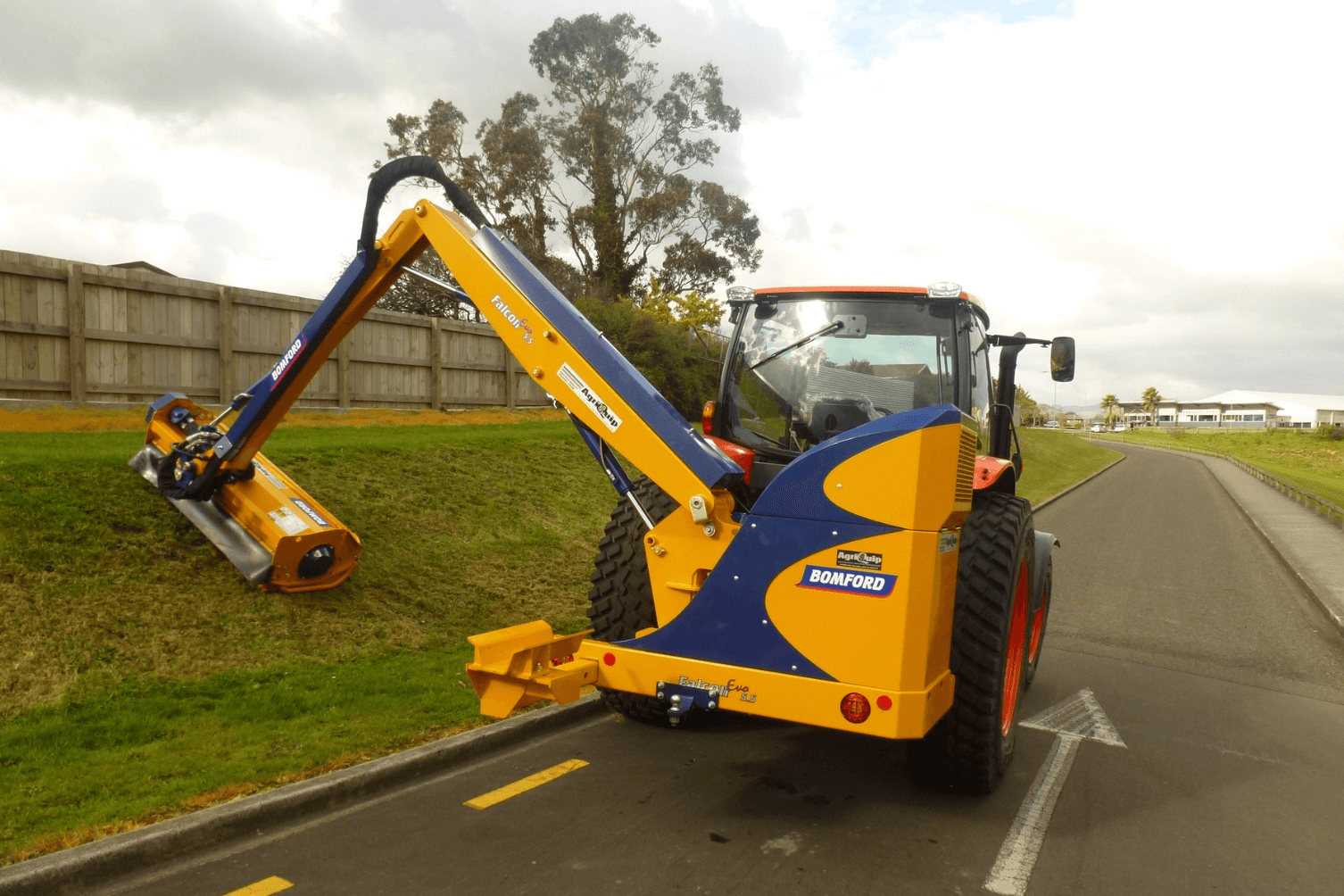

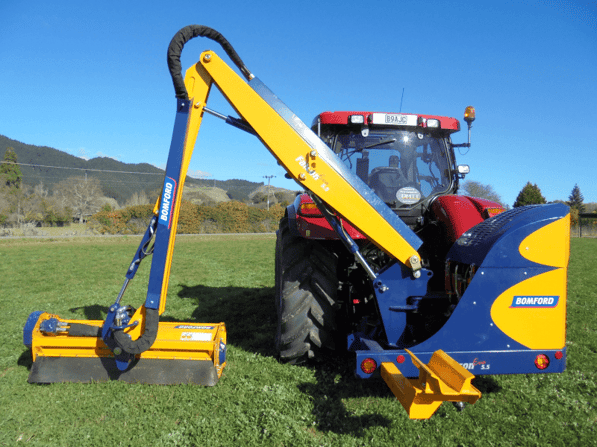

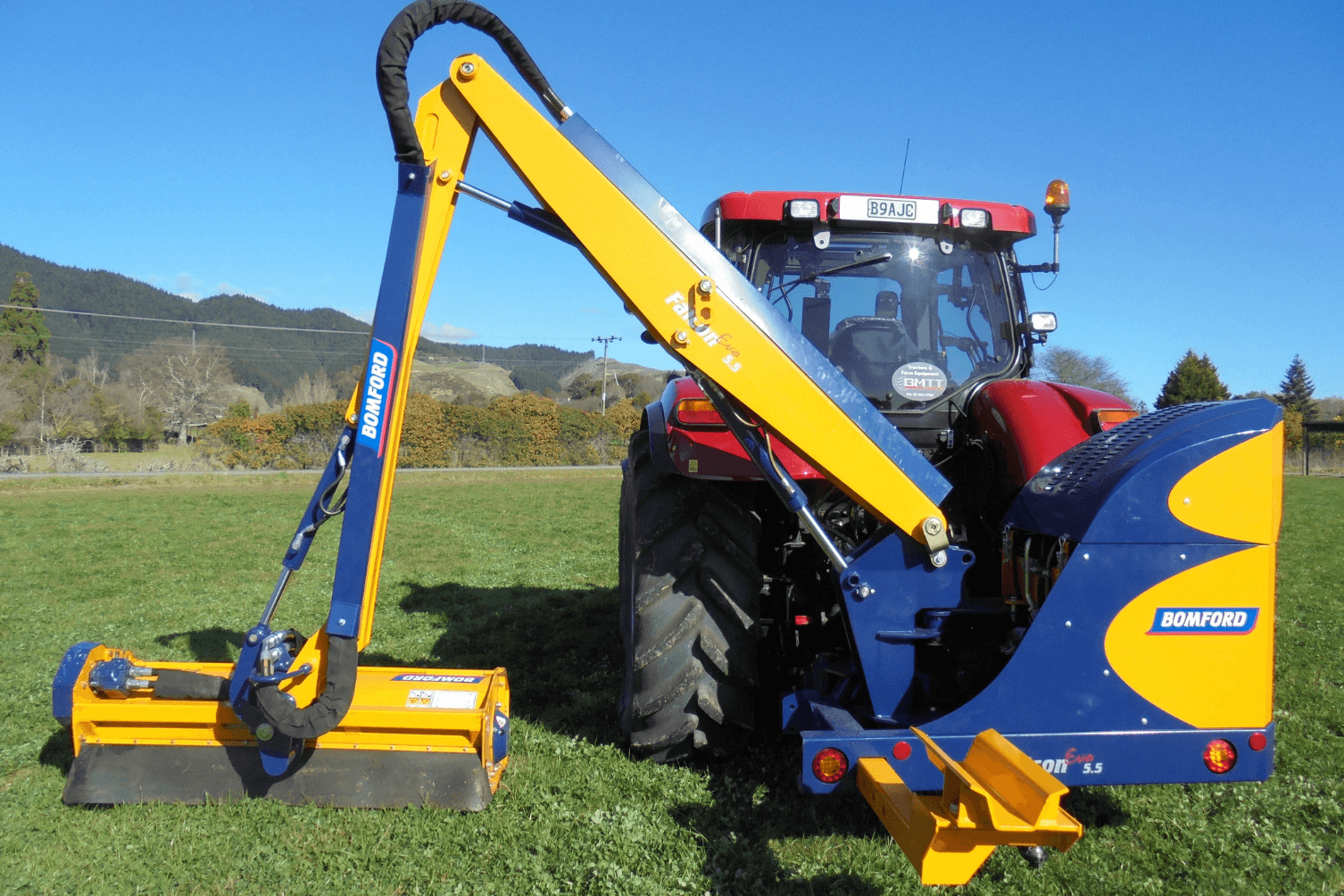

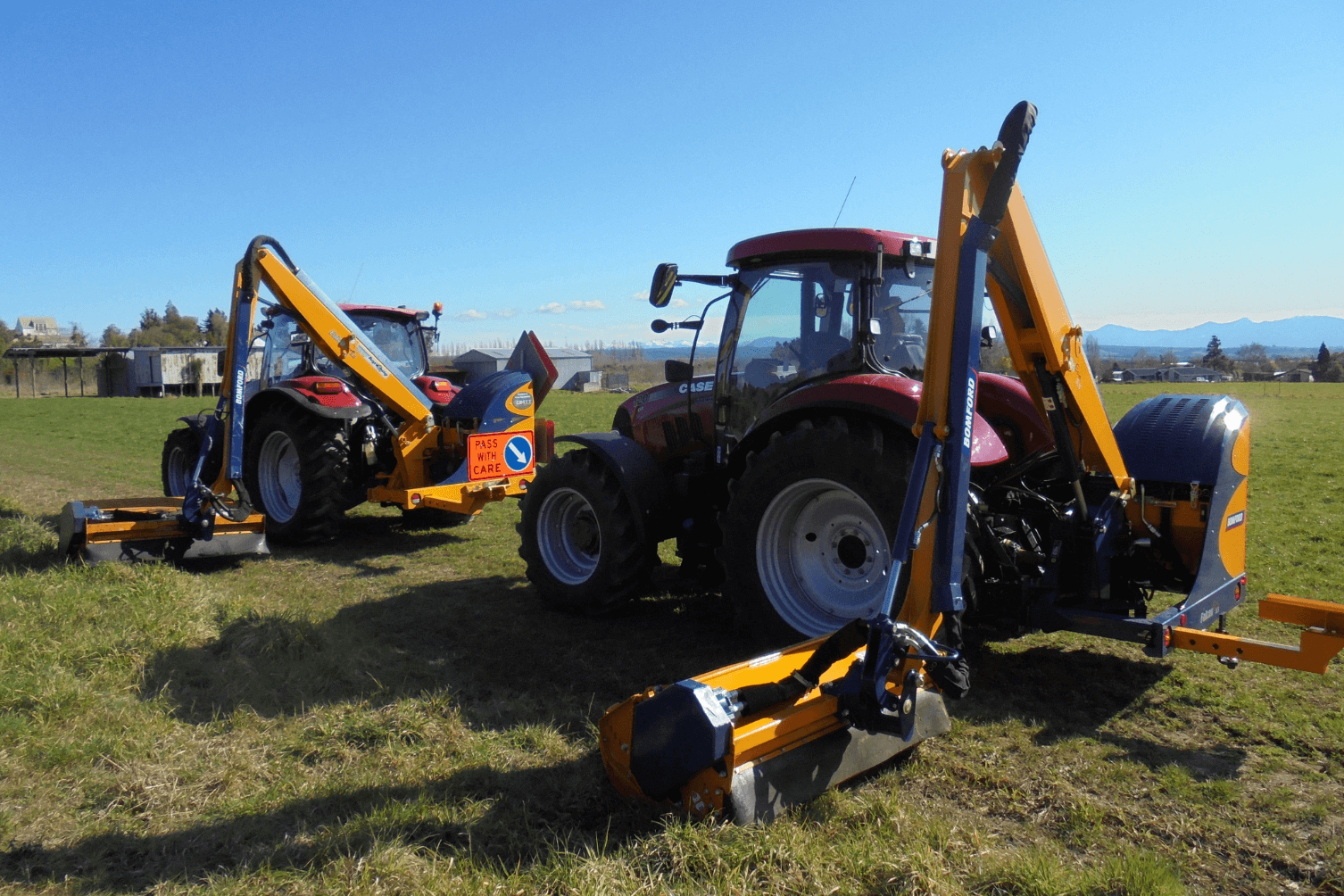

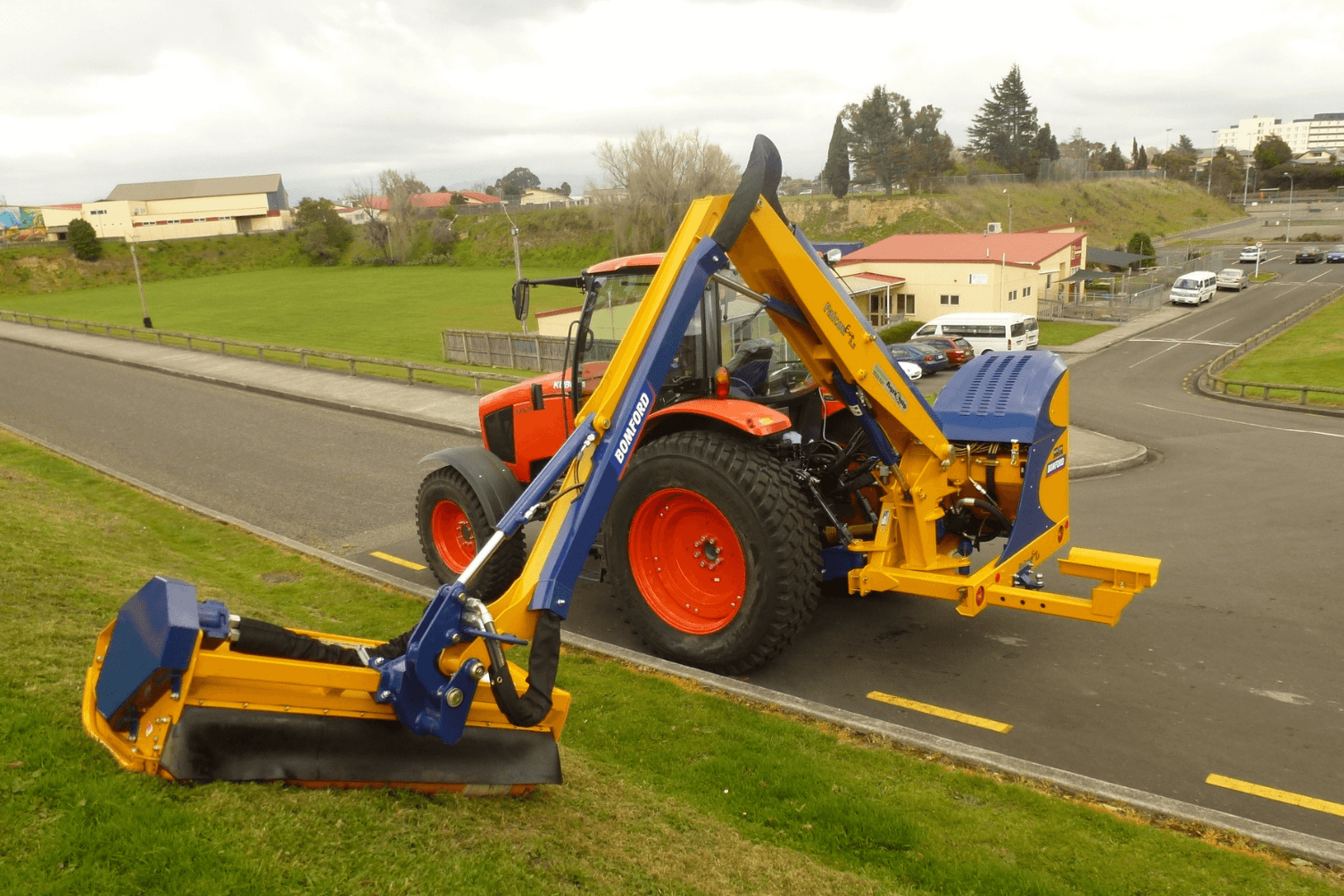

LARGE-SCALE OPERATIONS

Falcon Evo Range

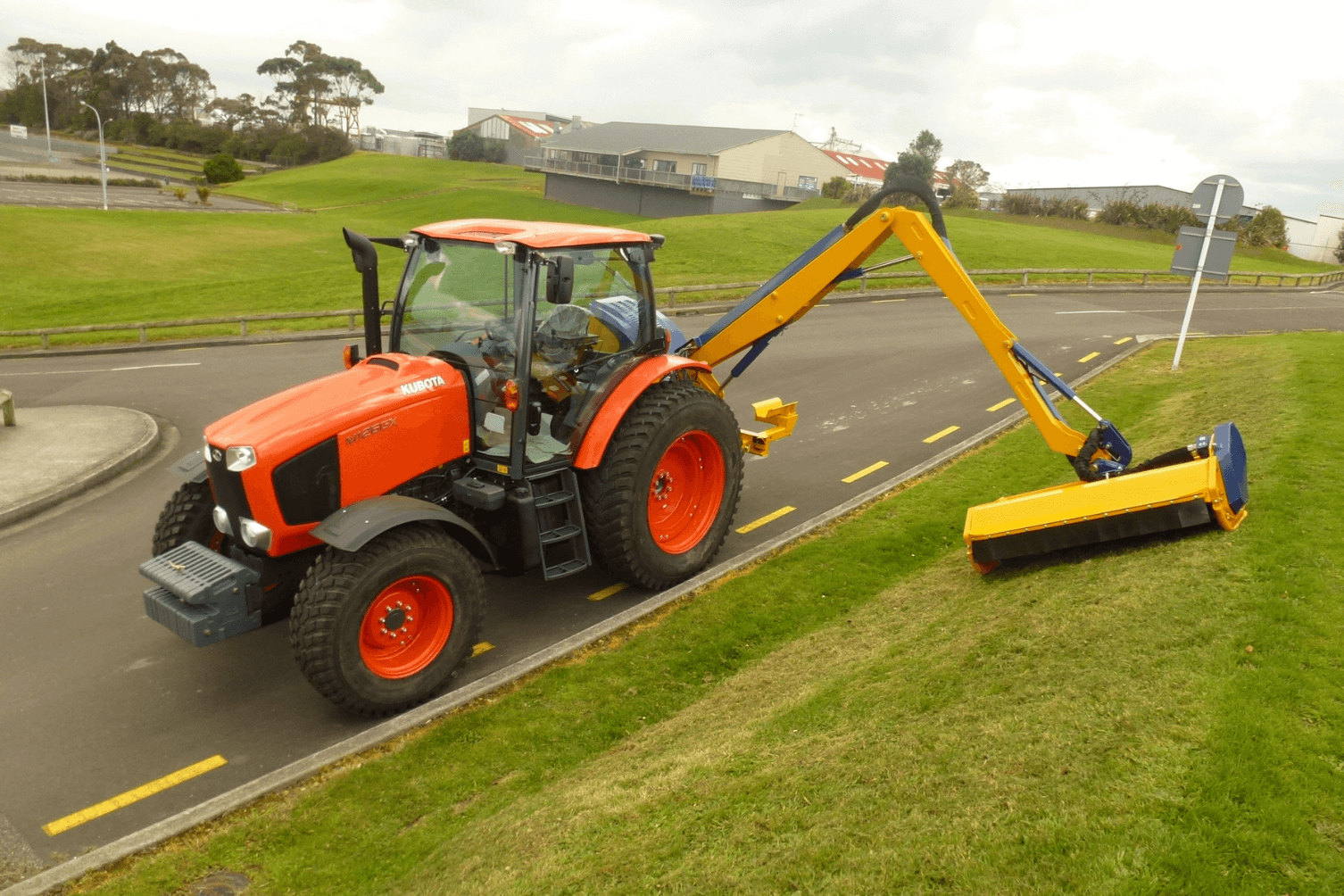

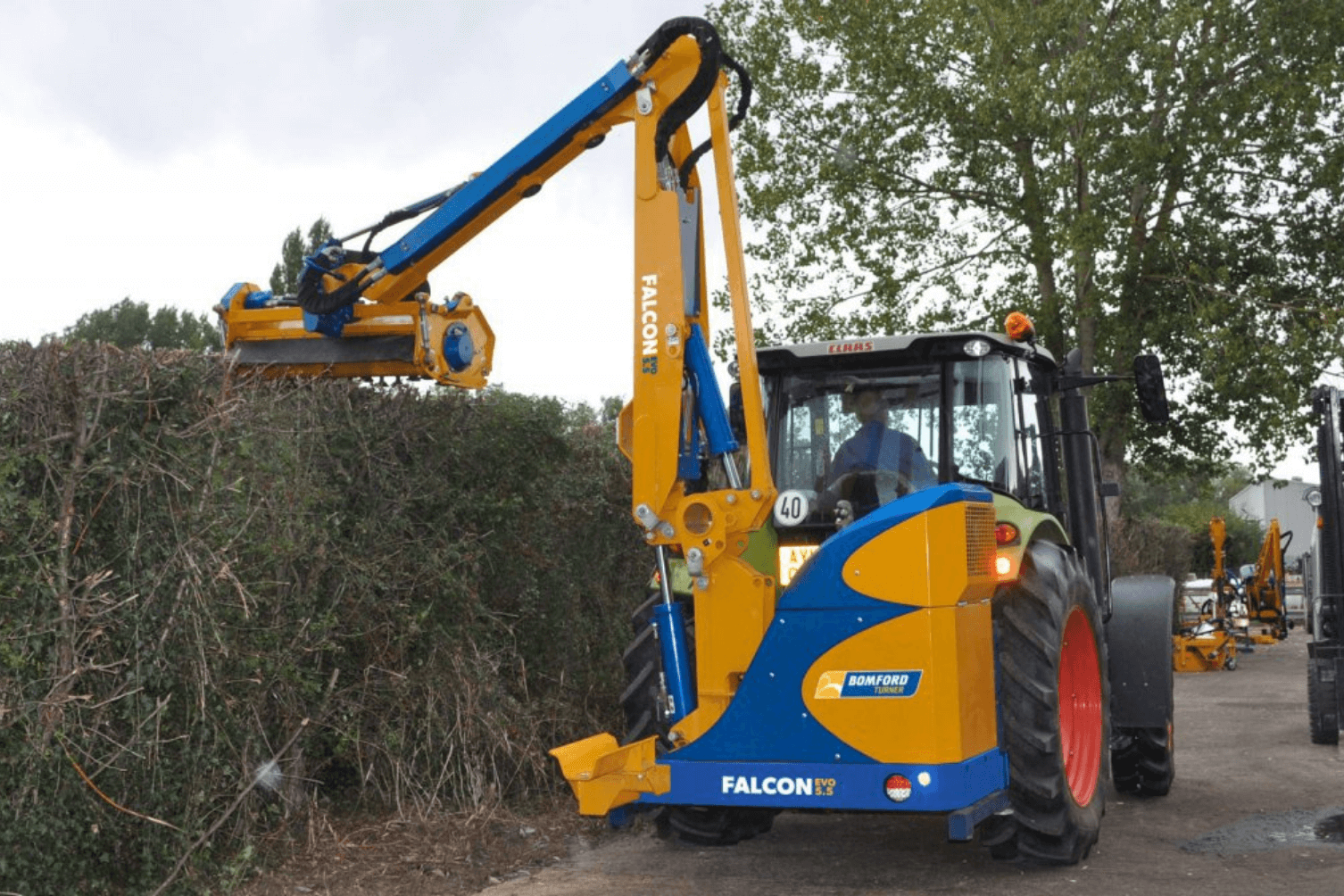

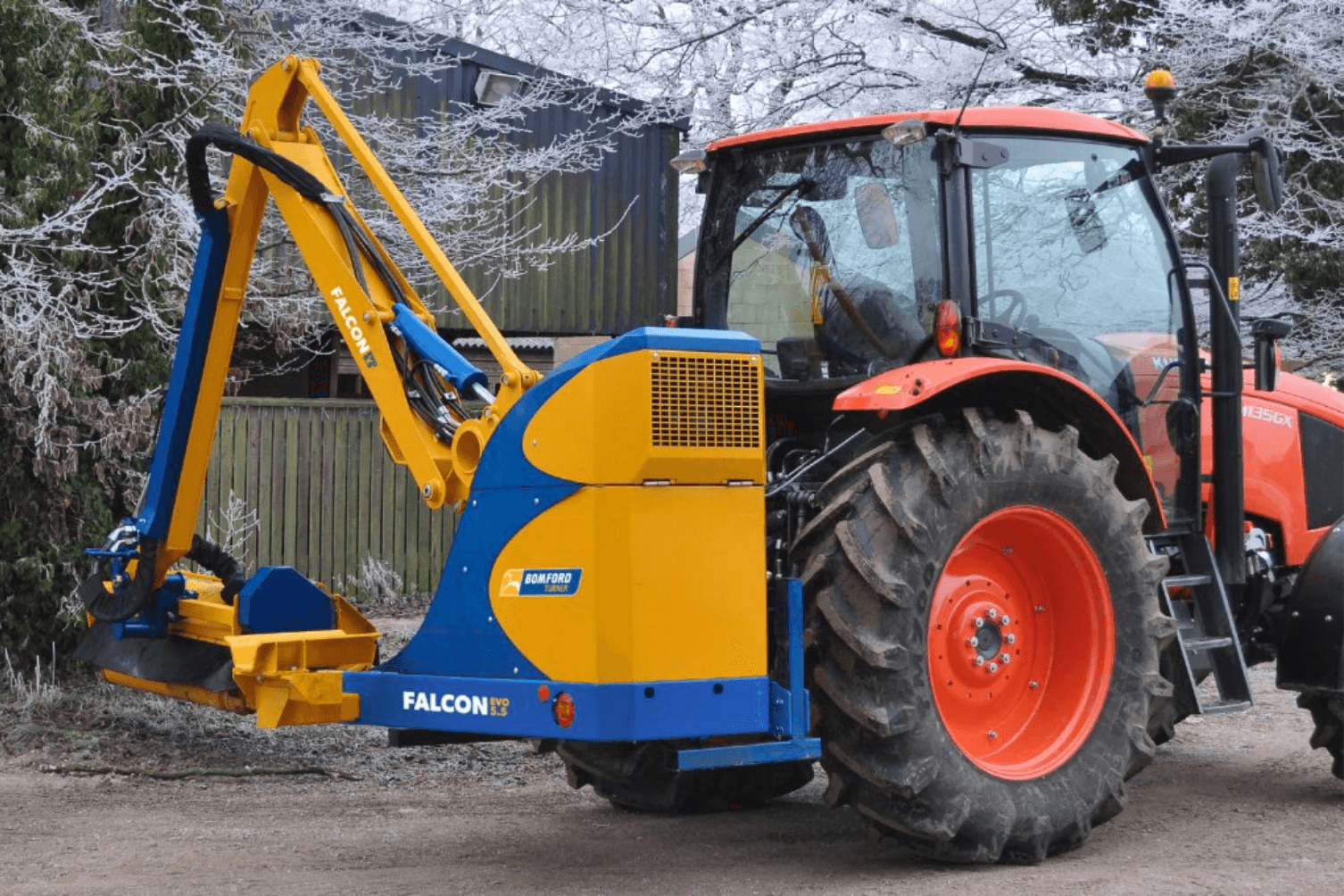

The Falcon Evo range has been specifically designed for the large-scale contractor.

With high specification options and a range of controls to select from, the Falcon range is the first choice for contractors.

Downloads

Download Bomford Brochure
Download Bomford Parts Manual
Falcon Evo Range Falcon Evo Range Falcon Evo Range
1/3

Falcon Evo Range Features

5.5m, 6.0m, & 6.5m reach

1.2 m or 1.5 m cutting head.

Heavy-duty linkage

Strong & durable.

Independent system

125 L/min independent hydraulic system

Choice of 7 flails

Suitable for different cutting heads.

Electronic proportional controls

To ensure precise and smooth operation.

Power slew

Enhancing manoeuvrability and reach around obstacles.

Falcon Evo Range Specifications

FALCON EVO 5.5 FALCON EVO BI-WAY 5.5 FALCON EVO 6.0T FALCON EVO 6.5T FALCON EVO 6.5T FWD
Minimum HP
FALCON EVO 5.5 75 HP
FALCON EVO BI-WAY 5.5 75 HP
FALCON EVO 6.0T 75 HP
FALCON EVO 6.5T 75 HP
FALCON EVO 6.5T FWD 120 HP
Minimum weight
FALCON EVO 5.5 4500 kg
FALCON EVO BI-WAY 5.5 5500 kg
FALCON EVO 6.0T 5000 kg
FALCON EVO 6.5T 5500 kg
FALCON EVO 6.5T FWD 5500 kg
Machine weight with head and oil
FALCON EVO 5.5 1790 kg
FALCON EVO BI-WAY 5.5 1930 kg
FALCON EVO 6.0T 1890 kg
FALCON EVO 6.5T 2190 kg
FALCON EVO 6.5T FWD 2245 kg
Capacity of oil tank
FALCON EVO 5.5 250 Litres
FALCON EVO BI-WAY 5.5 250 Litres
FALCON EVO 6.0T 250 Litres
FALCON EVO 6.5T 250 Litres
FALCON EVO 6.5T FWD 250 Litres
Weight of machine with oil but without head
FALCON EVO 5.5 1500 kg
FALCON EVO BI-WAY 5.5 1640 kg
FALCON EVO 6.0T 1600 kg
FALCON EVO 6.5T 1900 kg
FALCON EVO 6.5T FWD 1955 kg

Falcon Evo Range Reach Dimensions

Head used for calculations: 1.2 Pro-Cut

Falcon Evo Reach Dimensions Key
FALCON EVO 5.5 FALCON EVO BI-WAY 5.5 FALCON EVO 6.0T FALCON EVO 6.5T FALCON EVO 6.5T FWD
A
FALCON EVO 5.5 5.54m
FALCON EVO BI-WAY 5.5 5.72m
FALCON EVO 6.0T 6.07m
FALCON EVO 6.5T 6.42m
FALCON EVO 6.5T FWD 6.55m
B
FALCON EVO 5.5 5.69m
FALCON EVO BI-WAY 5.5 5.82m
FALCON EVO 6.0T 6.22m
FALCON EVO 6.5T 6.74m
FALCON EVO 6.5T FWD 6.71m
C
FALCON EVO 5.5 3.49m
FALCON EVO BI-WAY 5.5 3.86m
FALCON EVO 6.0T 4.42m
FALCON EVO 6.5T 4.10m
FALCON EVO 6.5T FWD 4.90m
D
FALCON EVO 5.5 4.42m
FALCON EVO BI-WAY 5.5 4.74m
FALCON EVO 6.0T 4.54m
FALCON EVO 6.5T 5.65m
FALCON EVO 6.5T FWD 5.73m
E
FALCON EVO 5.5 6.06m
FALCON EVO BI-WAY 5.5 6.92m
FALCON EVO 6.0T 6.18m
FALCON EVO 6.5T 7.67m
FALCON EVO 6.5T FWD 7.79m
X
FALCON EVO 5.5 1.35m
FALCON EVO BI-WAY 5.5 1.35m
FALCON EVO 6.0T 1.0m
FALCON EVO 6.5T 1.35m
FALCON EVO 6.5T FWD 1.35m
Y
FALCON EVO 5.5 1.0m
FALCON EVO 5.5 BI-WAY 1.0m
FALCON EVO 6.0T 1.35m
FALCON EVO 6.5T 1.0m
FALCON EVO 6.5T FWD 1.0m
