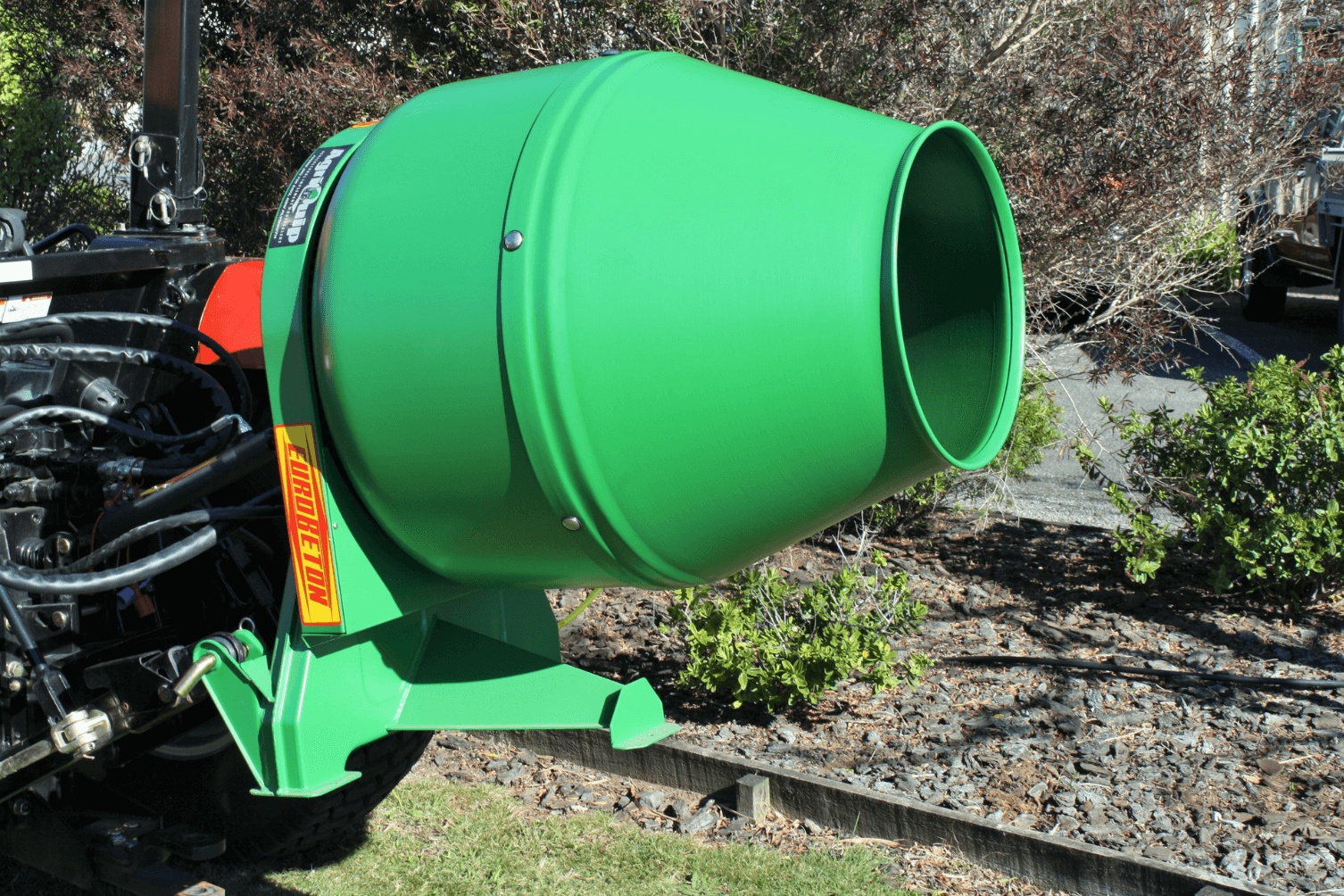

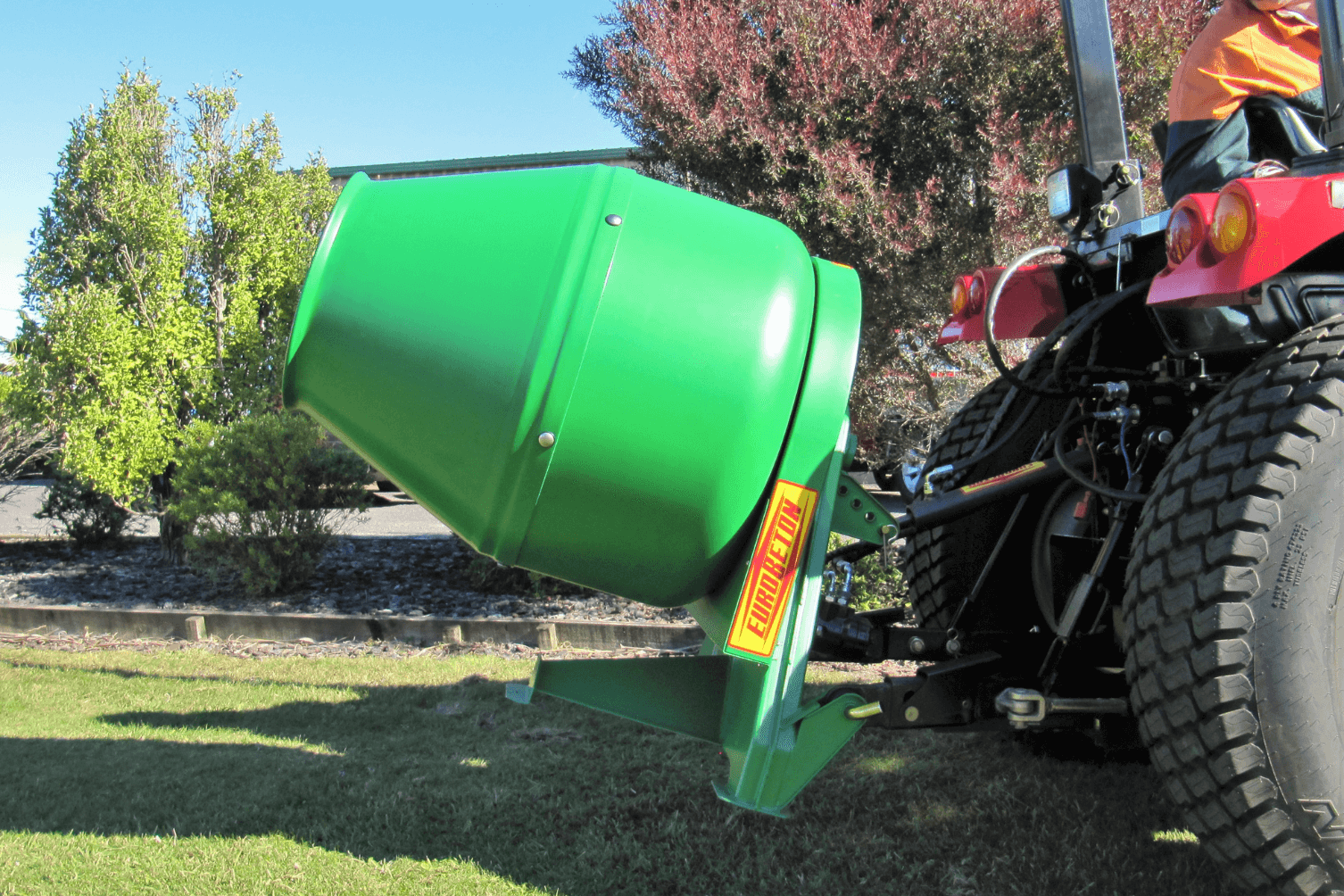

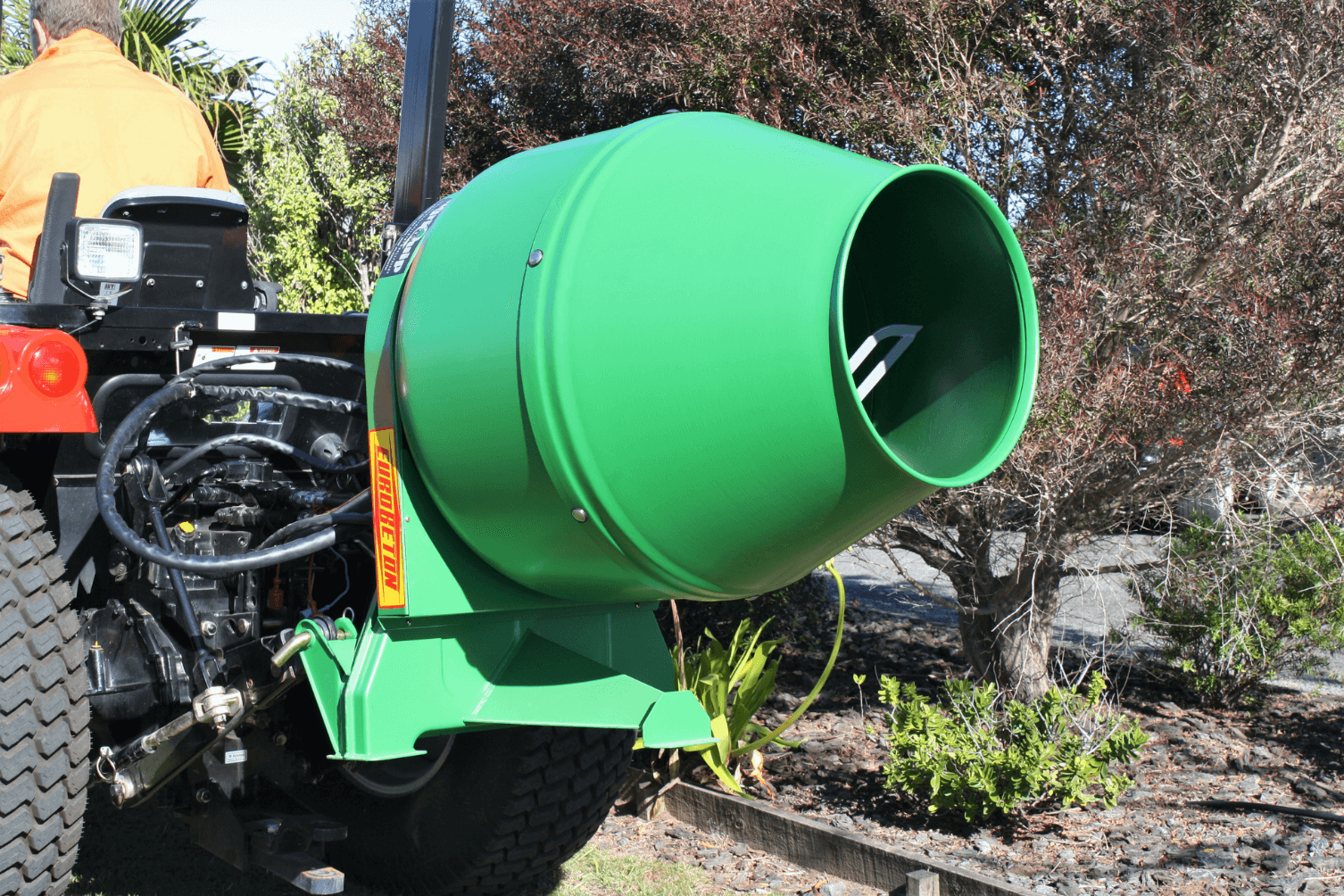

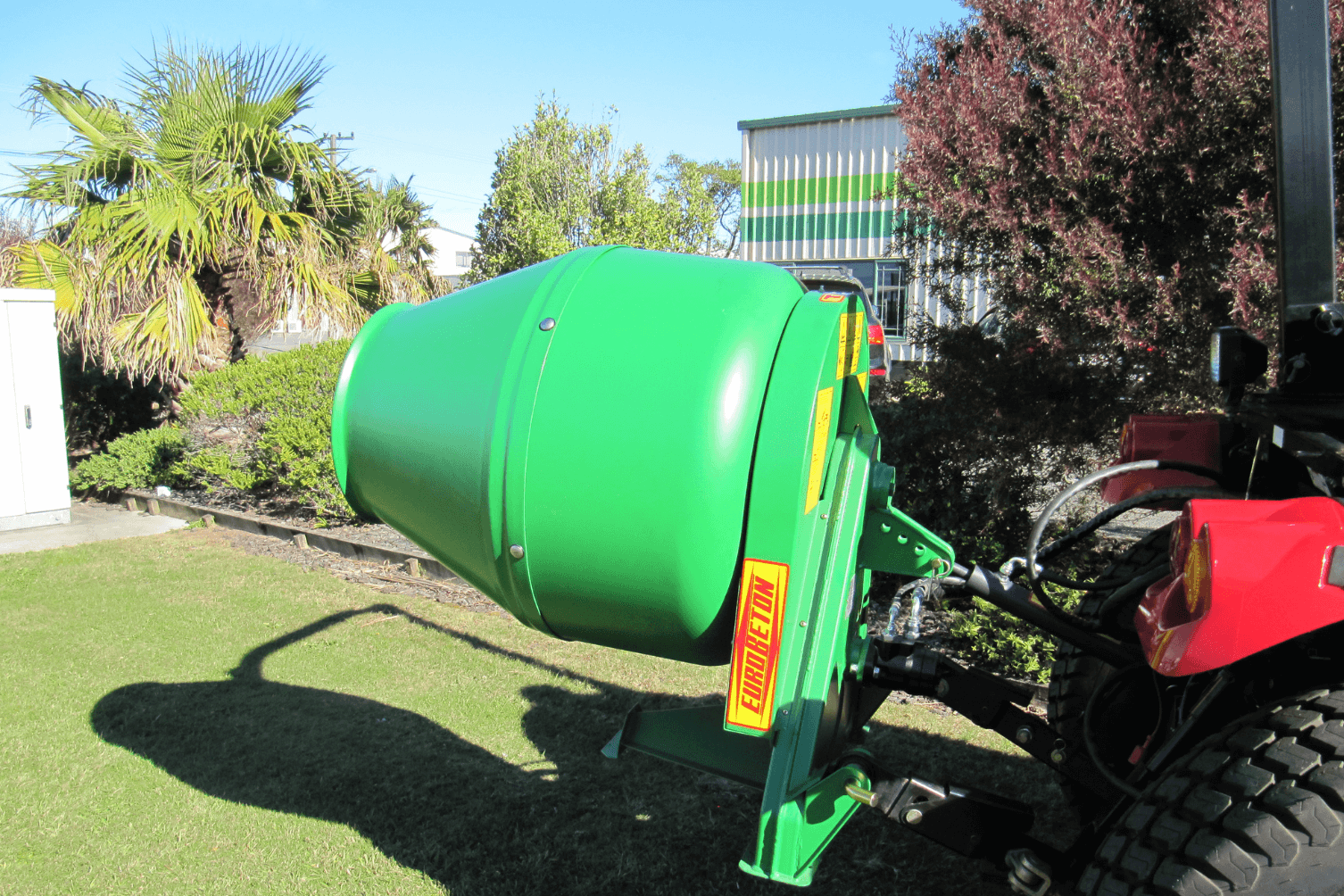

T400 Mixer
Mixing concrete seems to be an ongoing task for many jobs around farms and these portable mixers mean you can mix your specific loads when and where you want to. The T400, a mixer of the Agriquip range built to mix concrete, can also be used to blend seeds, fertilizers and even wash vegetables.
FEATURES
- • 320 litre capacity (250 litre mix capacity)

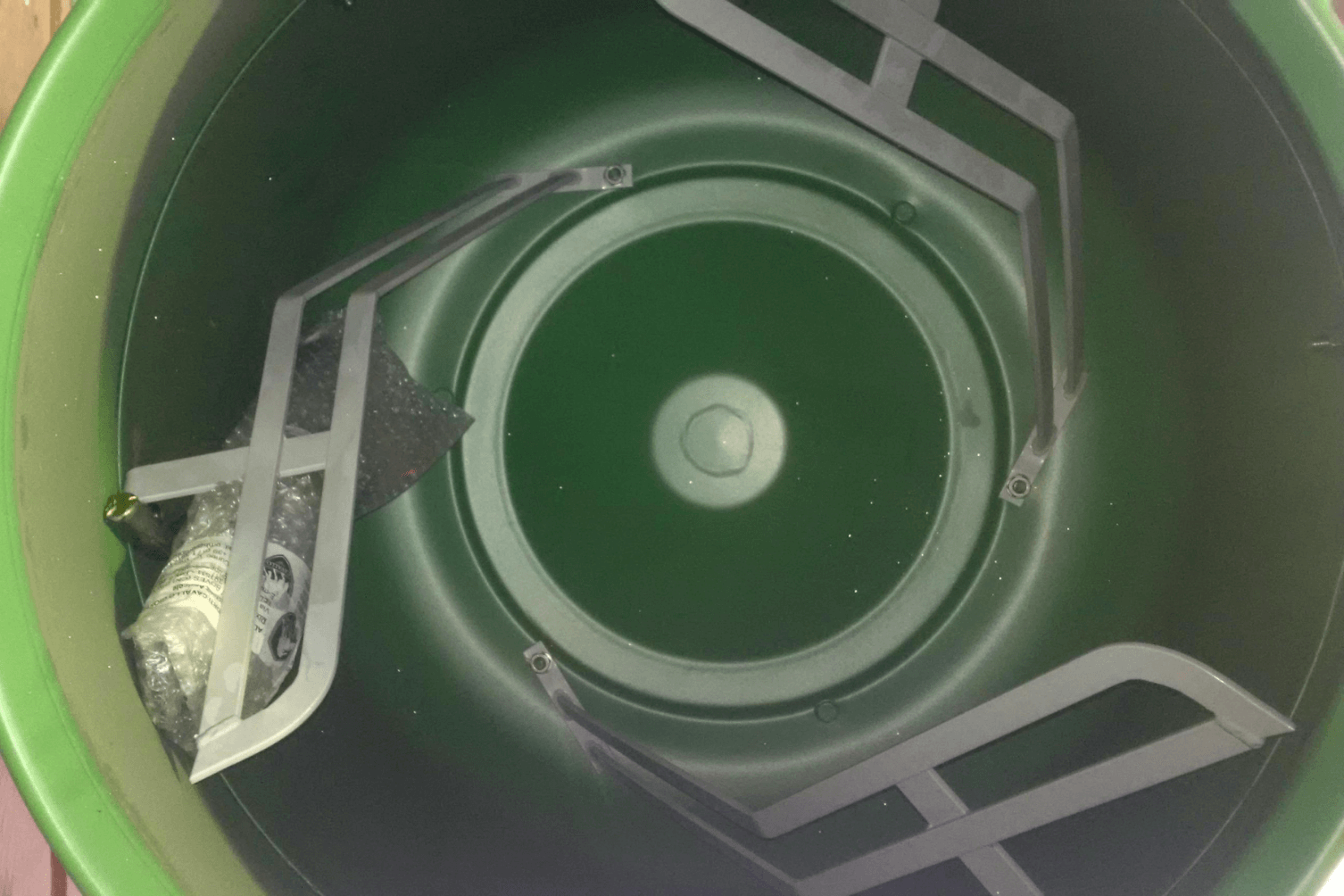

- • 3 x paddles

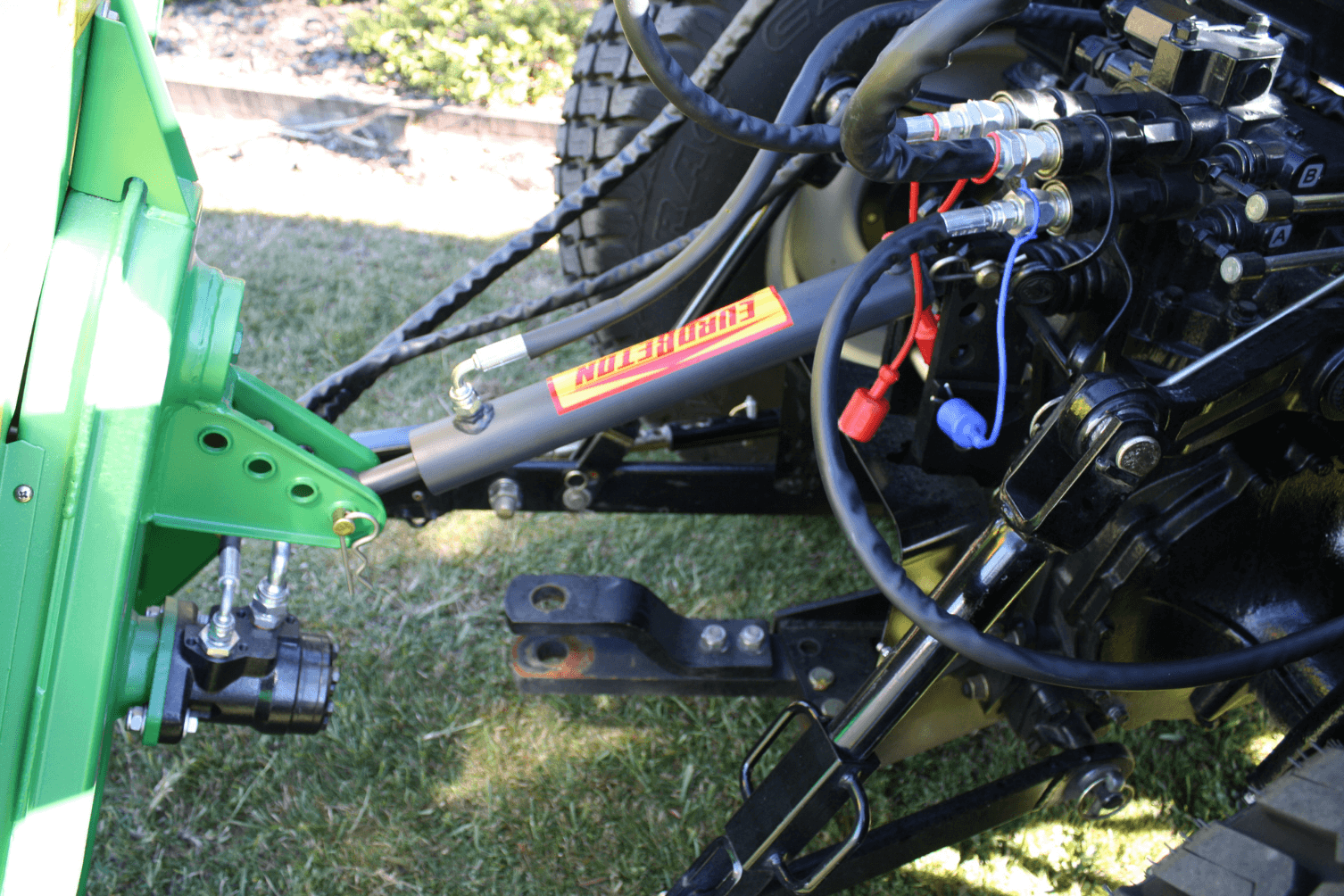

- • Comes standard with hydraulic top link
SPECIFICATIONS
T400 | |
Weight | 103 kg |
Overall Dimensions (HxWxD) | 950 mm x 700 mm x 1200 mm |
OPTIONS
- • Hydraulic or PTO Drive
PHOTO GALLERY
(click photo to enlarge)
DOWNLOADS
T400 Concrete Mixer Brochure (718 kb) | Operators/Parts Manual (3,173 kb) |
Back to Top

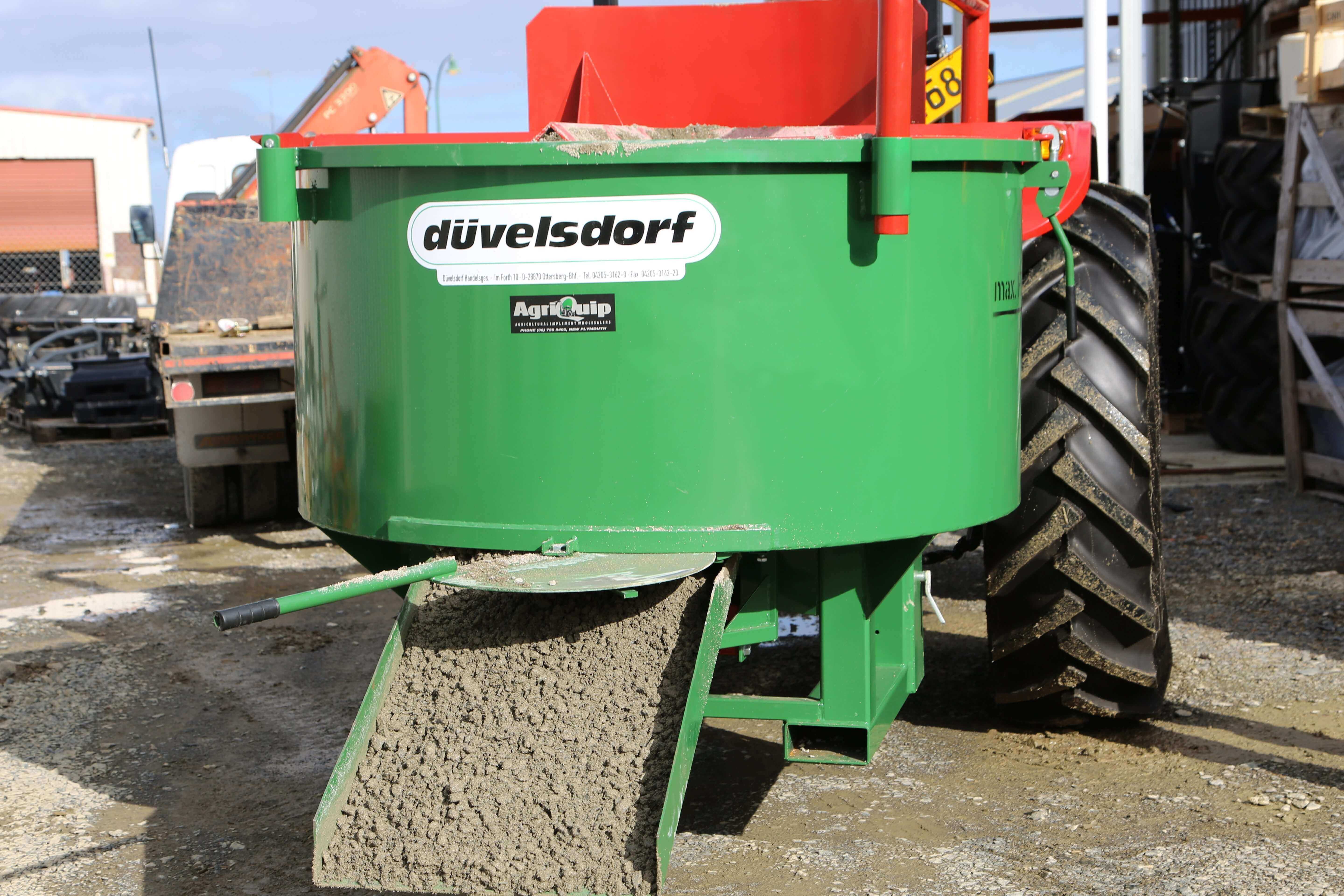

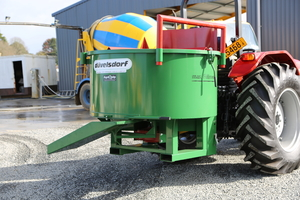

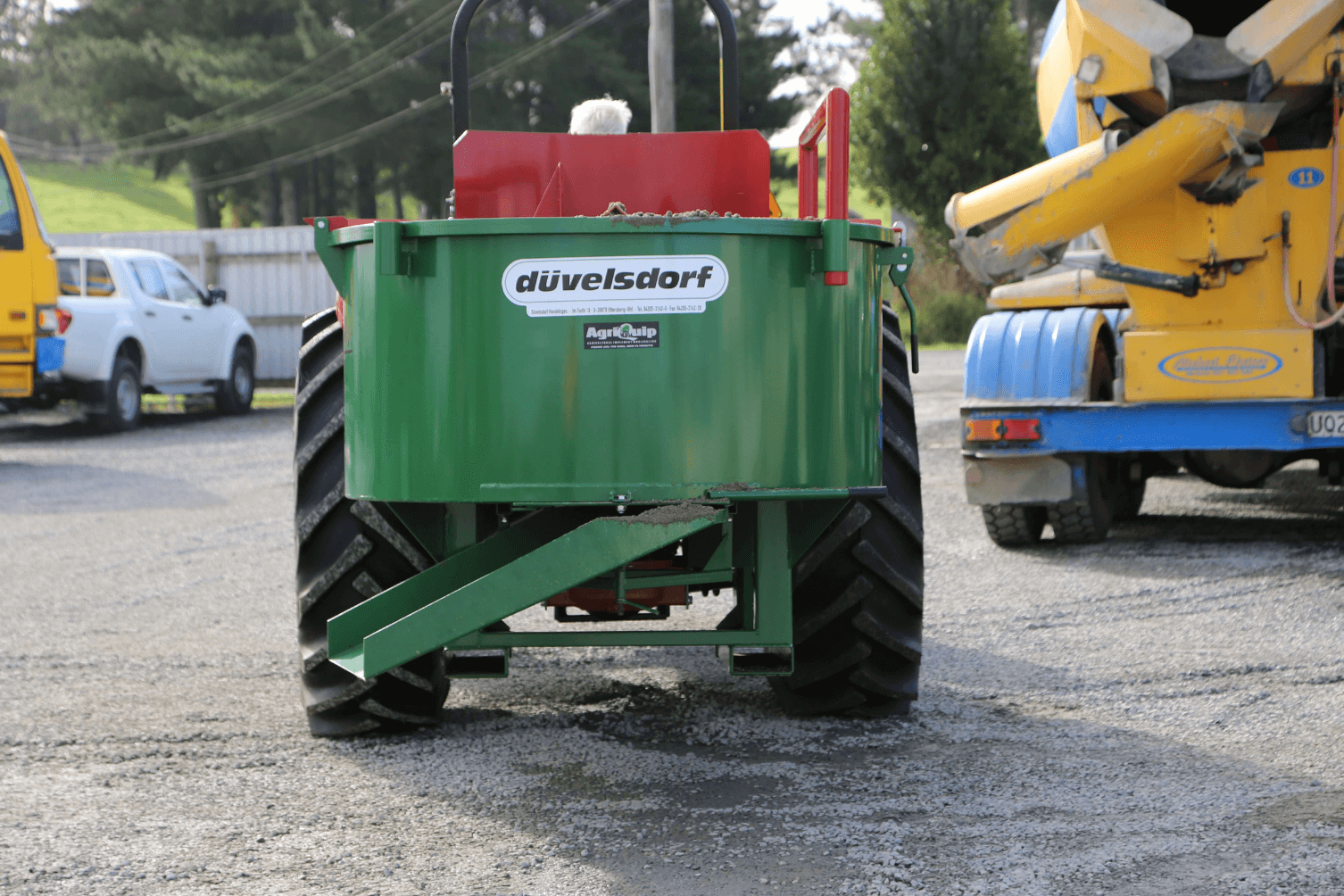

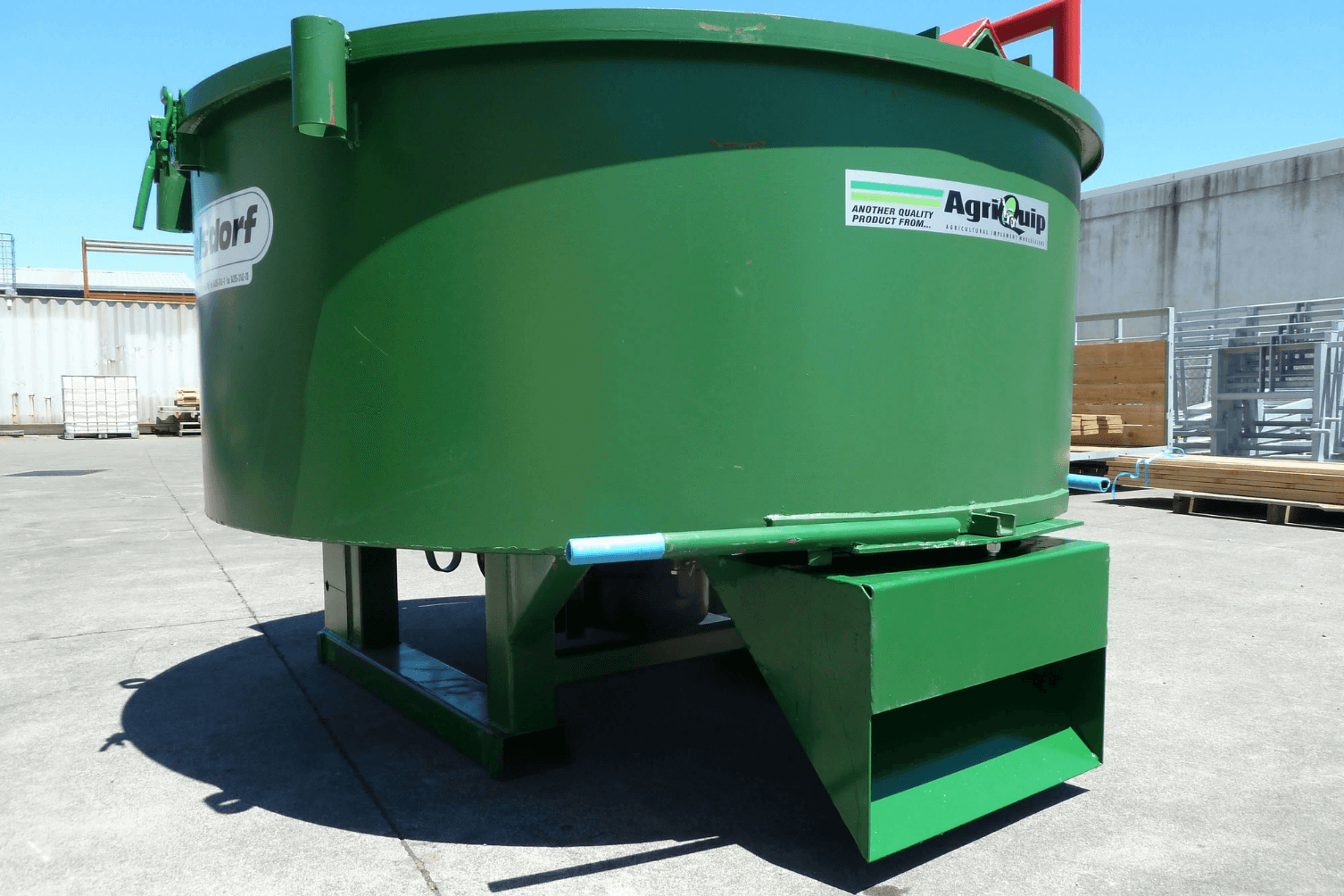

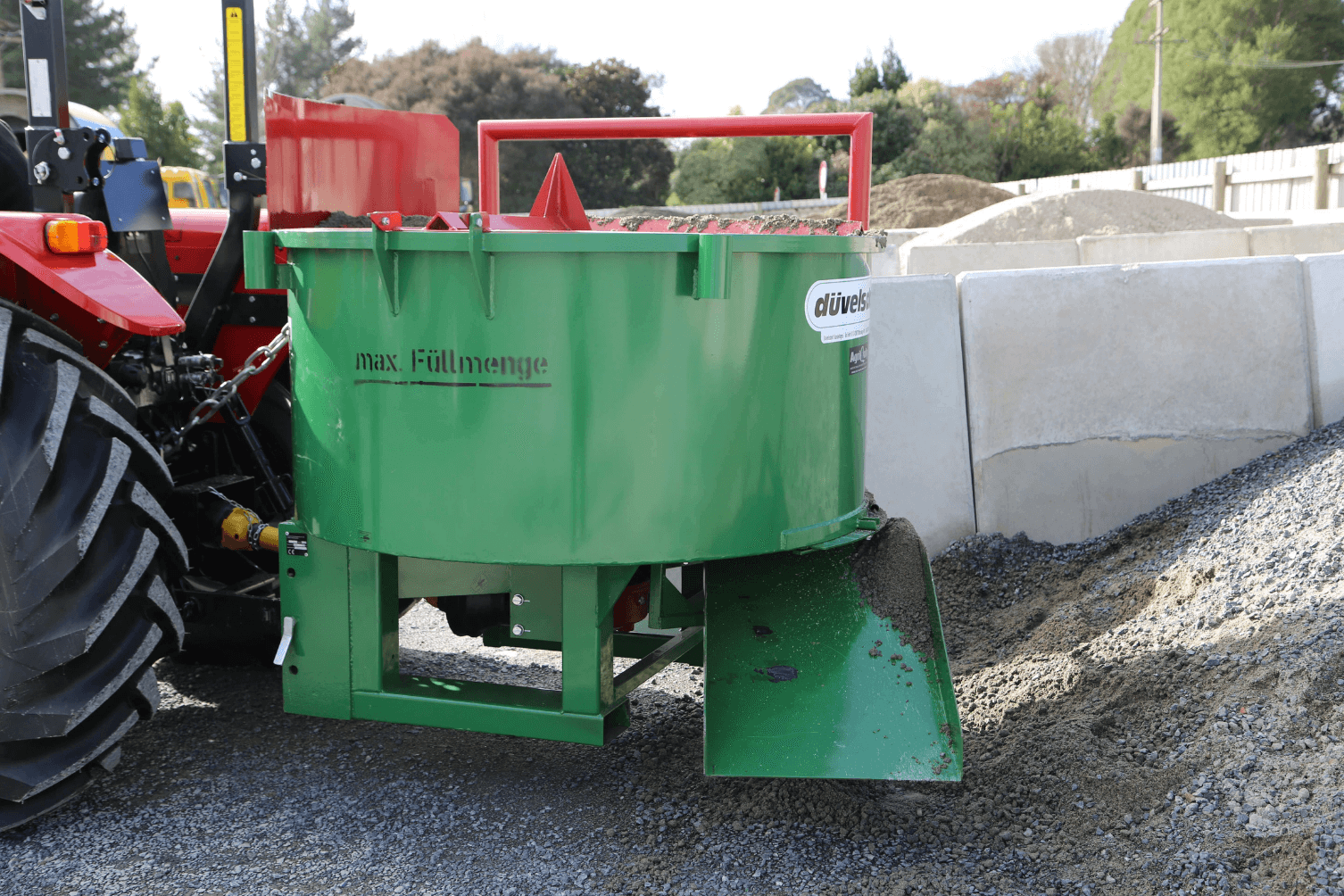

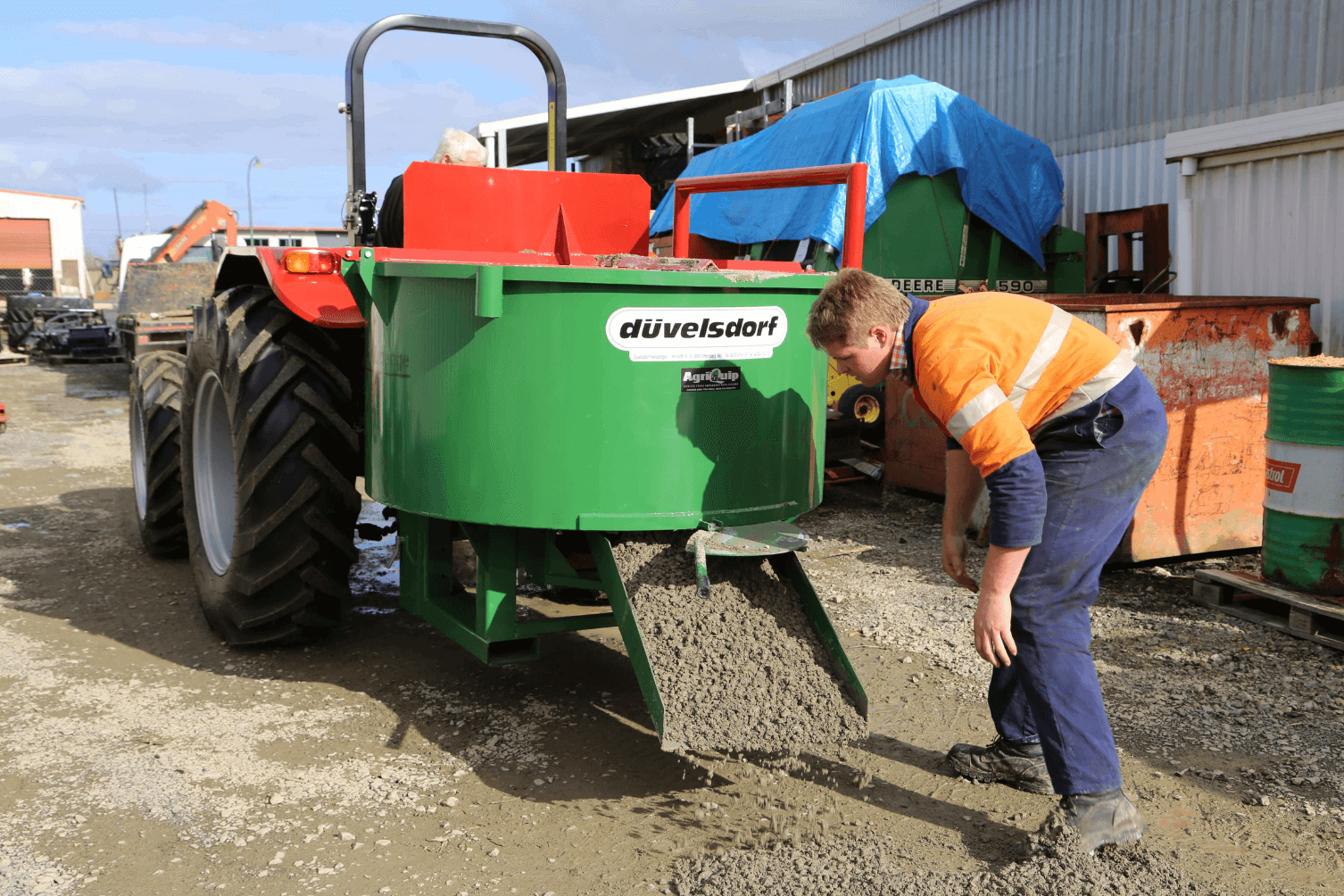

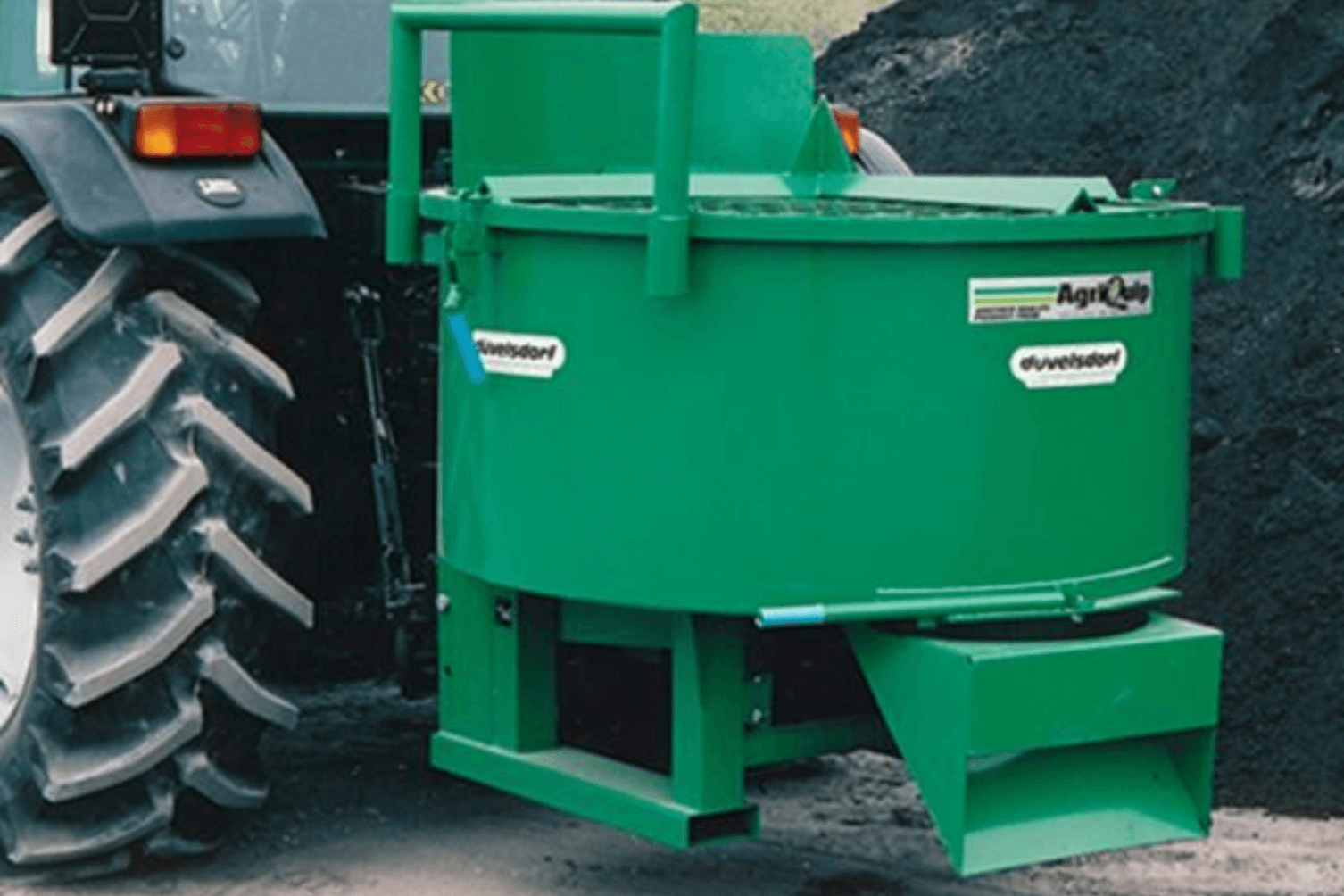

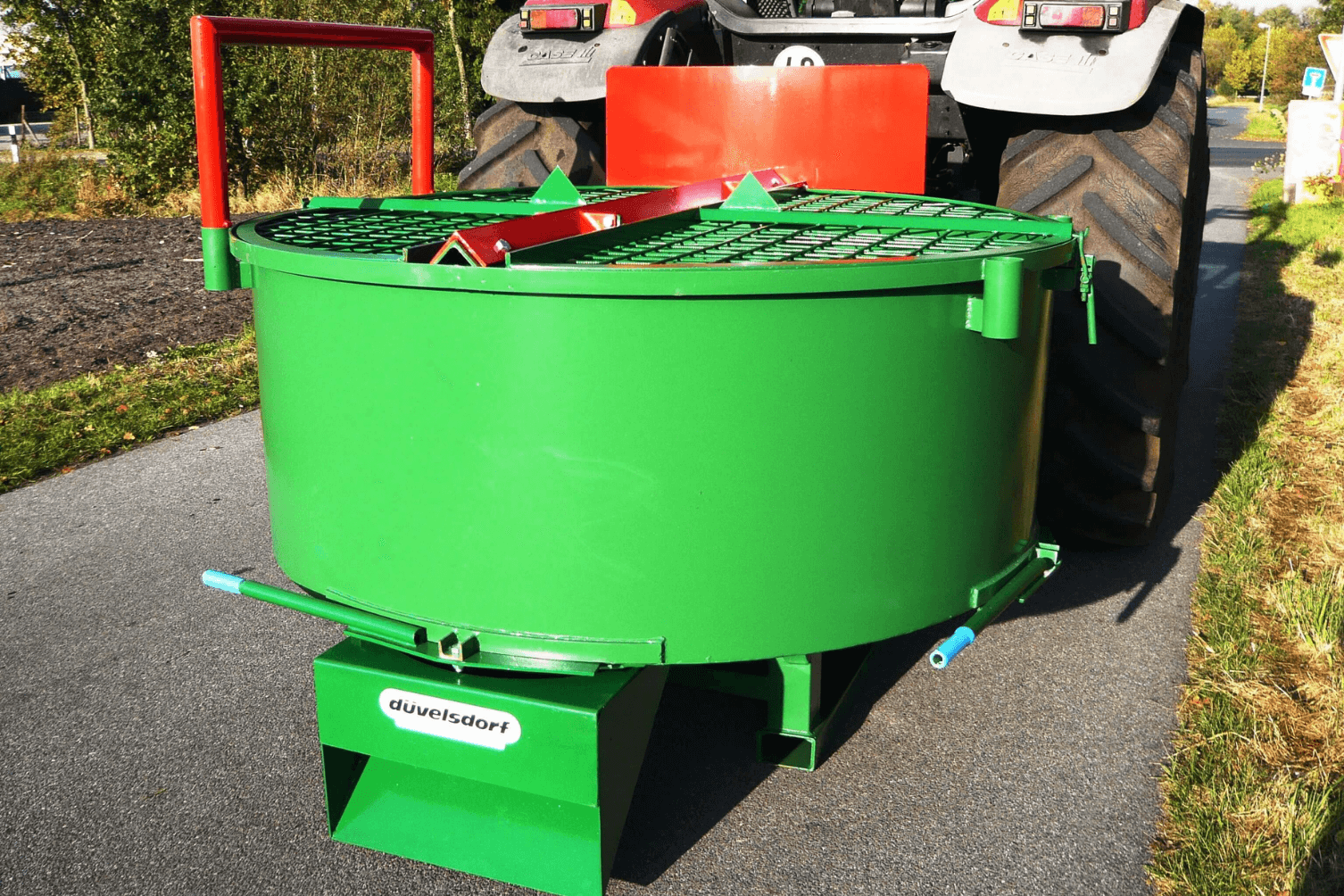

DBM 750 Mixer
Mixing concrete seems to be an ongoing task for many jobs around farms and these portable mixers mean you can mix your specific loads when and where you want to. Not only concrete can be blended but a wide range of products such as grain mixes, stock feed and even other forms of agents such as mud!
The DBM 750 concrete mixer can be used for quick, convenient, inexpensive and high quality production of large quantities of concrete, mortar and screed. The concrete mixer can either be lifted using the tractor hydraulics or with pallet forks. Optional hydraulic drive is available or PTO shaft is supplied standard.
FEATURES
- • Robust workmanship
- • Designed & built in Germany
- • Driven via the tractor PTO through a driveshaft and a heavy duty oiled filled gearbox
- • Comes standard with PTO shaft
- • 4 adjustable agitating paddle system
- • Can be lifted using the 3 point linkage system or the pallet fork slots
- • Large convenient discharge chute
- • Powder Coated
SPECIFICATIONS
DBM 750 | |
Mixing Capacity | 0.75 m3 |
Output Per Hour | Ca. 16 m3 |
Inside Diameter | 150 cm |
Tub Height | 70 cm |
Filling Height | 40 - 45 cm |
Overall Height | 125 cm |
Weight | 570 kg |
Gearbox Ratio | 1:8 |
Standard Drive Type | PTO Shaft |
No. of Mixing Paddles | 4 |
OPTIONS
- • Hydraulic drive
- • Tilted discharge
- • Driveshaft with overload safety device
PHOTO GALLERY
(click photo to enlarge)
DOWNLOADS
DBM 750 Mixer Brochure (1,216 kb) | Operator/Parts Manual (2,612 kb) |
