Two popular sizes are available in our ATV trailed spreader range which have hot dipped galvanized frames and UV treated polyethylene hoppers featuring stainless steel distributor disk and twin adjustable sliding shutters on the side. These main shutters can also be adjusted to give side discharge spreading if desired. Even spreading is maintained from 8-12 metres. A simple pin engages the ground drive for operation. Covers are also available for both models.

FEATURES

• Stainless steel disc & shutters
• 1 year warranty
• Designed & manufactured in Italy
• Polyethylene hopper & galvanized base
• Wide wheel base for the best stability

PHOTO GALLERY

(click photo to enlarge)

SPECIFICATIONS

		PTP180	PTP300
Capacity (Approx.)		165 kg	260 kg
Tare Weight		80 kg	84 kg
Overall Width		1050 mm	1050 mm
Loading Height		1300 mm	1440 mm
Overall Length		1500 mm	1500 mm
Hopper Width		900 mm	1050 mm
Ball Hitch Dia.		45-50 mm	45-50 mm
Tyres		6.5x3.2	6.5x3.2
Spreading Width		8-12 m*	8-12 m*
Spreading Rate		27-55 ha/hr	27-55 ha/hr

*Depending on fertiliser composition

OPTIONAL EXTRAS

• Canvas Cover
• Swivel Hitch coupling in lieu of standard

DOWNLOADS

PTP Series Brochure (770 kb)

Operators/Parts Manual (1,814 kb)

Back to Top

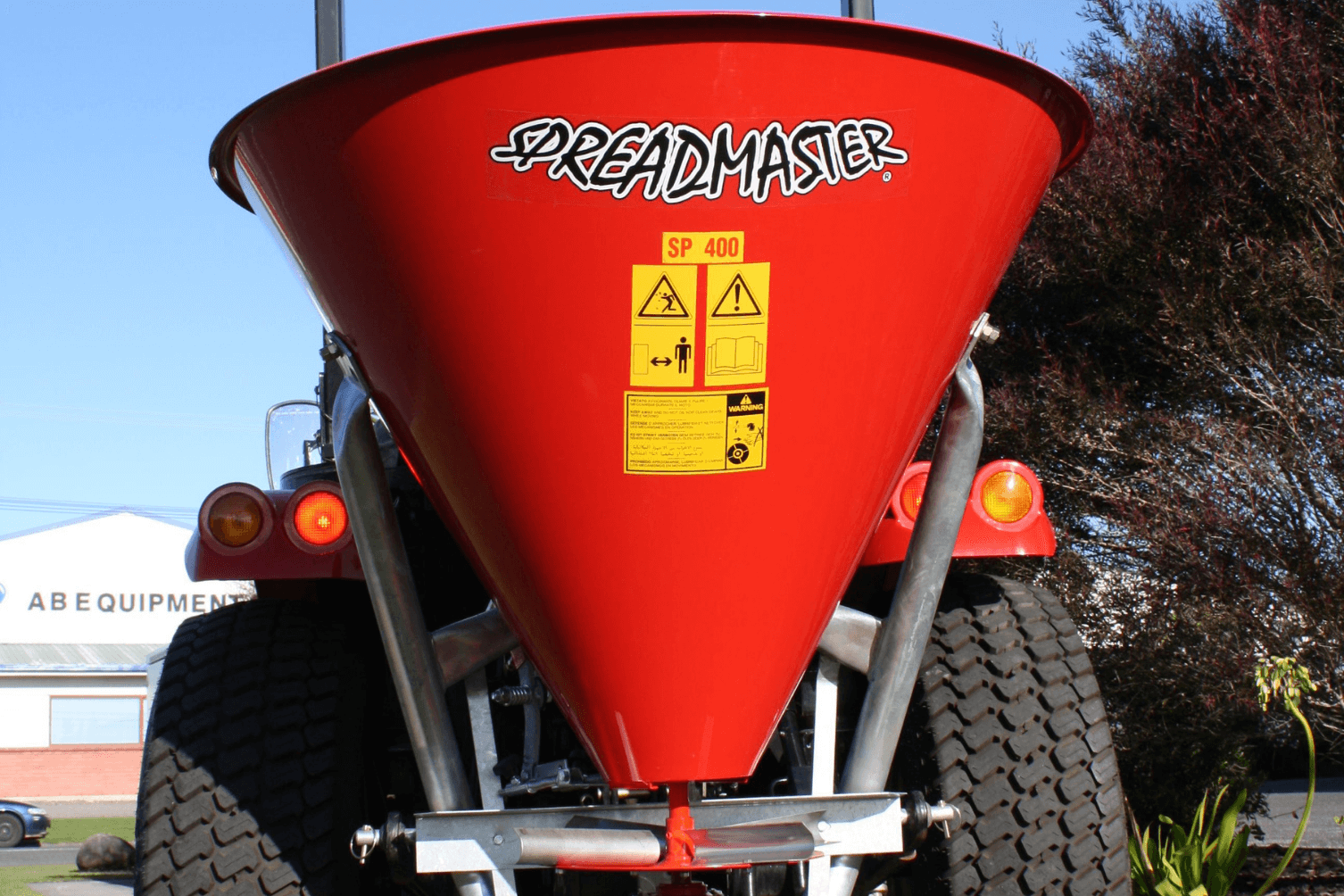

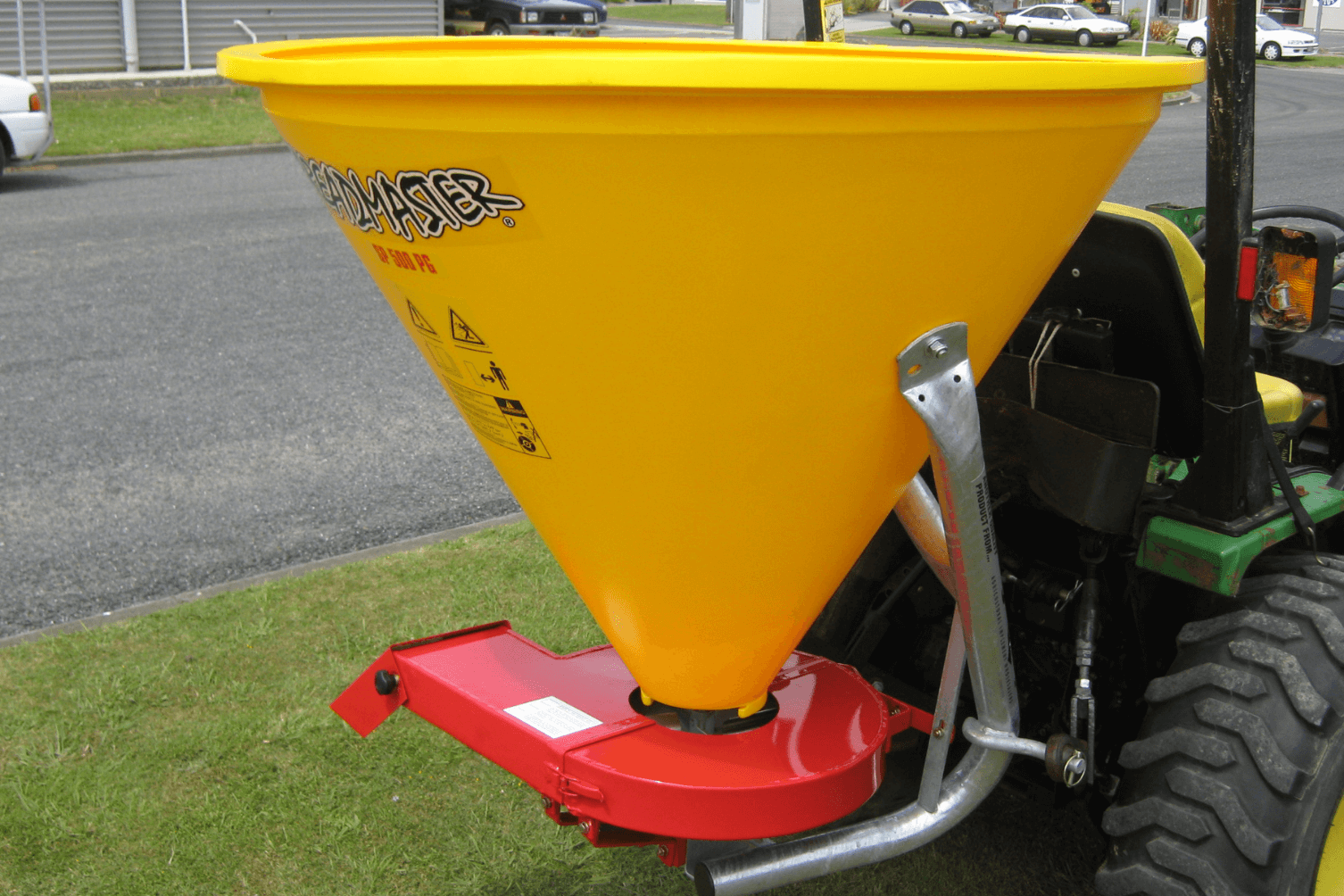

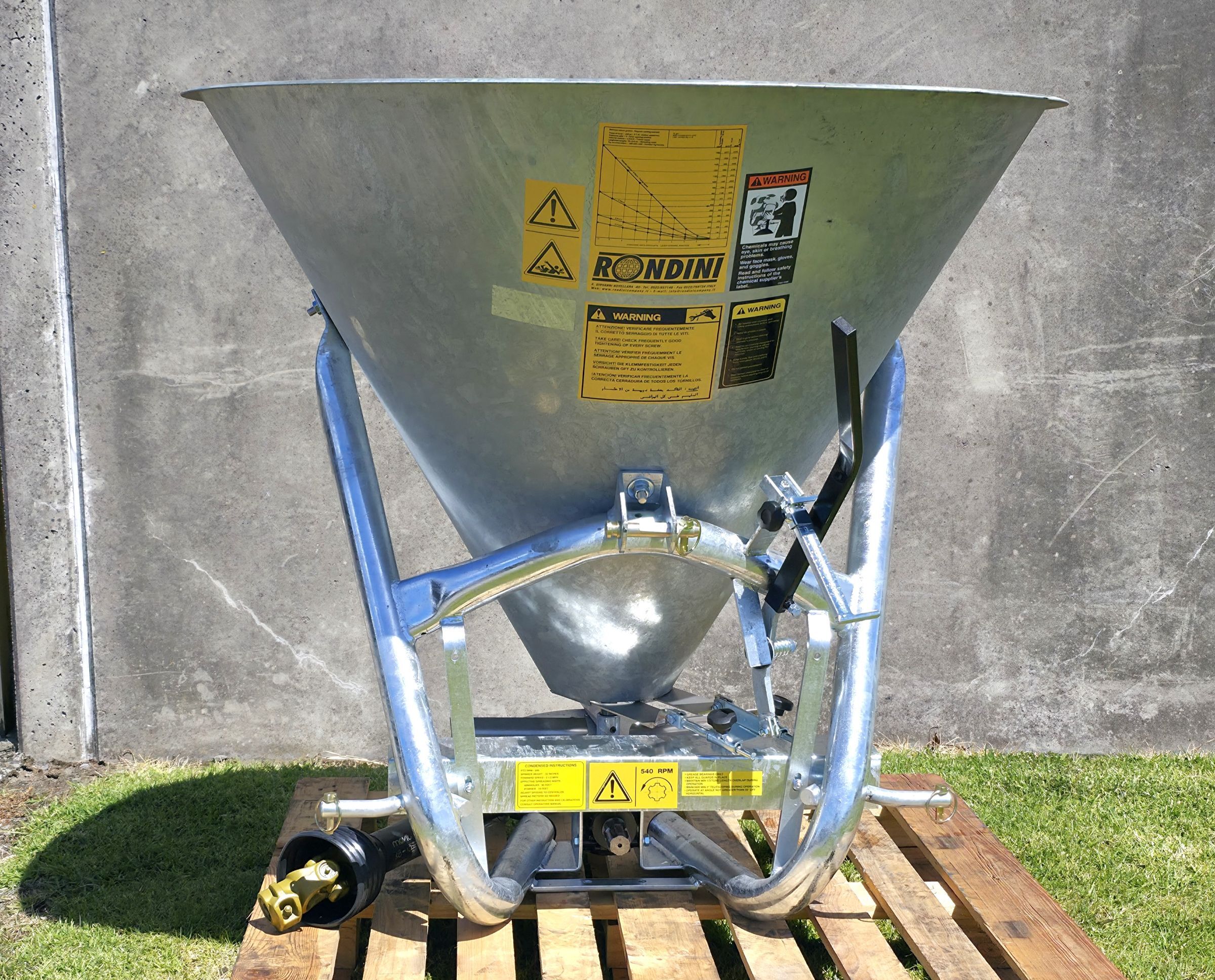

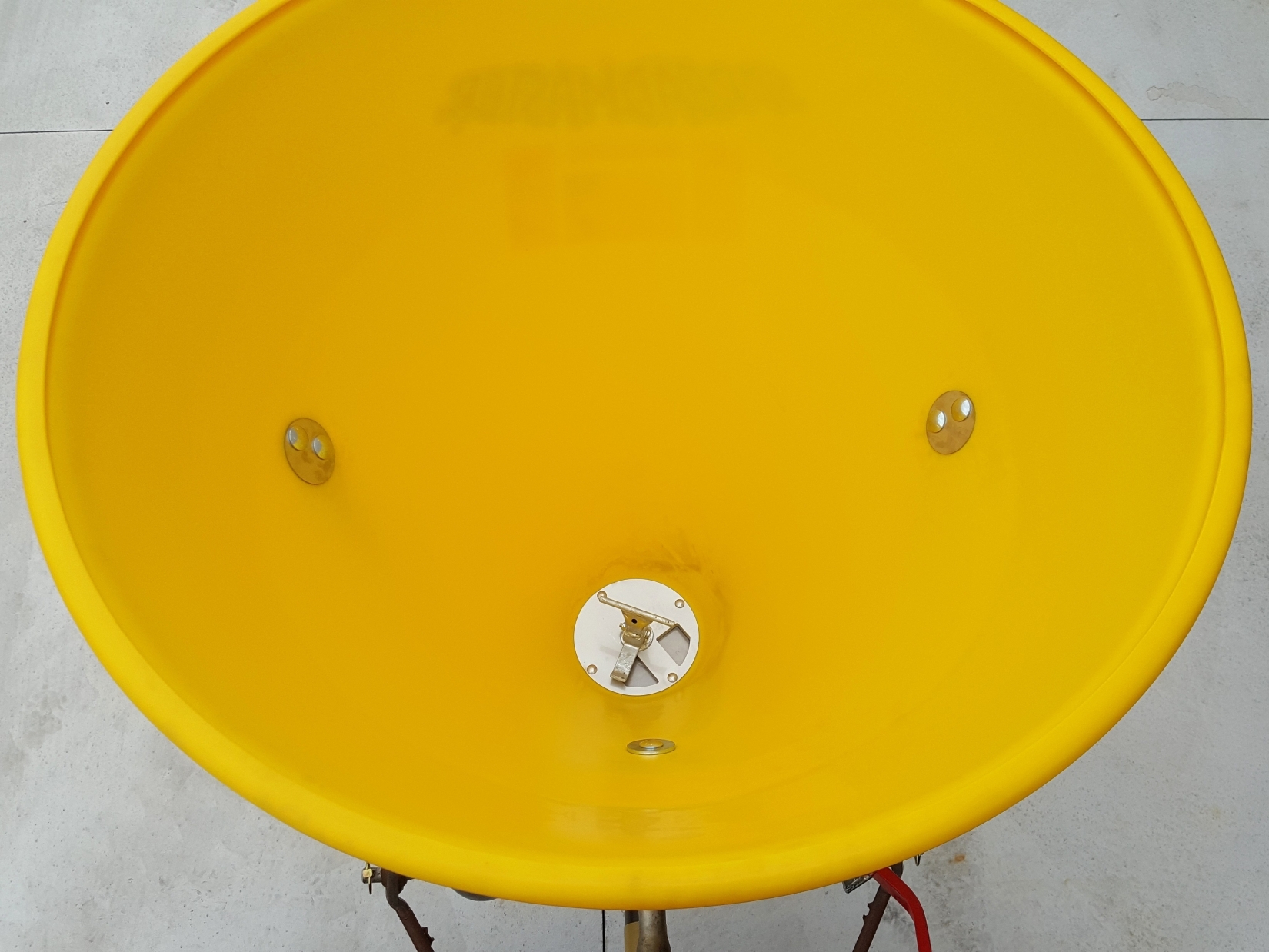

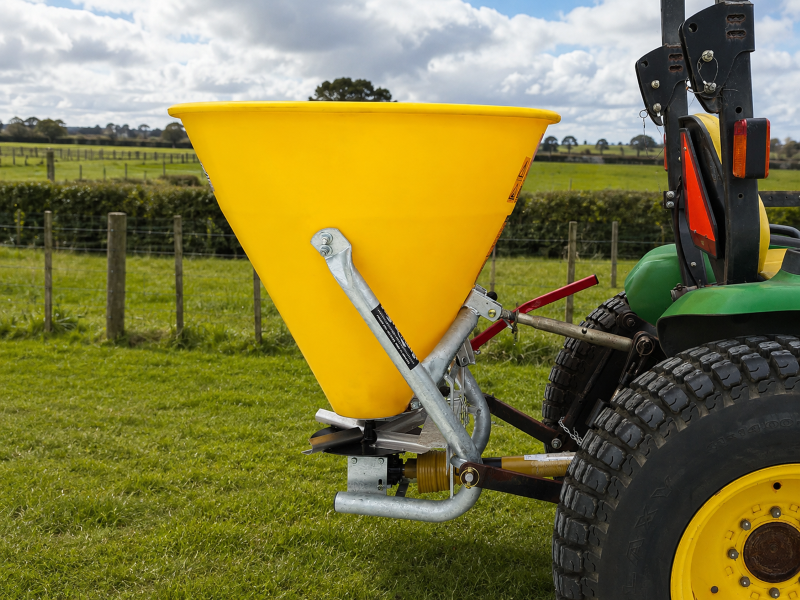

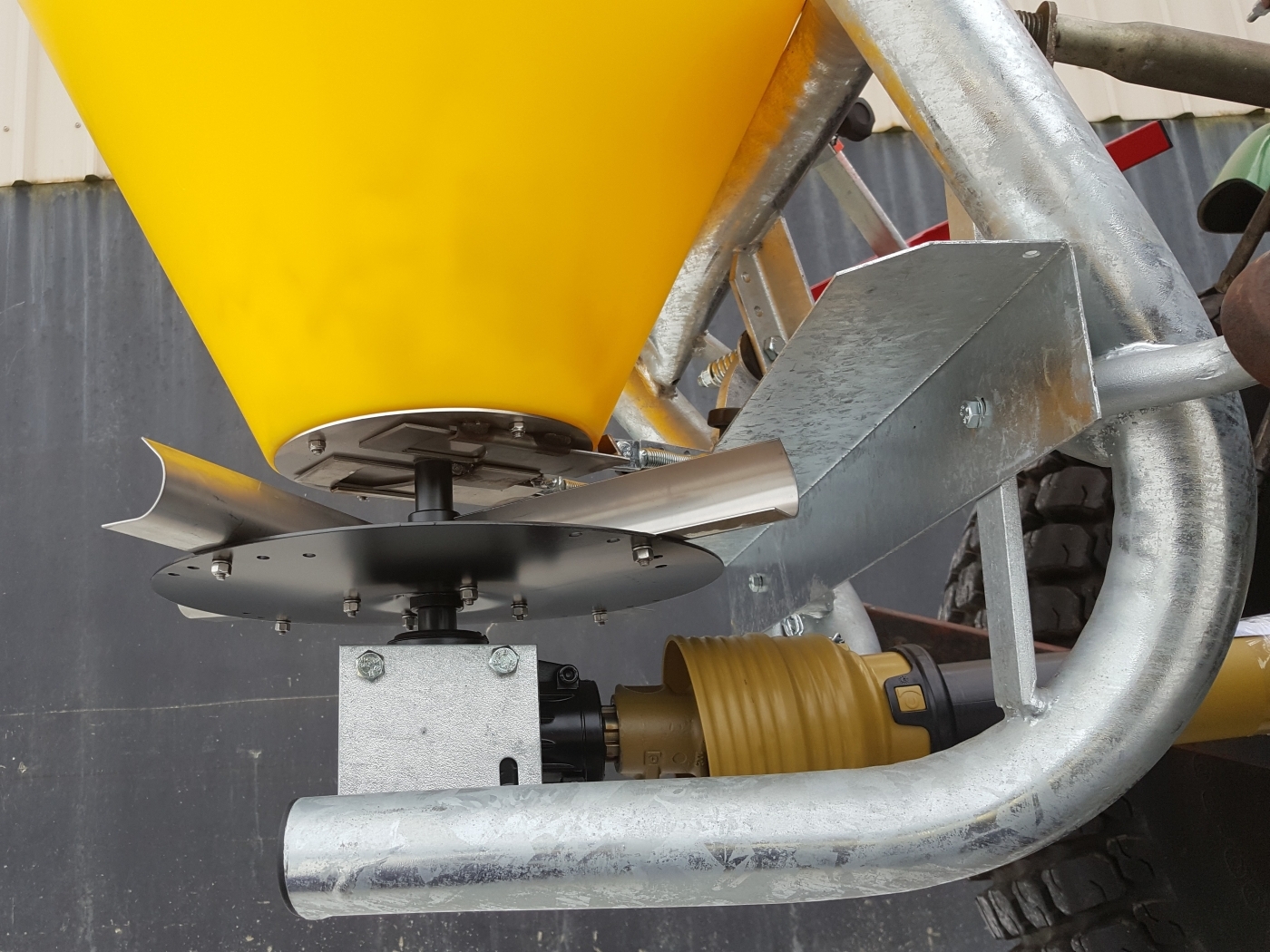

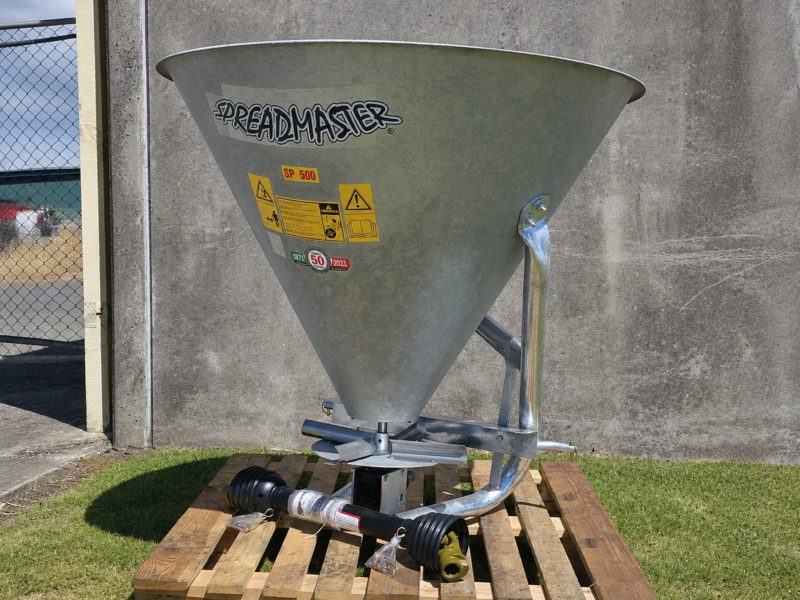

FEATURES

• High quality components and design
• Designed and manufactured in Italy
• Stainless Steel Disc with 4 adjustable fins
• Easy setting of the application rate
• Heavy duty Italian gearbox
• 1 Year warranty
• Galvanized Frames

PHOTO GALLERY

(click photo to enlarge)

SPECIFICATIONS

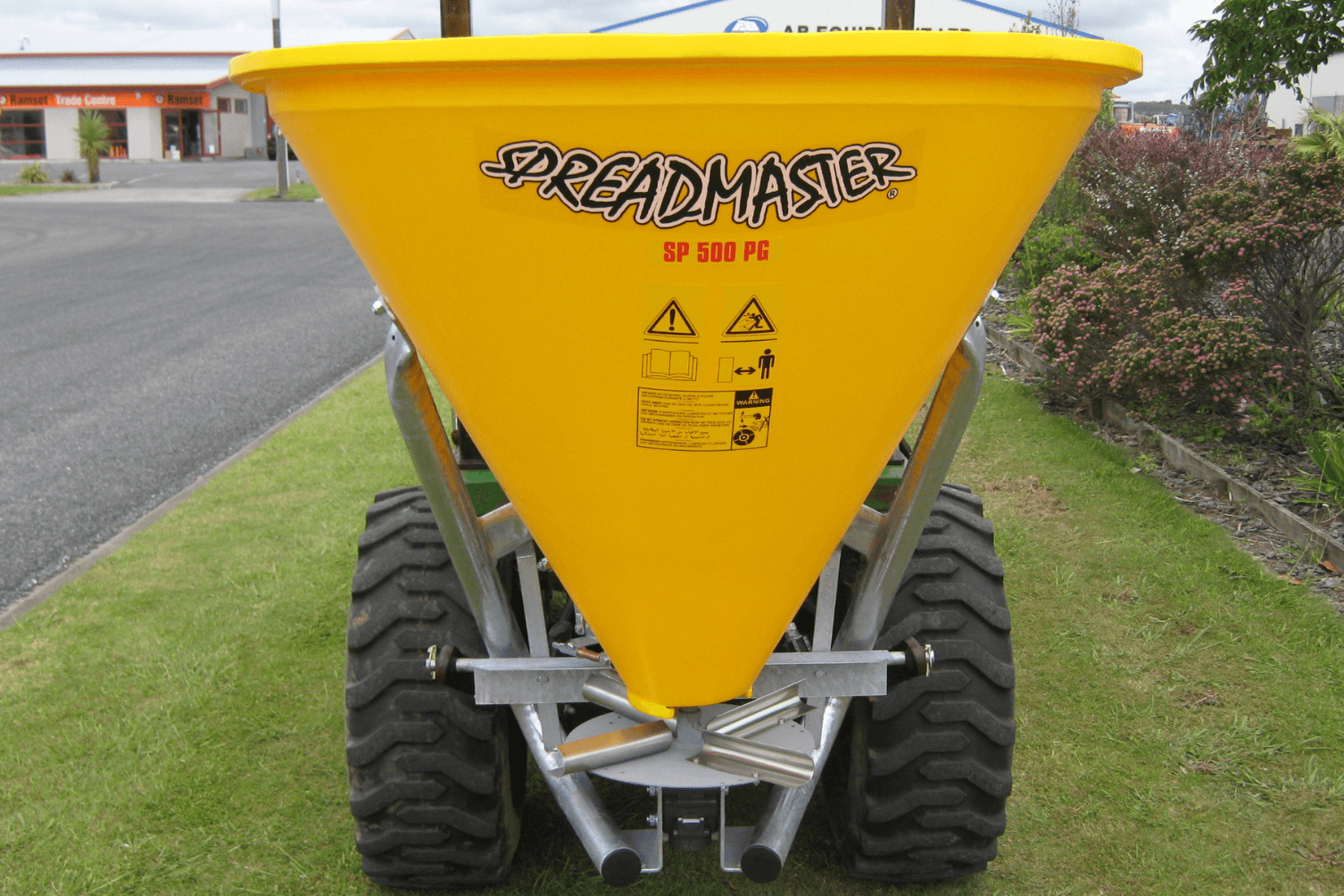

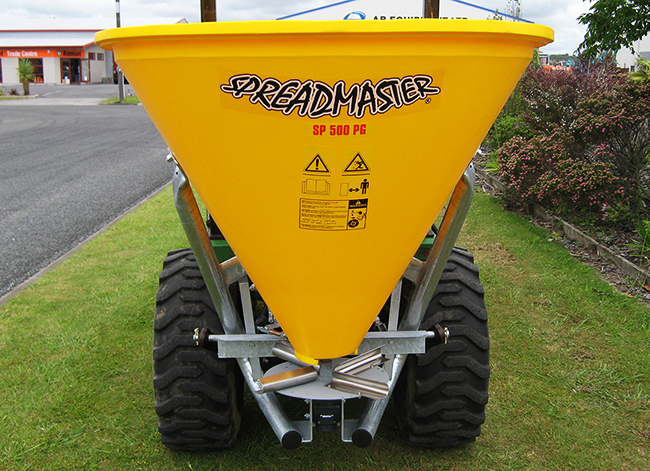

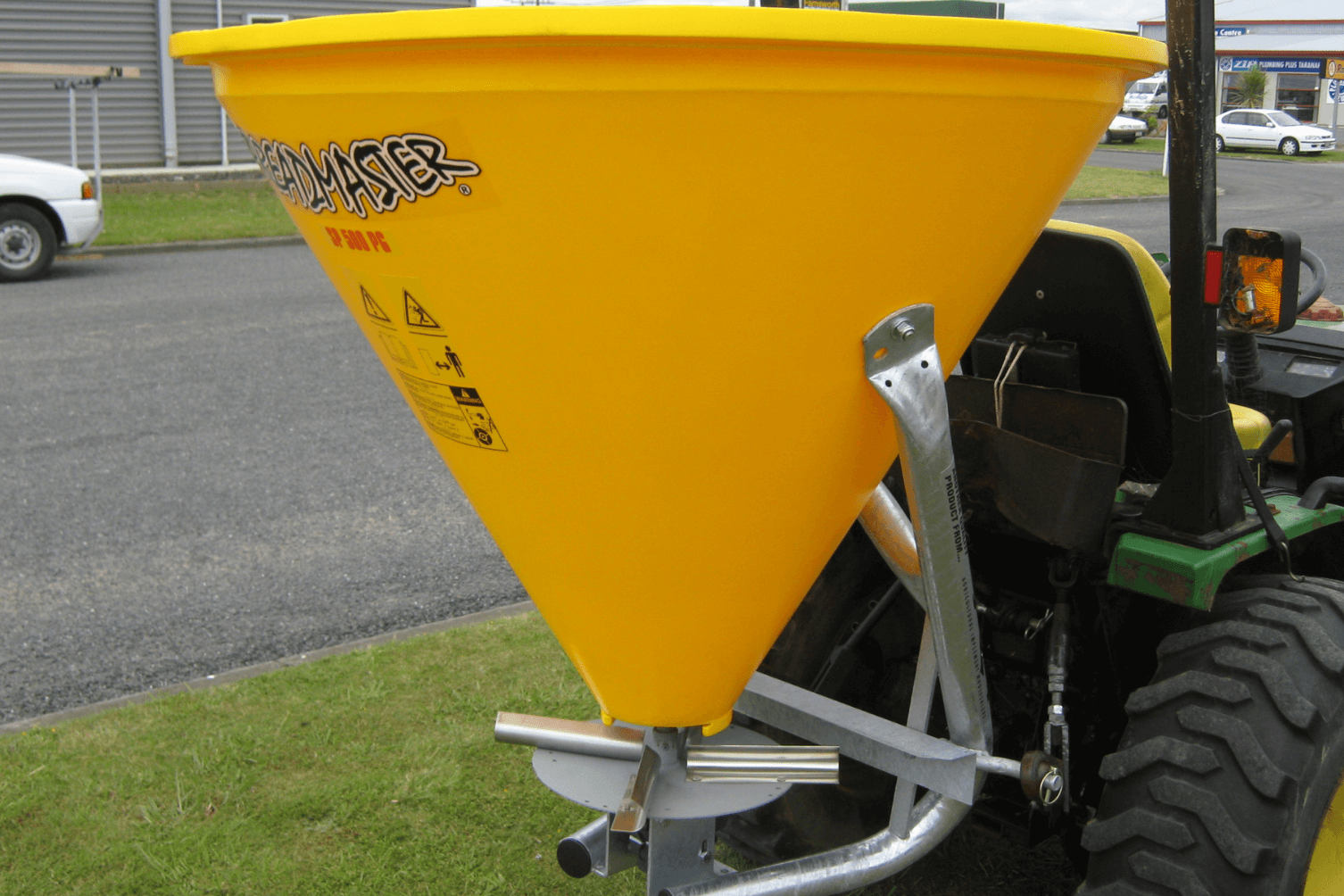

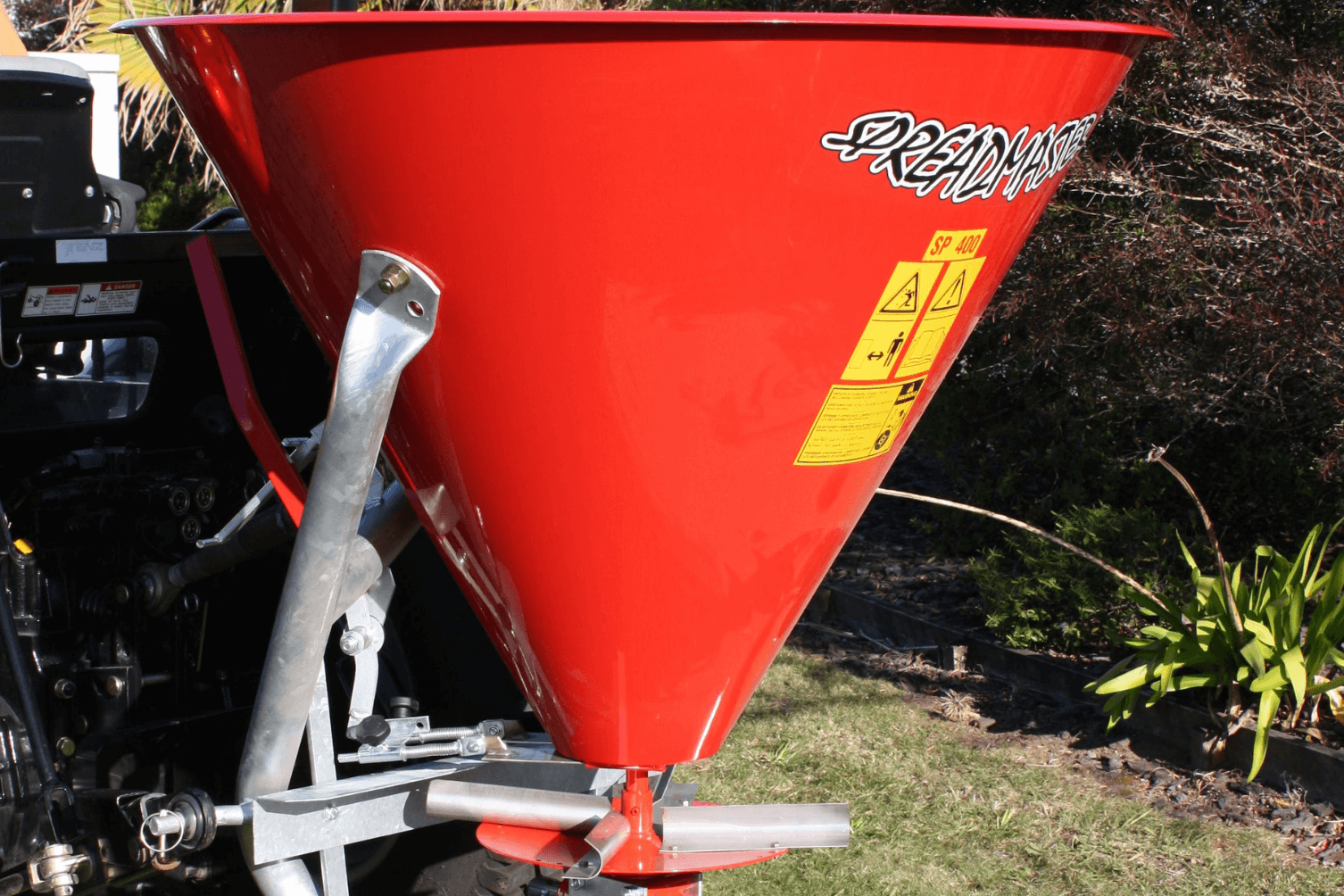

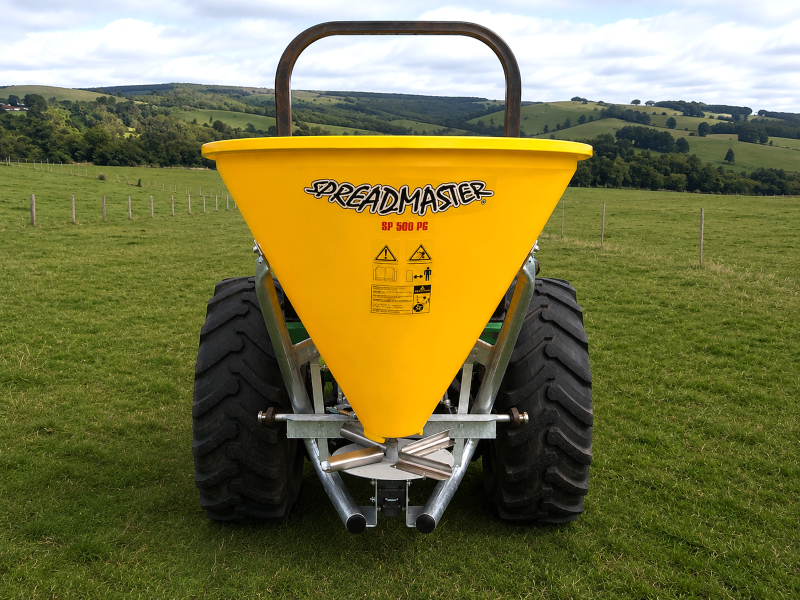

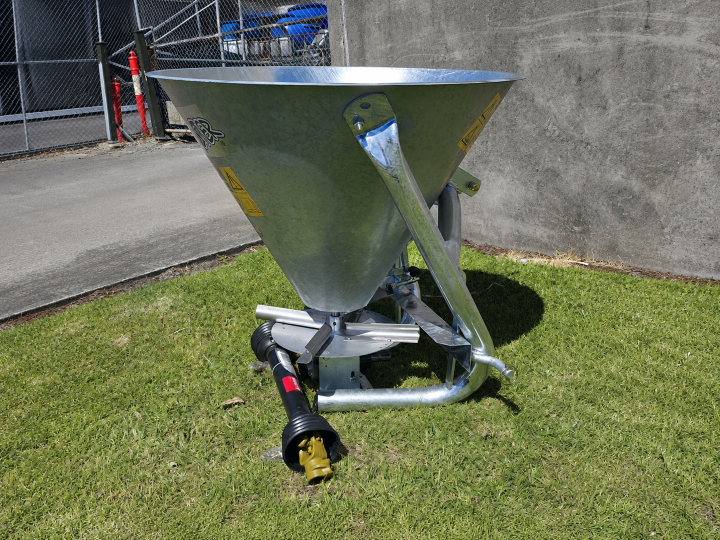

		SP150	SP400	SP500	SP500PG
Hopper Capacity		149 Litres	302 Litres	350 Litres	350 Litres
Payload		180 Kg	405 Kg	480 Kg	480 Kg
Empty Weight		50 Kg	57 Kg	60 Kg	57 Kg
Loading Height		0.89 m	1.07 m	1.15 m	1.15 m
Width		0.91 m	1.15 m	1.20 m	1.20 m
Spreading Width		6-14 m*	6-14 m*	6-14 m*	6-14 m*
Absorbed Power		8 hp	8 hp	8 hp	8 hp
Power Take-off RPM		540	540	540	540
Hopper Material		Steel	Steel	Steel	Polyethylene
Frame Finish		Galvanized	Galvanized	Galvanized	Galvanized

*Depending on fertiliser composition.

OPTIONAL EXTRAS

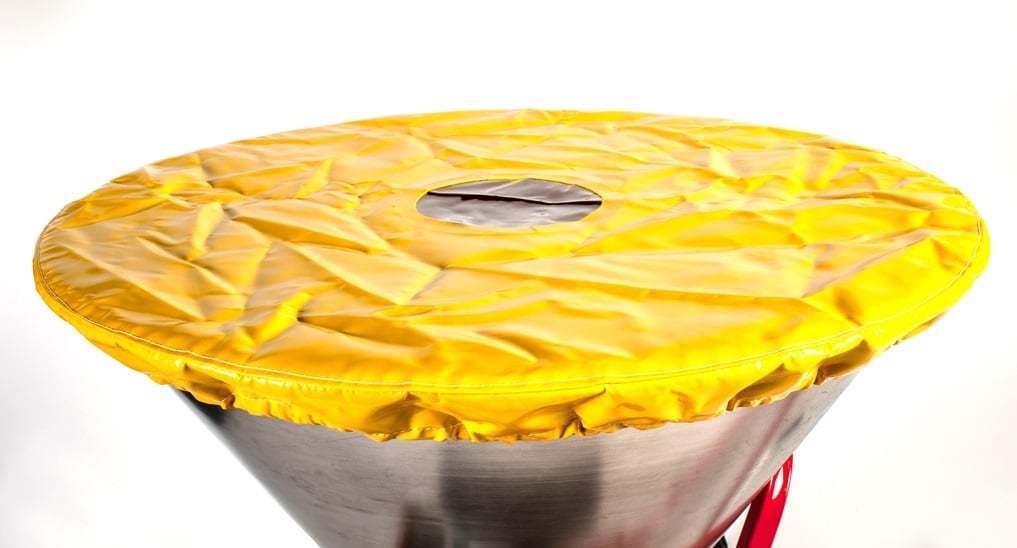

• Cover

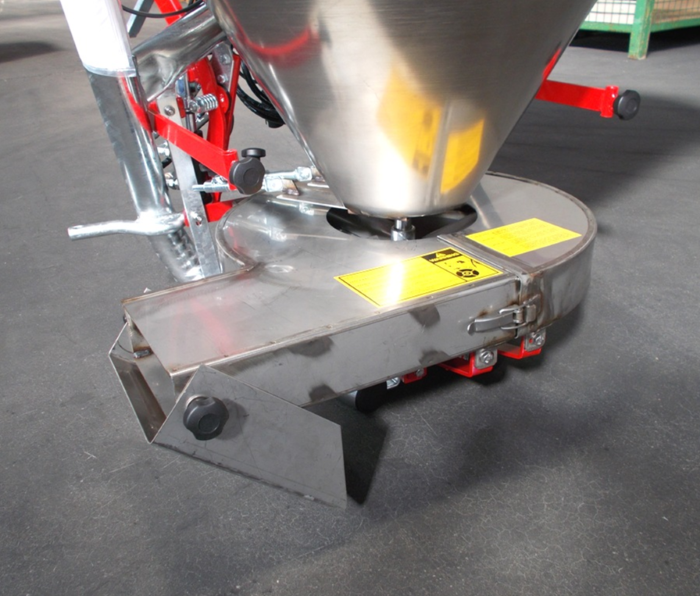

• Side discharge unit

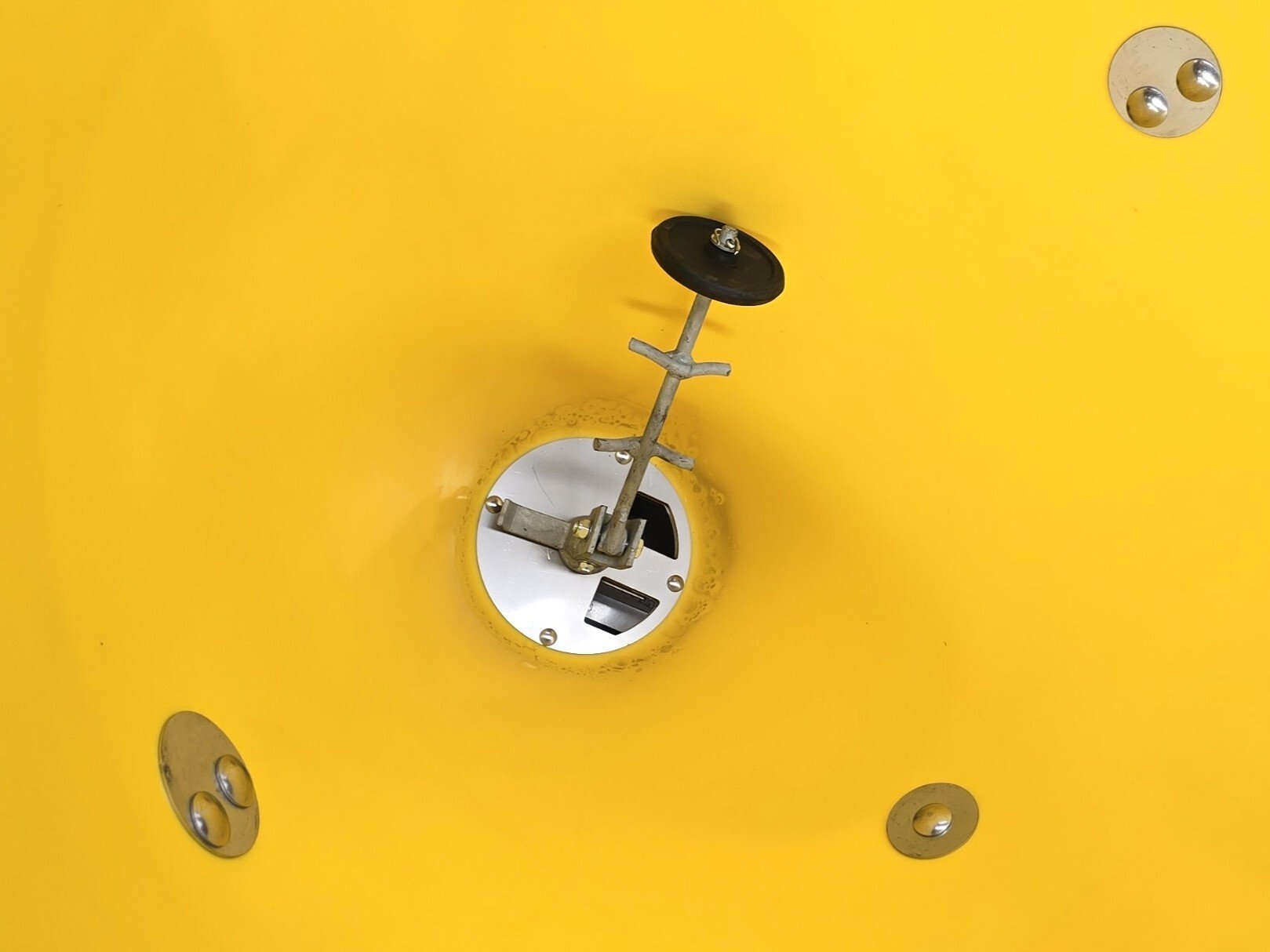

• Agitator stirrer
• Cable remote control

DOWNLOADS

SP Series Brochure (1,976 kb)

Operators/Parts Manual (833 kb)

Back to Top

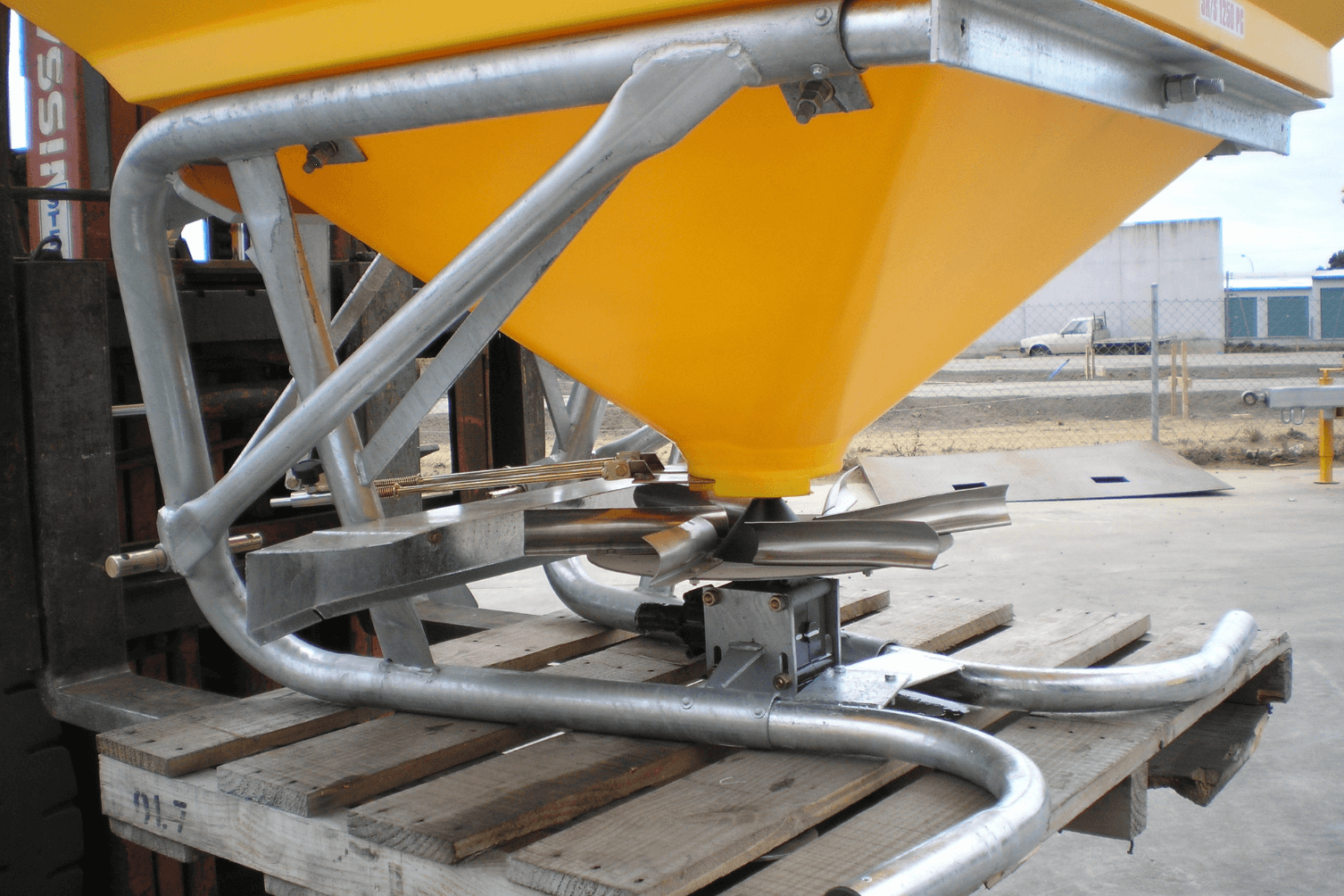

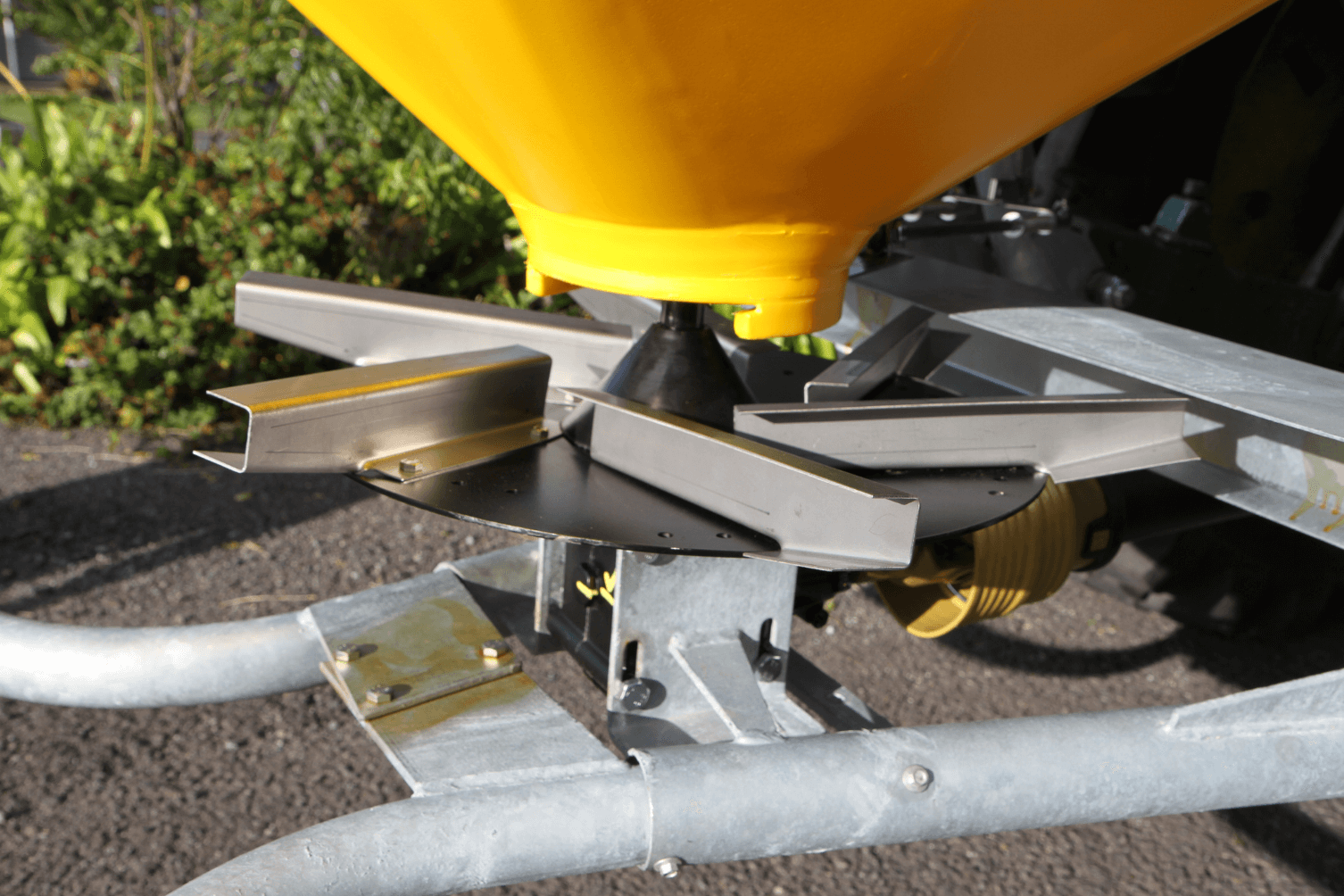

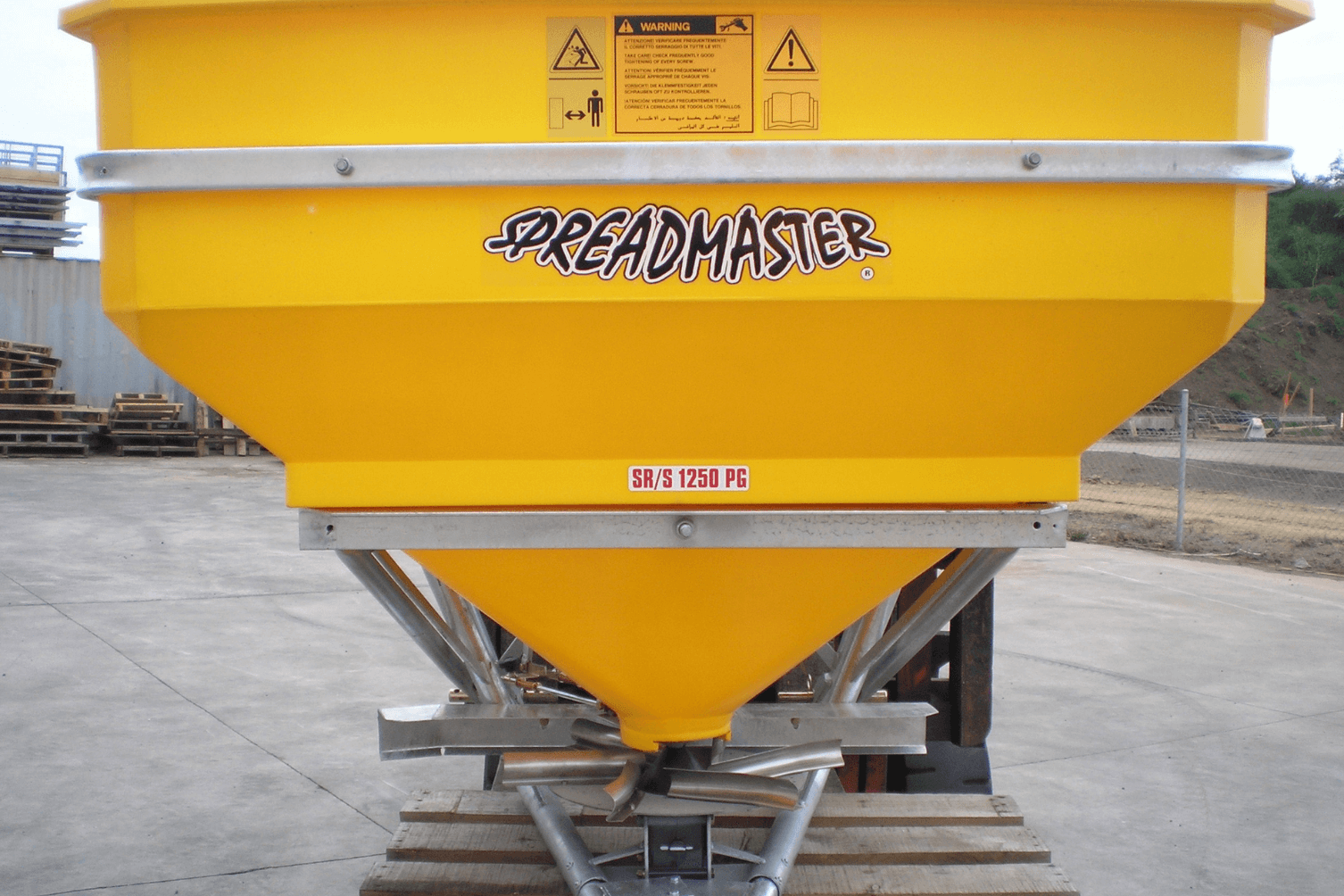

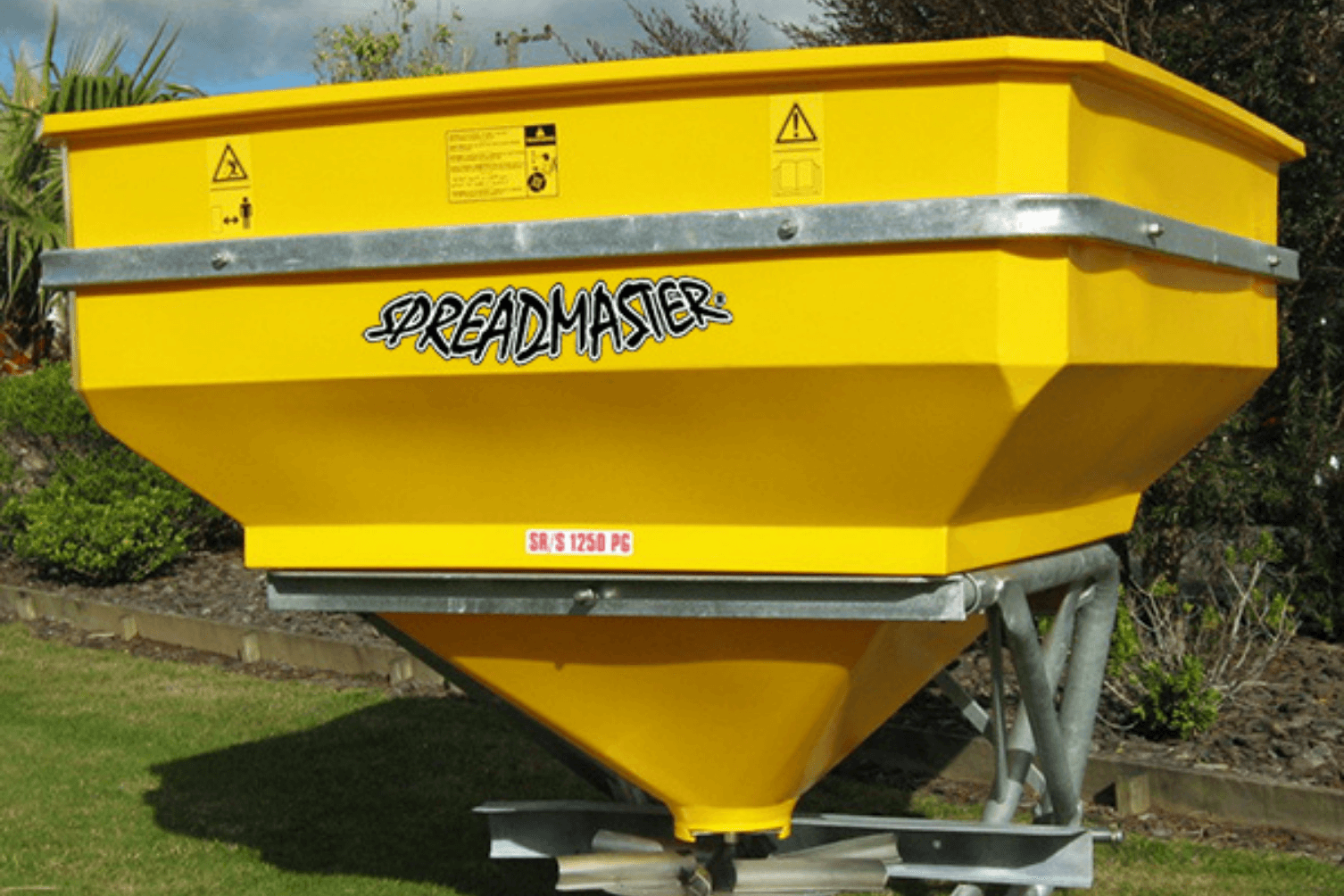

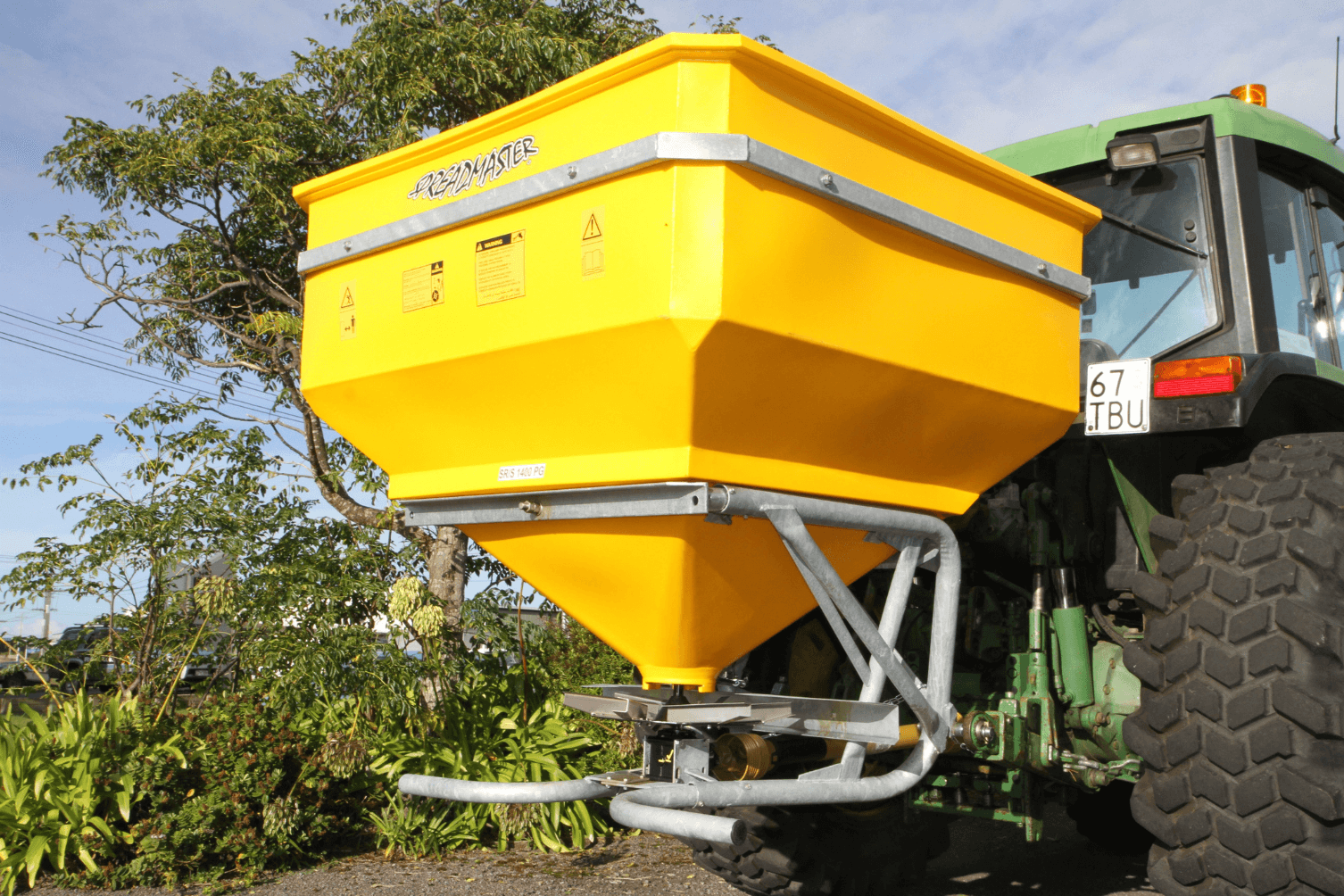

SR/S Series

FEATURES

• All models have hot dipped galvanized frame and polyethylene hopper
• Stainless steel fins and twin shutters
• Quality Italian oil-filled gearbox
• 8-18 m spreading width
• 1 year warranty
• Designed and manufactured in Italy
• Easy to set application rate

SPECIFICATIONS

	SR/S 610	SR/S 610 PG	SR/S 810	SR/S 810 PG	SR/S 1400 PG
Capacity (Approx)	600 L	600 L	800 L	800 L	1400 L
Payload	780 Kg	780 Kg	1000 Kg	1000 Kg	1000 Kg
Empty Weight	104 Kg		120 Kg
Loading Height	0.96 m	0.96 m	1.03 m	1.03 m
Width	1.30 m	1.30 m	1.40 m	1.40 m
Spreading Width	8-18 m*	8-18 m*	8-18 m*	8-18 m*	8-18 m*
Min. HP Required	8 hp	8 hp	8 hp	8 hp	8 hp
PTO rpm	540	540	540	540	540
Hopper Material	Steel	Polyethylene	Steel	Polyethylene	Polyethylene
Frame Finish	Powder-coated	Galvanised	Powder-coated	Galvanised	Galvanised

*Depending on fertiliser composition

PHOTO GALLERY

(click photo to enlarge)

OPTIONAL EXTRAS

• Side discharge unit
• Cover
• Cable remote control
• Agitator stirrer
• Extension legs for free standing
• Hydraulic remote

DOWNLOADS

SR/S Series Brochure (1,976 kb)

Operators/Parts Manual (1,003 kb)

Back to Top

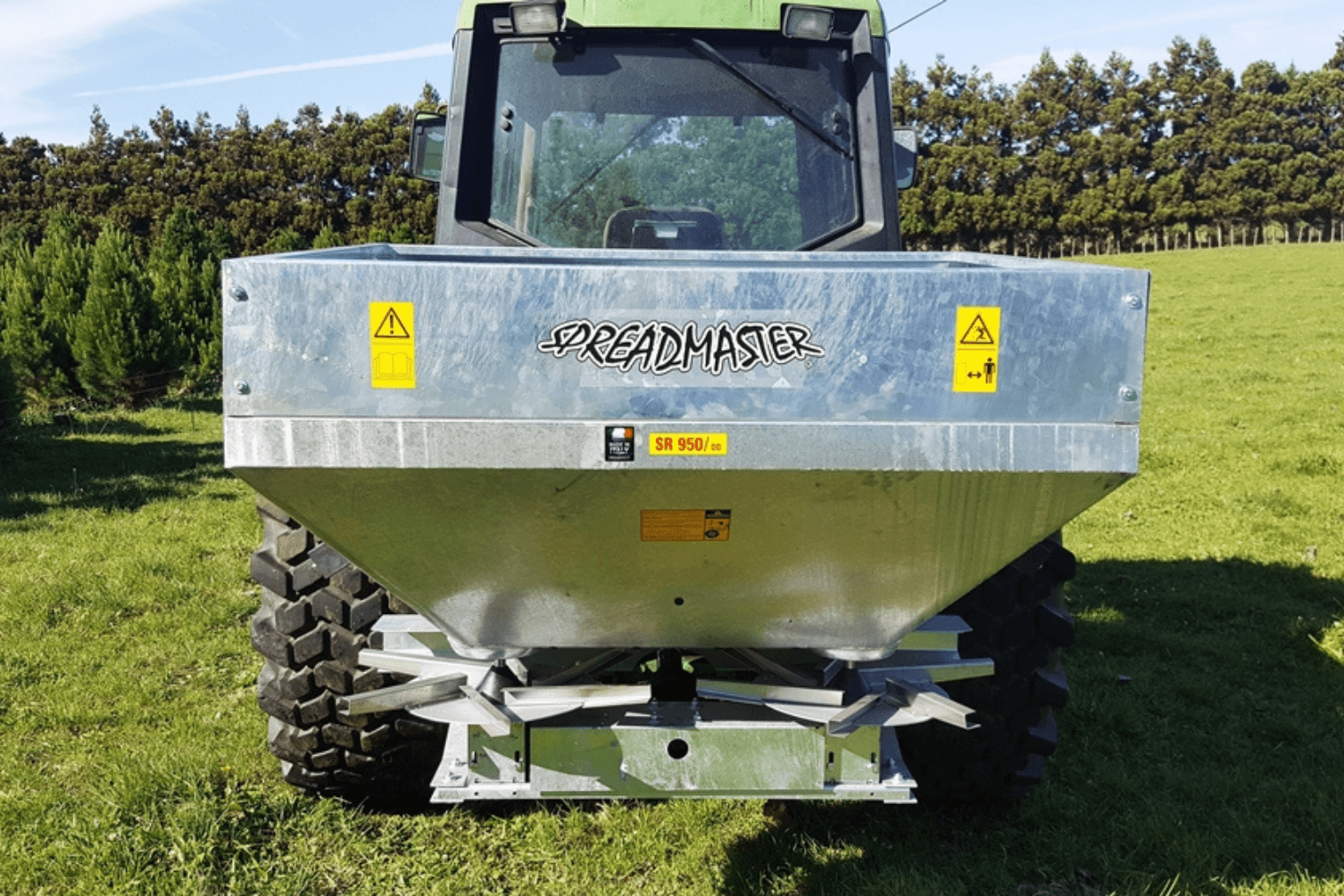

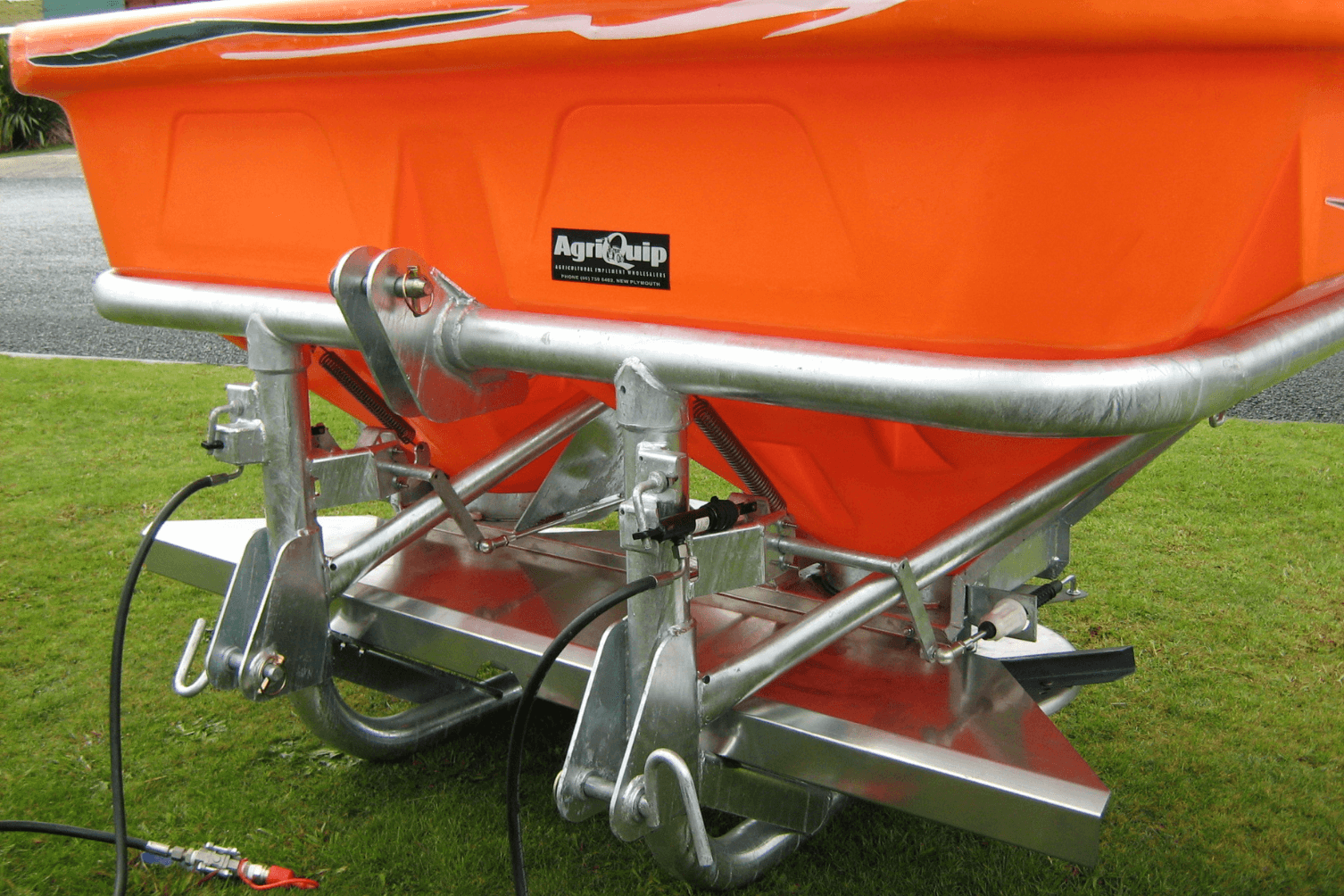

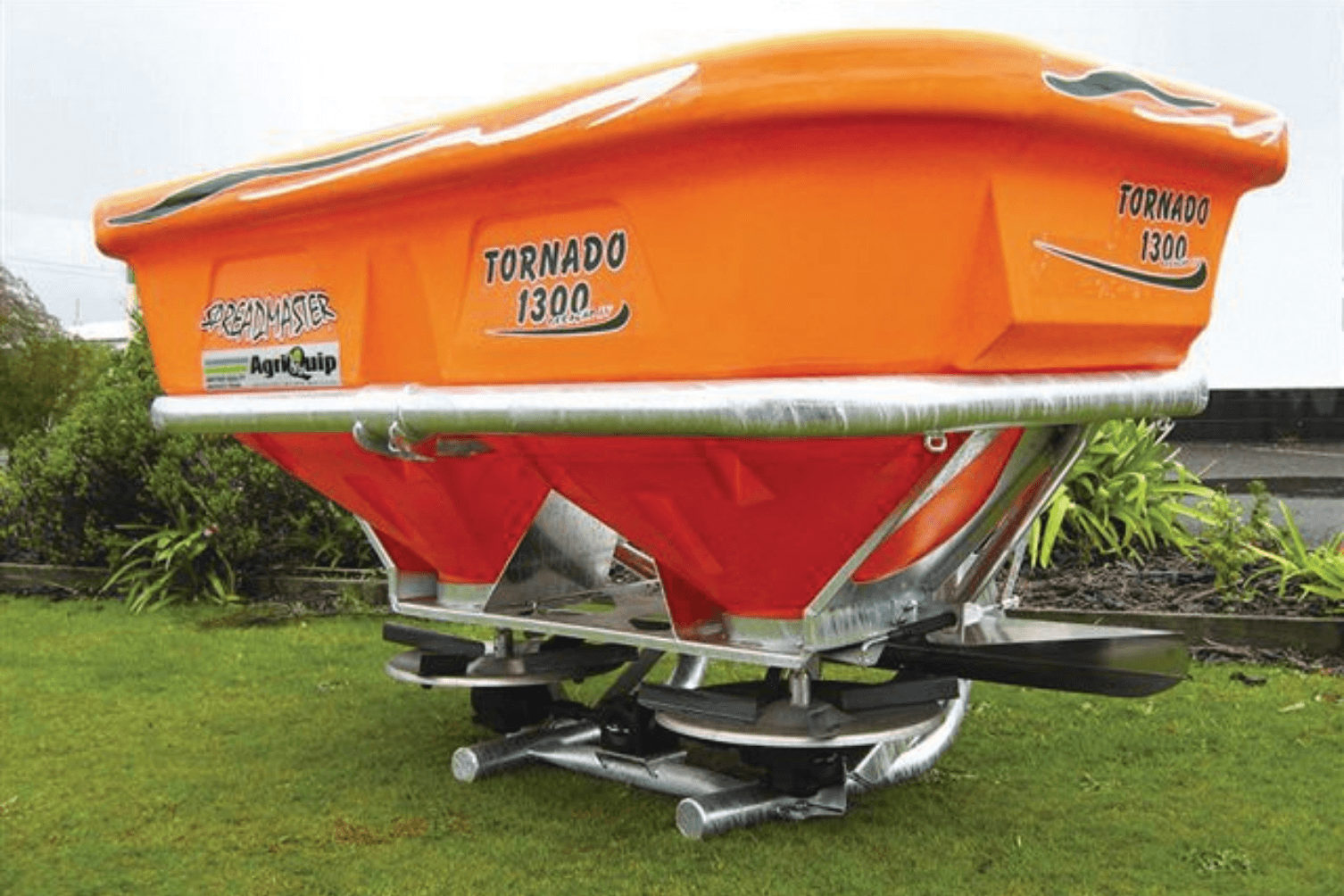

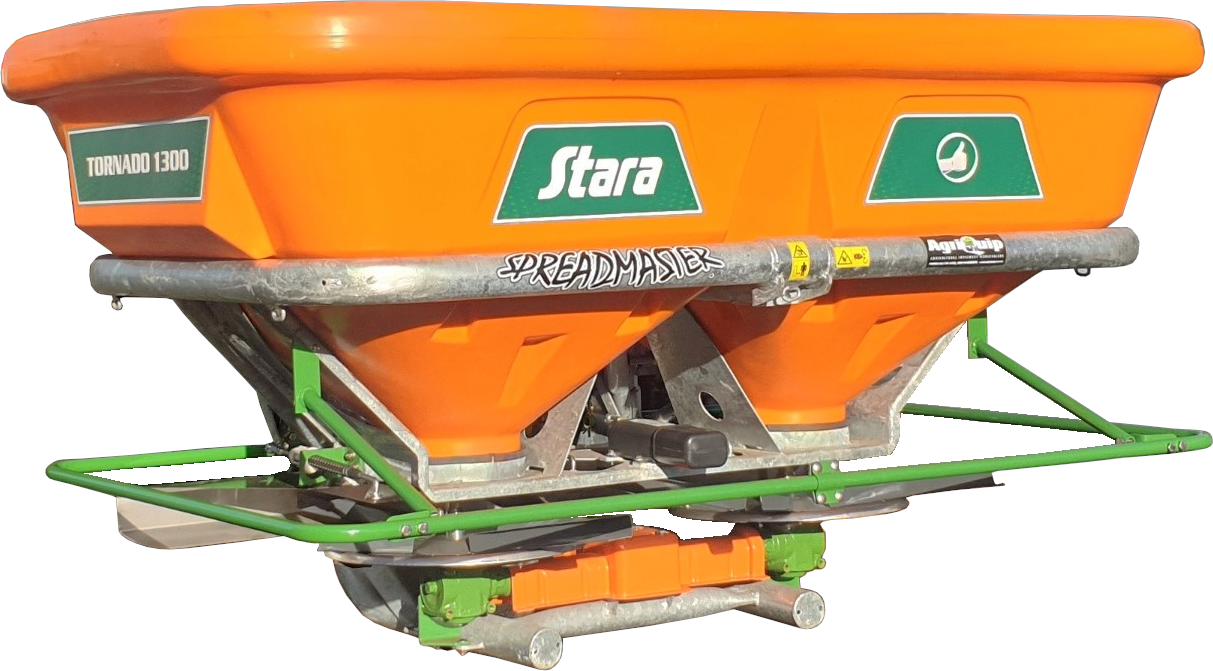

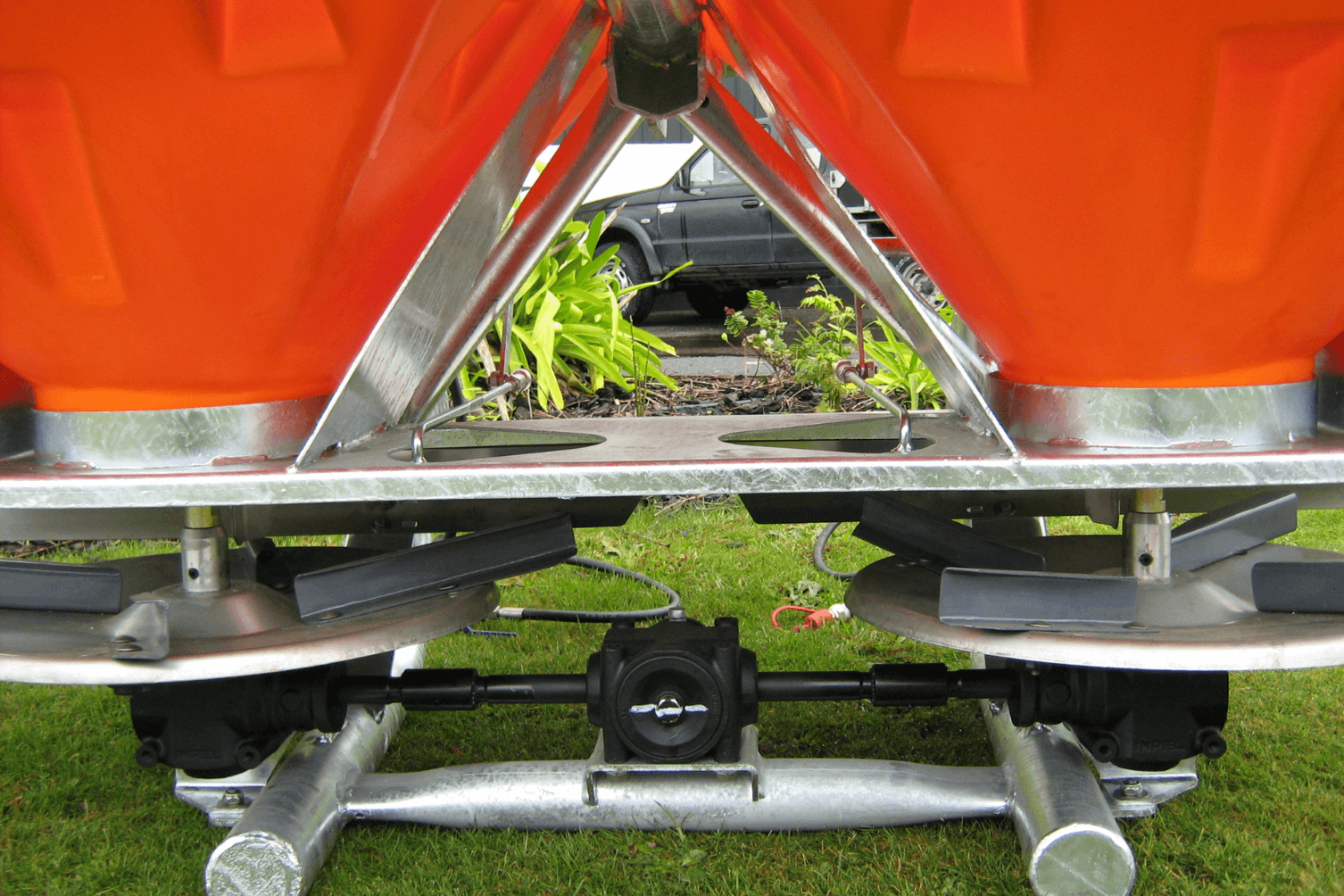

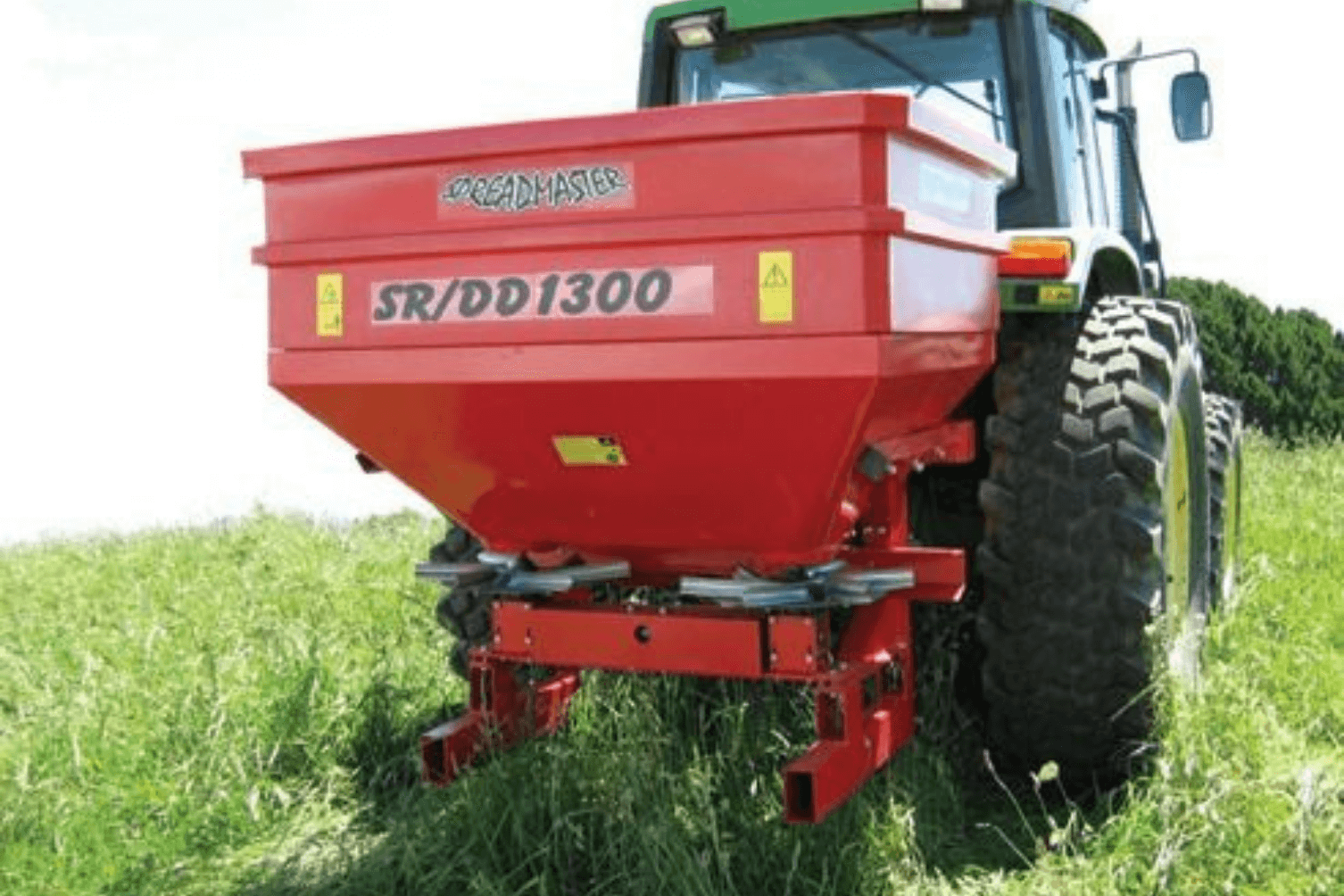

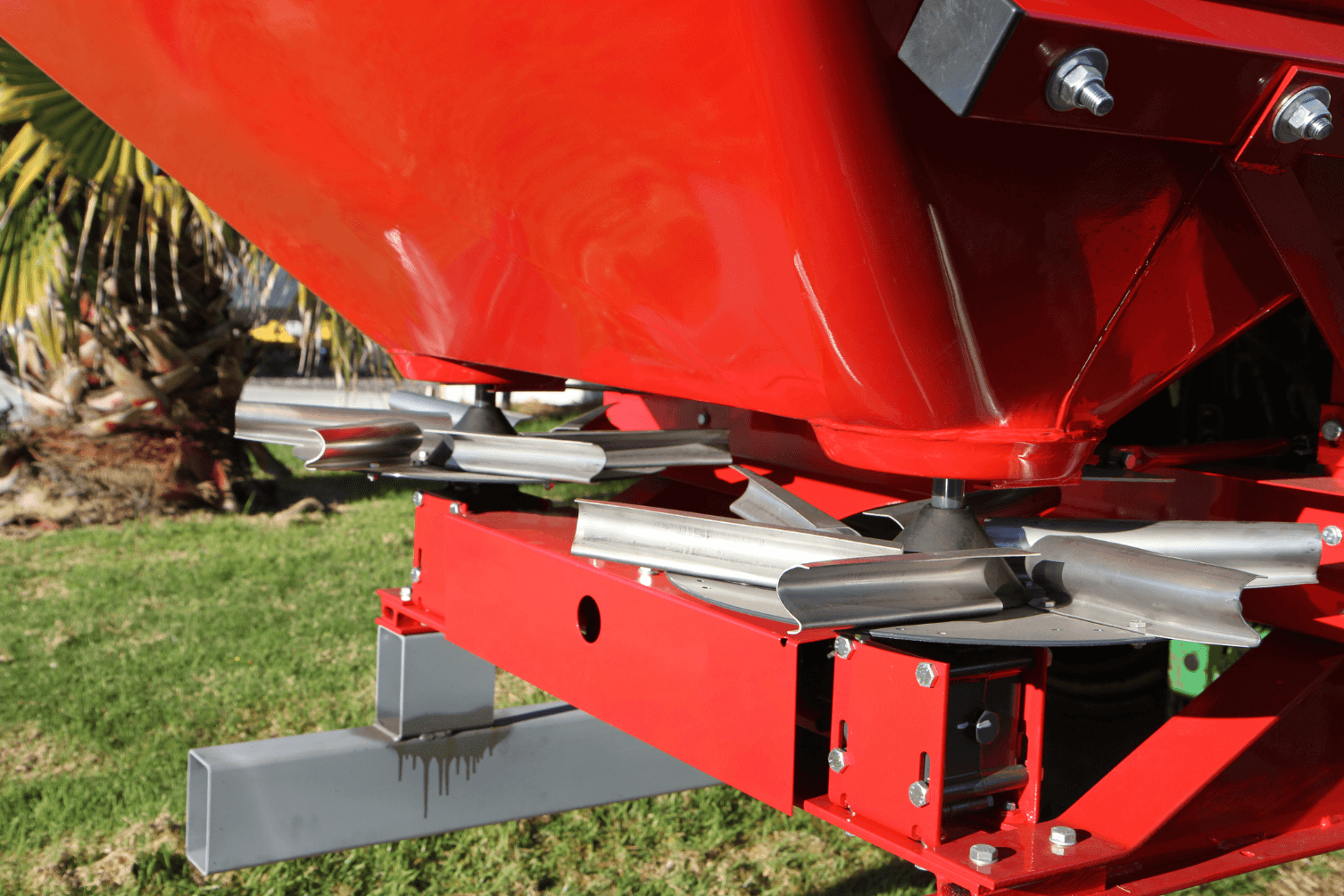

SR/DD Series

FEATURES

• Twin Spinners
• Designed & manufactured in Italy
• Quality Italian gearboxes

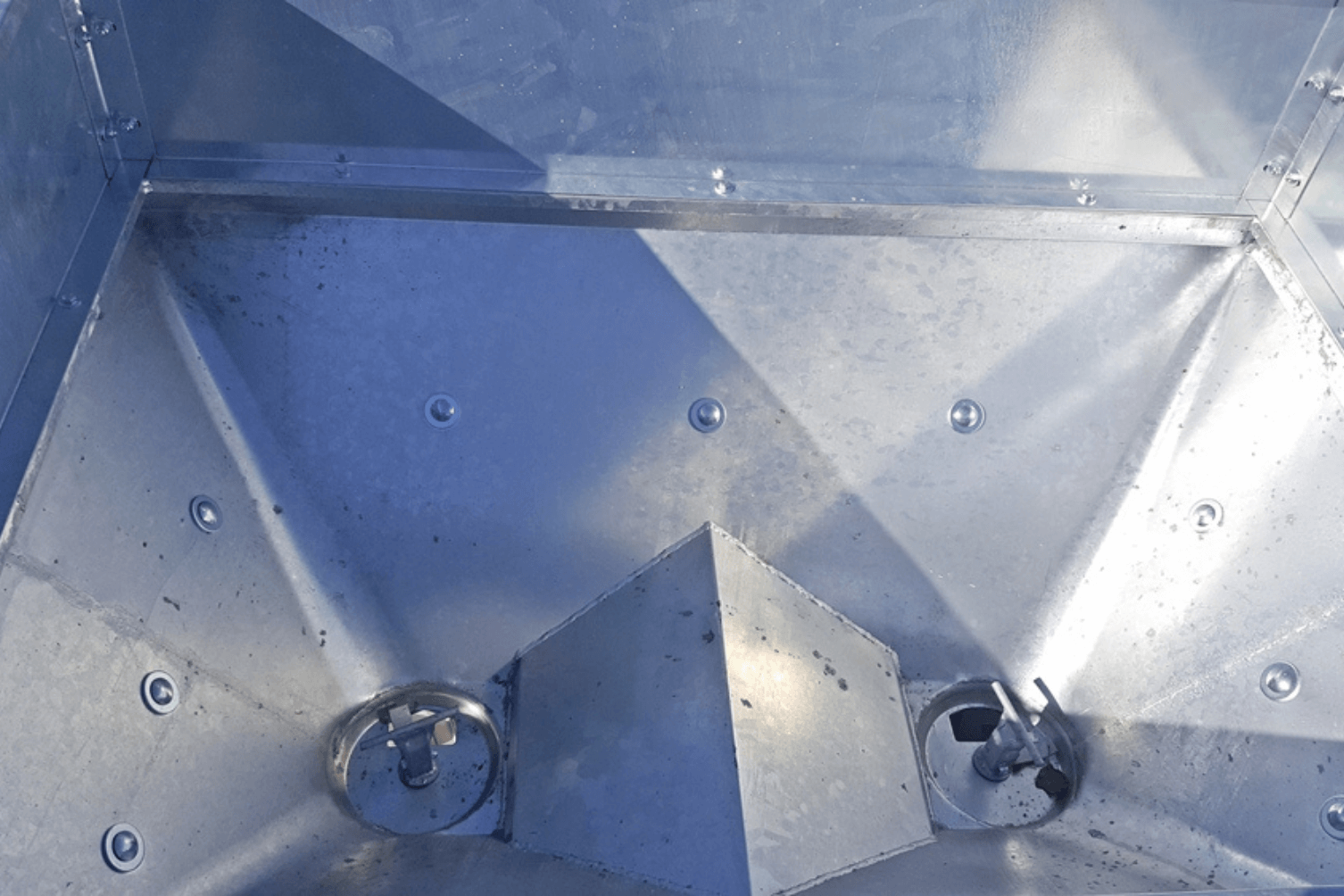

• Stainless steel hopper base, fins and shutters
• 8 - 18 m spreading width
• Standard with hydraulic remote
• Fully hot dipped galvanized
• 1 year warranty

SPECIFICATIONS

	SR/DD 550	SR/DD 950	SR/DD 1300
CAPACITY	500 L	900 L	1300 L
PAYLOAD	650 kg	1150 kg	1150 kg
FINISH	Powder Coated	Powder Coated	Powder Coated Frame/Poly-Steel Hopper
HEIGHT	800 mm	1100 mm	1270 mm
WIDTH	1500 mm	1500 mm	1500 mm
DEPTH	1100 mm	1100 mm	1100 mm

PHOTO GALLERY

(click photo to enlarge)

OPTIONAL EXTRAS

• Cable remote control
• Cover

DOWNLOADS

SR/DD Series Brochure (1,976 kb)

Operators/Parts Manual (1,464 kb)

Back to Top

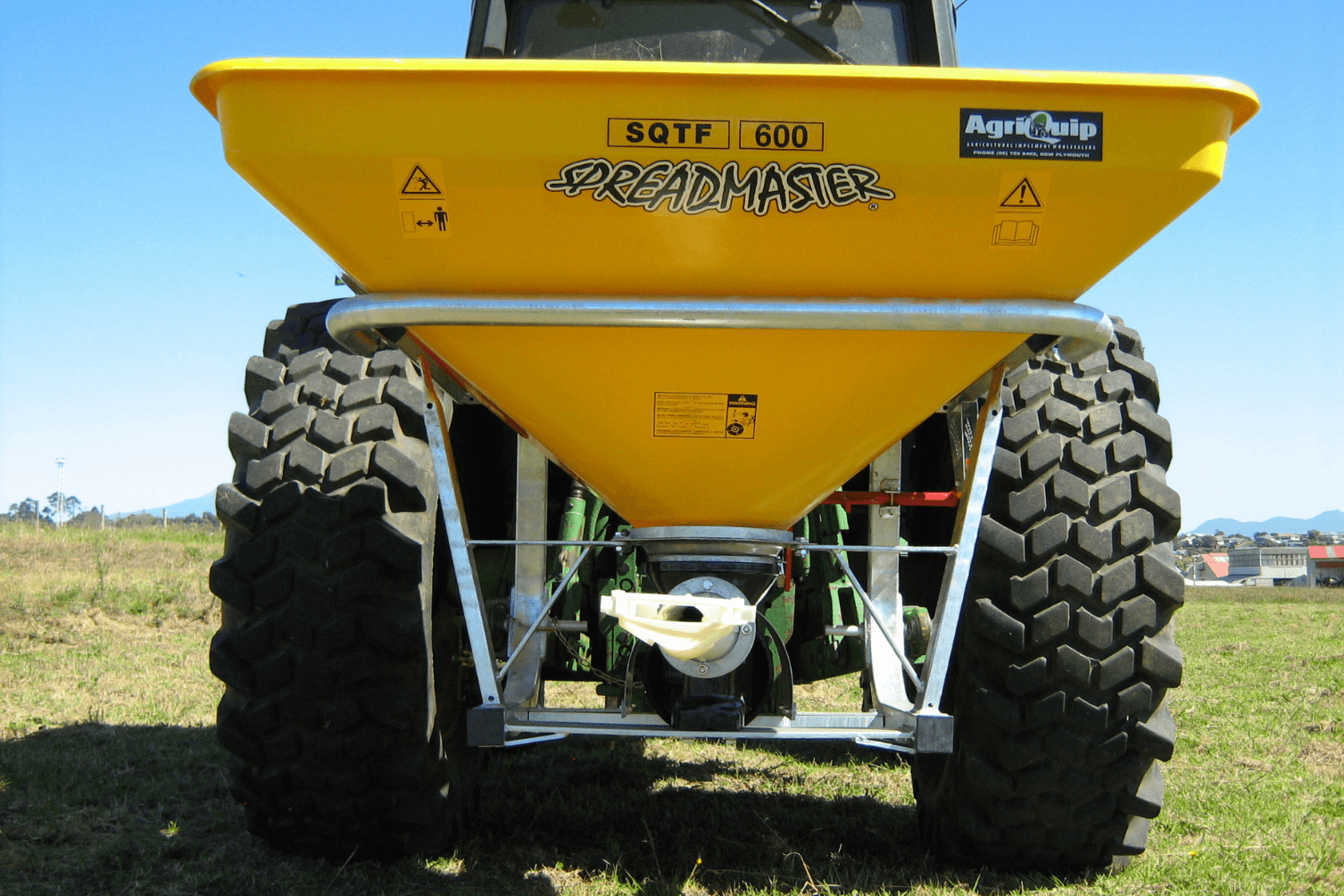

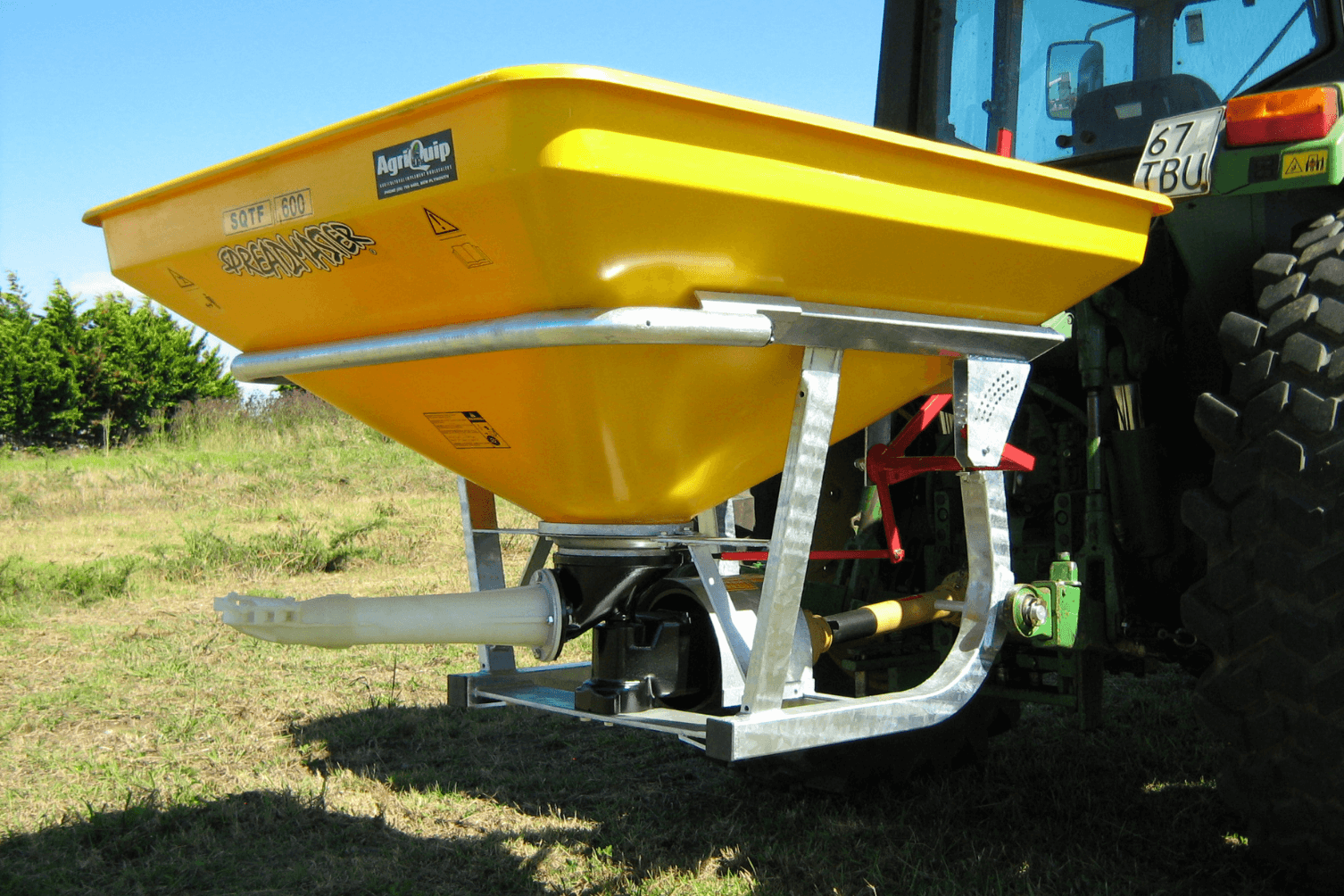

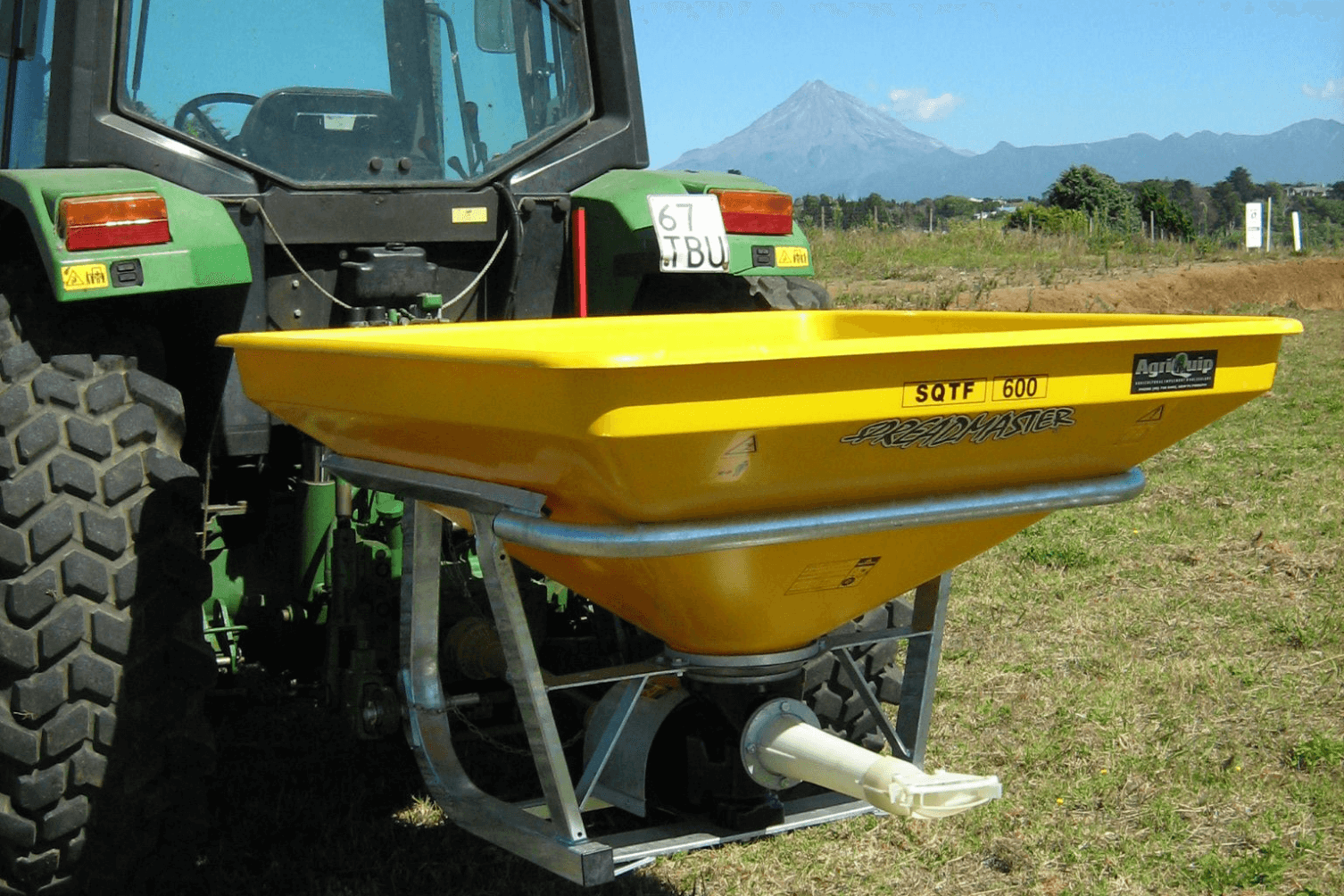

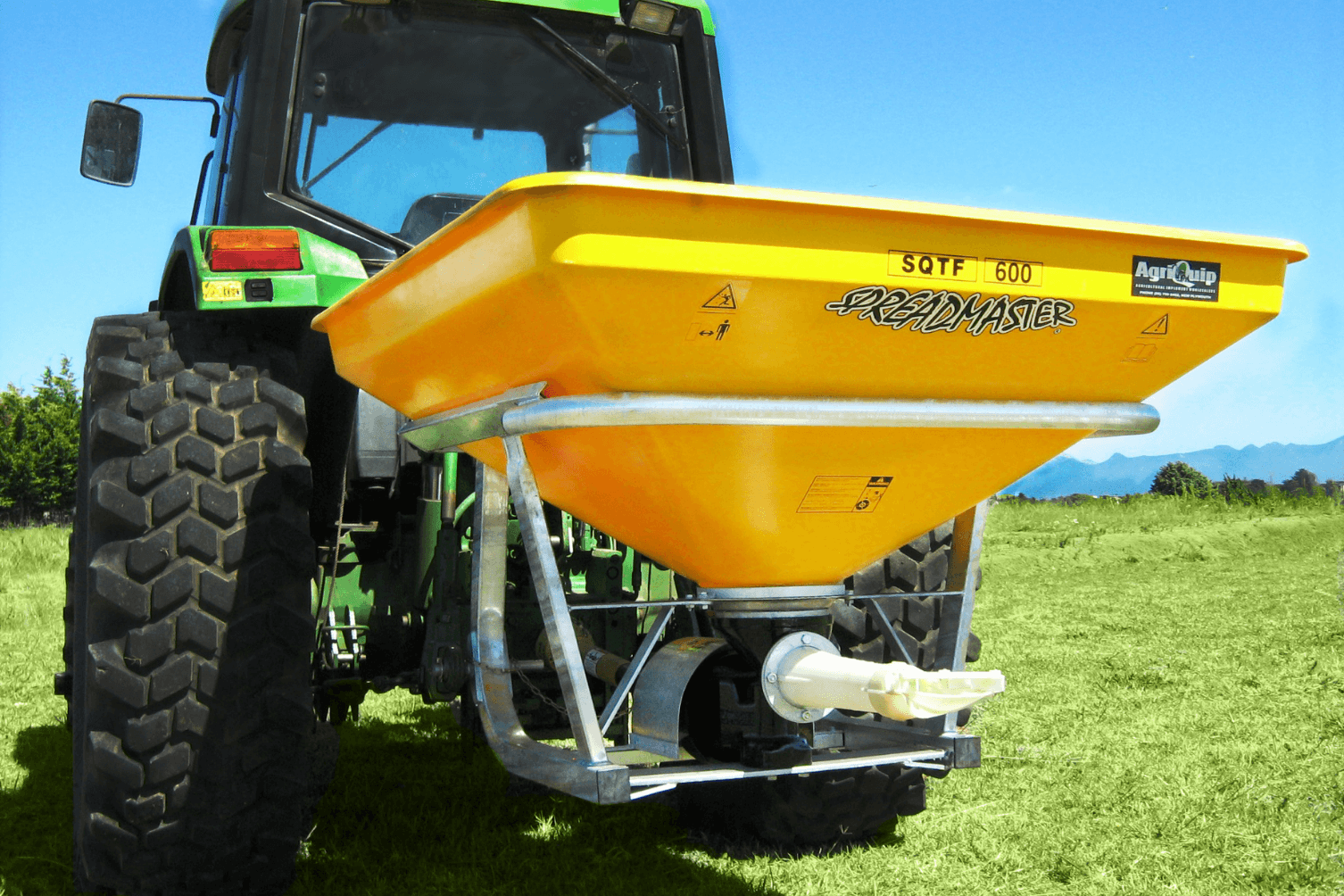

SQTF Series

FEATURES

• High quality robust oil-filled oscillating unit

• Stainless steel dispenser disc

• Galvanised frame and polyethylene hopper

SPECIFICATIONS

	SQTF 400	SQTF 600	SQTF 800	SQTF 1000
CAPACITY	400 L	530 L	820 L	1000 L
PAYLOAD	480 kg	640 kg	948 kg	1200 kg
HOPPER MATERIAL	Fibreglass	Fibreglass	Fibreglass	Fibreglass
FRAME FINISH	Powder Coated	Powder Coated	Powder Coated	Powder Coated
HEIGHT	930 mm	970 mm	1090 mm	1190 mm
WIDTH	1100 mm	1510 mm	1510 mm	1510 mm
DEPTH	1100 mm	1510 mm	1510 mm	1510 mm

OPTIONAL EXTRAS

• Hydraulic remote control
• Agitator stirrer
• Cover
• Rubber insert for spout

PHOTO GALLERY

(click photo to enlarge)
