Multicut Rotary Mowers
The Spearhead Multicut range of rotary topping mowers have an award winning heritage of reliability & performance that sets them apart from the rest.
The durability designed into these mowers make them the first choice of intensive users throughout the world, with Spearhead being the supreme leaders in this field!
Our range of Multicut Rotary Mowers
Select a product to learn more about the specifications & features.
SPEARHEAD

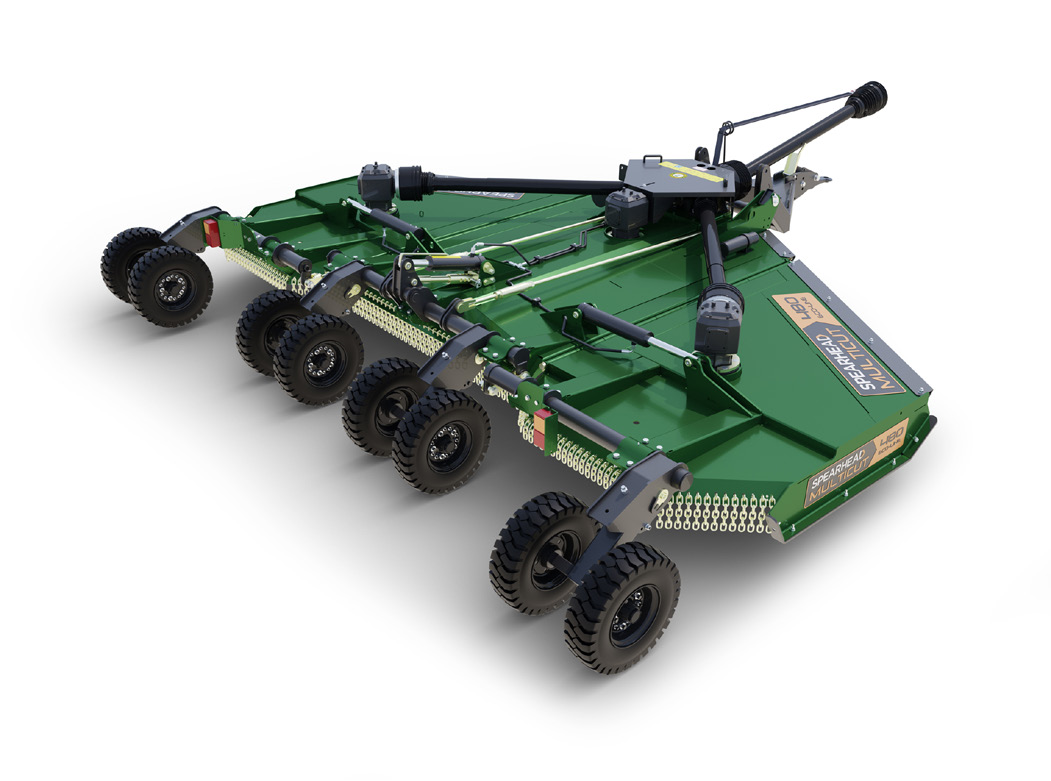

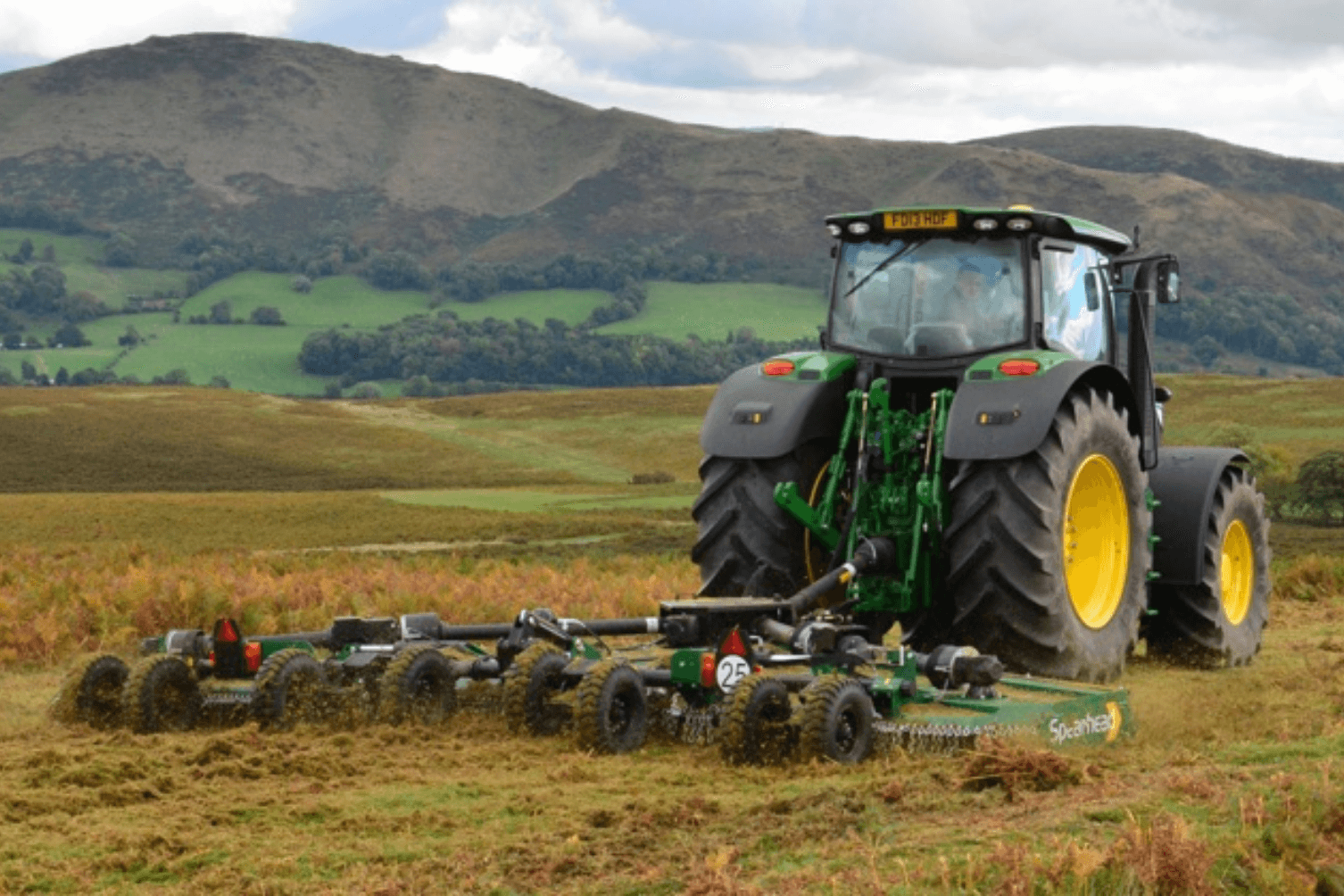

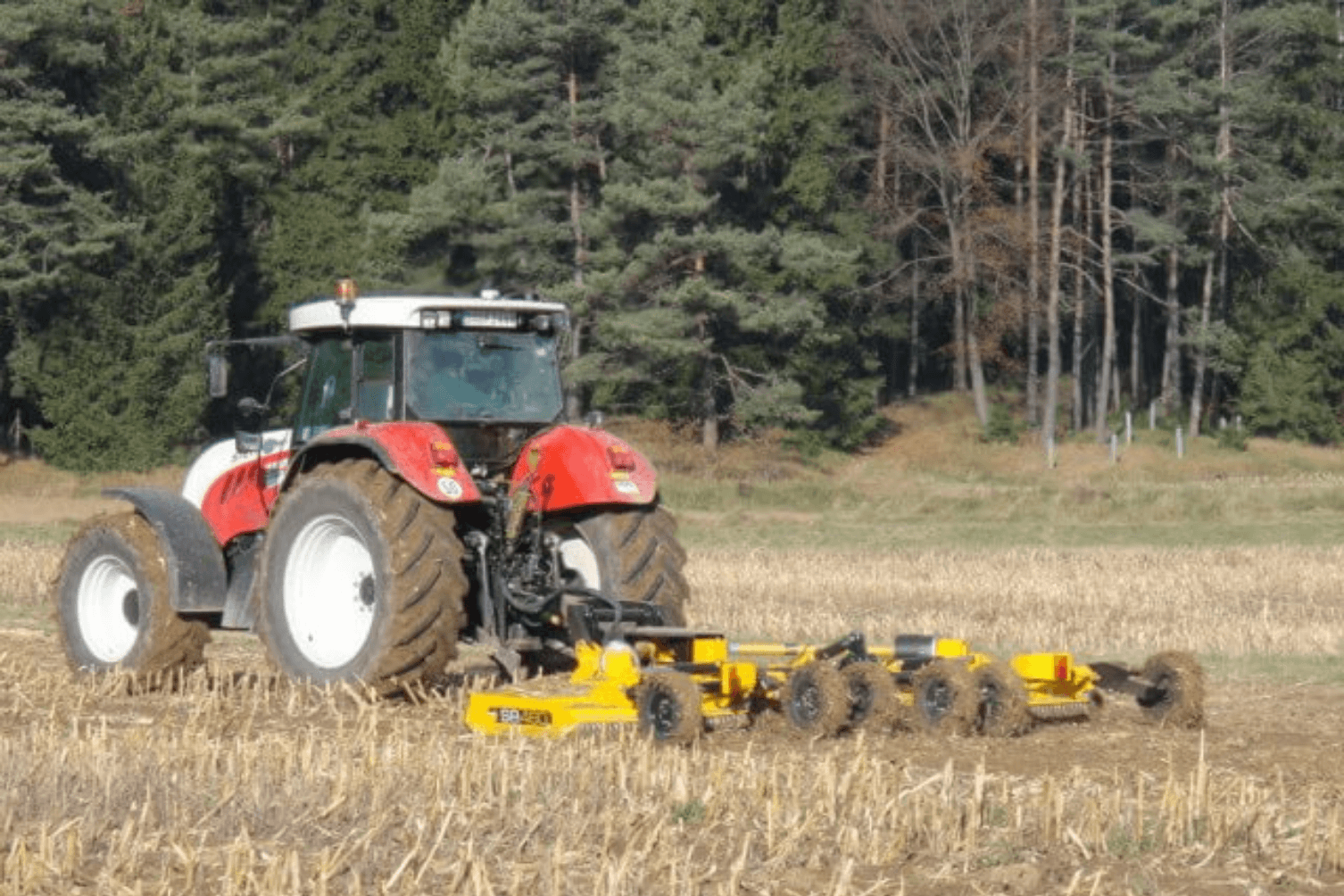

Multicut 480 Ecoline
The Multicut 480 Eco-line has an award winning heritage of reliability and performance that sets it apart from the competition — Whilst initially built for agriculture, it is just as likely to be seen in an airport or on a military training field where the reliability and cutting performance excel.
Mounting is simple with a trailing drawbar that can be set in low or high position dependant on tractor specification, and optional hitch types available to satisfy requirements from standard pintle to K80. The machine is ultimately built to perform and comes standard with eight tough wheels and a robust heavy gauge fully seam welded deck.
Delivering more driveline power than previously, the Multicut 480 Eco-line comes complete with high specification 165hp rotor gearboxes designed for the most demanding of work environments certified with Spearhead’s extended 7 year gearbox warranty.
Downloads

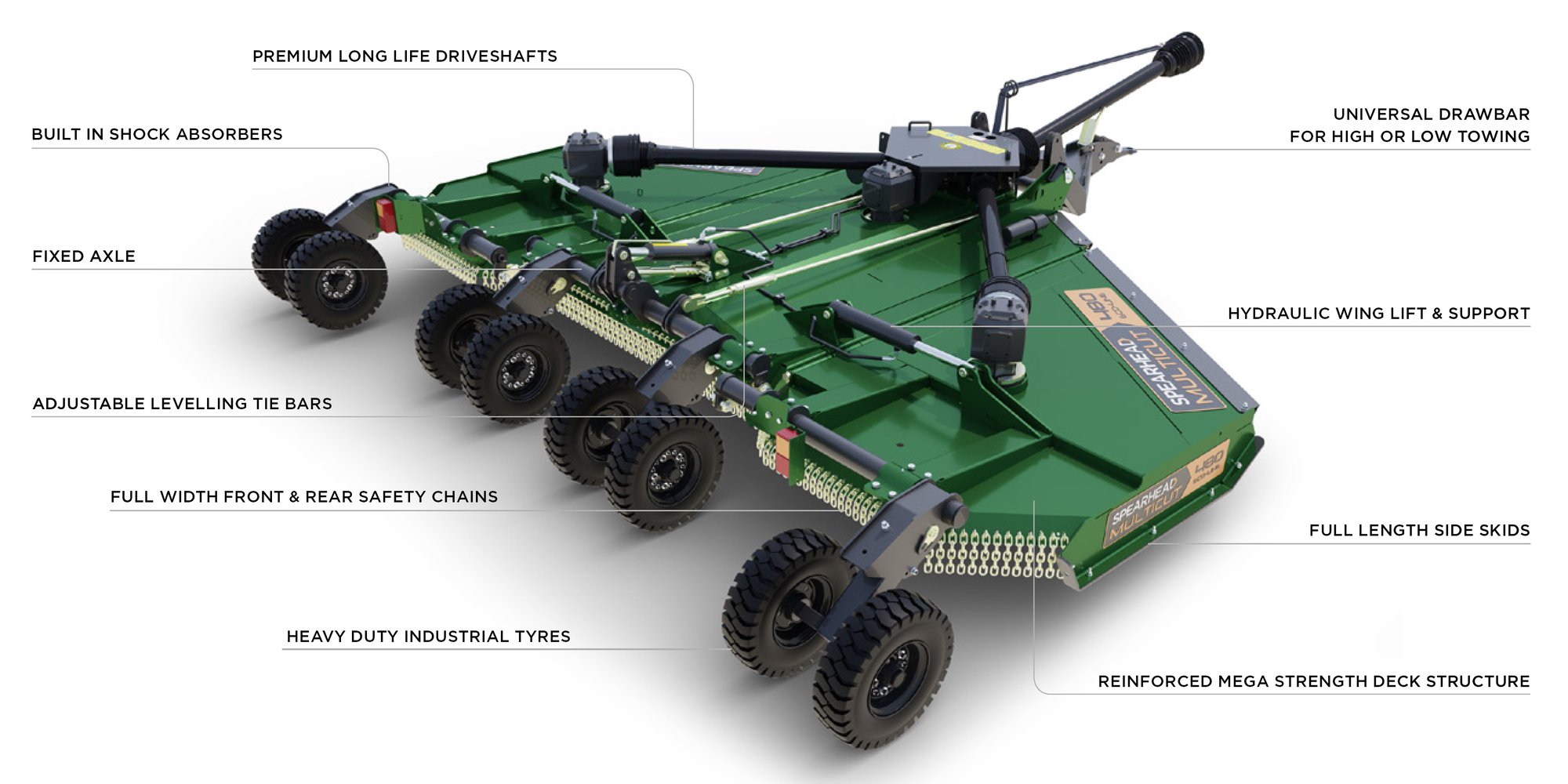

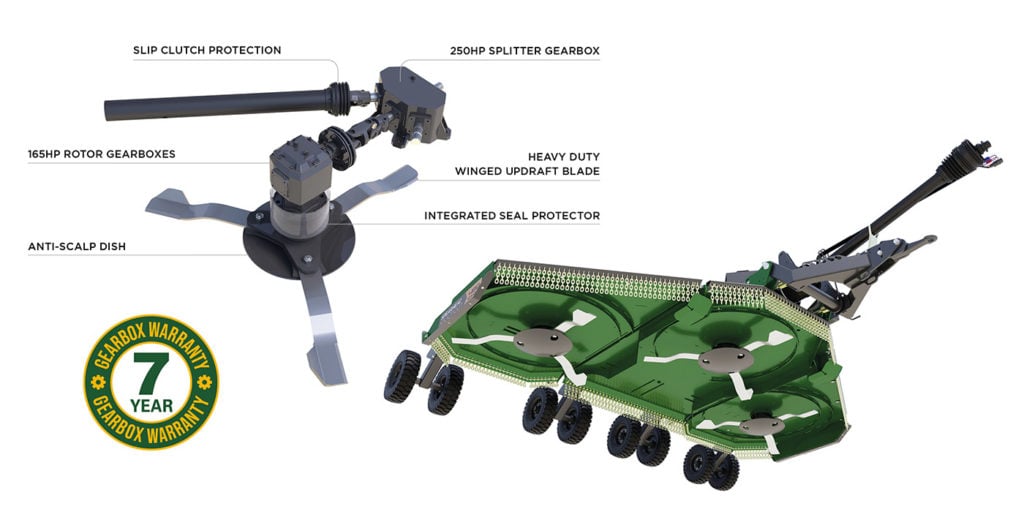

MULTICUT 480 Ecoline Features

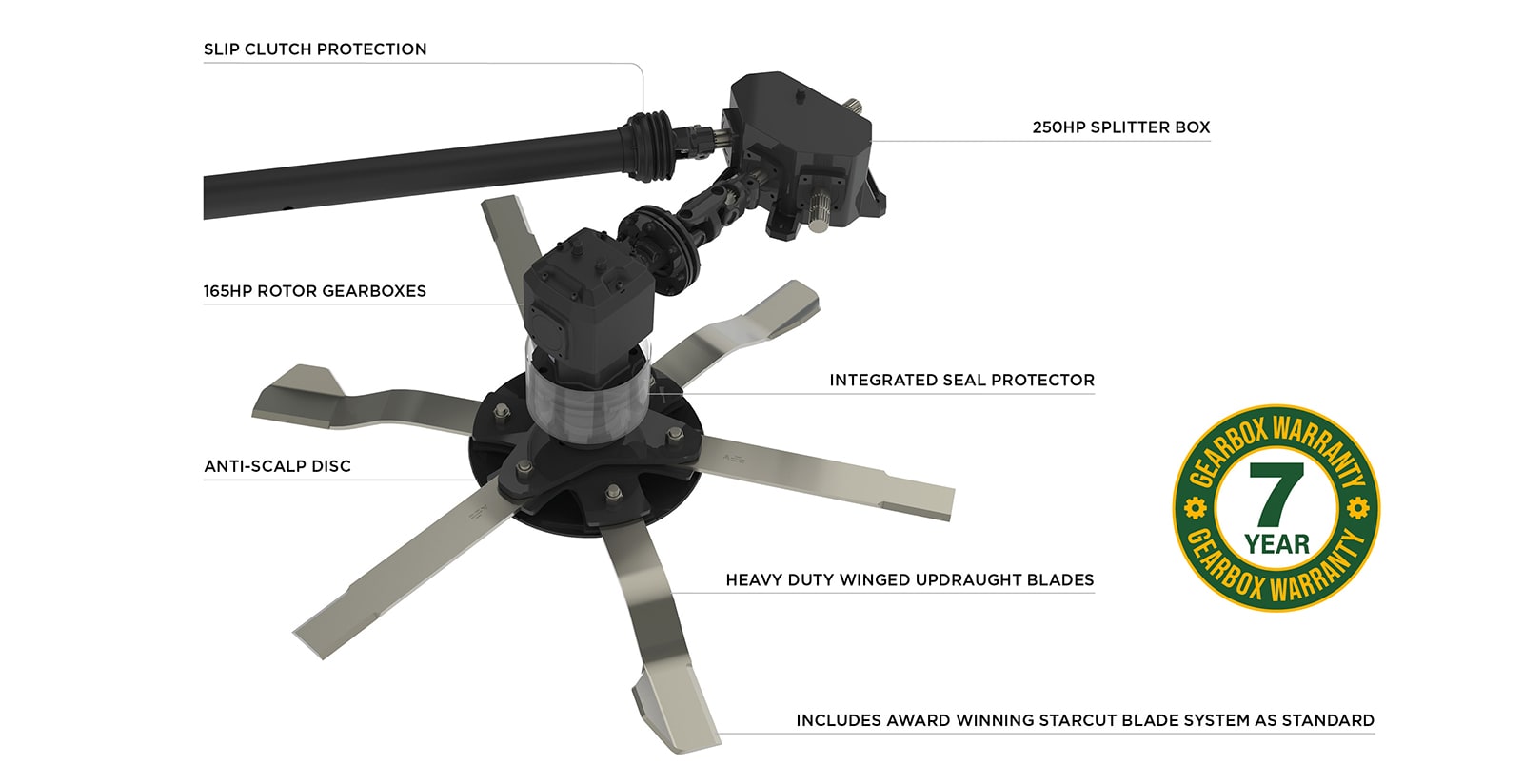

Featuring high-strength smooth-top steel deck construction, a heavy-duty 250 HP input gearbox (including 165 HP rotor gearboxes), and 8 pneumatic rear wheels with puncture-resistant industrial tyres, the MULTICUT 480 is built to last.
The MULTICUT 480 has a 4.60m cutting width as well as front and rear chain safety curtains for protection.

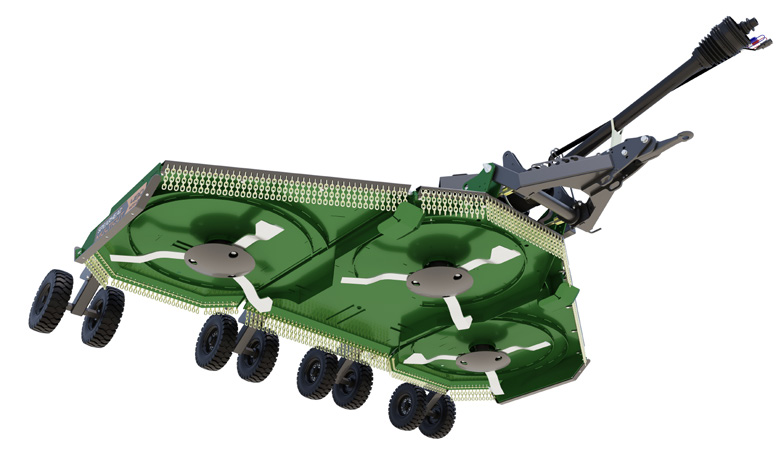

9 heavy-duty winged updraft cutting blades (3 per rotor)
Slip clutch protection.
The MULTICUT 480 has a PTO input speed of 1000 RPM and the recommended minimum tractor size is 70HP
MULTICUT 480 Ecoline Specifications
*Dependent on machine specification
** Dependent on conditions
Spearhead

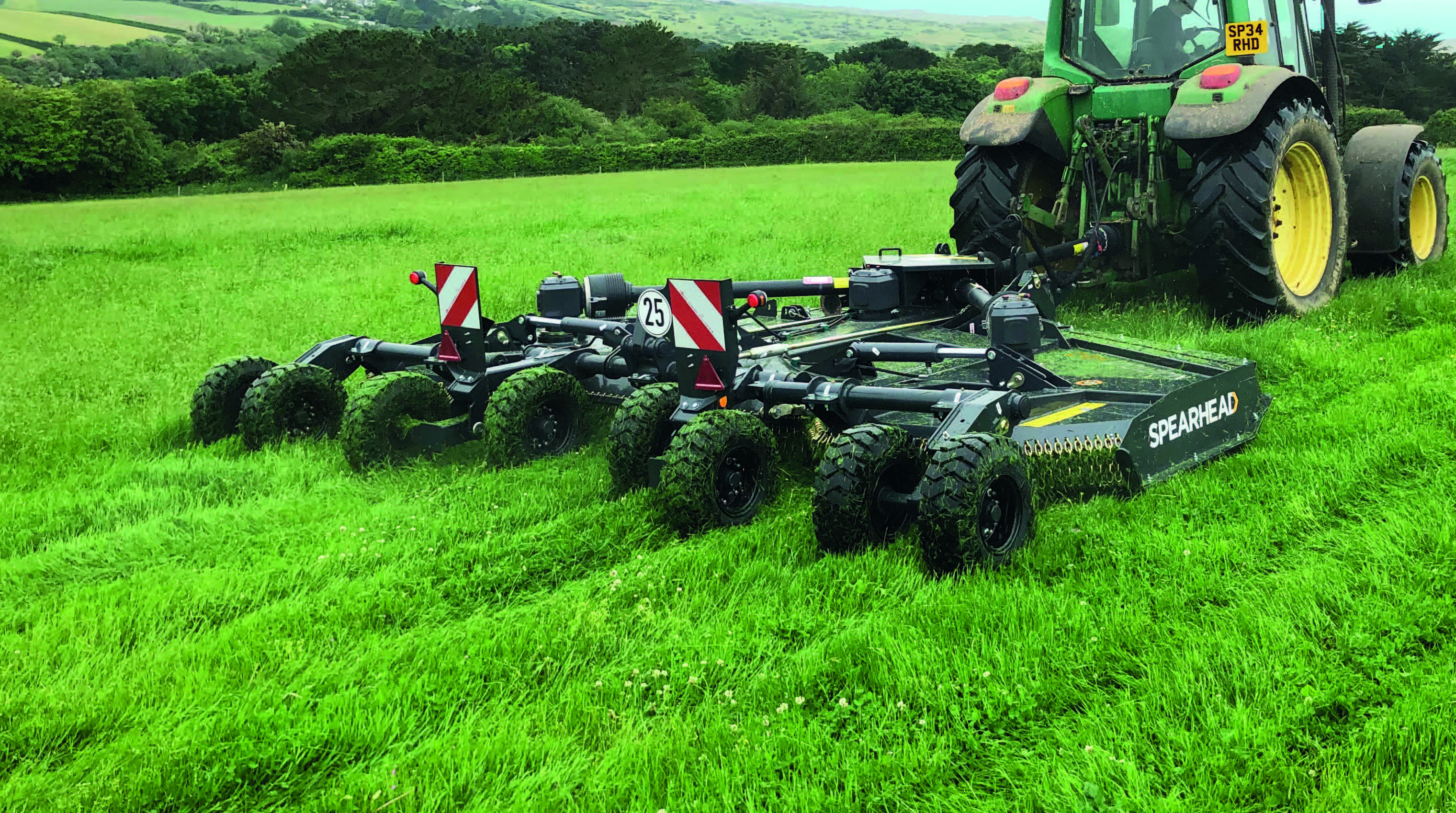

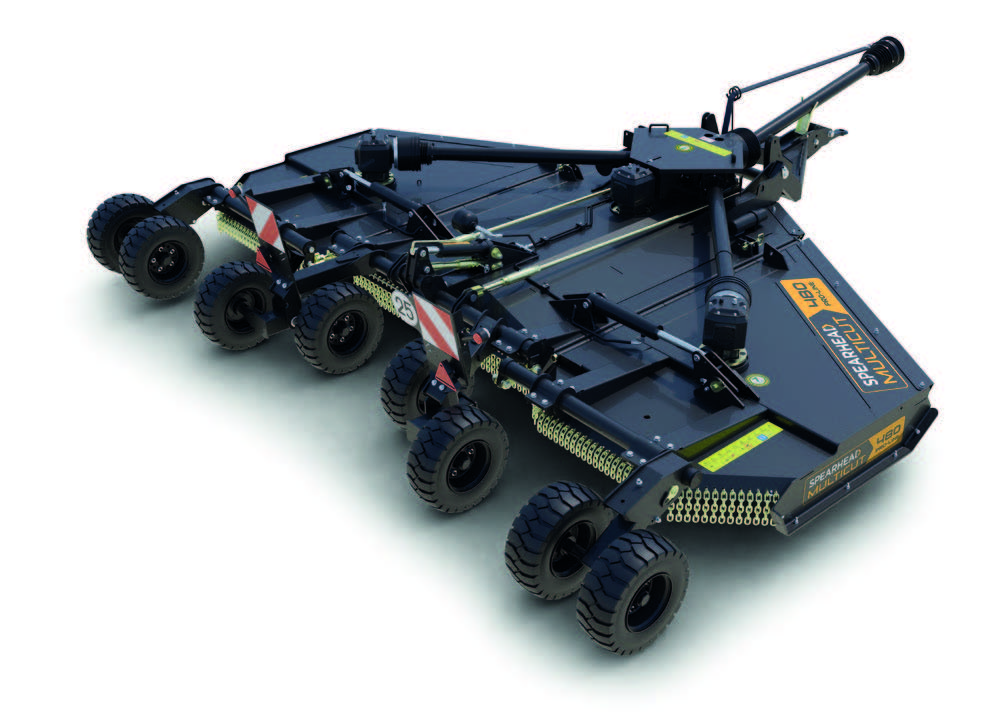

Multicut 480 Proline
Action packed with all of the great features of the standard Multicut 480 — the standard bearer in rotary mowing equipment, the Proline machine features a suite of upgrades that further enhance reliability and performance.
A smooth ride is paramount with the standard walking axle design ensuring increased ground contour following and reduced shock loads through road transport, with the added benefit of Hydragas Suspension for the most comfortable ride. Wider wheels are also fitted to add additional comfort but also to ensure reduced ground pressure in tough field conditions. Similarly the machine is hardware equipped with a Euro LED light kit and importantly features Spearhead’s STARCUT 6-blade system for increased mulching capability in applications such as Stubble Management.
Delivering more driveline power than previously, the Multicut 480 comes complete with high specification 165hp rotor gearboxes designed for the most demanding of work environments certified with Spearhead’s extended 7 year gearbox warranty.
Downloads

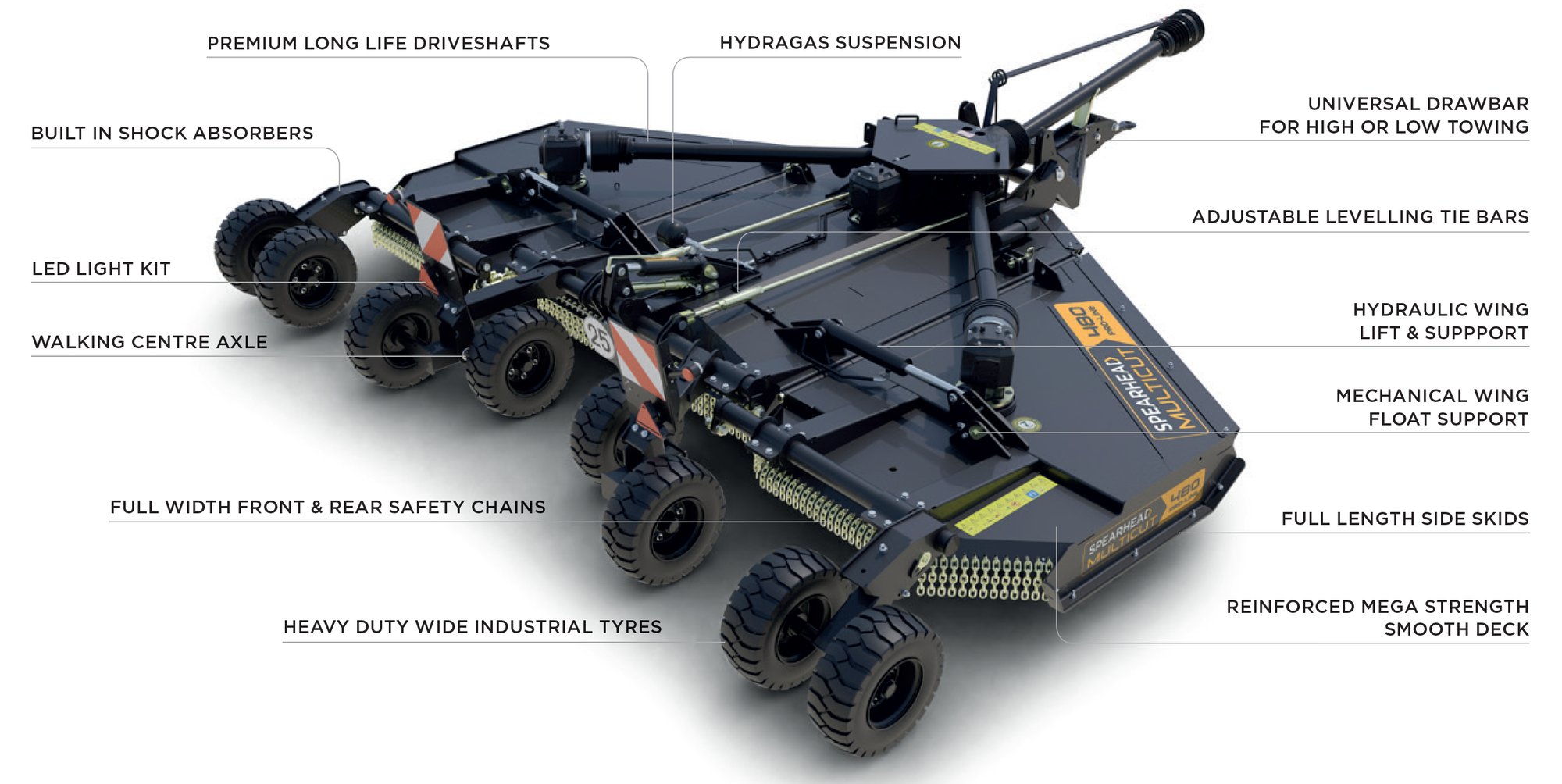

MULTICUT 480 Proline Features
Featuring high-strength smooth-top steel deck construction, a heavy-duty 250 HP input gearbox (including 165 HP rotor gearboxes), and 8 pneumatic rear wheels with puncture-resistant industrial tyres, the MULTICUT 480 is built to last.
The MULTICUT 480 has a 4.60m cutting width as well as front and rear chain safety curtains for protection.
18 heavy-duty cutting blades (6 per rotor) which are designed in a star format to give an even controlled cut, resulting in the perfect mulch result with 30% less power requirement.
Slip clutch protection.
The MULTICUT 480 has a PTO input speed of 1000 RPM and the recommended minimum tractor size is 70HP
MULTICUT 480 Proline Specifications
*Dependent on machine specification
** Dependent on conditions
Spearhead

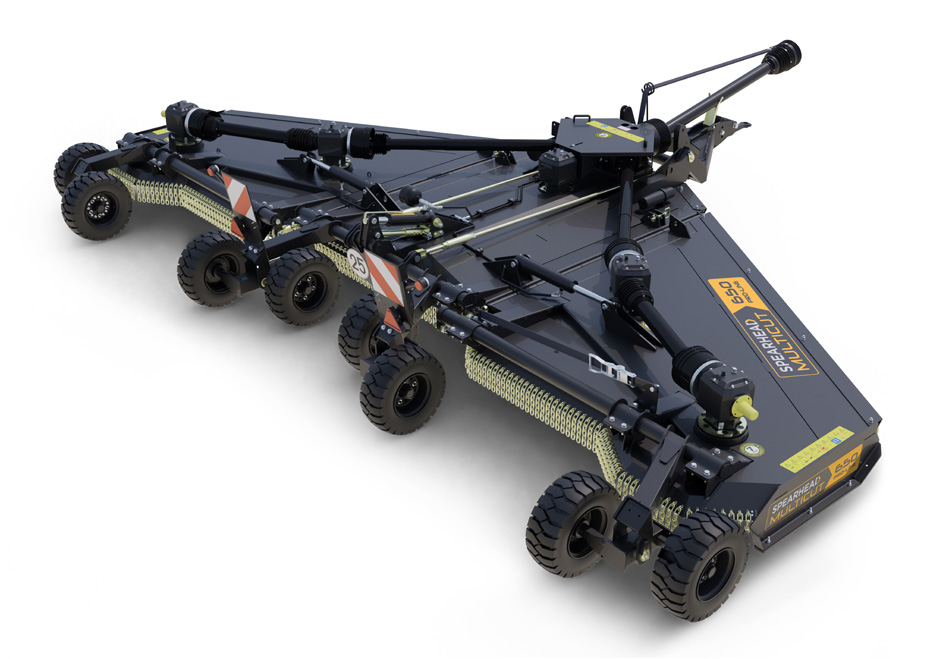

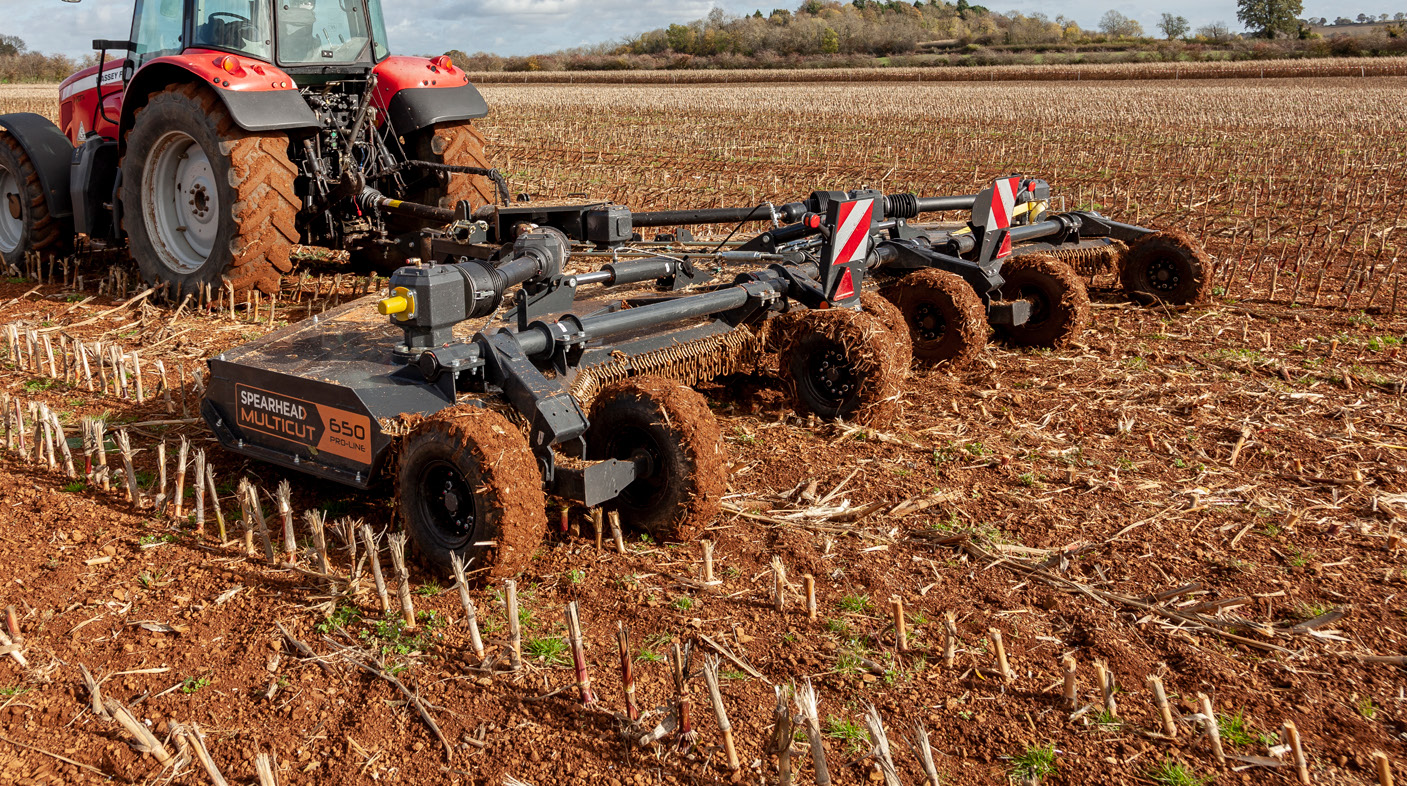

MULTICUT 650 Proline
The Multicut 650 PROLINE is boosted with additional output capability, enabling the comfortable clearance of more than 8 hectares per hour. A walking axle design is standard across the full width of the machine delivering exceptional ground contour following and reduced shock loading in harsh field conditions.
Wider wheels are also fitted to add additional comfort and improved performance. Spearhead’s renowned durability is built into this mower and the evenness of spread from the five rotors is unrivalled leaving a clean finish and high output unmatched by competitive three rotor machines of the same width.

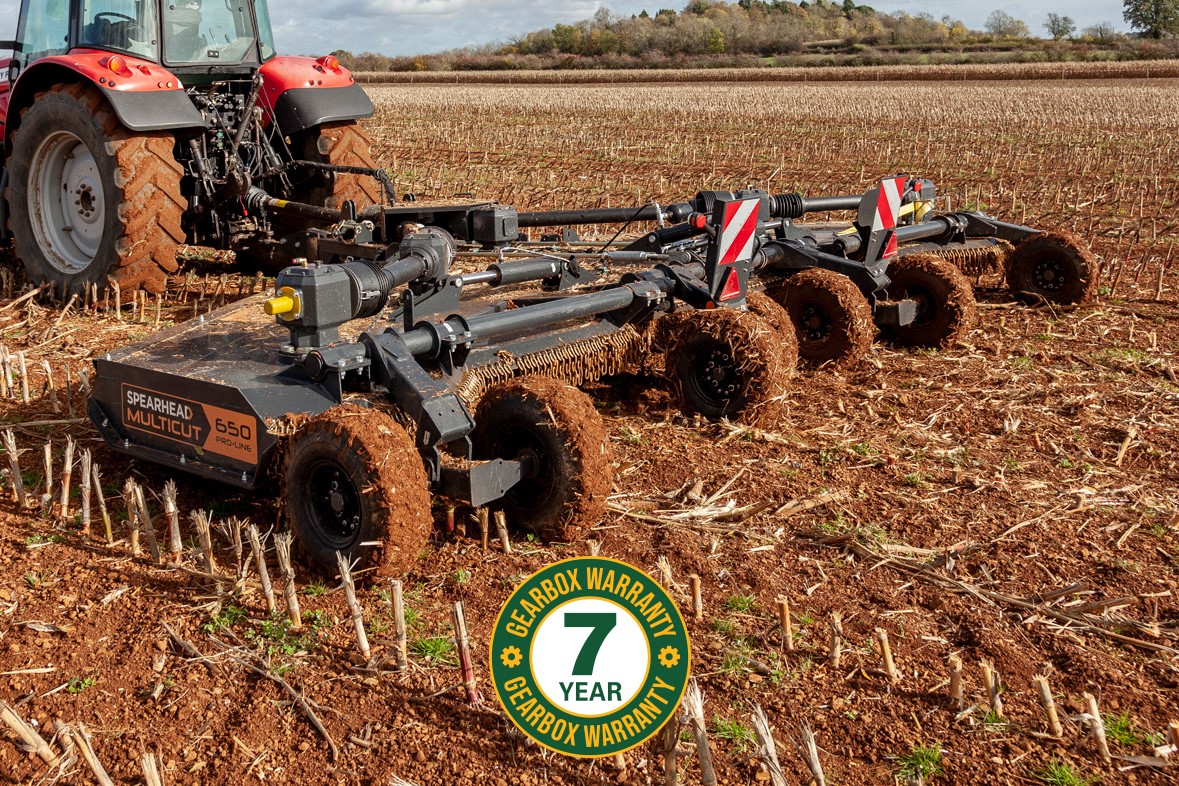

With a six gearbox driveline with more power than previously, with complete slip clutch protection on all driveshafts, the Multicut 650 PROLINE is designed to withstand the most demanding of work environments with exceptional reliability and durability certified with Spearhead’s extended 7 year gearbox warranty whilst allowing enhanced forward speeds and fuel efficiency.
Downloads
Comfortable clearance of more than
8 hectares per hour

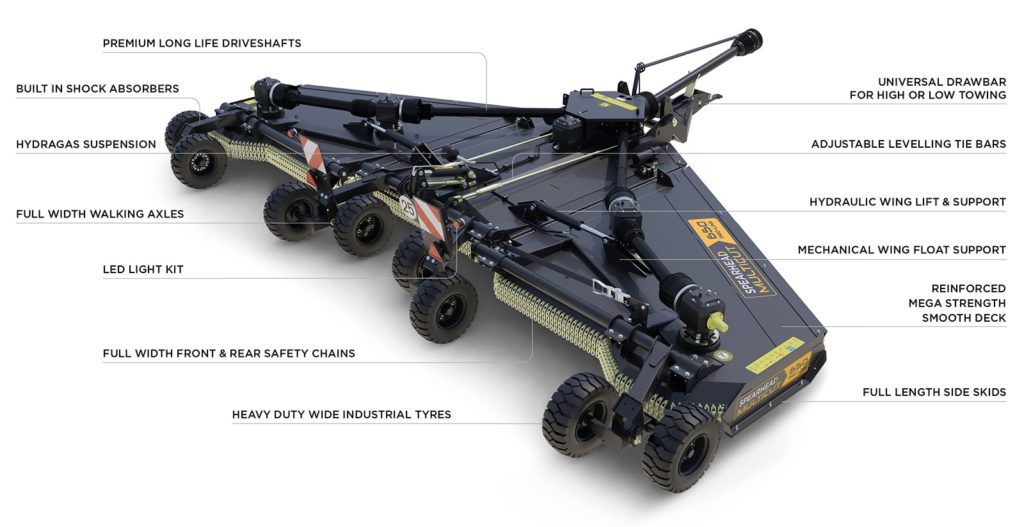

MULTICUT 650 Proline Features
The MULTICUT 650 has a 6.28m cutting width, with full width front and rear chain safety curtains for protection.
30 heavy-duty cutting blades (6 per rotor) which are designed in a star format to give an even controlled cut, resulting in the perfect mulch result with 30% less power requirement.
Standard with the award winning Starcut Blade system,
The MULTICUT 650 is driven by high-quality driveshafts, with overrun protection on the input shaft and 2/4-way slip clutches on rotor gearboxes.
Also contains floating wings.
MULTICUT 650 Proline Specifications
*Dependent on machine specification
** Dependent on conditions
