McConnel Robocut

superior on every level

McConnel ROBOCUT


This all-terrain remote control work platform boosts safety by removing operators from steep-sided, dangerous, and restricted-access zones. Internationally renowned as a state-of-the-art slope mower, ROBOCUT is far more than just a green maintenance machine, offering a comprehensive range of attachments from a stump grinder to a snowblower!


Download the brochure

ROBOCUT Attachments

McConnel's ROBOCUT is available with 20 different attachments, making it a truly multi-functional work platform. ROBOCUT's attachments enhance its versatility and enable operators to take advantage of all-terrain remote control technology in a wide range of applications and work environments.

Our range of ROBOCUT models

Select a model to learn more about the specifications & features.

RC28
+ Learn more
RC28
RC40
+ Learn more
RC40
RC56
+ Learn more
RC56
RC75
+ Learn more
RC75

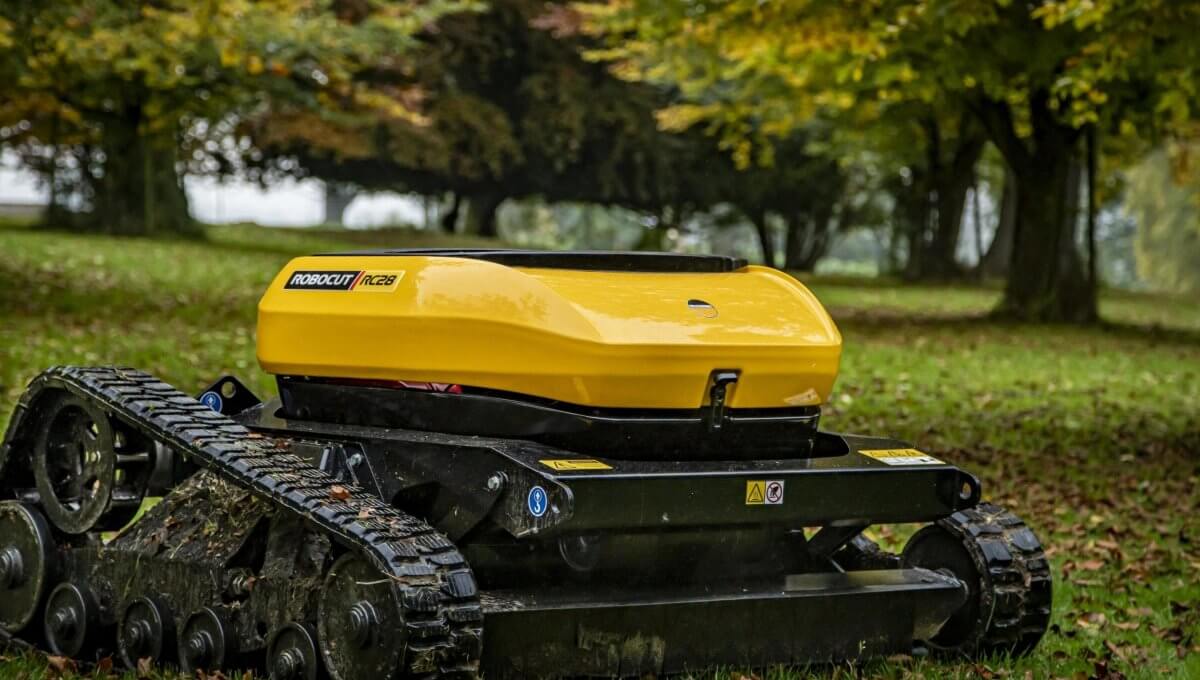

28hp remote controlled mower

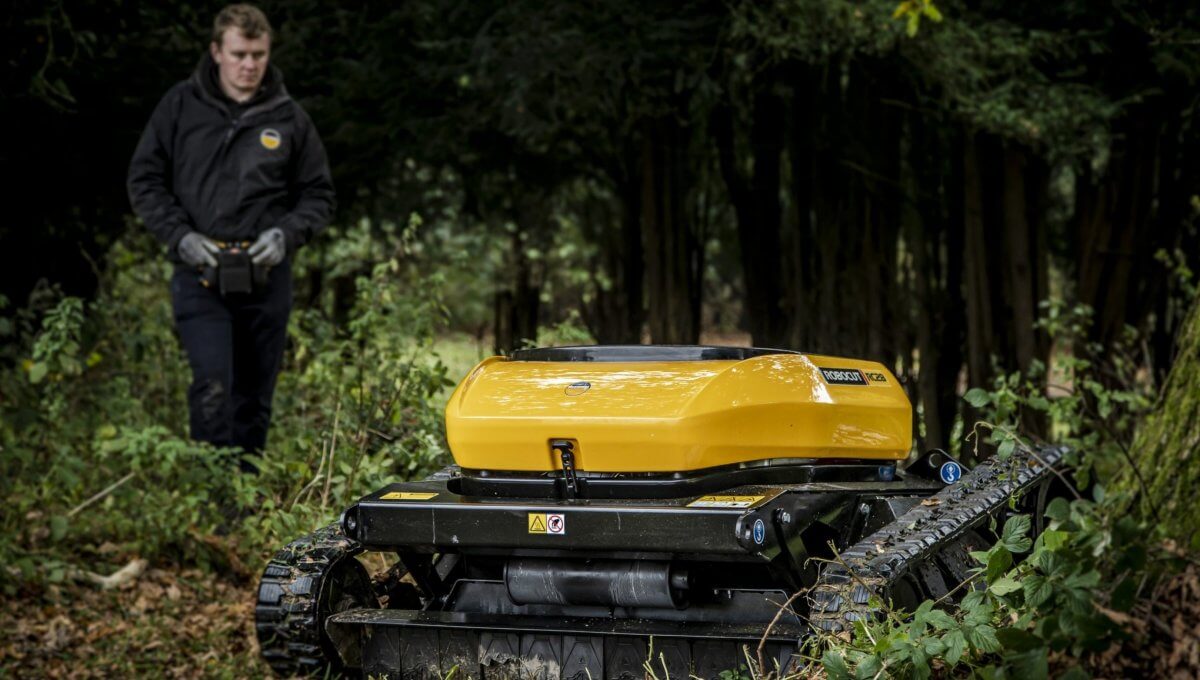

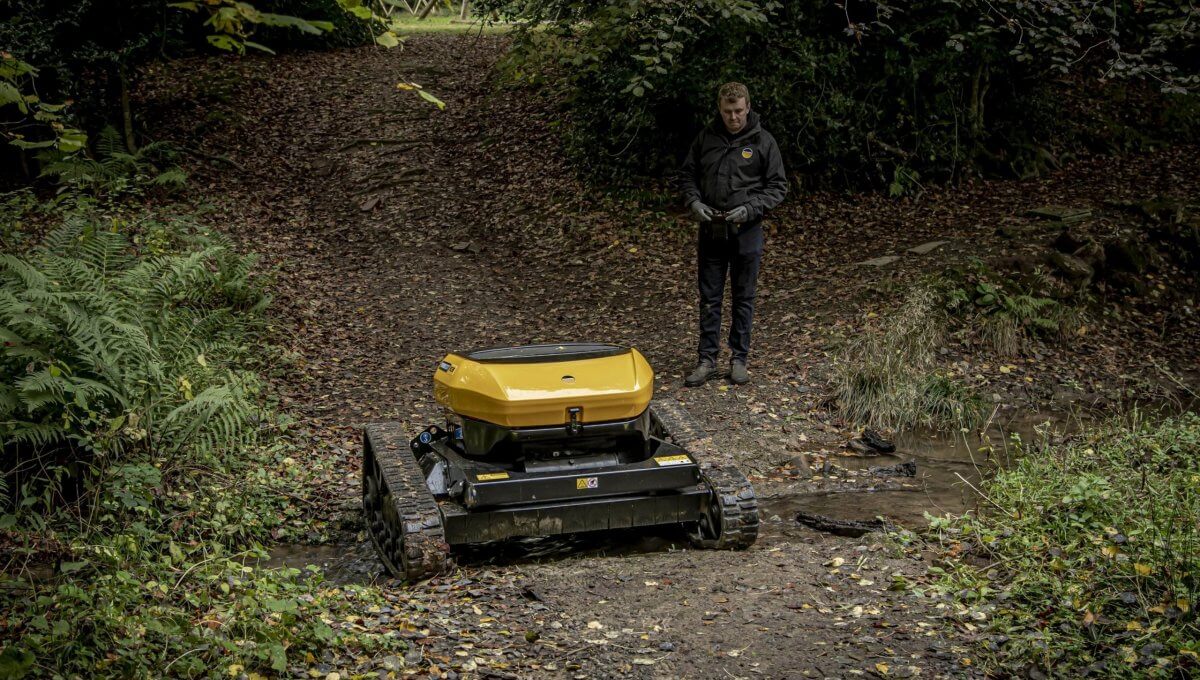

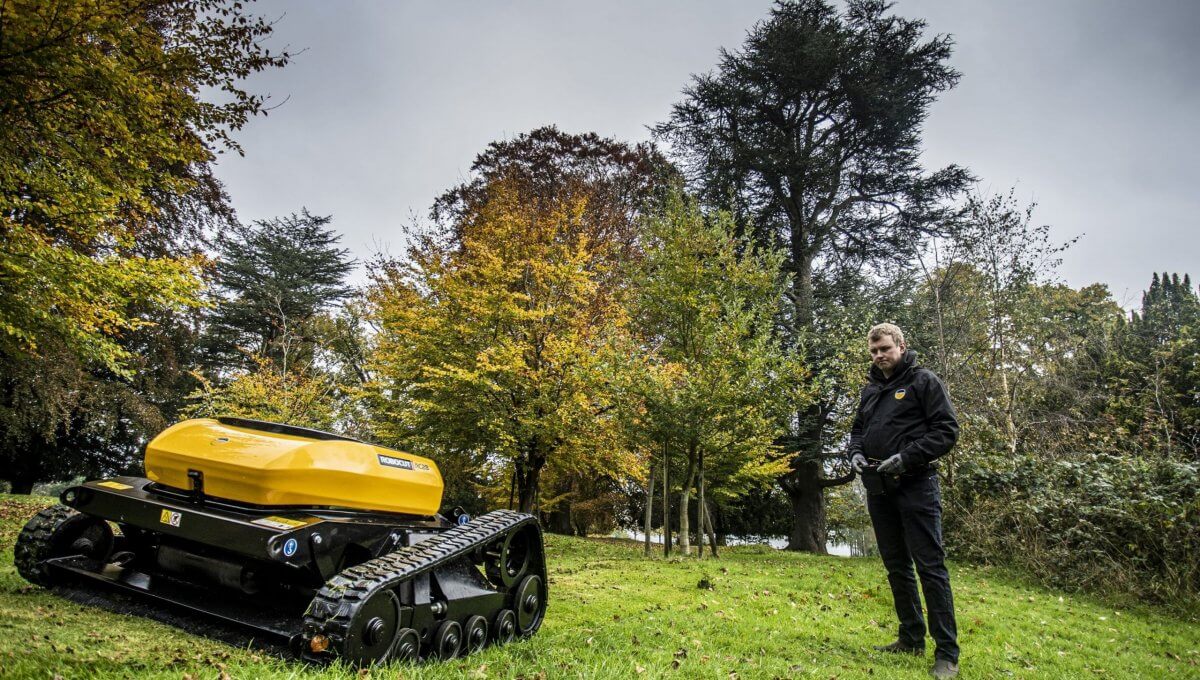

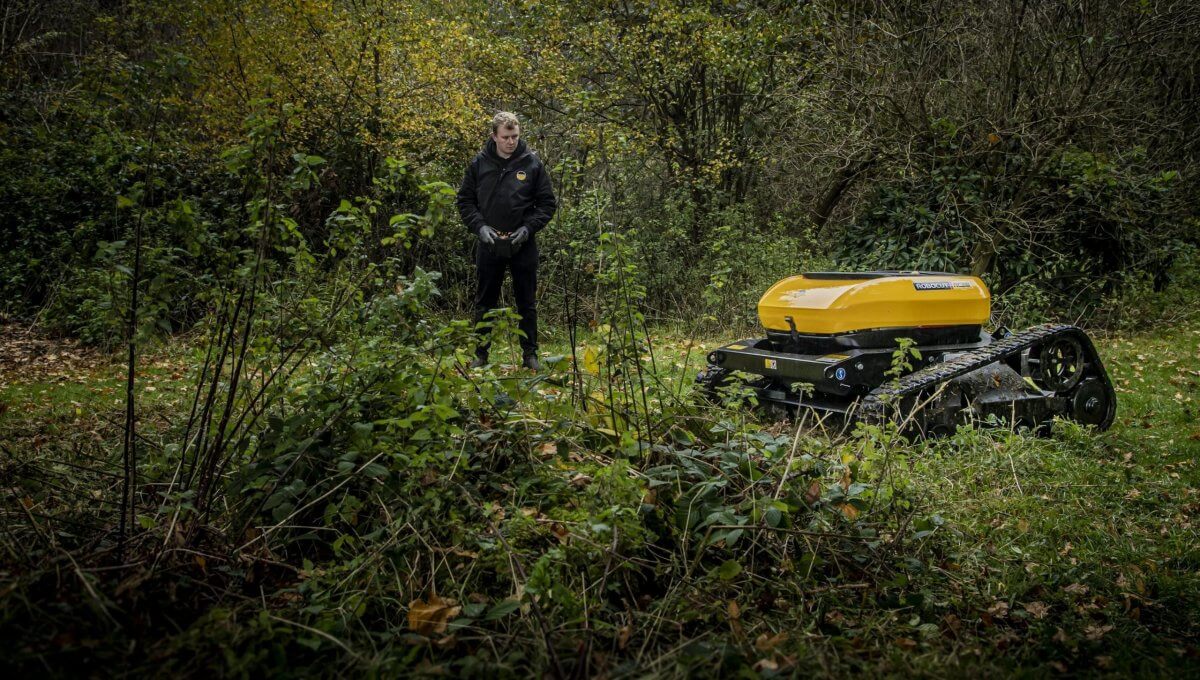

RC28

Designed for fine turf applications, the RC28 is smaller, lighter, and simply more efficient.

An all-new remote control mower, the ROBOCUT RC28 delivers outstanding performance and mowing efficiency. Featuring a new and powerful Vanguard 28hp engine, with low fuel consumption and low emissions, combined with a hybrid electric drive to deliver smooth operation.

robocut
Robocut 28hp
robocut in action
Remote controlled mower
28hp mower
McConnel robocut
robocut
Robocut 28hp
robocut in action
Remote controlled mower
28hp mower
McConnel robocut
Power
Powerful 28hp engine.
Fuel efficiency
Low fuel consumption and low emissions.
Output
High output due to intuitive bi-directional cutting capabilities.
Safe & innovative design
Fast-stop rotors (cuts out in 3 seconds).
Gradient, precision, and control
Fully proportional remote control that works on slopes up to 55°.
GPS autosteer
Ensures maximum productivity, improved safety and more efficient working.

RC28 Specifications

Engine

Make Vanguard 810cc Electronic Fuel Injection (EFI) engine
Horsepower 28hp (21kw)
Fuel Petrol
Fuel tank capacity 2x 10 litre, removable tanks
Drive 48V AC electric motor to final reduction
Maximum noise levels 98dB(A)
Speed 0-7 kph
Compliance ANSI B71.4 safety regulation

Mulching Deck

Cutting width 1.1m
Cutting height 30mm - 180mm
Programmable low height setting Standard
Bi-directional cutting Standard
Updraft, mulching blades Standard
Drive type Direct shaft drive with electric clutch
Blade tip-speed Variable up to 5500m/min
Fast-stop rotors Standard (3 second)



Tracks

Universal rubber Standard ~ max working angle 55°
Self-tightening Spring washer
Length (axle to axle) 1000mm



Remote Controls

Working range 150m
Frequency 434Mhz (certified by CE legislation)
Battery 2 x rechargeable batteries
Proportional joysticks Standard

Dimensions

Overall width
 1500mm
Overall length (without attachment) 1510mm
Overall height 765 - 915mm



Weight

ROBOCUT RC28 480kg

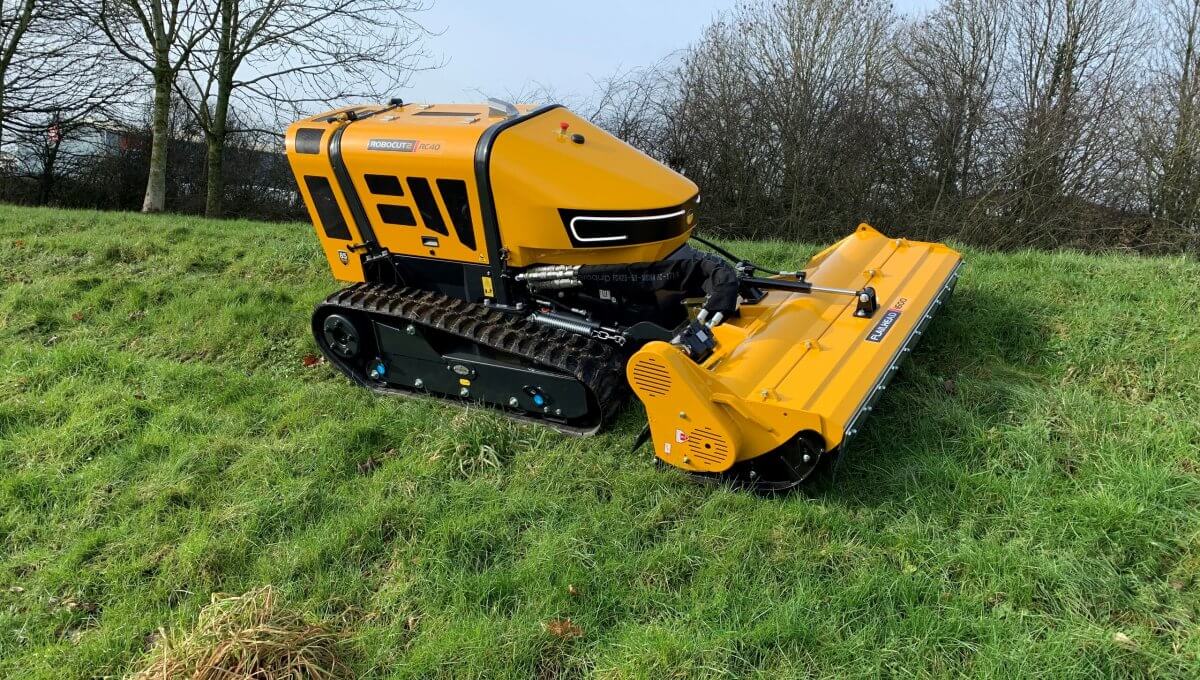

40hp remote controlled mower

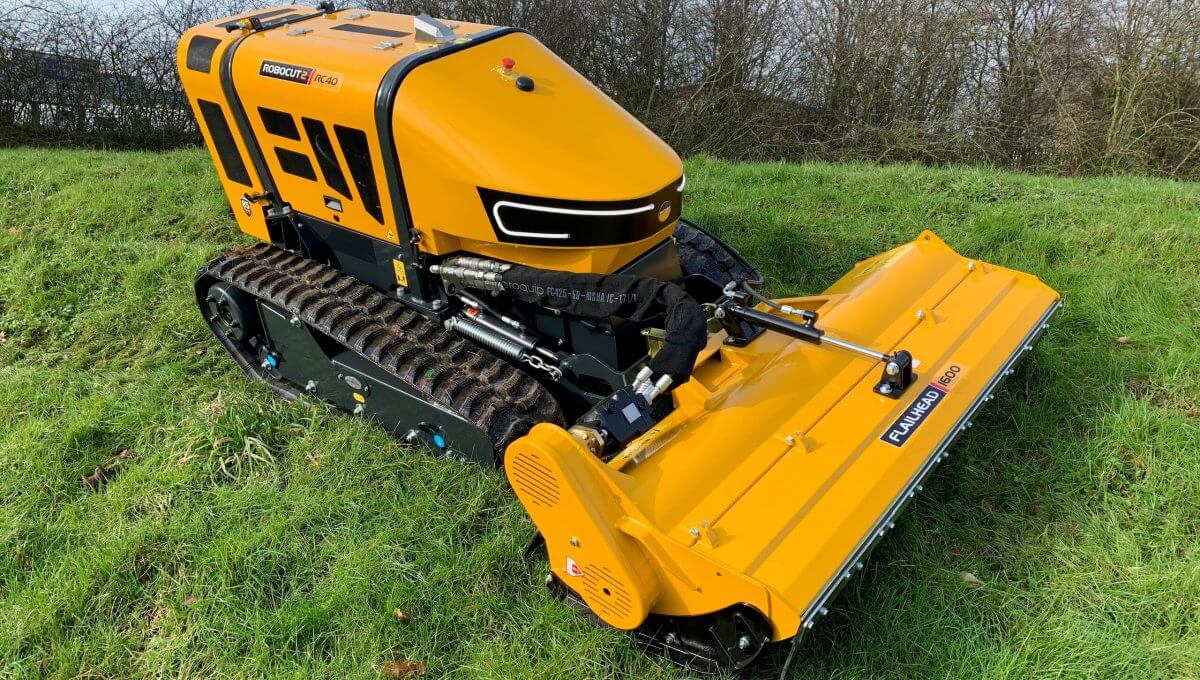

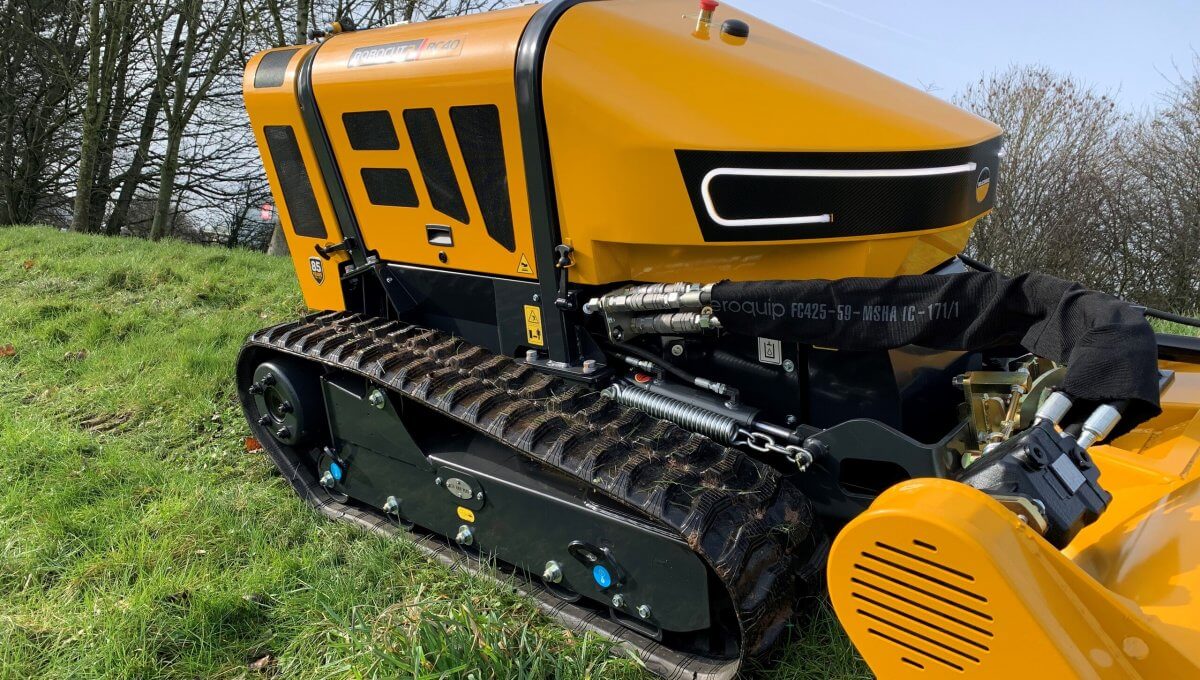

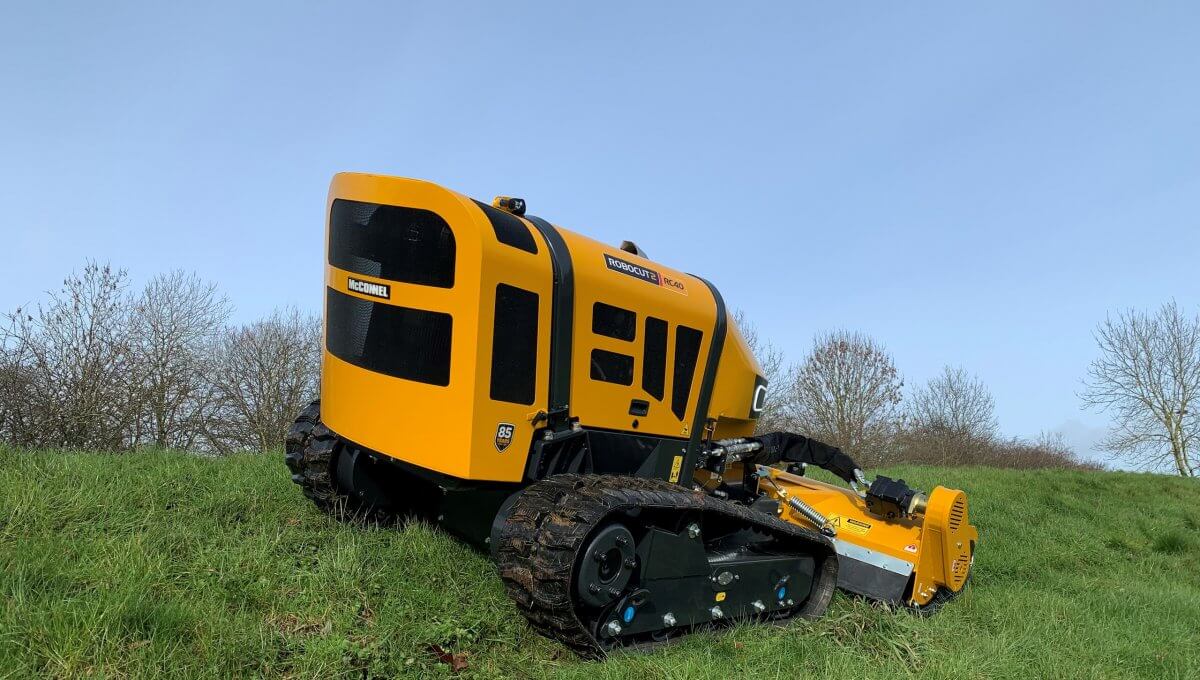

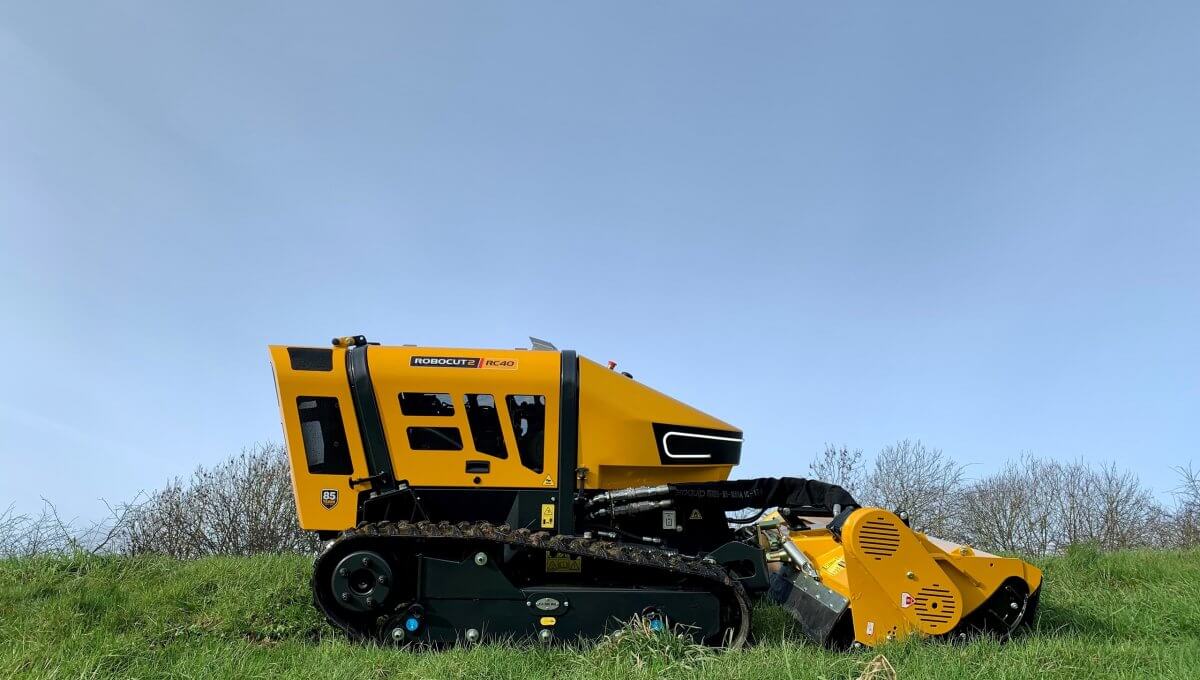

RC40

Designed especially for tackling tough terrain, the ROBOCUT2 RC40 features a low center of gravity design and durable rubber tracks that make it an outstanding all-terrain mowing machine, capable of mastering slopes up to 55 degrees whilst enhancing operator safety by removing them from the danger zone.

Power comes from a 40hp, three-cylinder, Yanmar diesel engine that uses a DPF filter system to ensure it meets the latest Stage V emissions regulations without the need for Adblue.

RC40
Robocut remote
Robocut 40hp
Remote-controlled robocut NZ
NZ robot mower
Robocut McConnel
McConnel NZ
RC40
Robocut remote
Robocut 40hp
Remote-controlled robocut NZ
NZ robot mower
Robocut McConnel
McConnel NZ
Robust build quality

ROBOCUT has been developed in partnership with Hatz and can be fitted with flail heads up to 1.9m for substantially higher output. With a lower centre of gravity and perfect 50/50 weight distribution, ROBOCUT has maximum stability and performance in all terrain.

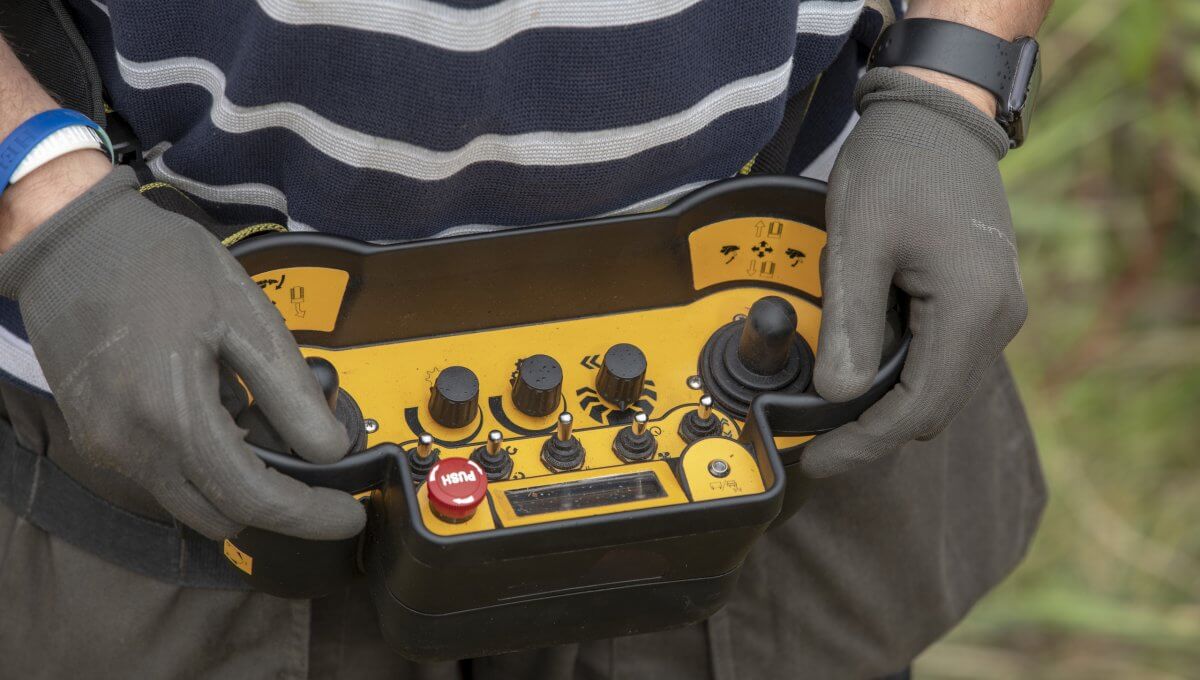

Responsive remote control unit

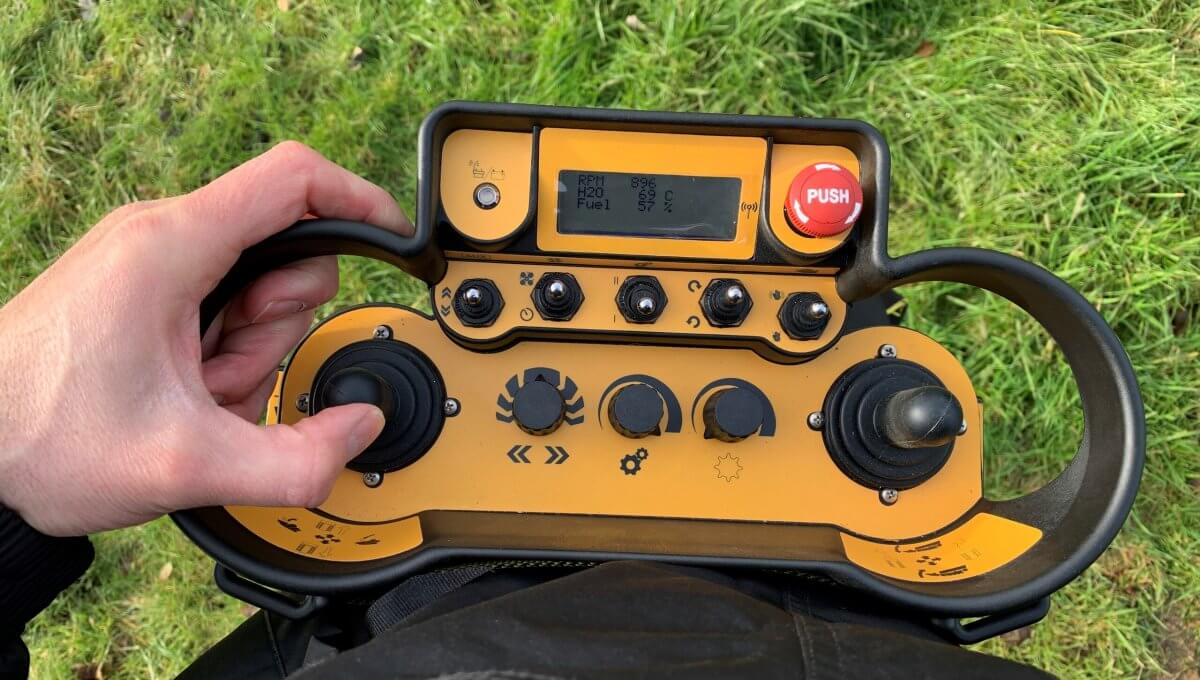

With a 150m working range, the remote control features a high visibility digital display showing RPM, engine temperature, and signal strength. The battery dock stores and charges one of the two remote control battery packs for quick change over and reduced downtime.

Increased productivity

Boasting a high-performance engine, outstanding manoeuvrability, and the widest flail head in its class, ROBOCUT tackles tasks that are normally completed by hand - dramatically speeding up the job and allowing you to use your time more efficiently.

RC40 Specifications

Engine

Make YANMAR, 3 cylinder, Stage V
Horsepower 40hp (27.5kw) @ 3000rpm
Torque 105Nm
Fuel Diesel
Drive 48V AC electric motor to final reduction
Water-cooled radiator Water-cooled radiator
Self-cleaning (reversible fan)
 Standard manual and automatic
Transmission Fine control hydrostatic
Maximum noise levels 80dB(A)



Hydraulics

Independent flailhead circuit Closed circuit piston Max 55l/min @ 280 Bar
Independent track drive circuit 2 x closed circuit piston Max 57 l/min @ 250 Bar
Aux service 1 double acting auxillery service
Independent intercooler Standard
Oil tank capacity 11 litres
Attachment lift capacity 550kg



Tracks

Rubber Standard ~ max working angle 40°
Rubber with spikes Optional ~ max working angle 55°
Self-tightening Standard
Length (axle to axle) 1192mm



Remote Controls

Working range 150m
Frequency 434Mhz (certified by CE legislation)
Battery Interchangeable, rechargeable, 2 with each unit, charge on machine
Proportional joysticks Standard

Dimensions

Overall width
 1310mm
Overall length (without attachment) 1960mm
Overall height 1120mm



Weight

ROBOCUT RC40 1150kg



Performance

Potentiometer speed control (0 - 100%) 1st gear (low range) Forward and back, 0 - 4km/h | 2nd gear (low range)Forward and back, 0 - 7km/h



Flailhead / Attachment

Oil flow 59 l/min
Pressure 350 Bar
Rotor speed 3300 rpm
Front and rear flaps Standard
Flails Y - Flails for cutting grass and light wood up to 30mm diameter J (hammer) - Flails for cutting thick grass and wood up to 50mm diameter
Rotor width 1.3m to 1.6m
Roller diameter 100mm
Cutting height range (via roller adjustment) 20mm - 85mm (5 positions) Flailhead can be lifted to cut higher
Hydraulic lift -300mm to +400mm
Floatation (angle) 14° up and down (+/-)



56hp remote controlled mower

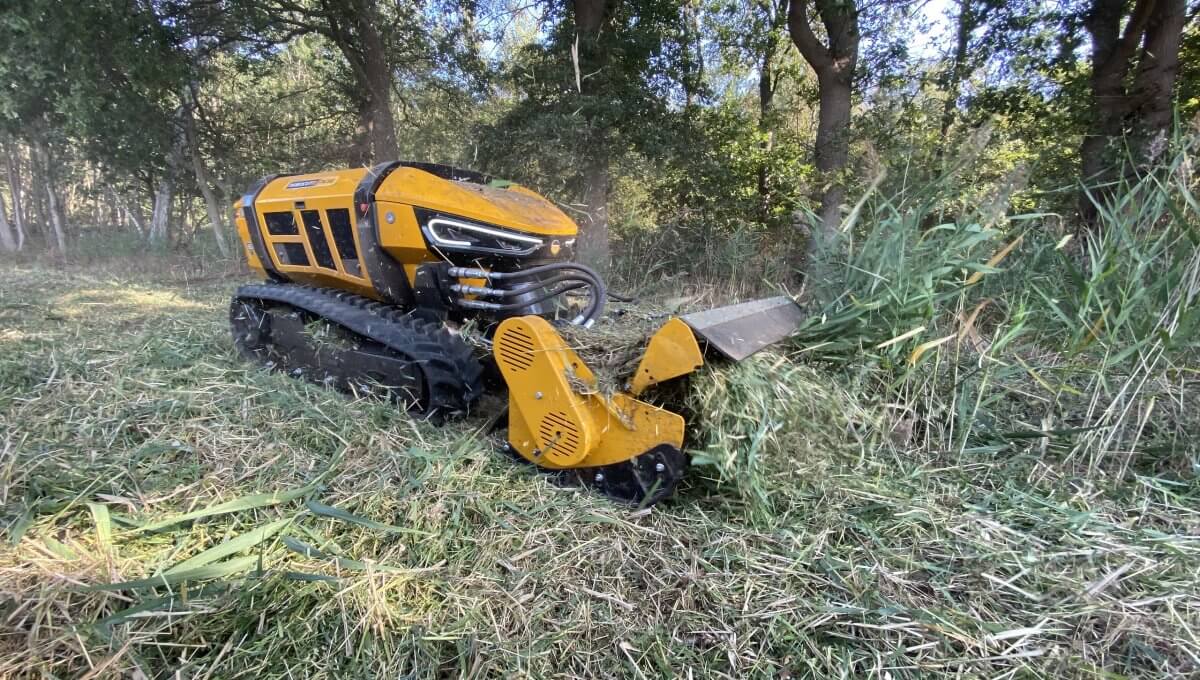

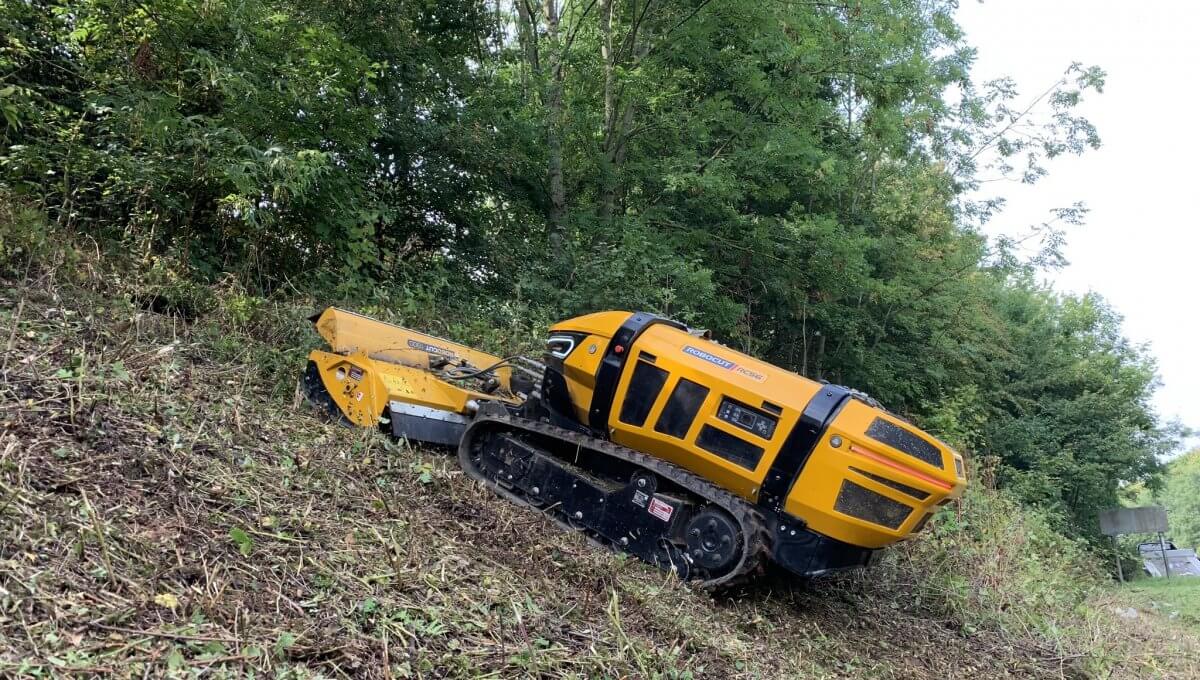

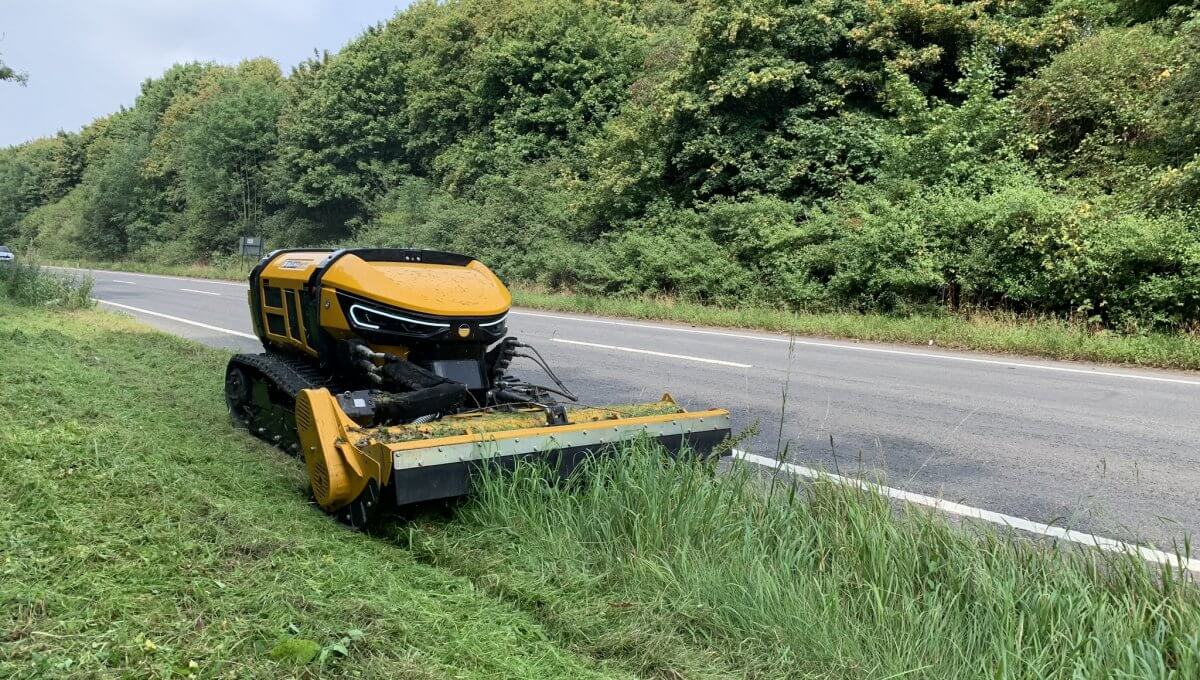

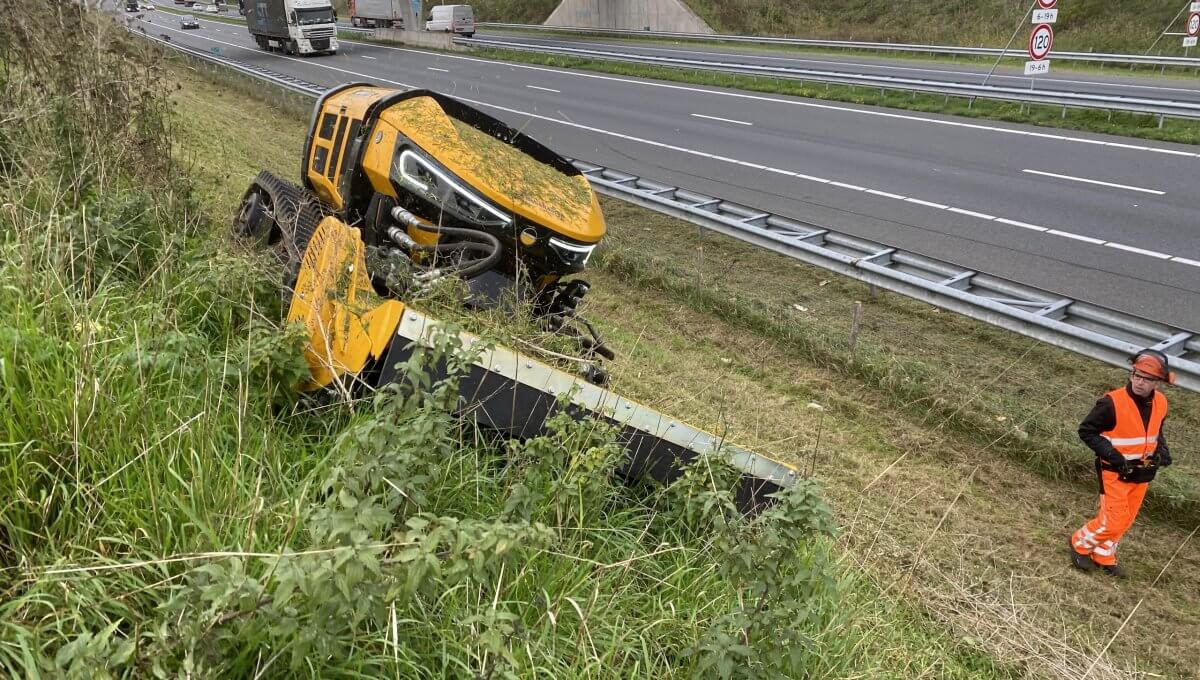

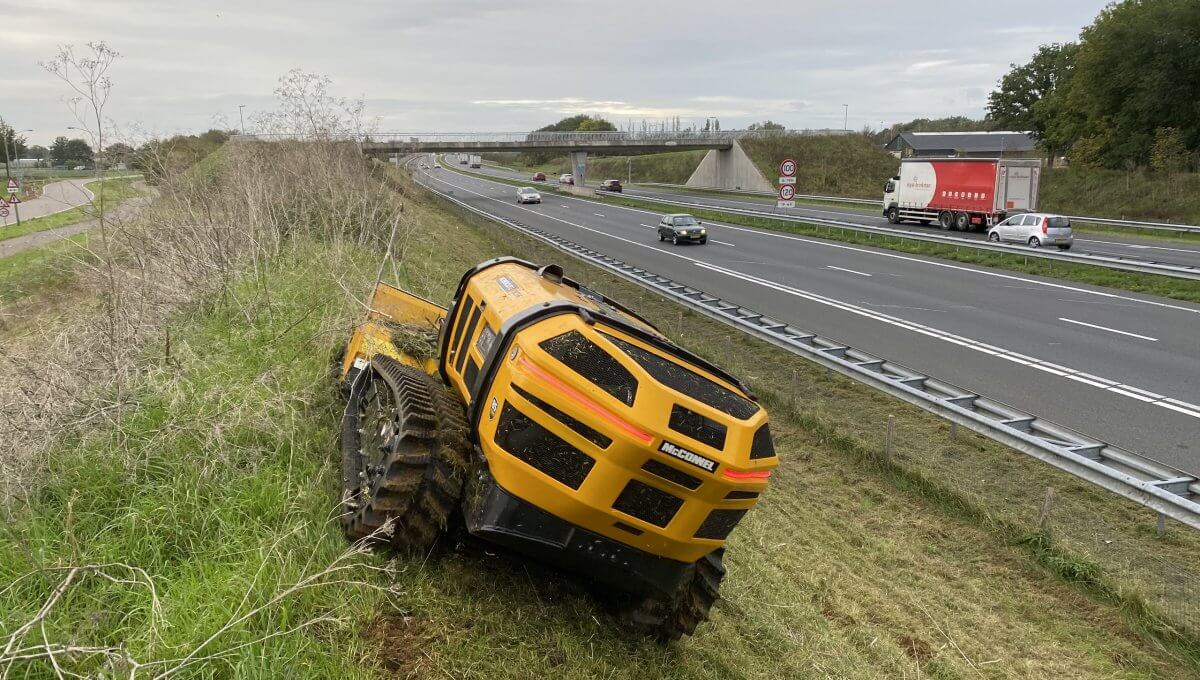

RC56

The McConnel ROBOCUT utilises the latest advancements in technology to deliver the ultimate in remote-controlled machinery.

The new McConnel ROBOCUT range takes a tried and tested concept that builds on it with vision, innovation, and the most advanced technology to lead the market. Thriving in challenging terrain, hazardous areas, and restricted-access zones, McConnel's new ROBOCUT range helps you work faster, smarter, and harder than ever before.

RC56
Robocut 56hp
Robotic slope mower
Robotic slope mower NZ
Commercial slope mower
McConnel robotic slope mower
RC56
Robocut 56hp
Robotic slope mower
Robotic slope mower NZ
Commercial slope mower
McConnel robotic slope mower
GPS autosteer capability

ROBOCUT can be enabled with GPS autosteer technology. This technology has been developed in conjunction with Trimble - allowing it to automatically steer to within 25mm accuracy along its cutting route for huge advances in output and efficiency.

Safe & innovative design

Reduces risk by allowing the operator to work at a safe distance. Specially designed to deliver exceptional stability and control, it is one of the safest and easiest remote control mowers ever constructed - plus it is light enough to fit on a trailer.

Versatility

McConnel continues to expand its range of attachments, offering a tool for almost every challenge. From snow clearance to forestry, grass cutting to quarry maintenance, ROBOCUT can provide a safe and productive remote control solution.

RC56 Specifications

Engine

Make HATZ, 3 cylinder, turbo, tier 4 final
Horsepower 56hp (42kw) @ 2800 rpm
Torque 185Nm
Fuel Diesel
Fuel tank capacity 38 litres
Water-cooled radiator 3 core havy duty
Self-cleaning (reversible fan)
 Standard manual and automatic
Transmission Fine control hydrostatic
Maximum noise levels 77dB(A)



Hydraulics

Independent flailhead circuit Closed circuit piston Max 59 l/min @ 2800 rpm 350 Bar
Independent track drive circuit 2 x closed circuit piston Max 62 l/min @ 2800 rpm 300 Bar
Aux service 1 double-acting auxillery service for additional service 16 l/min at 210 bar, double-acting
Independent intercooler Standard
Oil tank capacity 20 litres (40 litres held in system) Biodegradable oil
Attachment lift capacity 550kg



Tracks

Rubber Standard ~ max working angle 40°
Rubber with spikes Optional ~ max working angle 55°
Self-tightening Standard
Length (axle to axle) 1192mm



Remote Controls

Working range 150m
Frequency 434Mhz (certified by CE legislation)
Battery Interchangeable, rechargeable, 2 with each unit, charge on machine
Proportional joysticks Standard

Dimensions

Overall width
 1300mm
Overall length (without attachment) 2285mm
Overall height 1050mm



Weight

ROBOCUT RC56 1200kg



Performance

Potentiometer speed control (0 - 100%) 1st gear (low range) Forward and back, 0 - 3,5km/h2nd gear (low range) Forward and back, 0 - 7km/h



Flailhead / Attachment

Oil flow 59 l/min
Pressure 350 Bar
Rotor speed 3300 rpm
Front and rear flaps Standard
Flails Y - Flails for cutting grass and light wood up to 30mm diameter J (hammer) - Flails for cutting thick grass and wood up to 50mm diameter
Rotor width 1.3m to 1.6m
Roller diameter 100mm
Cutting height range (via roller adjustment) 20mm - 85mm (5 positions) Flailhead can be lifted to cut higher
Hydraulic lift -300mm to +400mm
Floatation (angle) 14° up and down (+/-)



75hp remote controlled mower

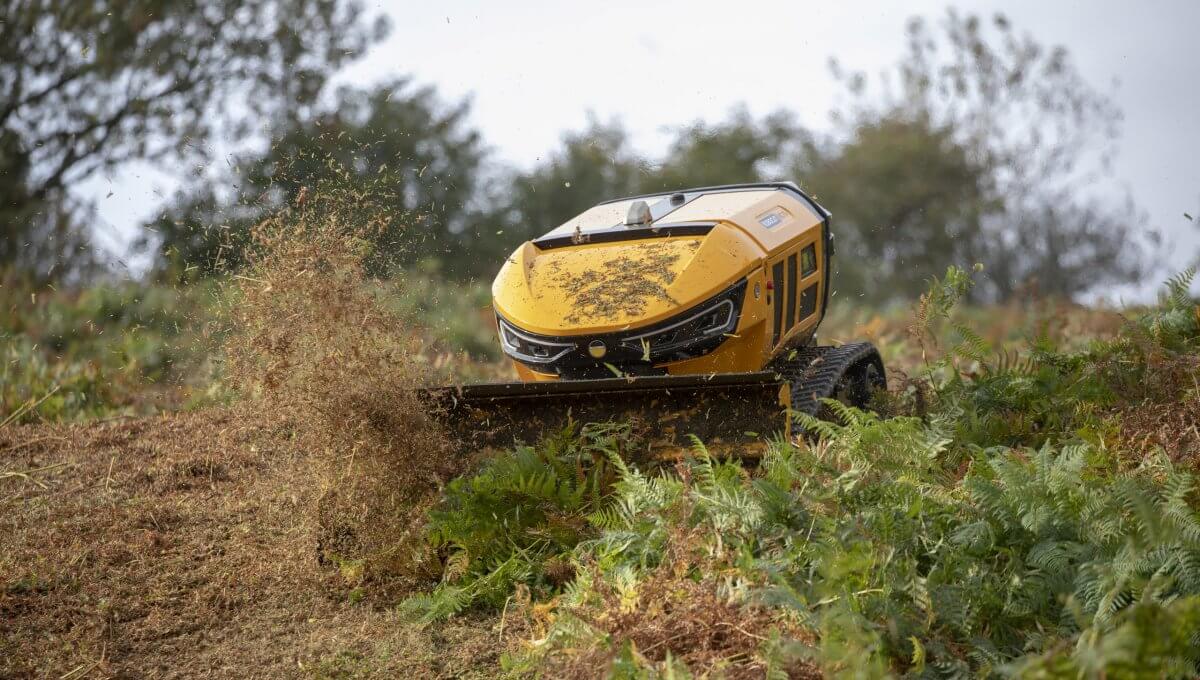

RC75

The McConnel ROBOCUT utilises the latest advancements in technology to deliver the ultimate in remote-controlled machinery.

The new McConnel ROBOCUT range takes a tried and tested concept that builds on it with vision, innovation, and the most advanced technology to lead the market. Thriving in challenging terrain, hazardous areas, and restricted-access zones, McConnel's new ROBOCUT range helps you work faster, smarter, and harder than ever before.

RC75
Robocut 75HP
Mower remote control
McConnel robocut mower
McConnel robocut slope mower NZ
RC75
Robocut 75HP
Mower remote control
McConnel robocut mower
McConnel robocut slope mower NZ
Increased output
More coverage - get almost double the output in a day.
Precision & control
28% increase in track drive pressure plus improved hydraulic float system.
Gradient
Work on slopes up to 55° (alarm at 50° and automatic shut-off at 70°).

RC75 Specifications

Engine

Make HATZ, 4 cylinder, turbo, tier 4 final
Horsepower 75hp (56kw) @ 2800 rpm
Torque 240Nm
Fuel Diesel
Fuel tank capacity 38 litres
Water-cooled radiator 3 core havy duty
Self-cleaning (reversible fan)
 Standard manual and automatic
Transmission Fine control hydrostatic
Maximum noise levels 77dB(A)



Hydraulics

Independent flailhead circuit Closed circuit piston Max 59 l/min @ 2800 rpm 350 Bar
Independent track drive circuit 2 x closed circuit piston Max 62 l/min @ 2800 rpm 300 Bar
Aux service 1 double-acting auxillery service for additional service 16 l/min at 210 bar, double-acting
Independent intercooler Standard
Oil tank capacity 20 litres (40 litres held in system) Biodegradable oil
Attachment lift capacity 550kg



Tracks

Rubber Standard ~ max working angle 40°
Rubber with spikes Optional ~ max working angle 55°
Self-tightening Standard
Length (axle to axle) 1192mm



Remote Controls

Working range 150m
Frequency 434Mhz (certified by CE legislation)
Battery Interchangeable, rechargeable, 2 with each unit, charge on machine
Proportional joysticks Standard

Dimensions

Overall width
 1300mm
Overall length (without attachment) 2285mm
Overall height 1050mm



Weight

ROBOCUT RC75 1300kg



Performance

Potentiometer speed control (0 - 100%) 1st gear (low range) Forward and back, 0 - 3,5km/h2nd gear (low range) Forward and back, 0 - 7km/h



Flailhead / Attachment

Oil flow 59 l/min
Pressure 350 Bar
Rotor speed 3300 rpm
Front and rear flaps Standard
Flails Y - Flails for cutting grass and light wood up to 30mm diameter J (hammer) - Flails for cutting thick grass and wood up to 50mm diameter
Rotor width 1.3m to 1.6m
Roller diameter 100mm
Cutting height range (via roller adjustment) 20mm - 85mm (5 positions) Flailhead can be lifted to cut higher
Hydraulic lift -300mm to +400mm
Floatation (angle) 14° up and down (+/-)



Download the ROBOCUT Brochure here
