Sweepers

Click on a product picture below for more information

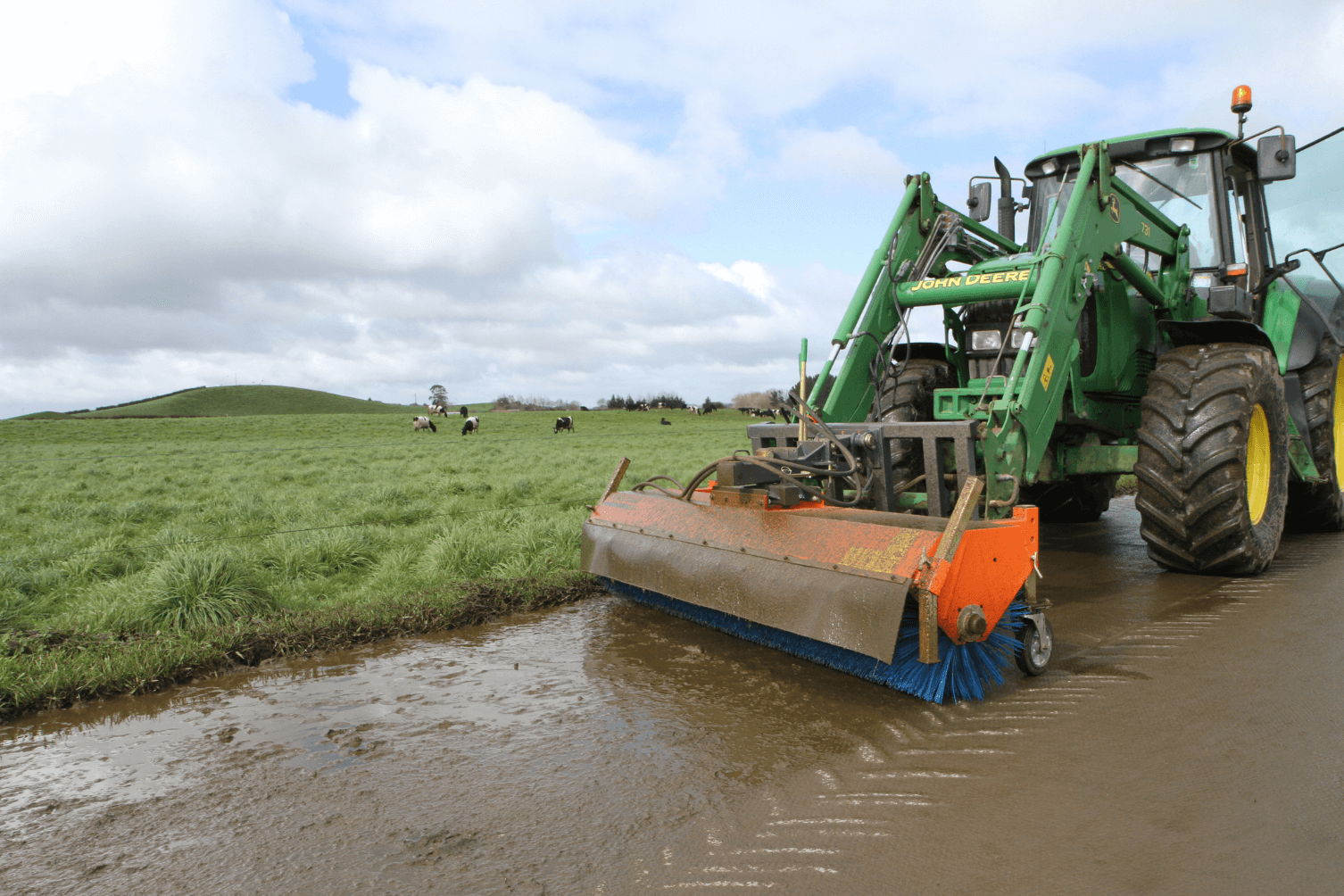

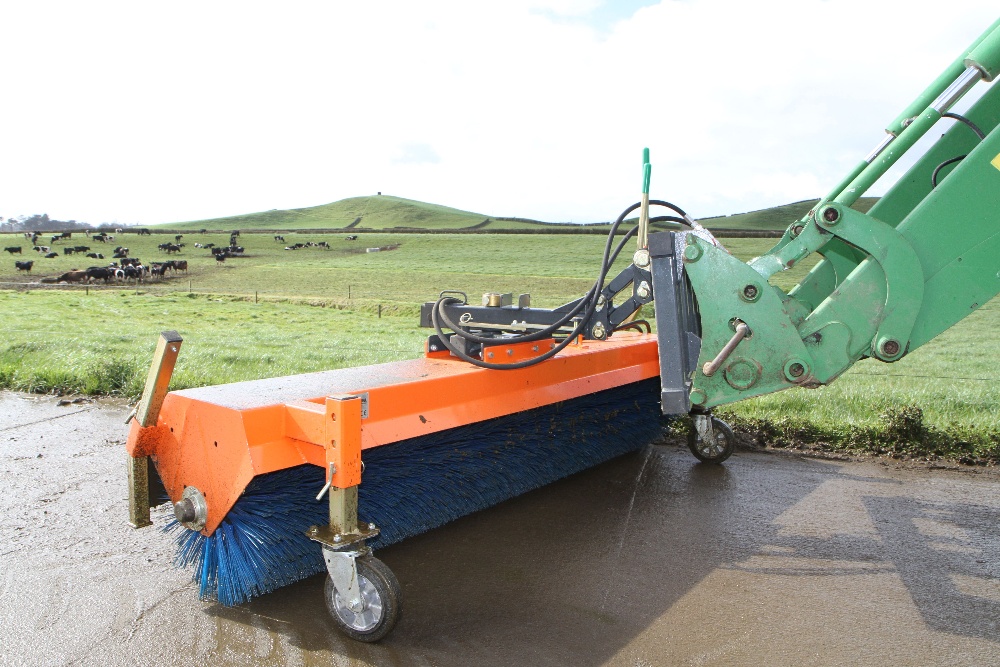

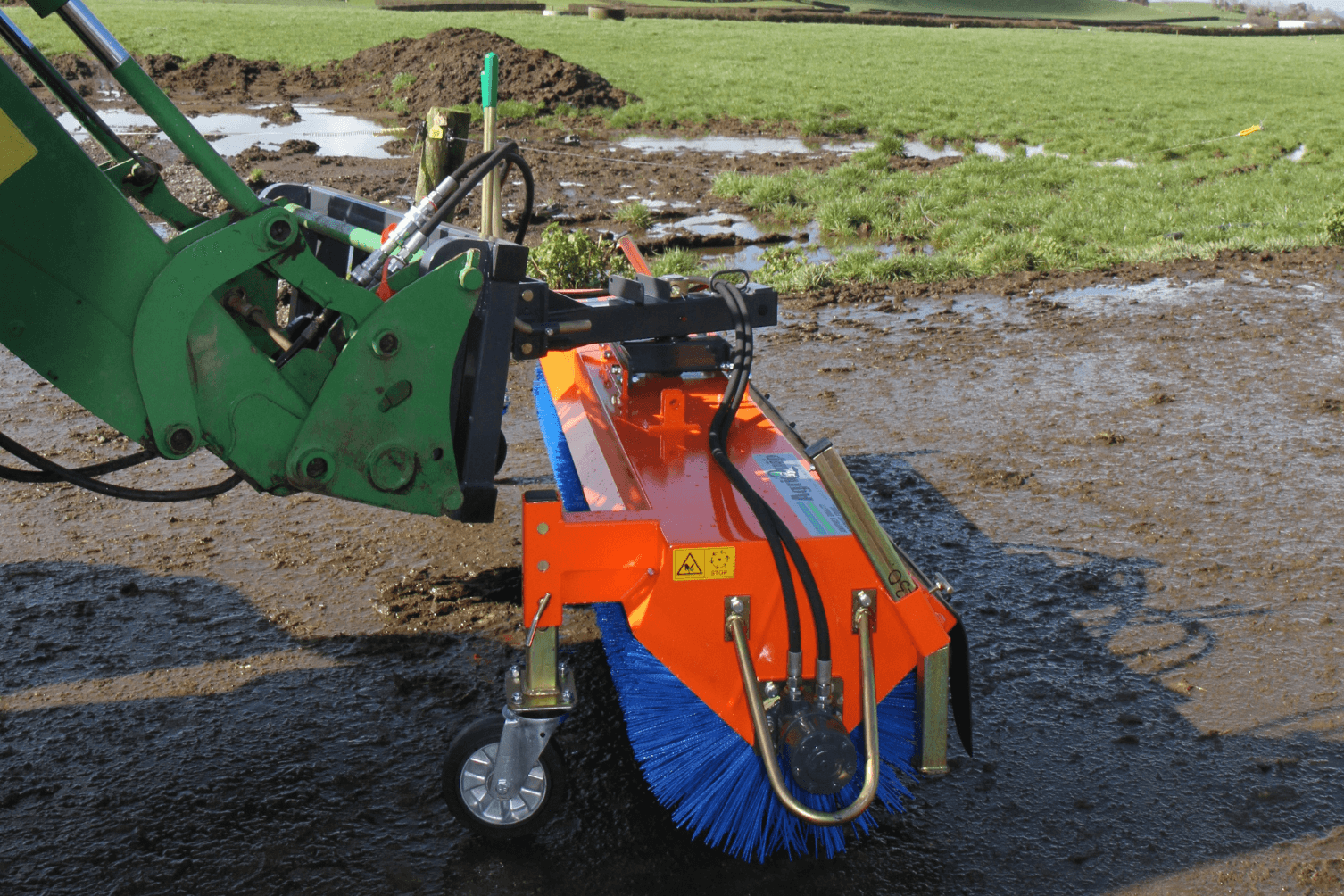

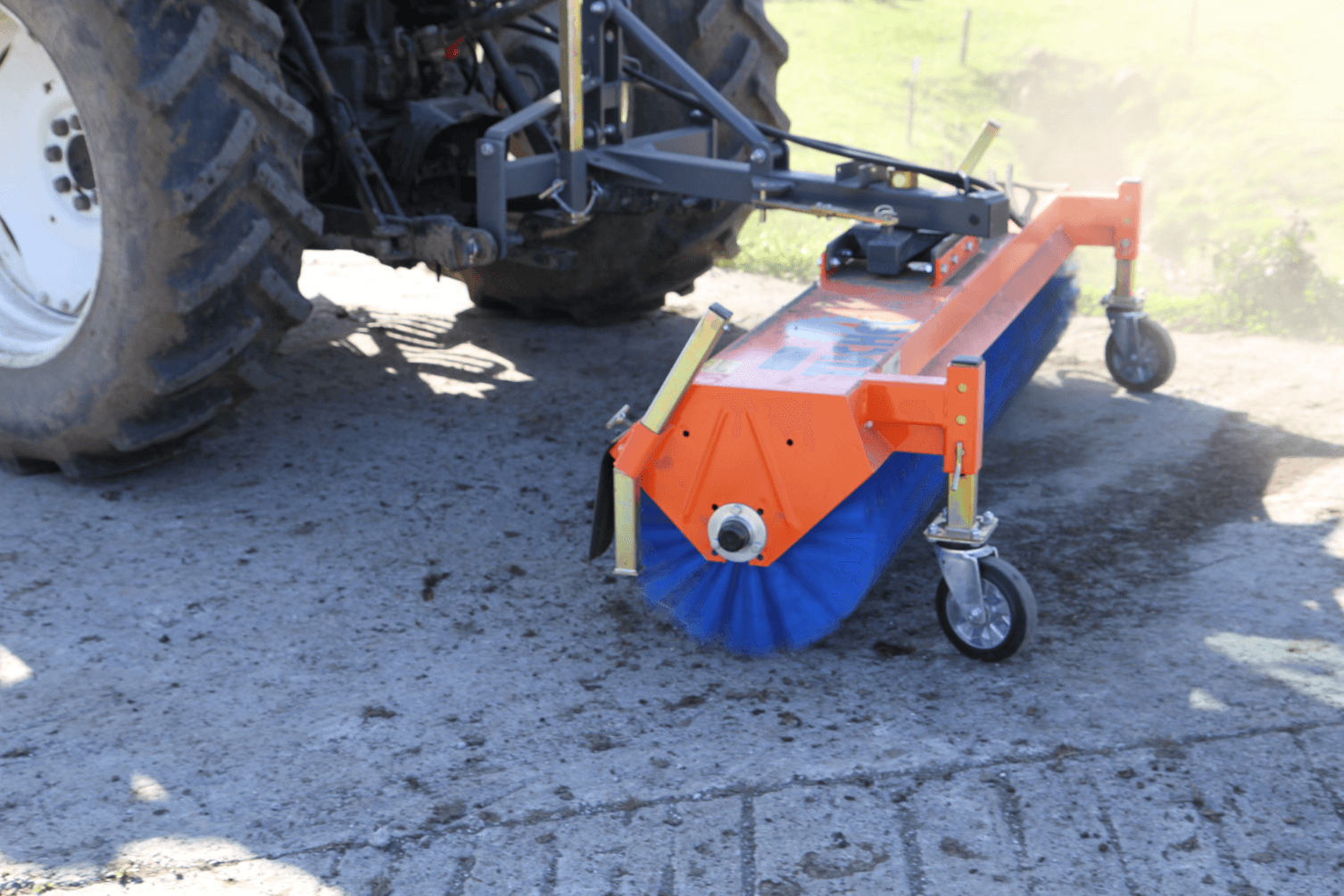

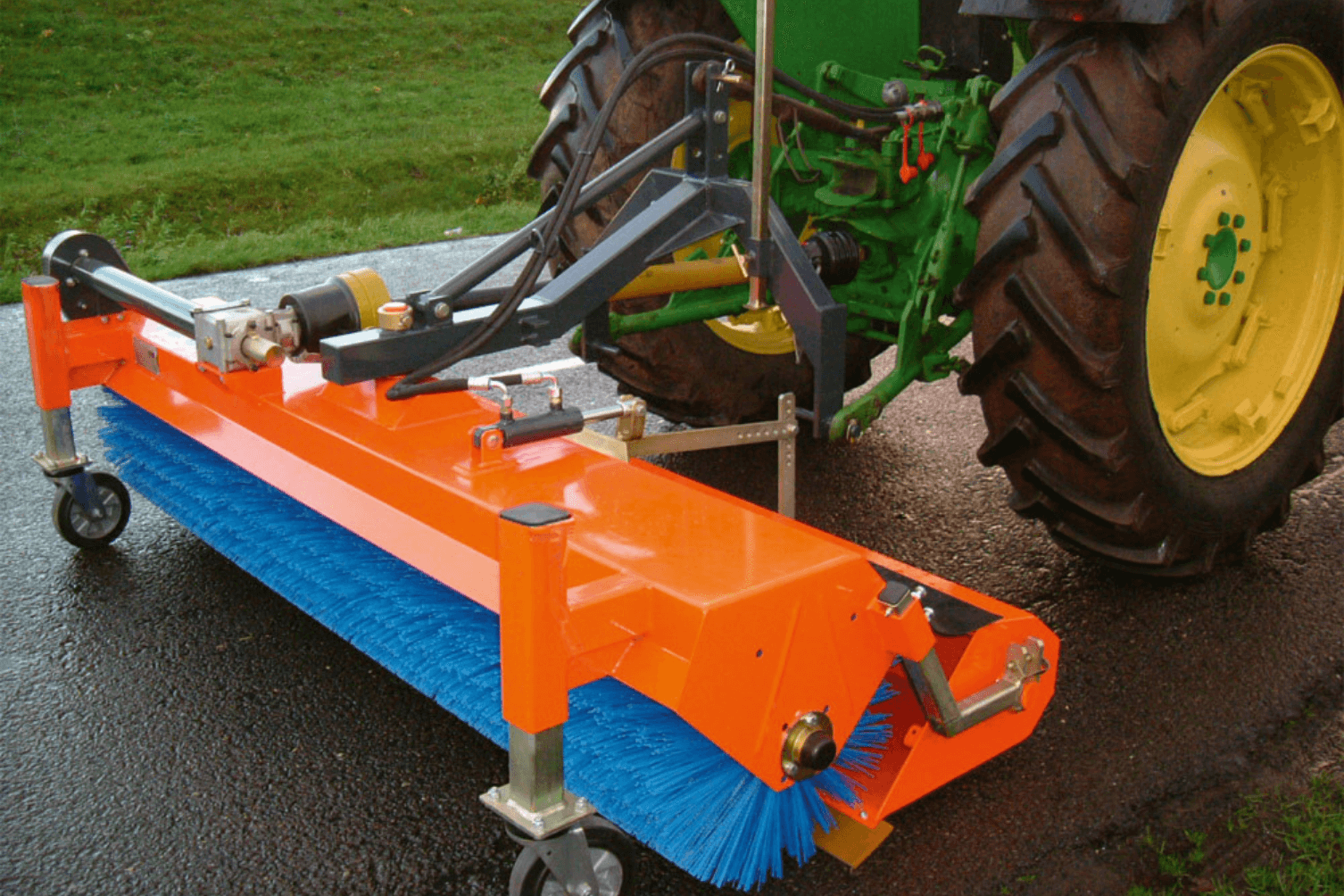

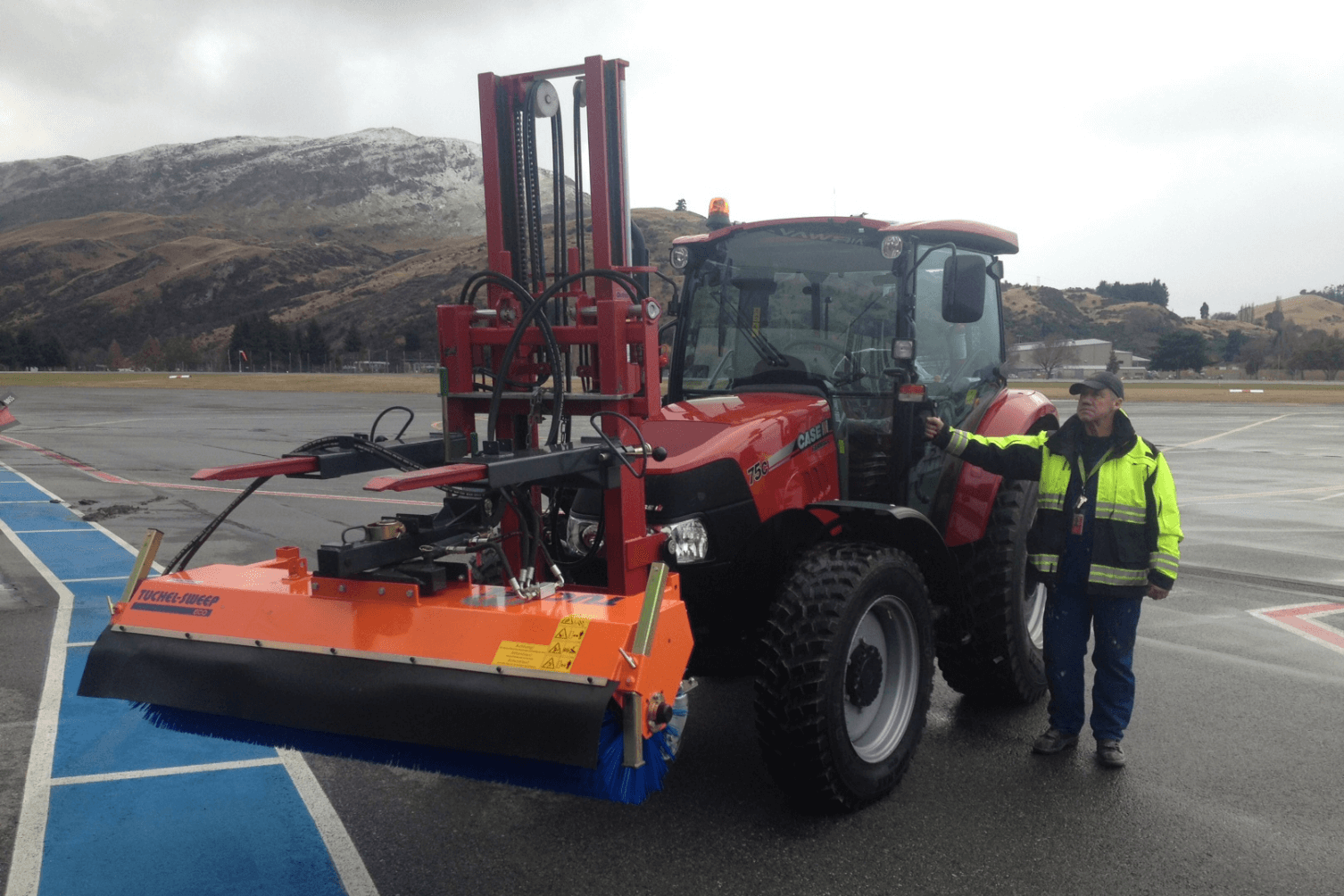

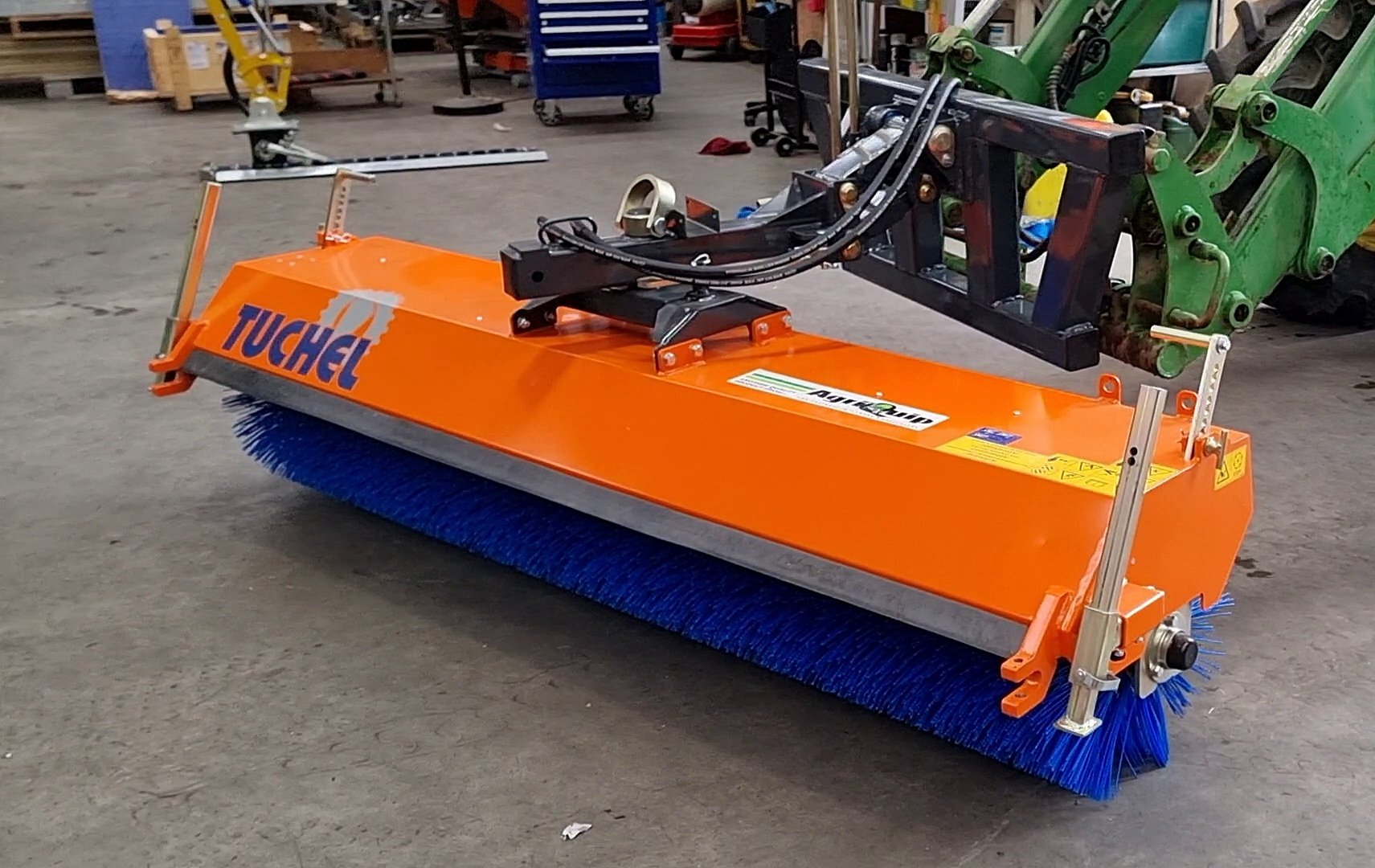

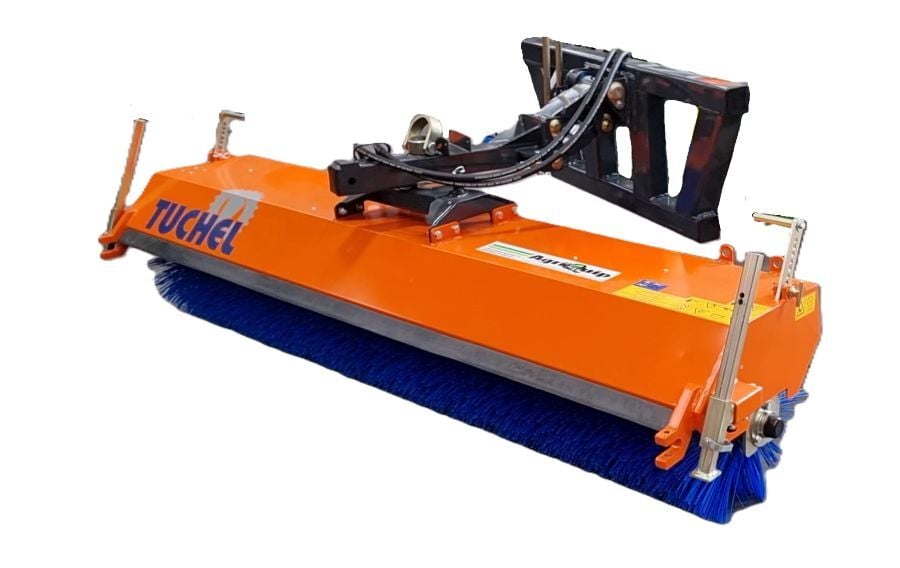

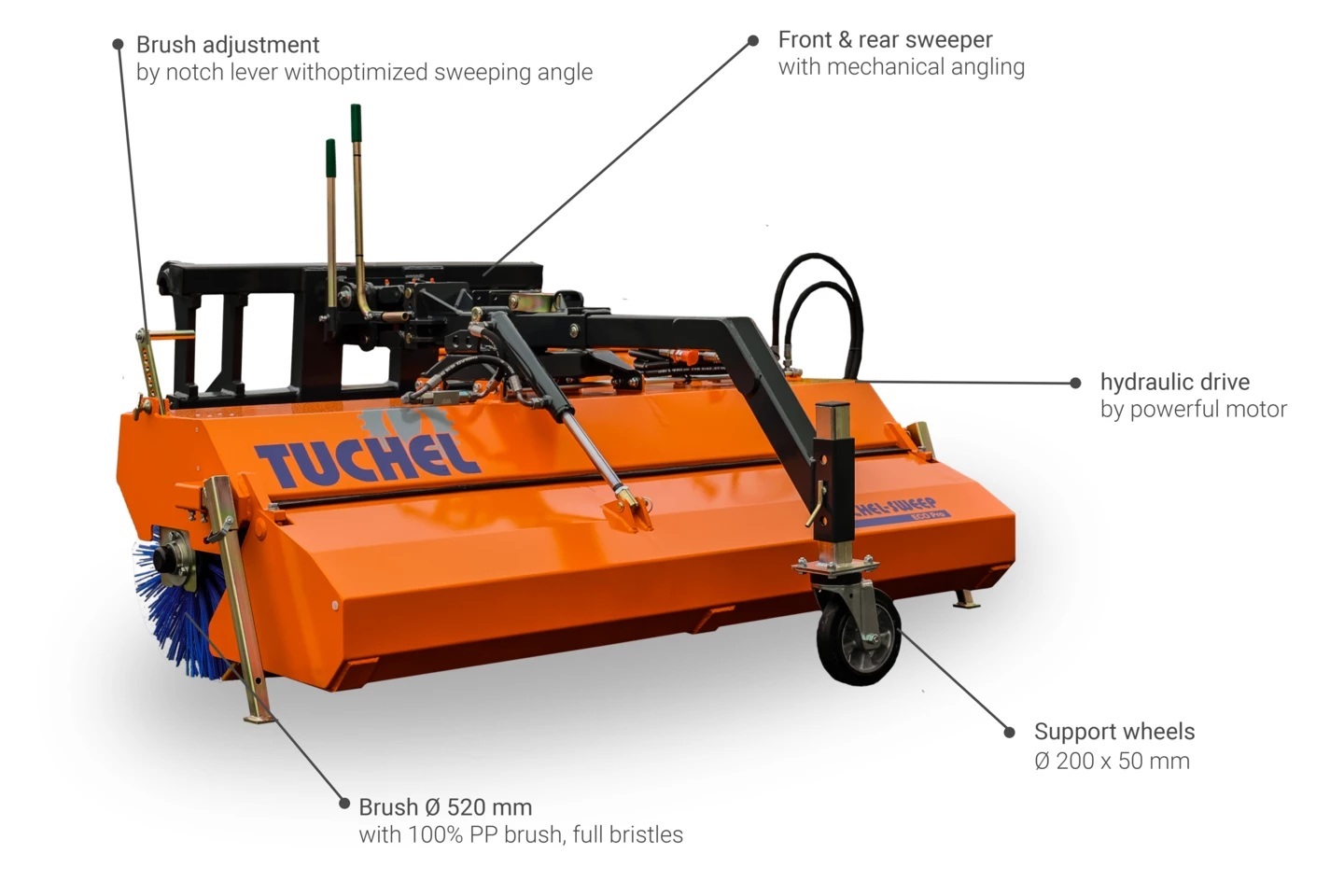

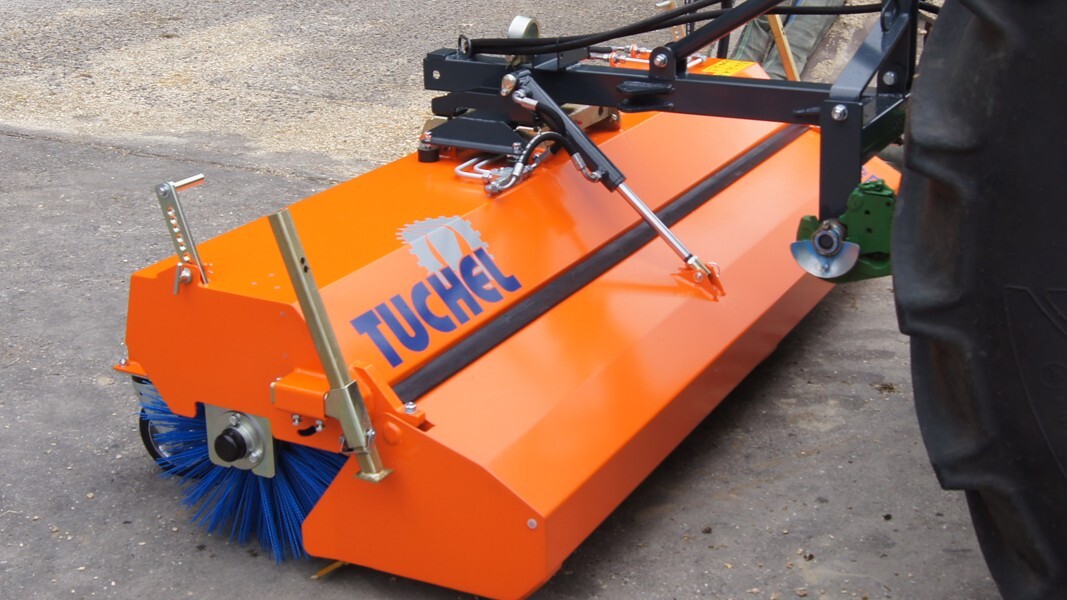

ECO Series

With the ECO sweeper, you can purchase a quality machine that fully meets your requirements. Because of the various working widths of the ECO, you can attach it to tractors, but also yard loaders and fork-lifts. By multiple optional attachment systems the ECO can be perfectly mounted onto your carrier vehicle.

Equipment of the basic machine incl. height adjustable brand named wheels, mechanical angle adjustable incl. shear-off bolts and universal multiple, resistant polypropylene shaft brush.

ATTACHMENT SYSTEMS

  • • Three-point linkage incl. parking stands

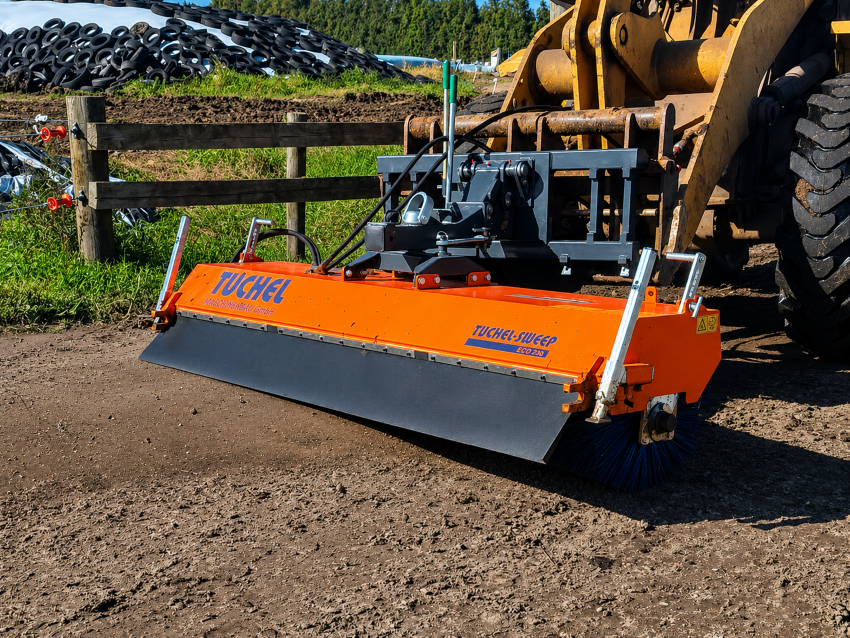

  • • Yard/front loader attachment incl. level compensation (Euro Hitch)
  • • Fork-tines incl. level compensation

ADDITIONAL ACCESSORIES

  • • Collection bin (manual unloading)
  • • Hydraulic angle adjustment (additional double-acting control circle required)
  • • Extra heavy wheels for rough jobs

SPECIFICATIONS

ECO 150              ECO 180               ECO 230
Working Width (cm)         150 180 230
Brush (cm) 520 520 520
Total Width (cm) 185 215 260
Required Oil Flow L.P.M
(for 160 bar)
25 25 30
Weight* (kg) 220 245 273

* Eco incl. hopper and 3-point linkage | Measures and weights are approx. and non-binding.

PHOTO GALLERY

(click photo to enlarge)






DOWNLOADS

ECO Series Brochure (2,536 kb)               Operators/Parts Manual (kb)

Back to Top

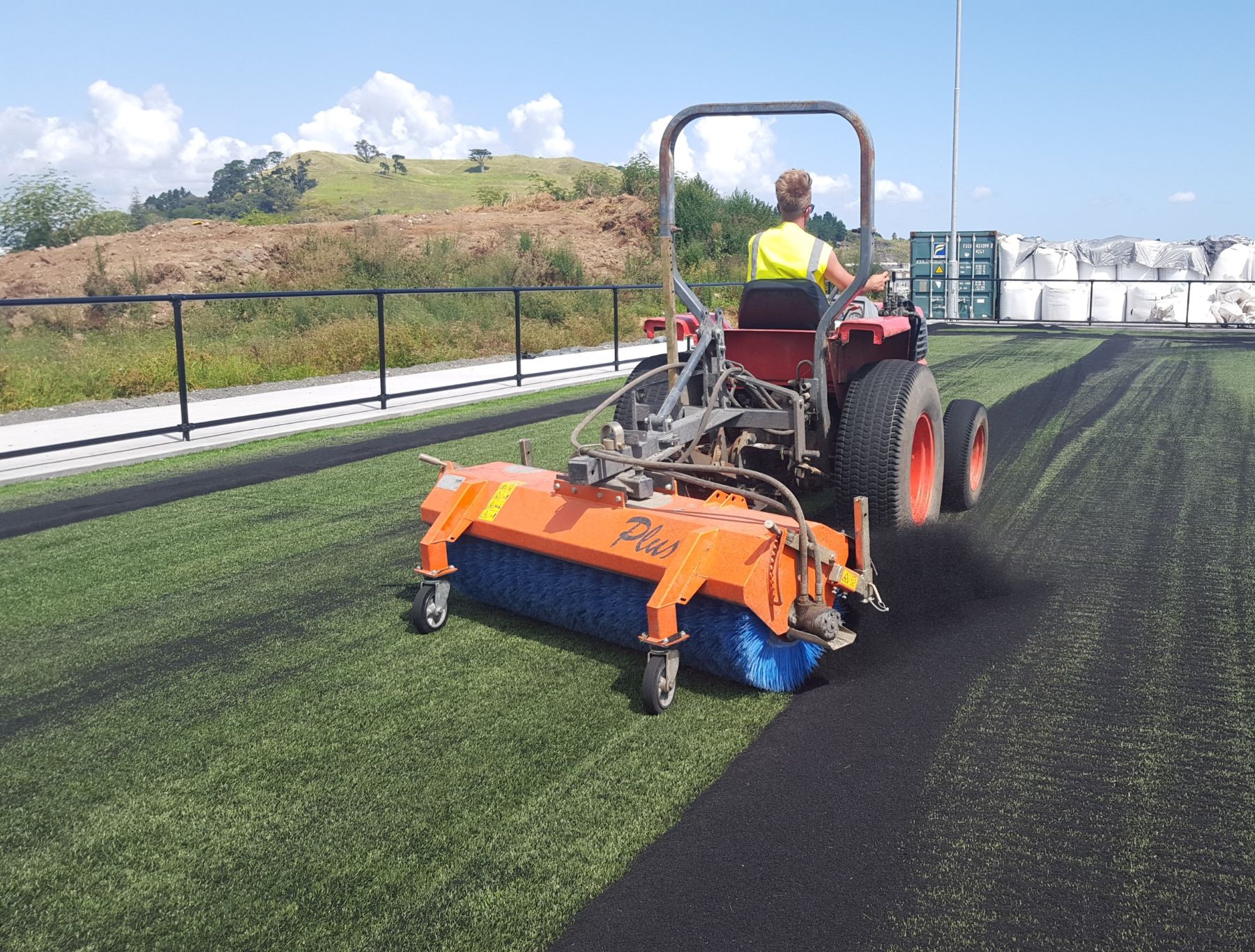

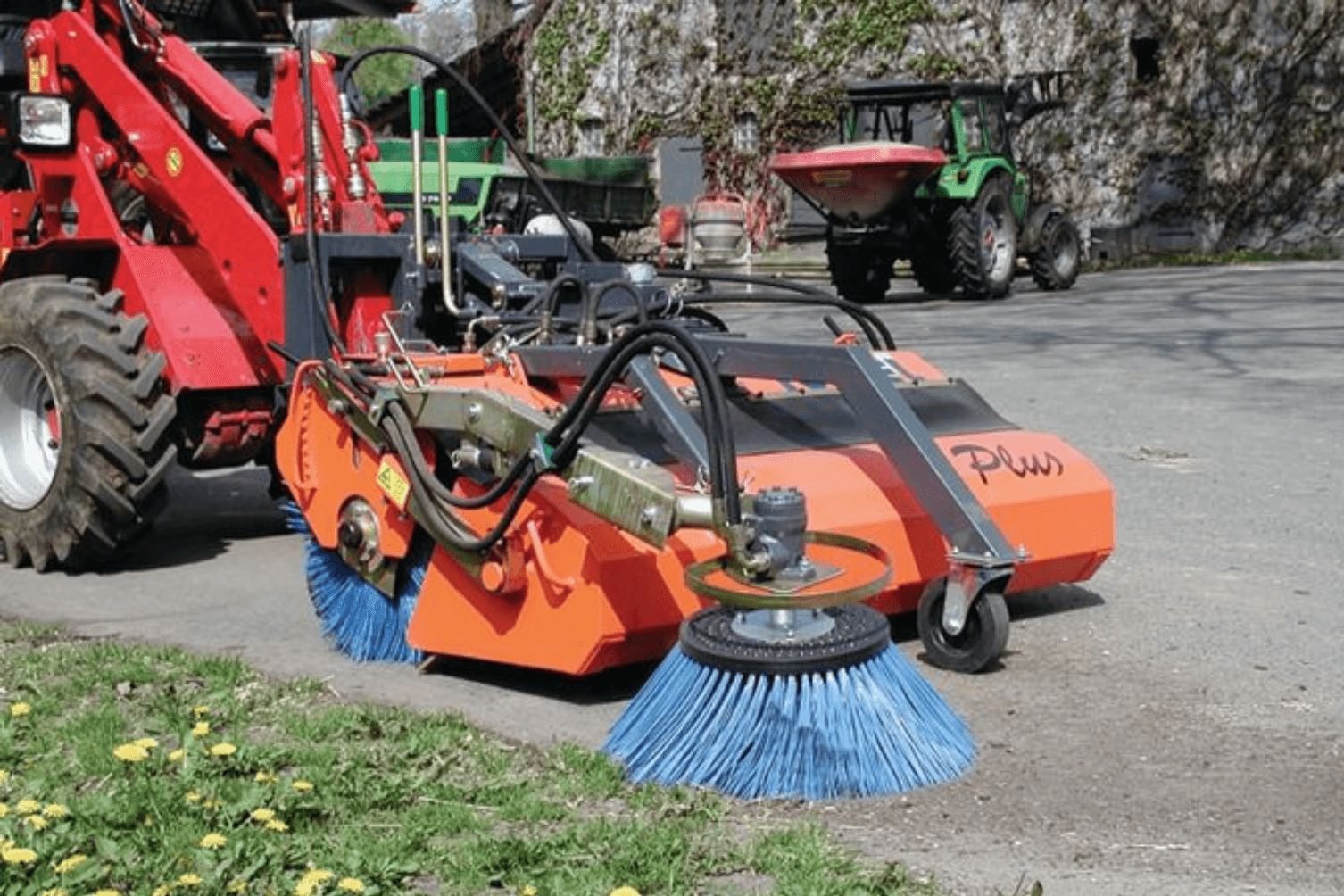

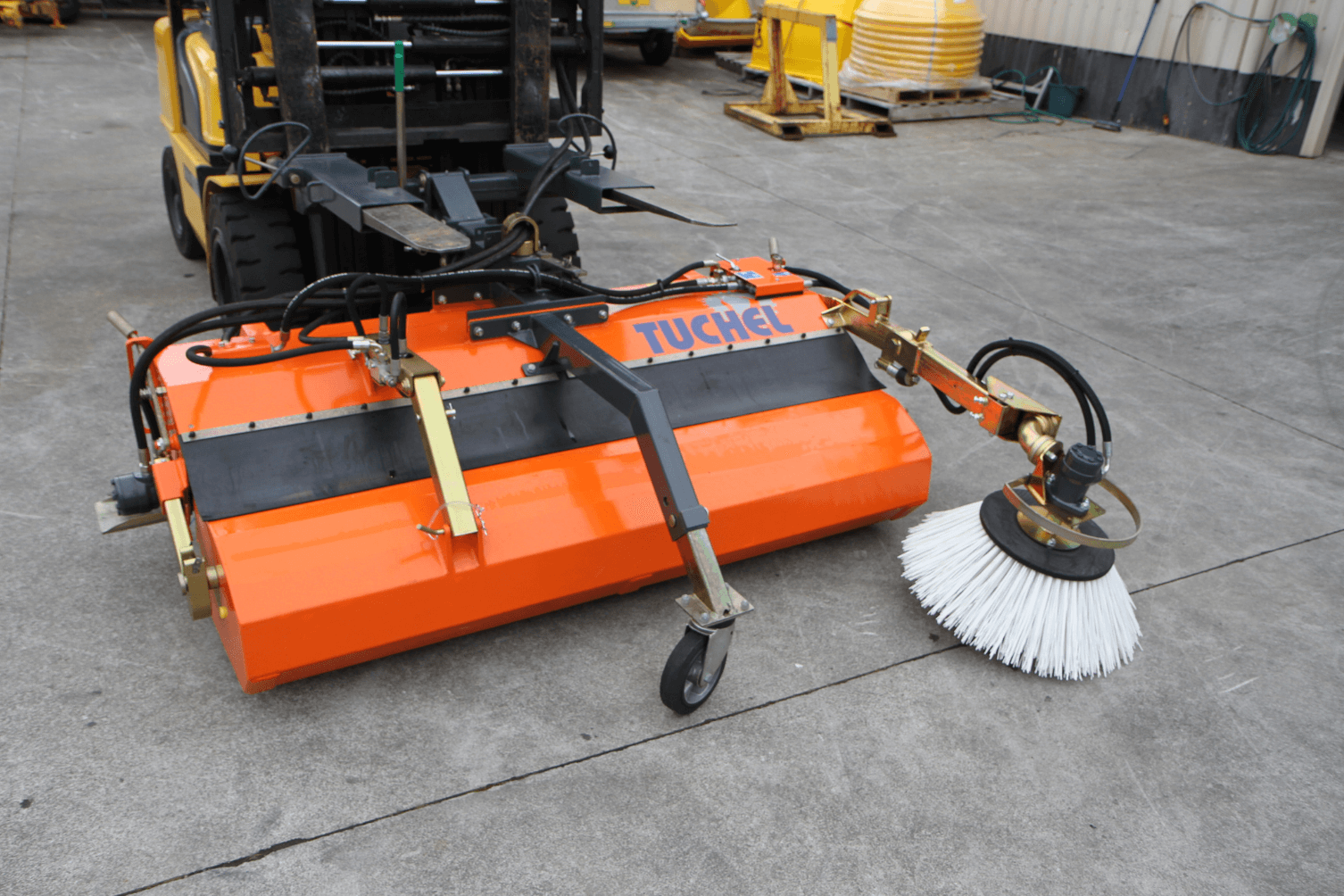

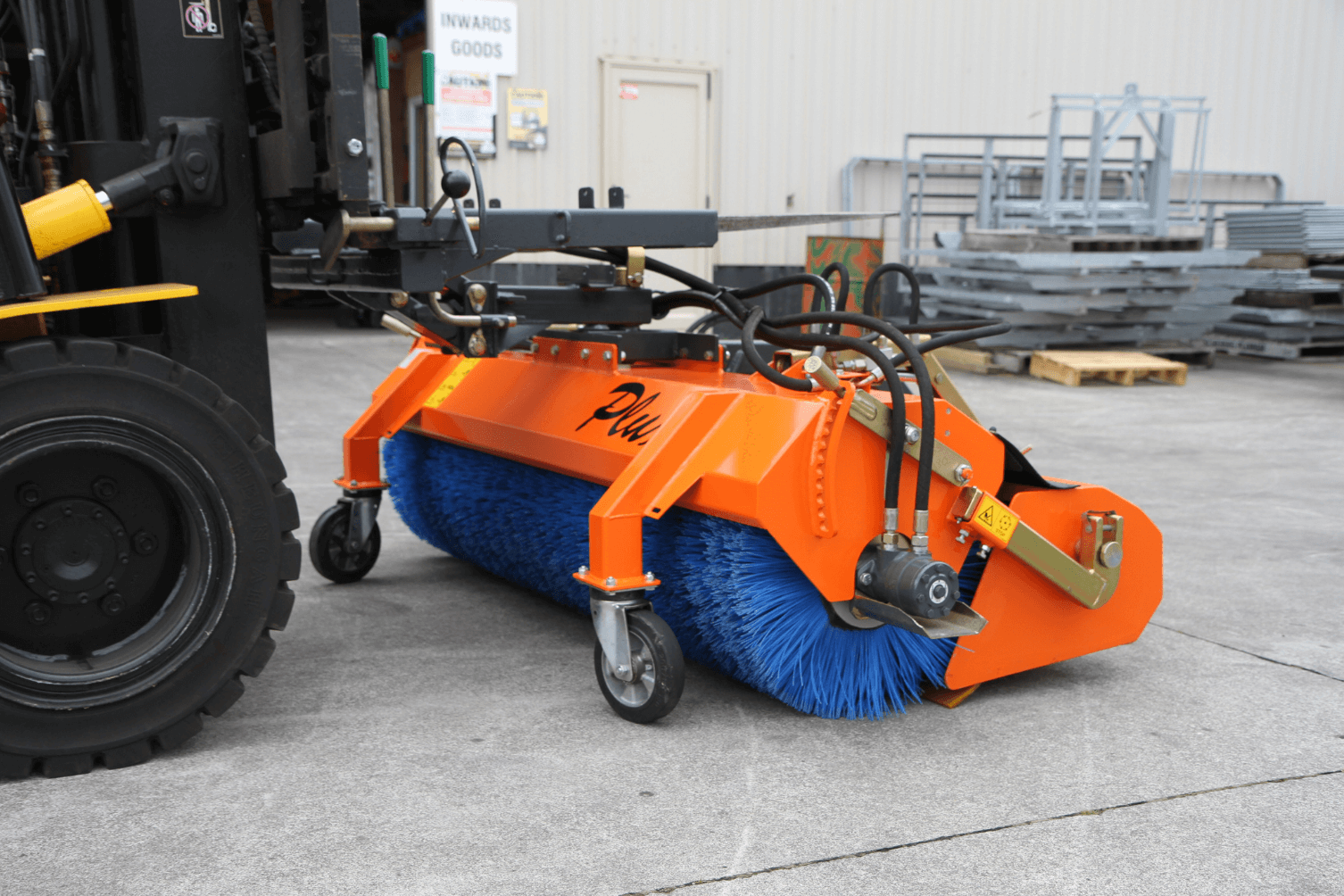

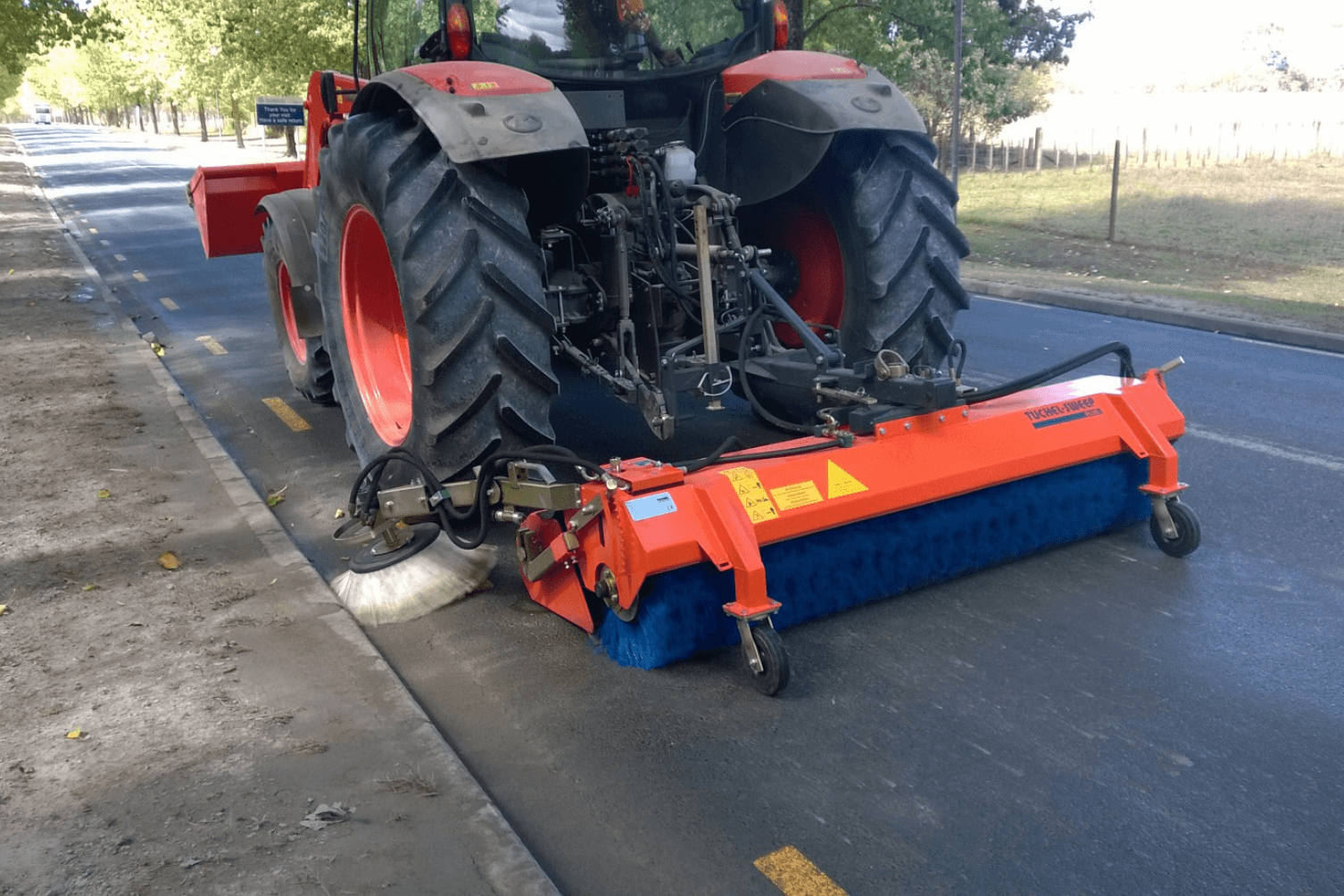

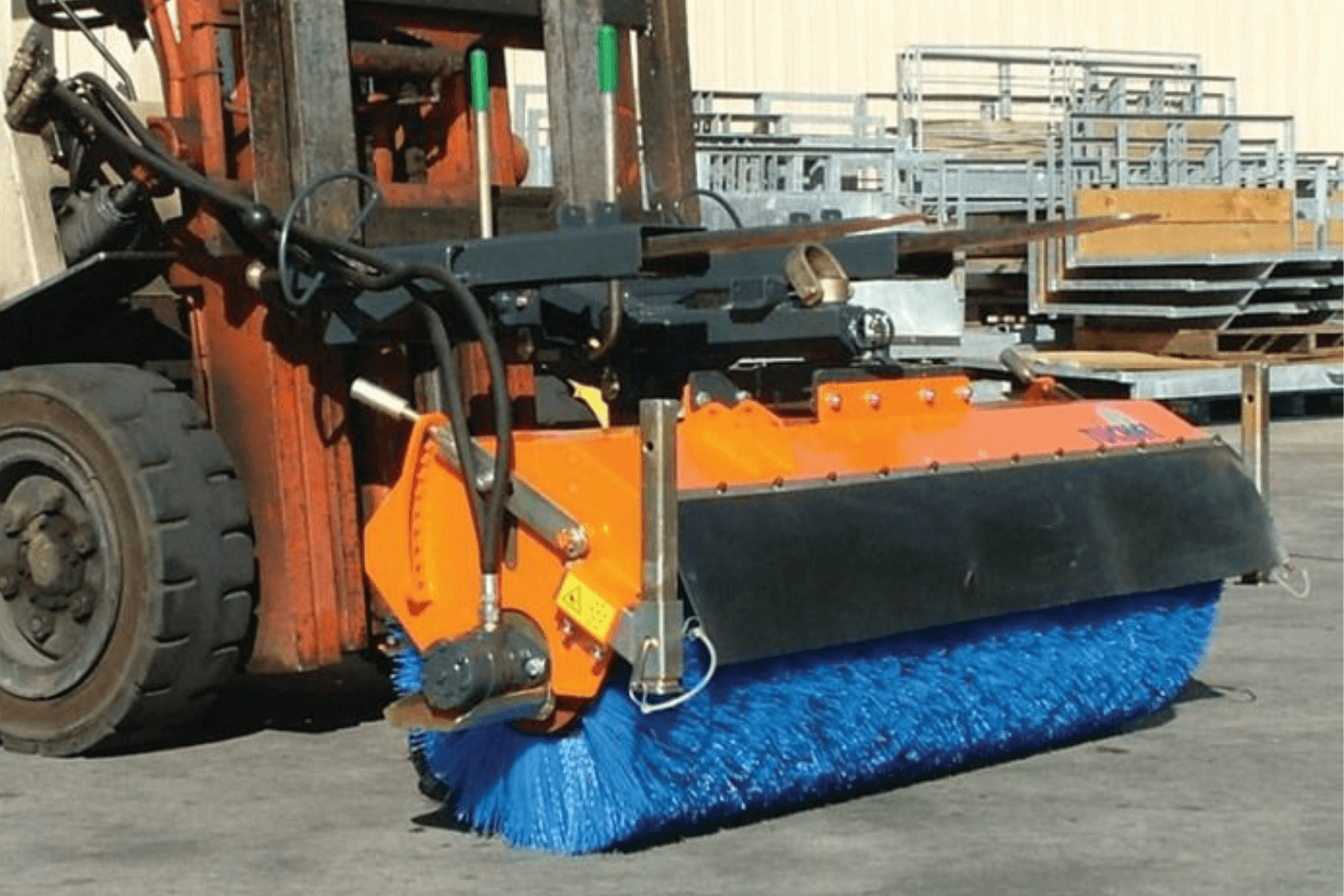

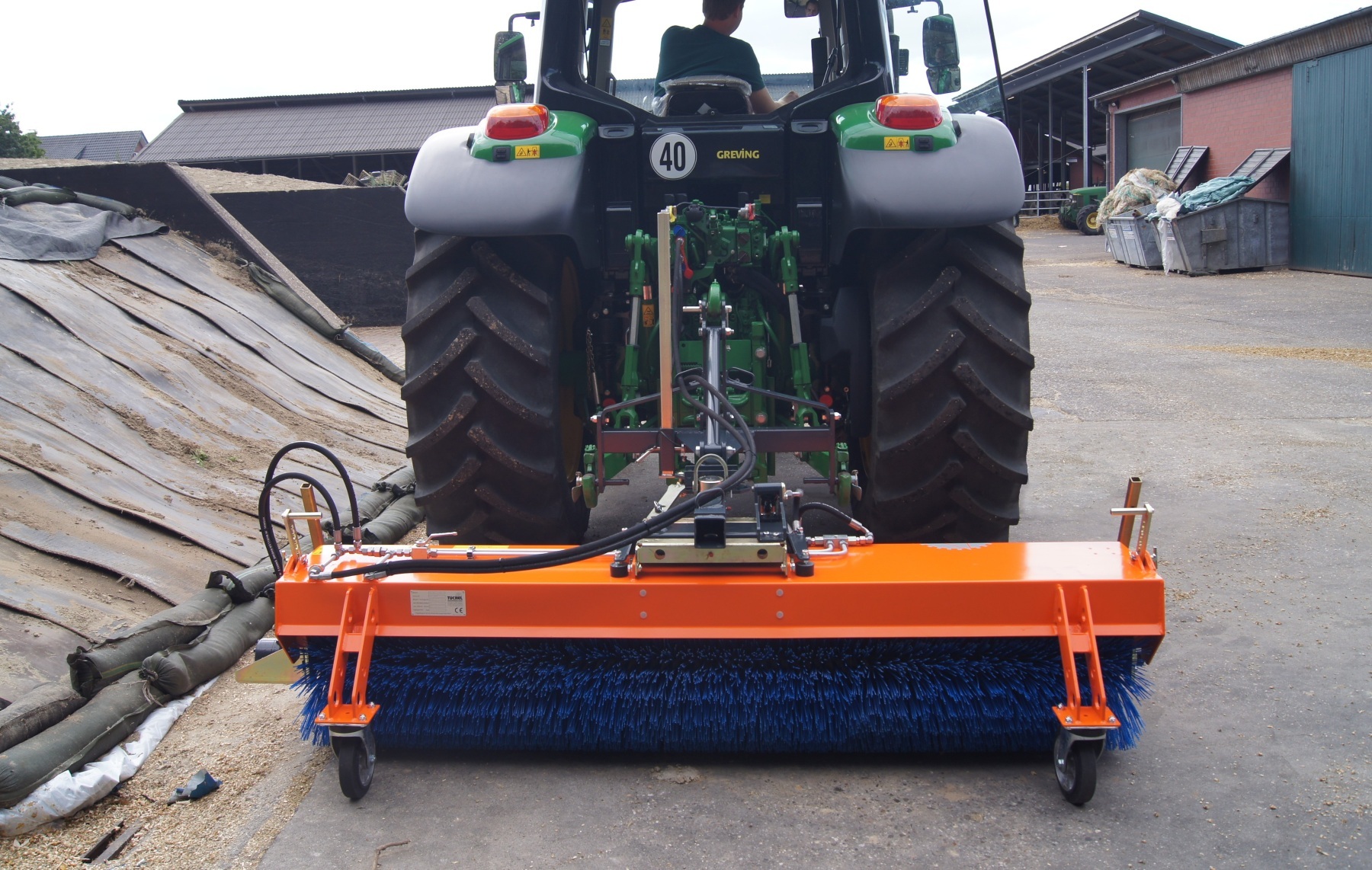

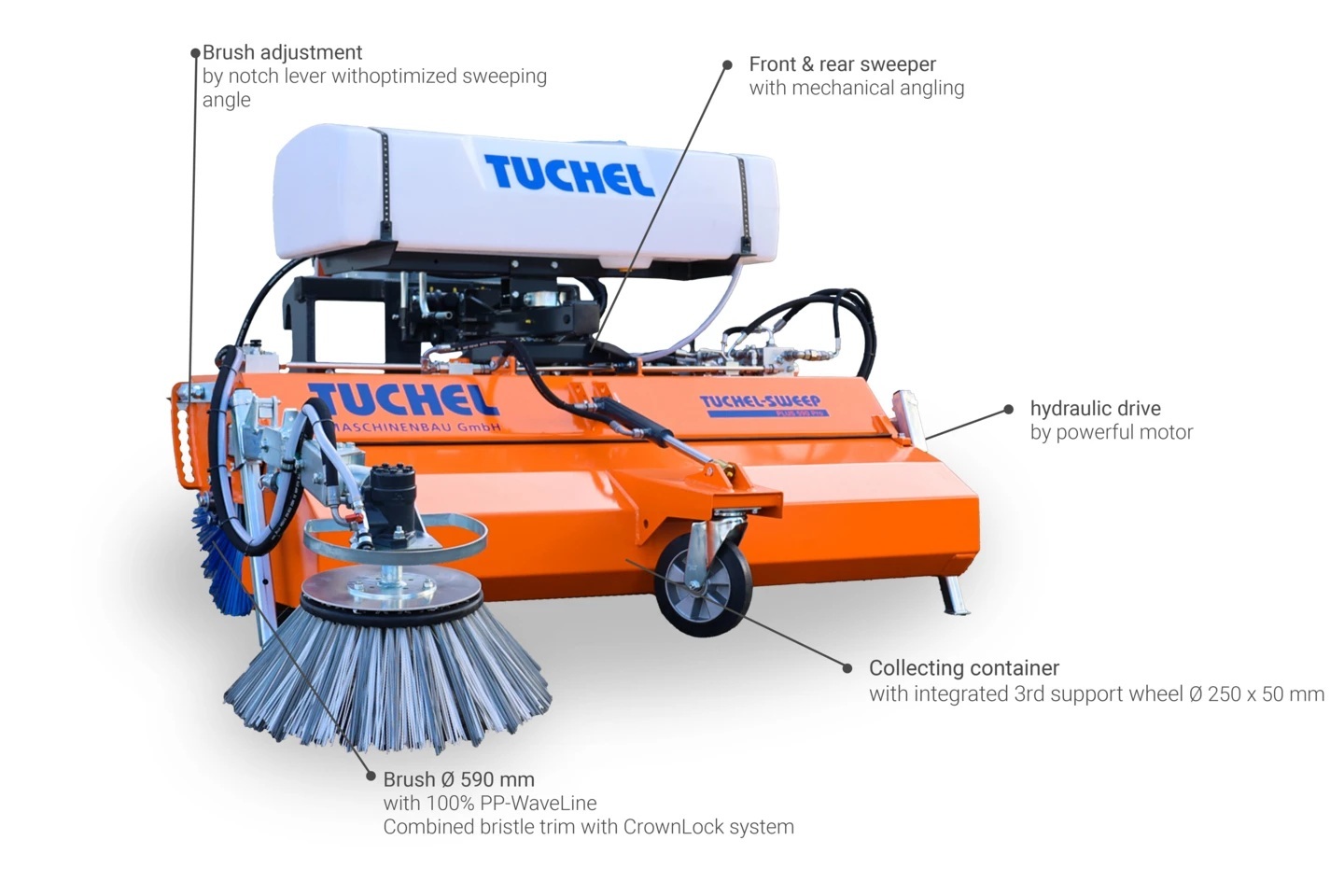

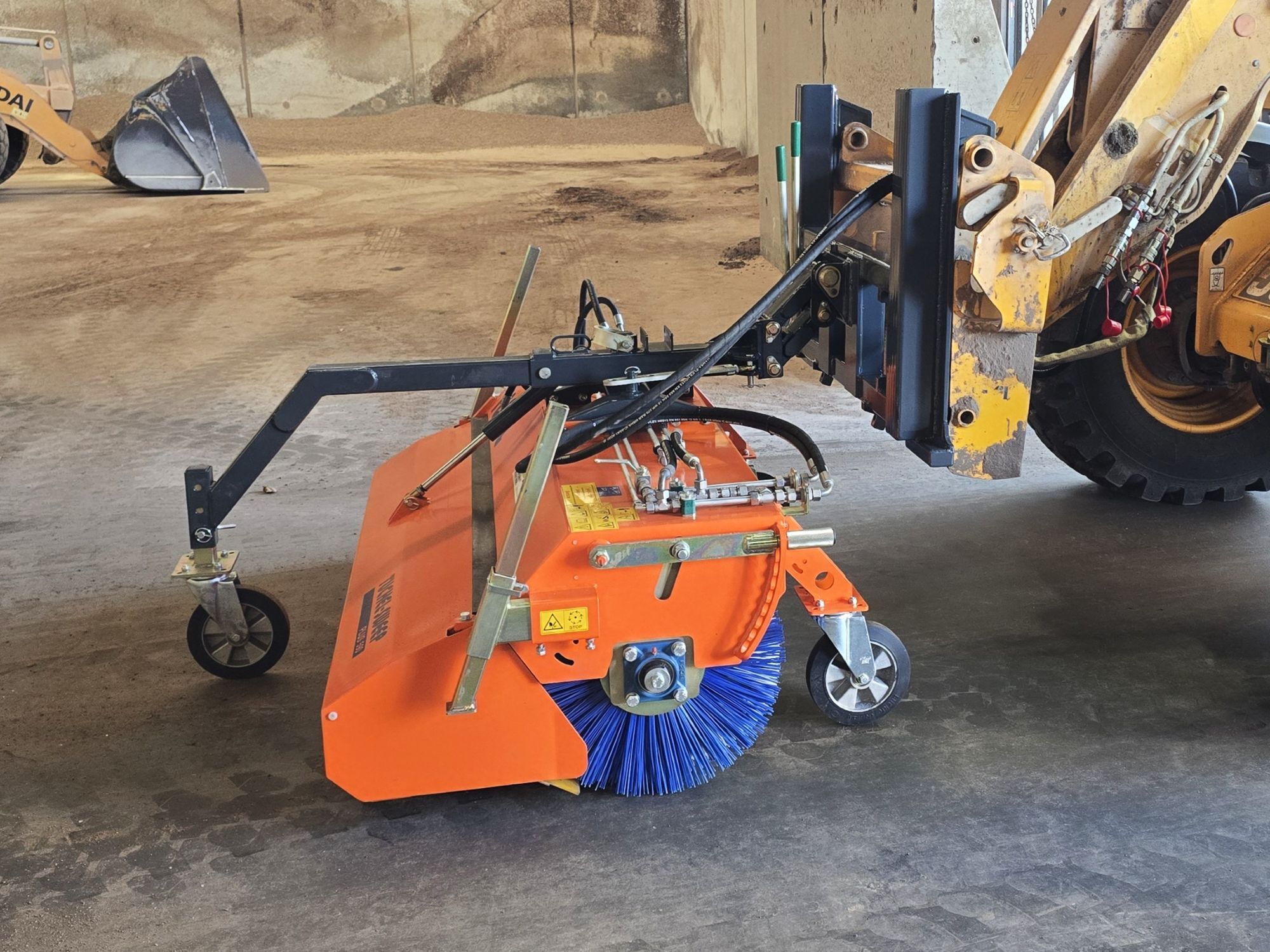

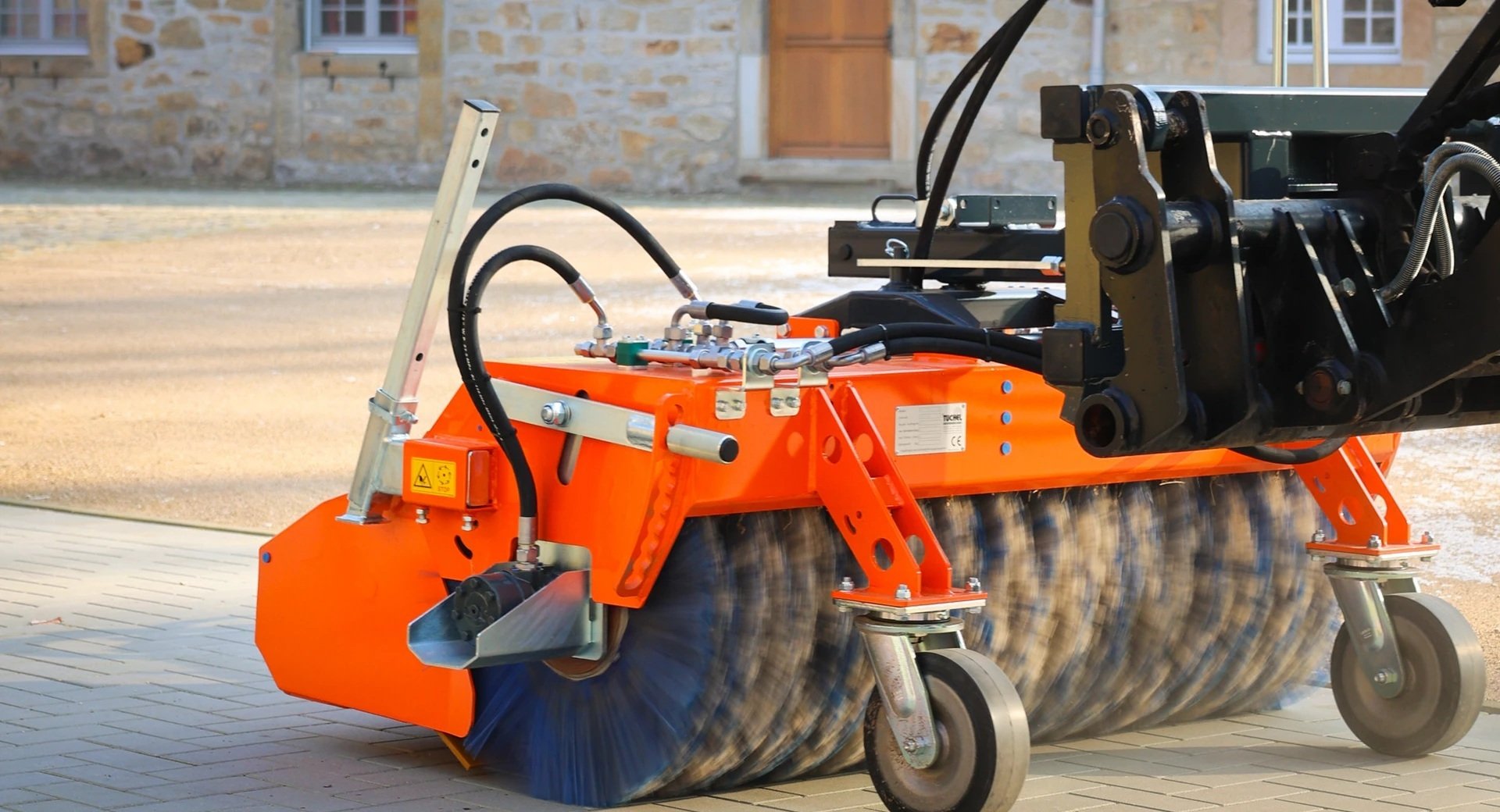

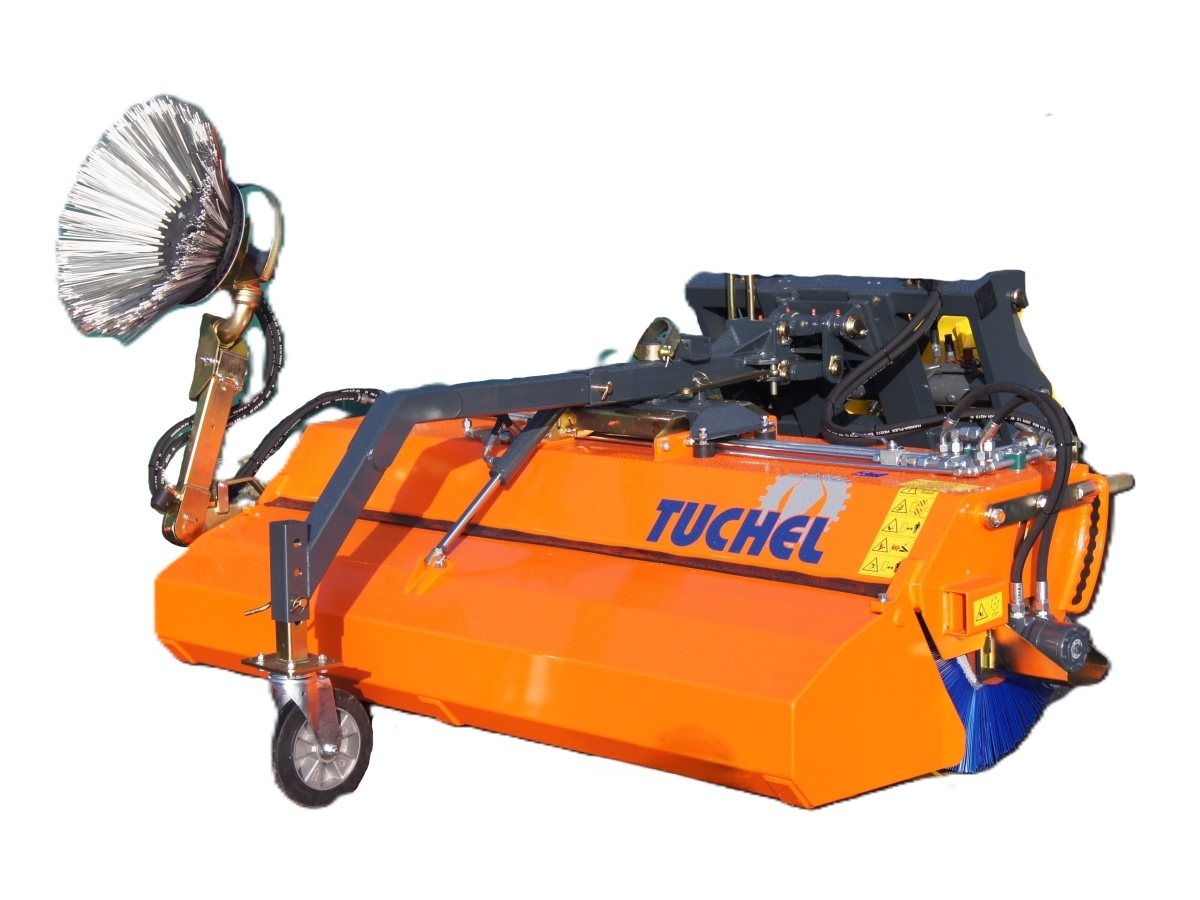

PLUS Series

For Tractors, Yard Loaders, Fork-lifts, Trucks.

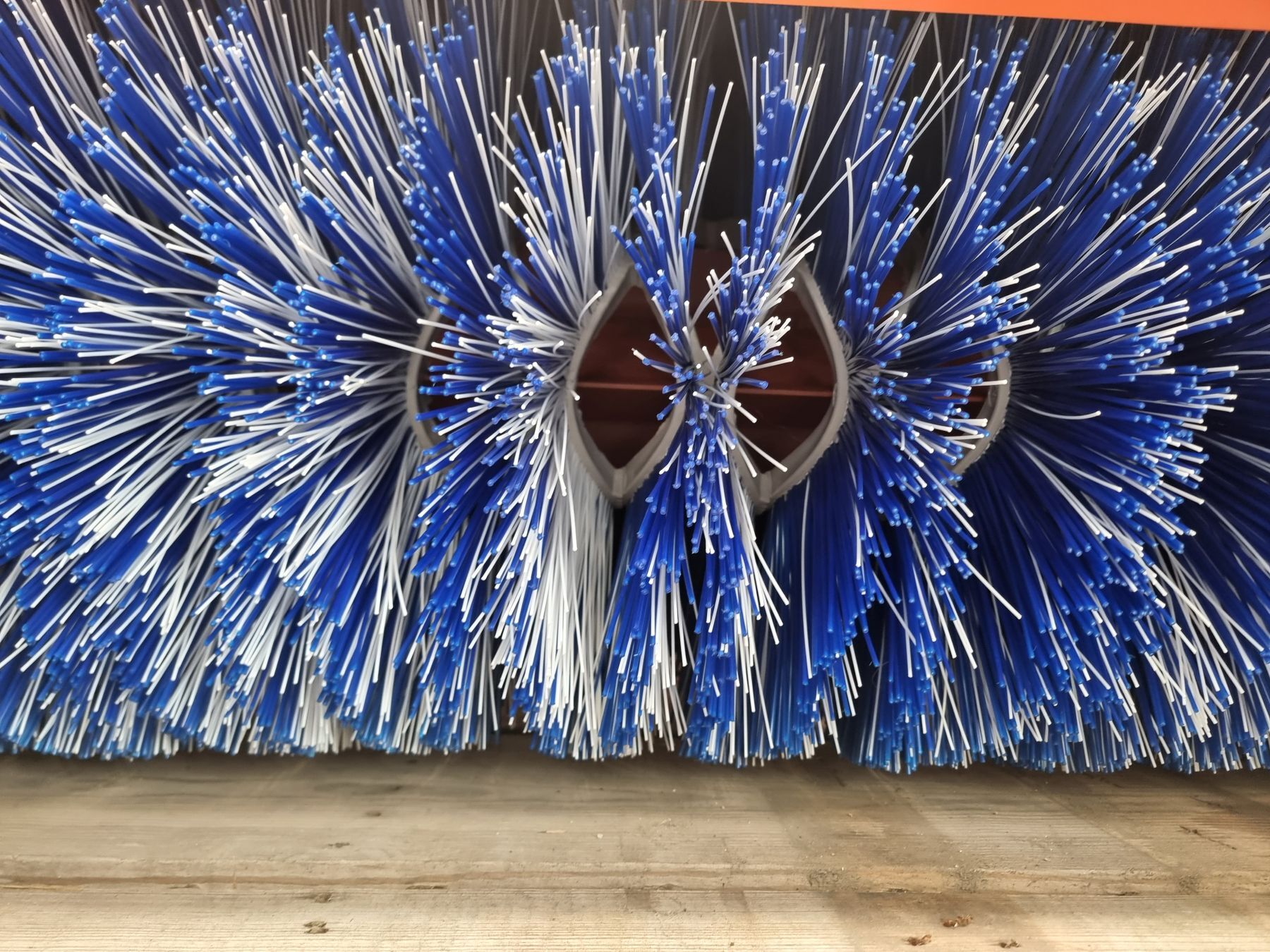

With the PLUS, you can purchase a modern and versatile sweeper. By a variety of attachment systems, the sweeper can be perfectly attached onto your carrier-vehicle. The special TUCHEL brush adjusting lever system makes for a simple brush adjustment when required. The strong high quality steel frame of the machine, high-grade hydraulic components, brand named wheels and a honey-comb shaped BEELINE brush system (560 diameter) guarantee a very long duration of life for your sweeper.

With your PLUS machine, you can either sweep with or without a dirt collector. The dirt collector can easily be removed.

The basic machine is ready for immediate operation ; incl. mechanical angle adjustment incl. shear-off bolts (mounting devices for dirt collector and side brush are available also).

ATTACHMENT SYSTEMS

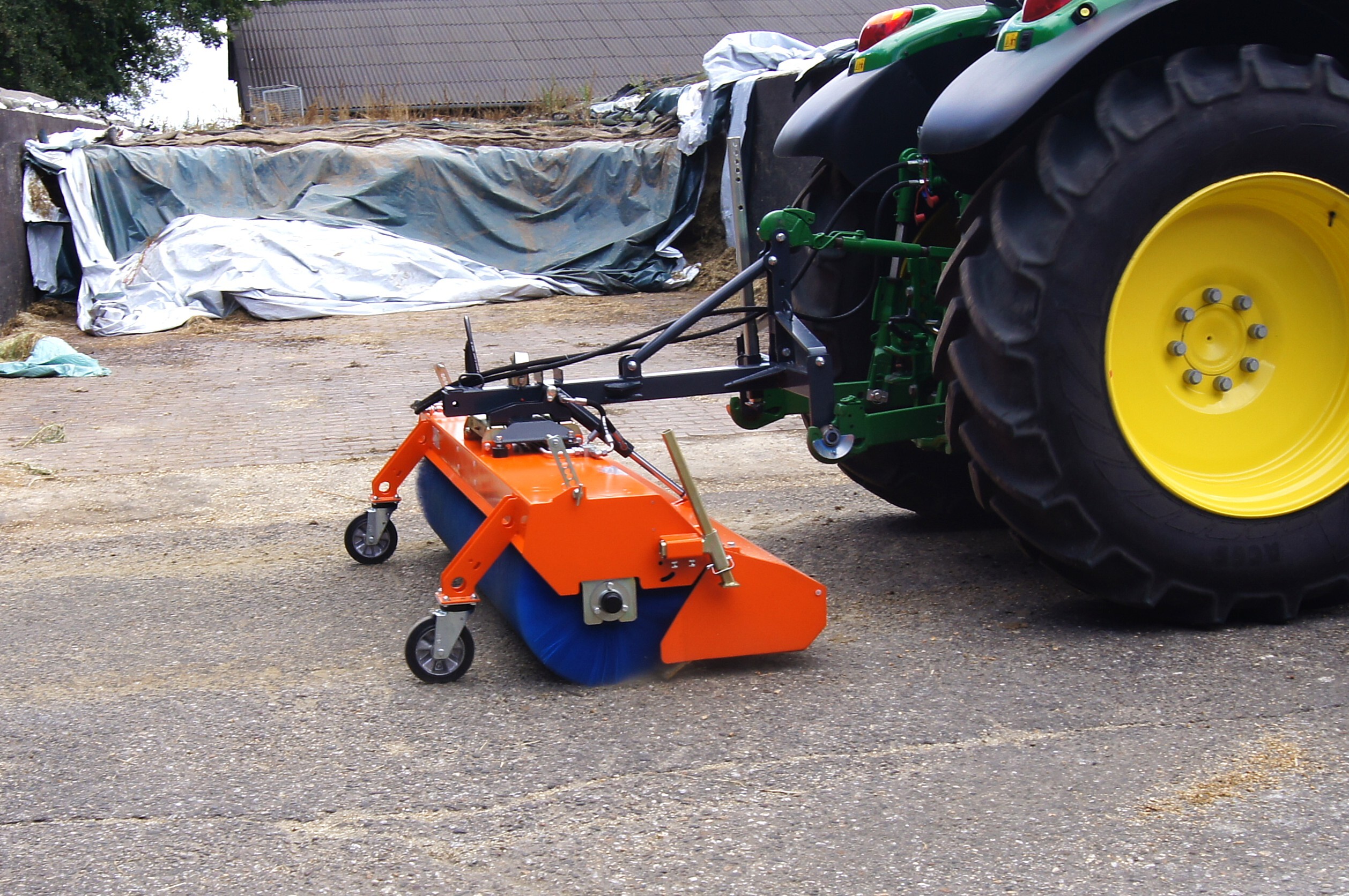

  • • Three-point linkage incl. parking stands
  • • Yard.front loader attachment incl level compensation (Euro Hitch)
  • • Fork-tines incl. level compensation

ADDITIONAL ACCESSORIES

  • • Hydraulic bin emptying
  • • 3rd support wheel
  • • Water spray system to bind the dust incl. 100/200 litre water tank and intermitting water pump

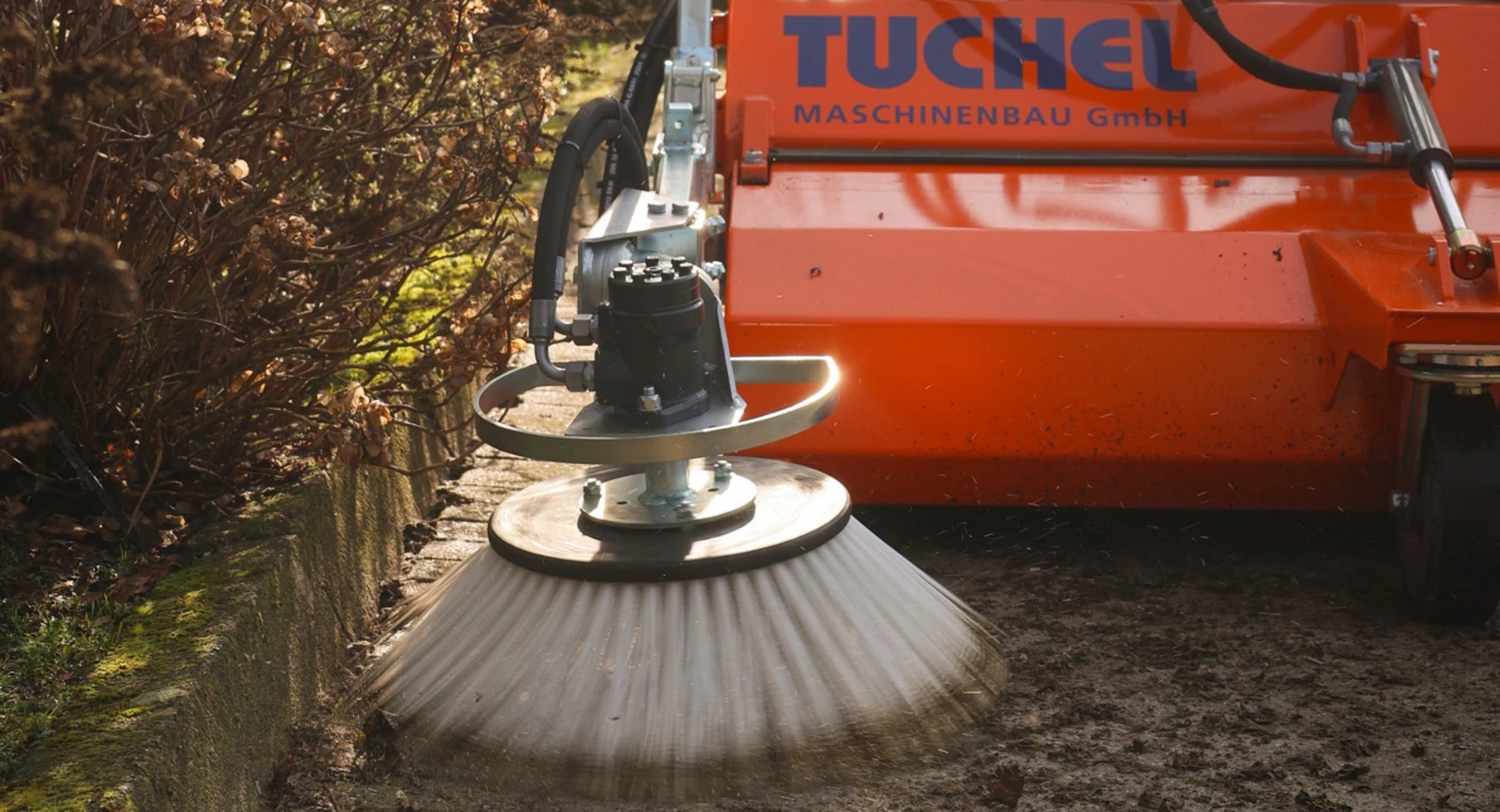

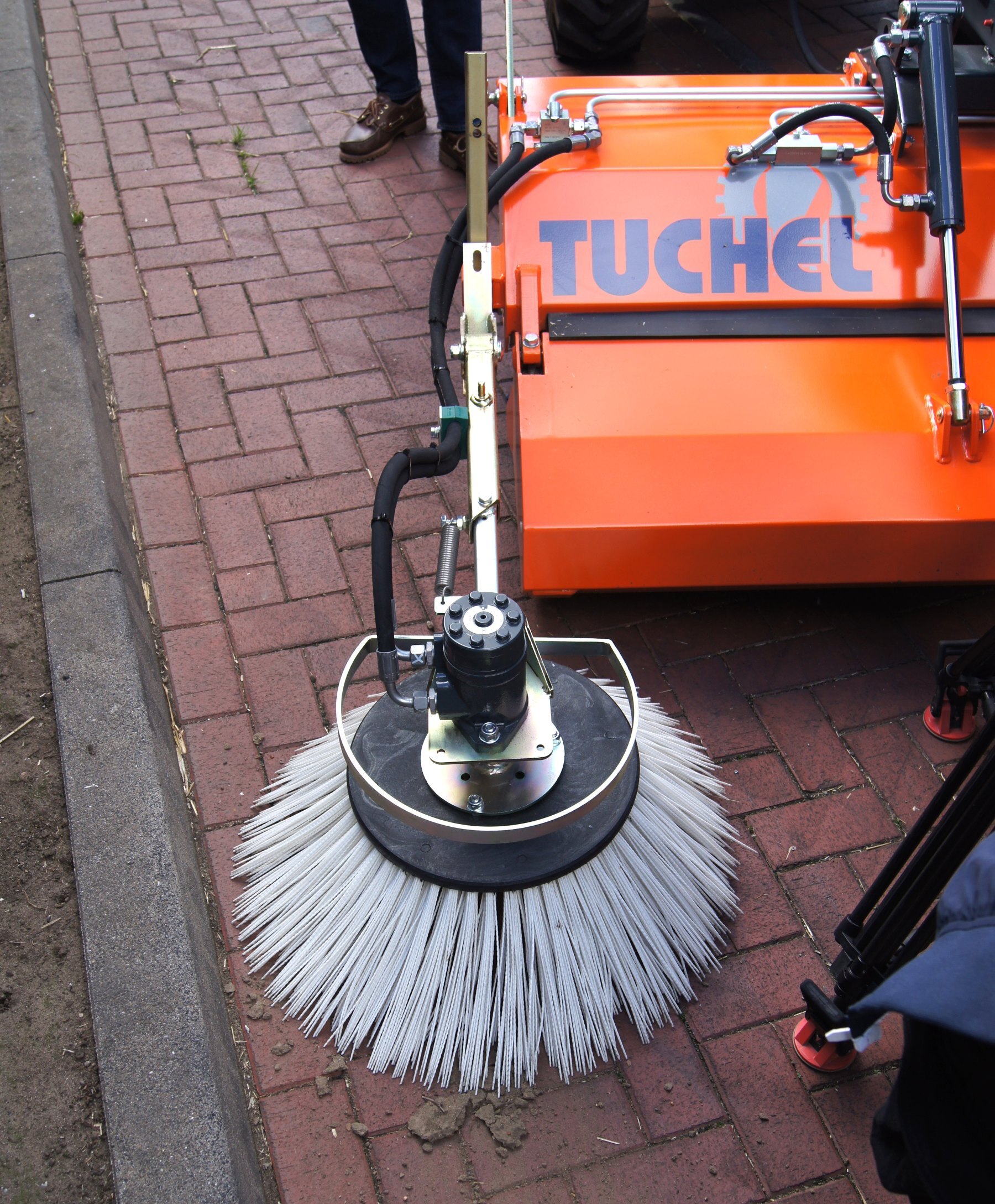

  • • Hydraulic side brush
  • • Hydraulic angle adjustment (double acting control circle required)
  • • Extra heavy wheels (steel centre) 200 x 50 mm for rough terrain

SPECIFICATIONS

PLUS 150           PLUS 180            PLUS 230
Working Width (cm)       150 180 230
Brush (cm) 560 560 560
Total Width* (cm) 182/170 212/200 257/245
Required Oil Flow L.P.M
(for 160 bar)
25 25 40
Weight** (kg) 242/309 258/333 283/370

*external/internal hydraulic motor | **simple sweeping incl. 3-point linkage/incl. hopper and 3-point linkage

Measures and weights are approx. and non-binding.

PHOTO GALLERY

(click photo to enlarge)





DOWNLOADS

PLUS Series Brochure (2,419 kb)           Operators/Parts Manual (kb)

Back to Top

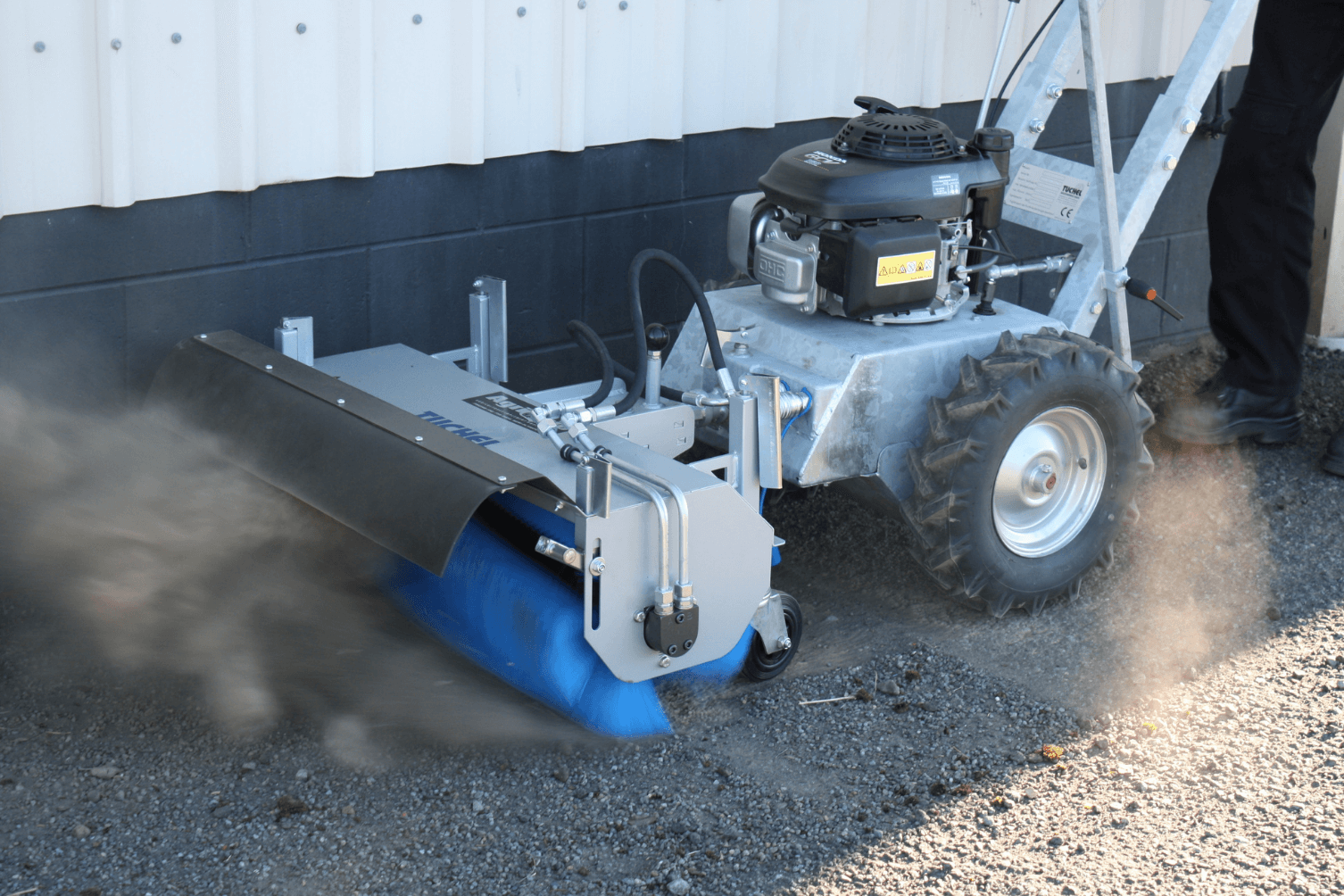

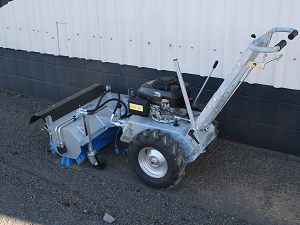

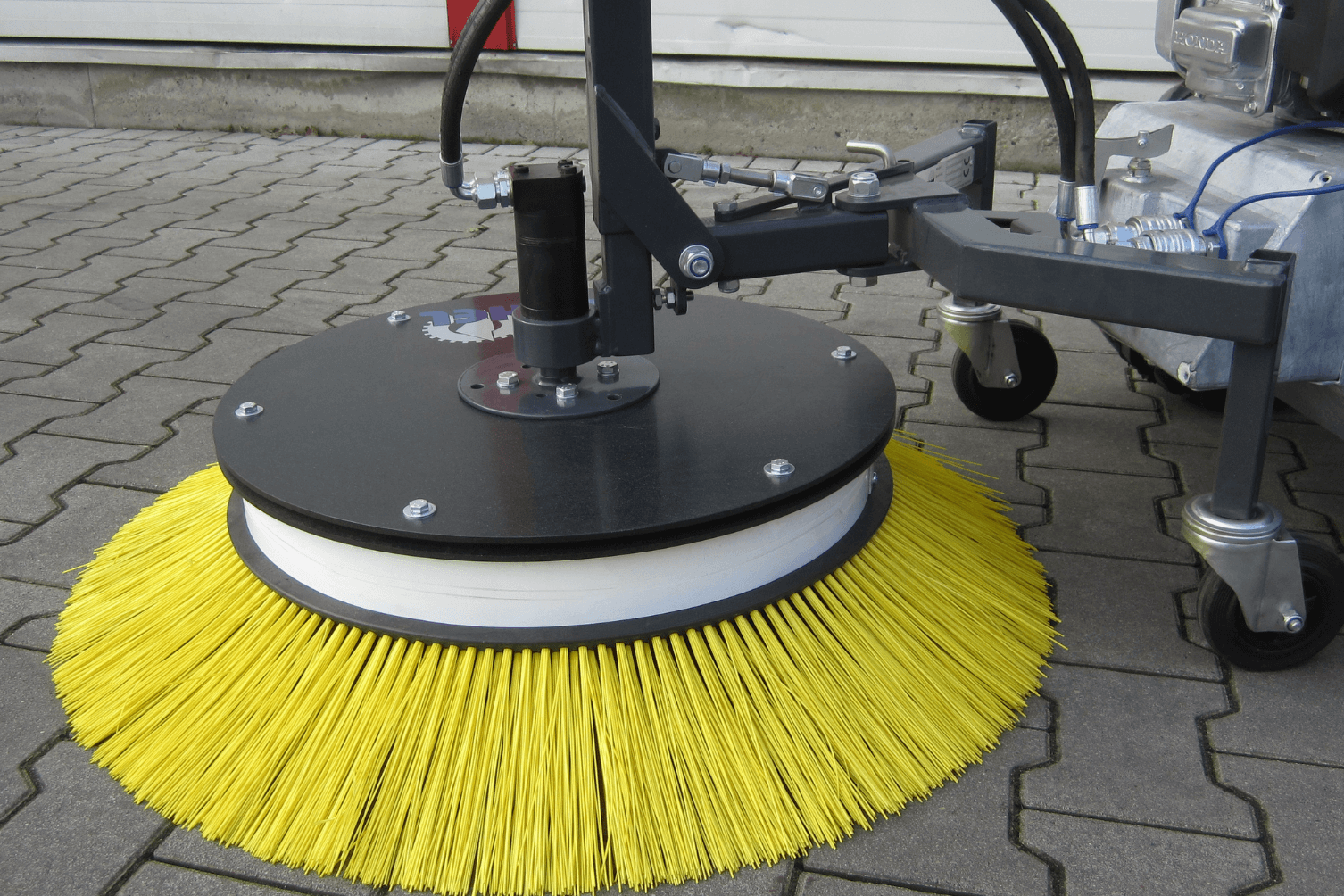

FARMCLEAN Sweeper

Pushing, Sweeping & Scraping!

Handy, Efficient & Powerful!

The FARMCLEAN is a self-propelled multi-functional tool and is ideal for the maintenance of your house and farm. A stable rod steering and big field tyres ensure great performance. The standard configuration of this hand operated machine includes hydraulic drive and hydraulic connections for various attachments, which can be tool-free mounted or dismounted. Optionally, an infinitely variable traction drive up to 3,7 km/h is also available.

FEATURES

  • • Honda GCV 160 5.5 HP/4 kW Petrol Engine
  • • Powerful Hydraulic Drive
  • • Zinc Coated

ATTACHMENTS

  • • Manure Scraper - Double edged galvanized frame. For moving liquids such as manure and mud (1 metre wide, 200 mm high)
  • • Fodder Blade - For moving feed. Powder coated frame (1.1 metre wide, 400 mm high)

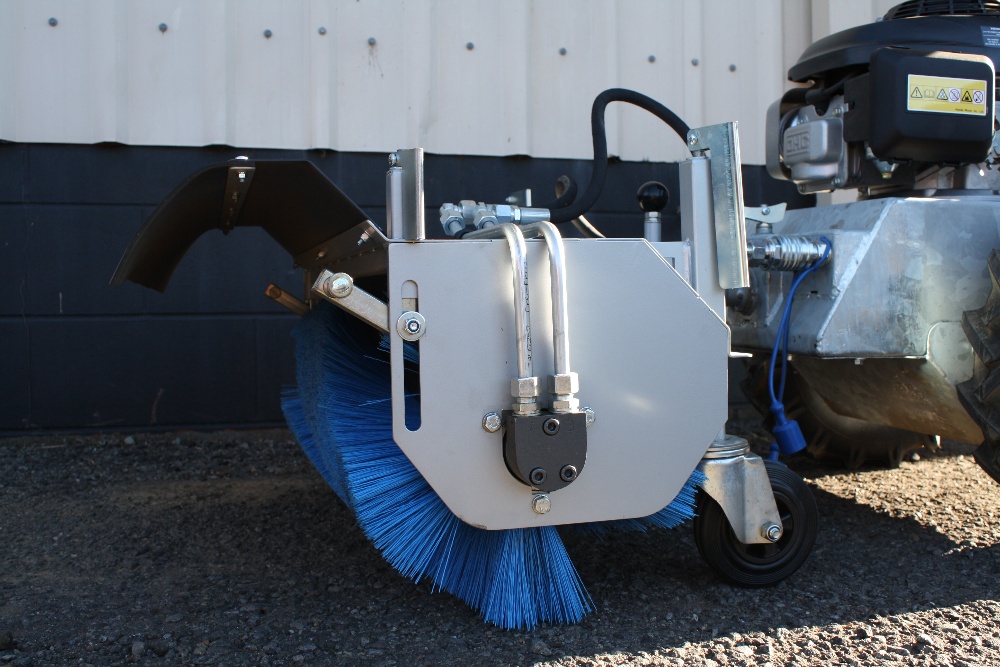

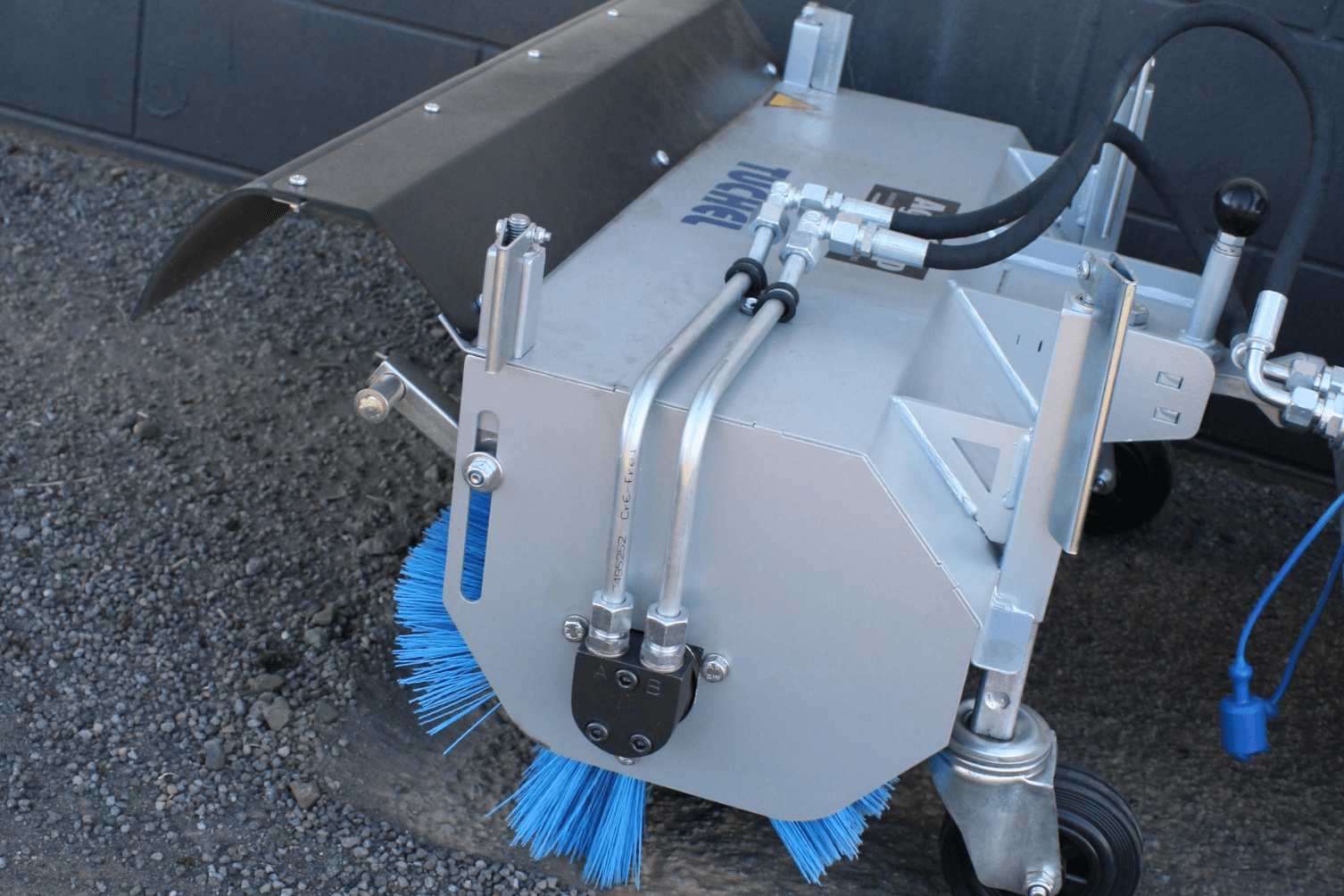

  • • Sweeper - Polypropylene brush (750 mm wide, 320 mm diameter broom), hydraulic drive
  • • Collection bin for sweeper

SPECIFICATIONS

TECHNICAL DATA
Engine Honda Gasoline Engine, 5,5 HP
Wheel Drive Hydraulic Forward/Backwards
Speed Regulation Steps          1 (incl. infinitely variable speed adjustment on inquiry)
Hydraulic Connections 1 x double acting

PHOTO GALLERY

(click photo to enlarge)





DOWNLOADS

FARMCLEAN Brochure (401 kb)           Operators/Parts Manual (kb)

Back to Top

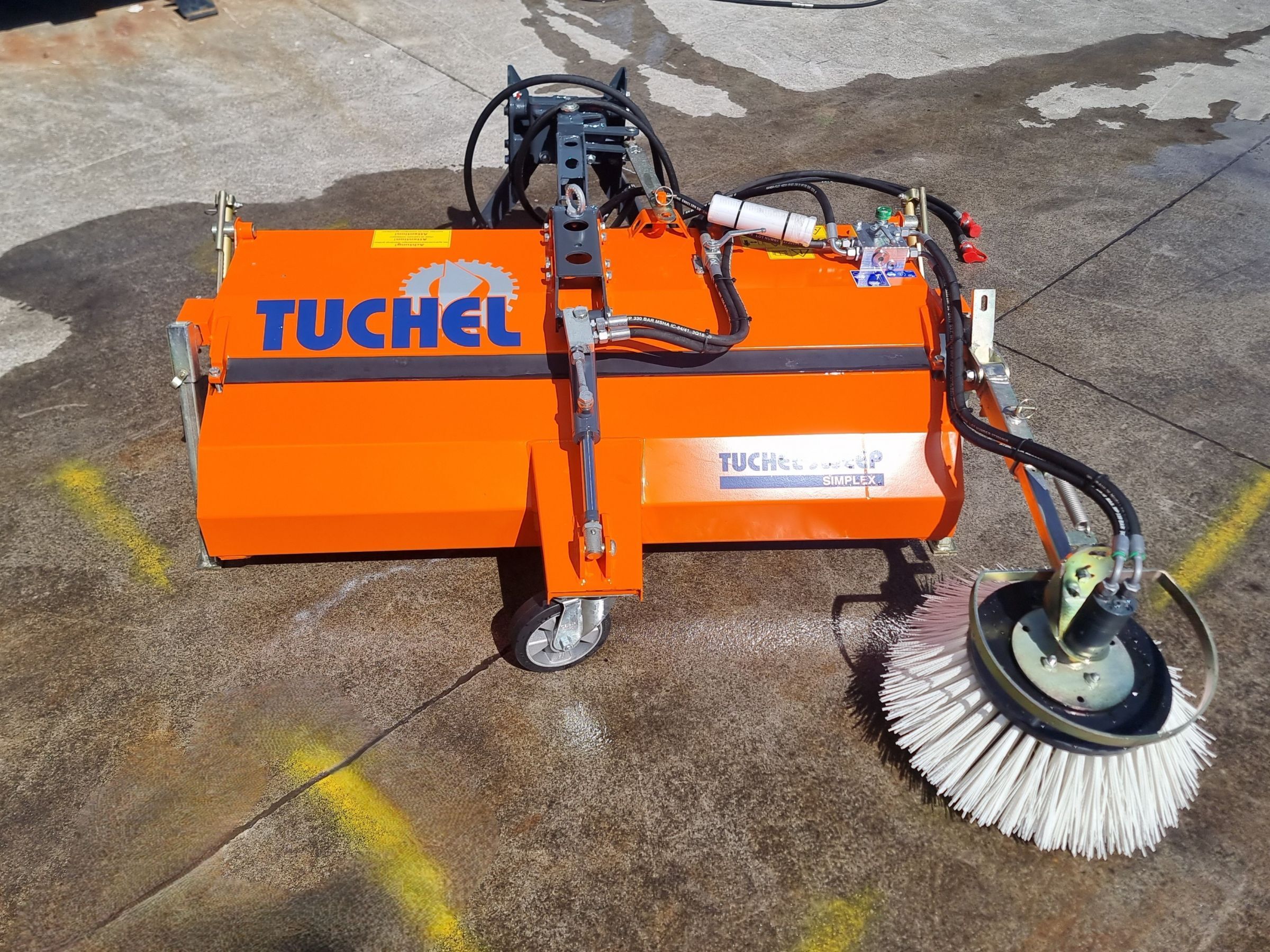

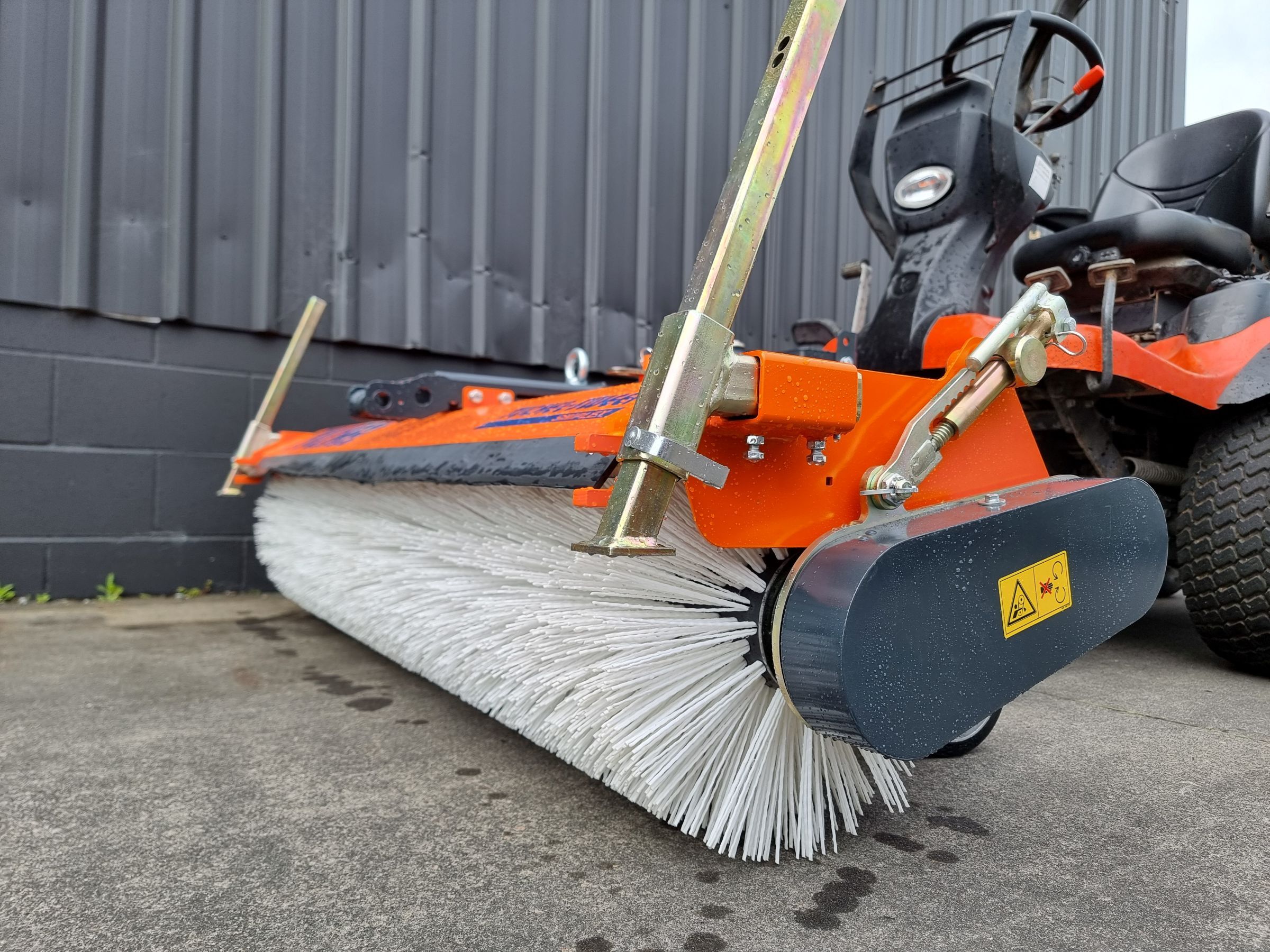

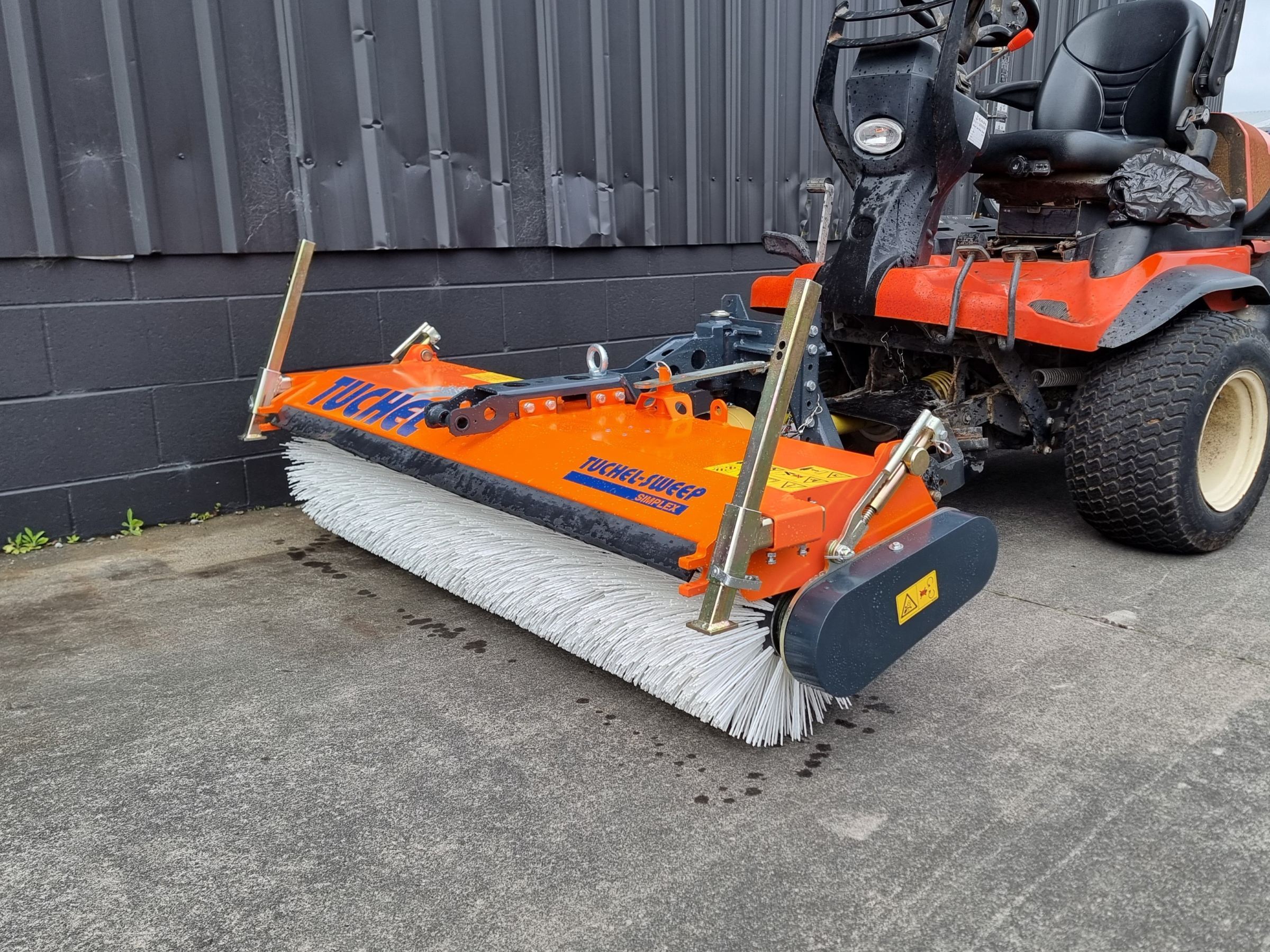

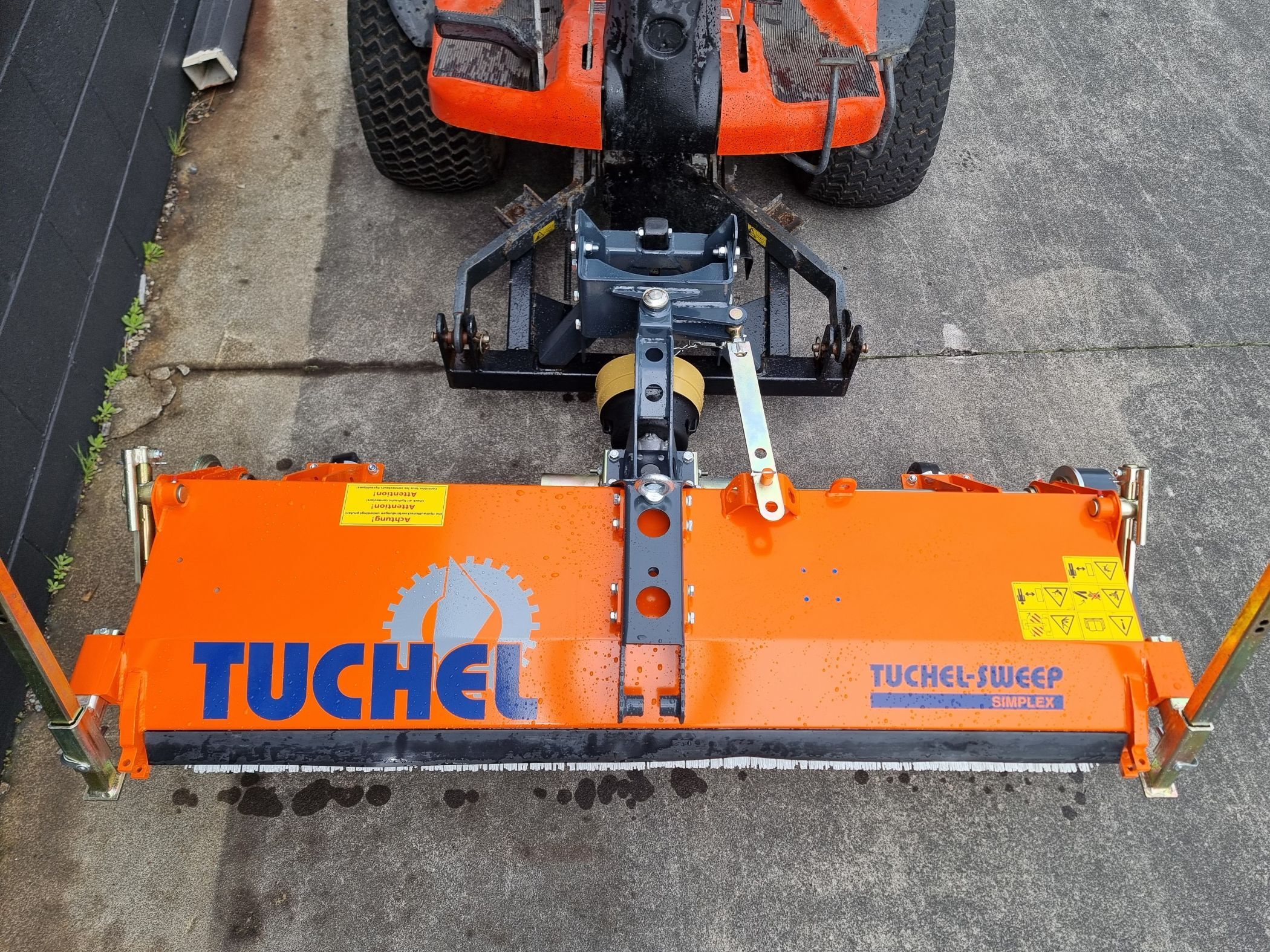

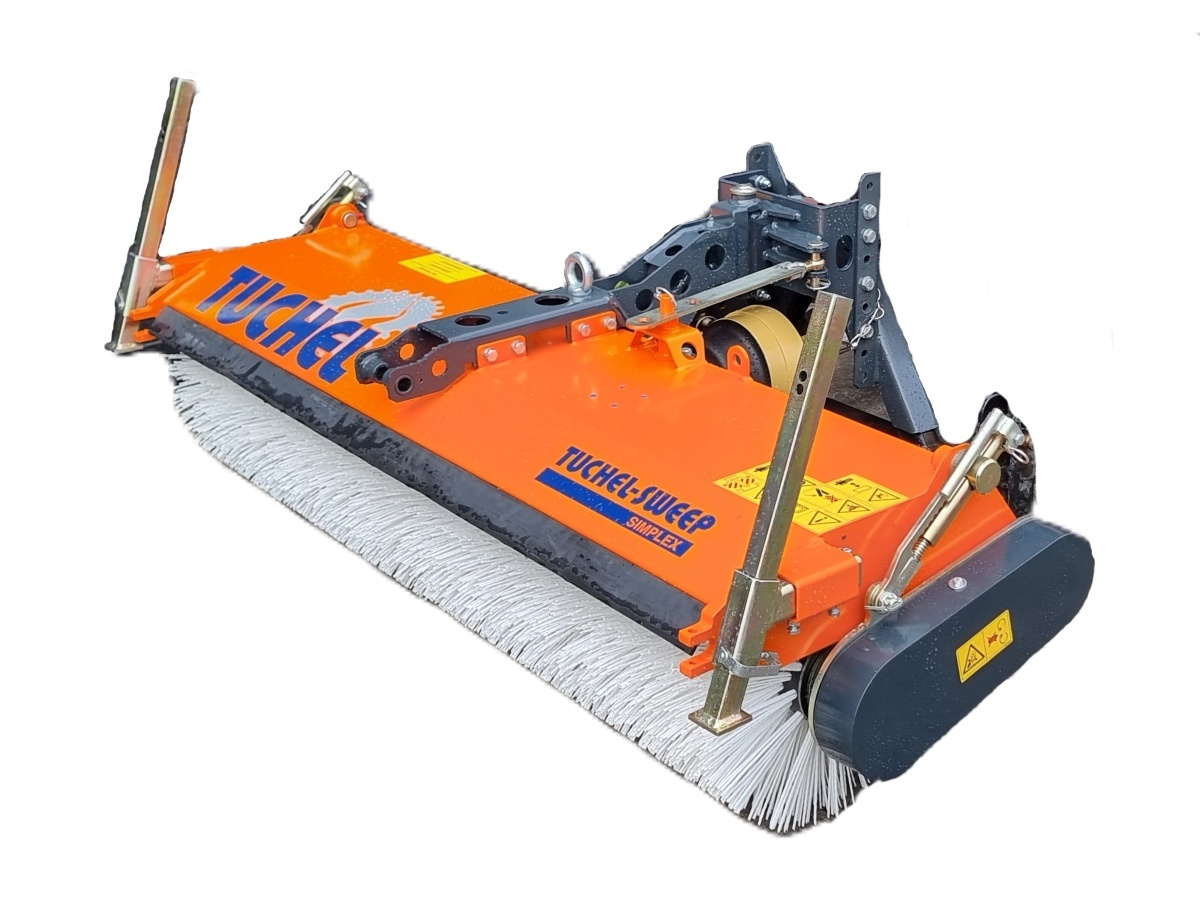

SIMPLEX Sweeper

For Small Tractors & Ride-On Mowers

The PTO-sweeper Simplex was developed especially for your small municipal tractor and front-mower. Its low weight permits the Simplex to be used for carrier-vehicles with low lifting-power. The 100% PP full bristle brush (diameter 400 mm) guarantees a long service life. The broom is adjusted via the support wheels.

Standard equipment includes level compensation, swivel control console and mechanical angling.

Basic equipment : Incl. A-Frame and PTO shaft.

ATTACHMENT SYSTEMS

  • • A-Frame

OPTIONAL ACCESSORIES

  • • Hydraulic drive on the main brush
  • • Collection bin, Mechanical tip, incl. vulkollan rubber wear lip
  • • Side brush, hydraulic, fully adjustable, for corner sweeping

SPECIFICATIONS

Technical Data
Working Width (straight/angled) (cm)               135/127
Brush Diameter (mm) 400
Overall Width (cm) 149
Weight (without collection bin)* 106
Weight (with collection bin)* 129
Collection Bin Volume (litres) 76
*Includes A-Frame | Measurements and weights and approx. and non binding

PHOTO GALLERY

(click photo to enlarge)




DOWNLOADS

SIMPLEX Brochure (1,939 kb)               Operators/Parts Manual (kb)

Back to Top
