Transport Trays

The farmer friendly attachment for those many jobs around the farm, for stock transport, feeding out or any multi-purpose carrier.

11 models to suit your tractor and your specific needs. Standard three point linkage mounting, or stay in your seat and go for the quick-hitch option. Recently added to the range are the two new dual hitch 7 x 4 trays.

All models available with optional stock pen.

FEATURES

  • • Fully galvanized
  • • Cat 1 & 2 linkage points
  • • Quick hitch mounting model
  • • Removable boards
  • • Tow hitch

SIZES

All models are fully hot dip galvanized

1200 mm x 750 mm       4' x 2'6"      3PtL            Cat 1
1500 mm x 900 mm 5' x 3' 3PtL Cat 1 + 2
1800 mm x 1200 mm 6 x 4'
3PtL Cat 1 + 2
1800 mm x 1200 mm            6' x 4'              Quick Hitch       Cat 2
2100 mm x 1200 mm 7' x 4' 3PtL Cat 1 + 2
2100 mm x 1200 mm 7' x 4' 3PtL + Euro Hitch          Cat 2
2100 mm x 1200 mm 7' x 4' Quick Hitch Cat 2
2100 mm x 1200 mm 7' x 4' Quick Hitch + Euro Hitch       Cat 2
2400 mm x 1350 mm 8' x 4'6 3PtL Cat 2
2400 mm x 1350 mm 8' x 4'6 Quick Hitch Cat 2
3000 mm x 1830 mm 10' x 6' 3PtL Cat 2

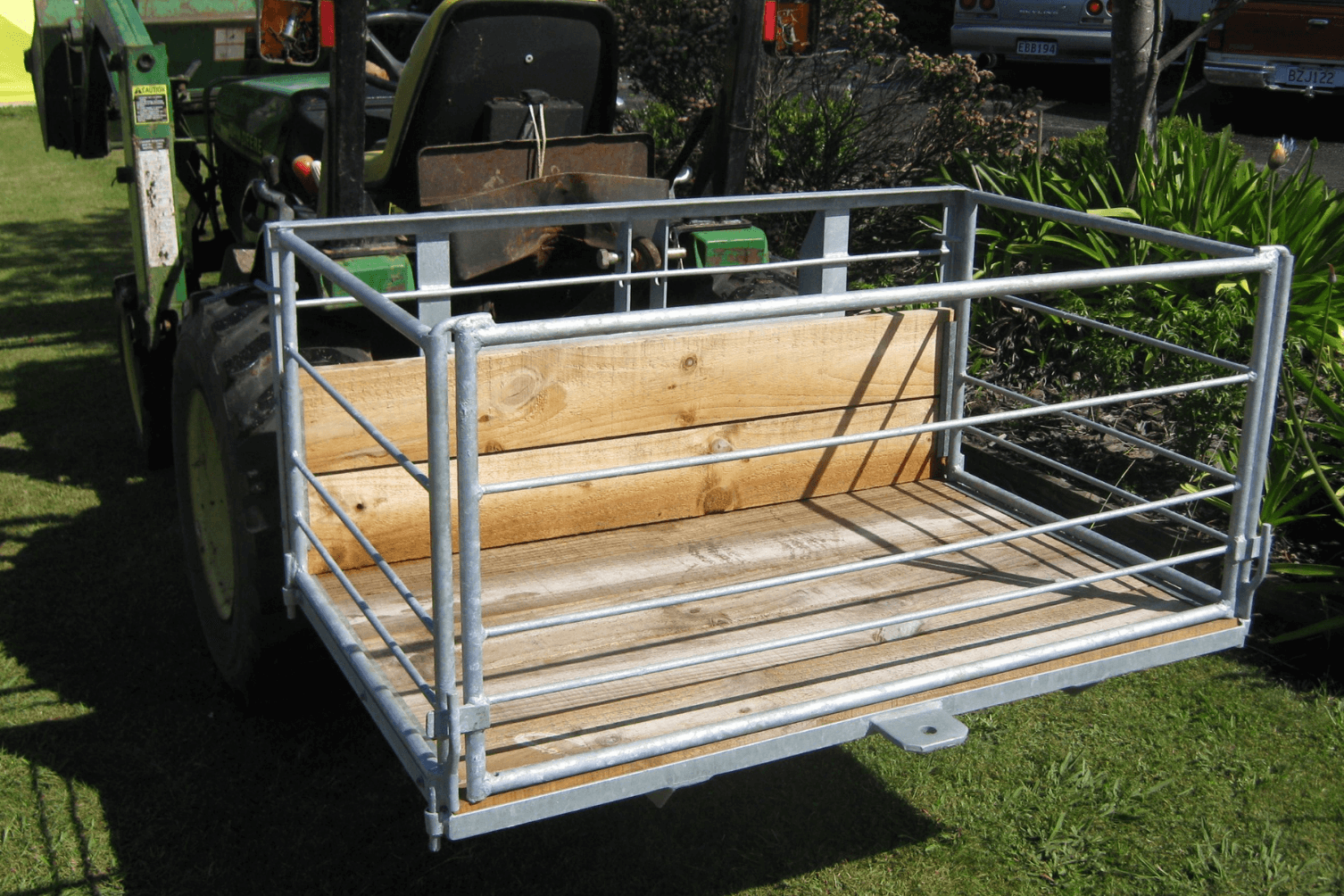

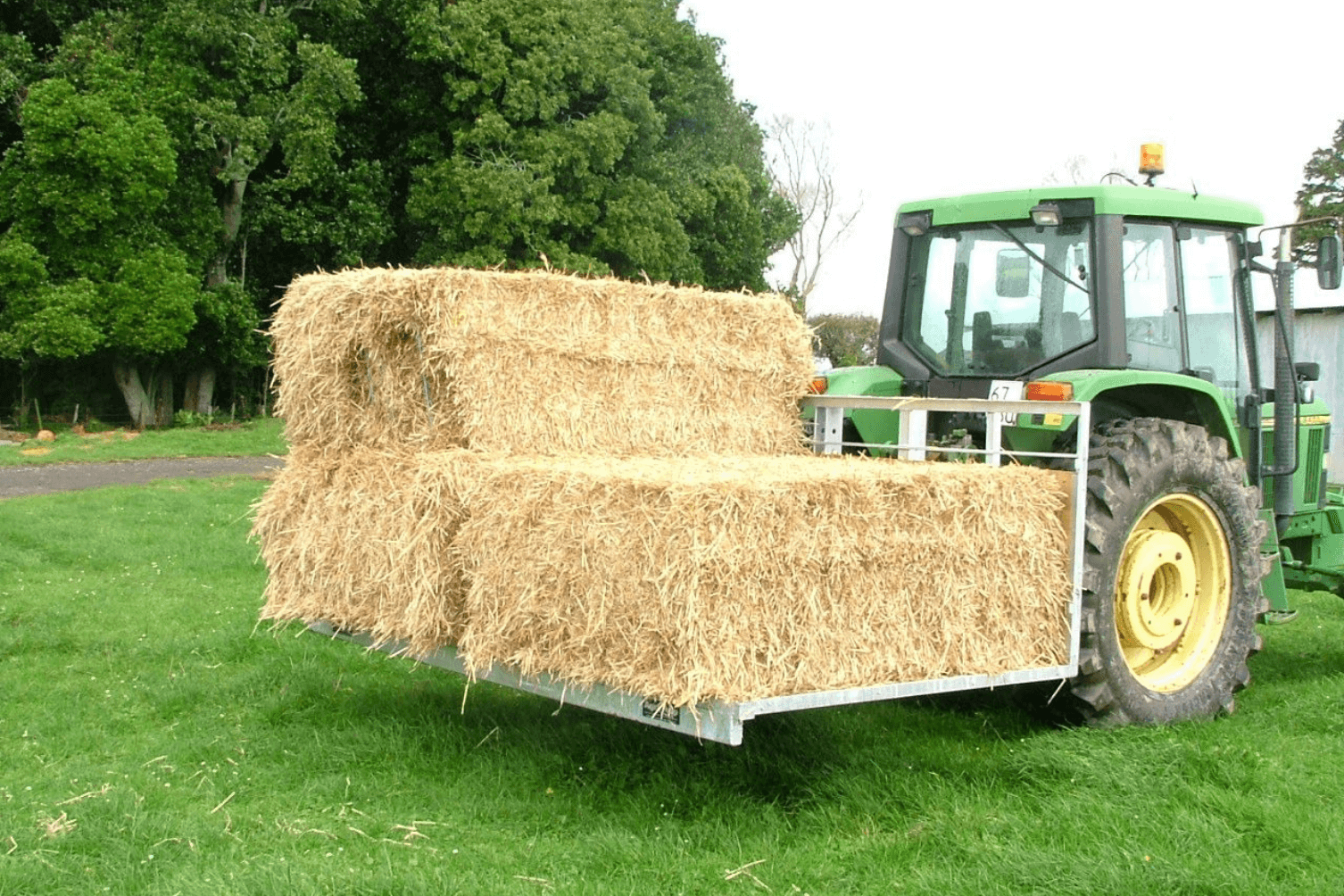

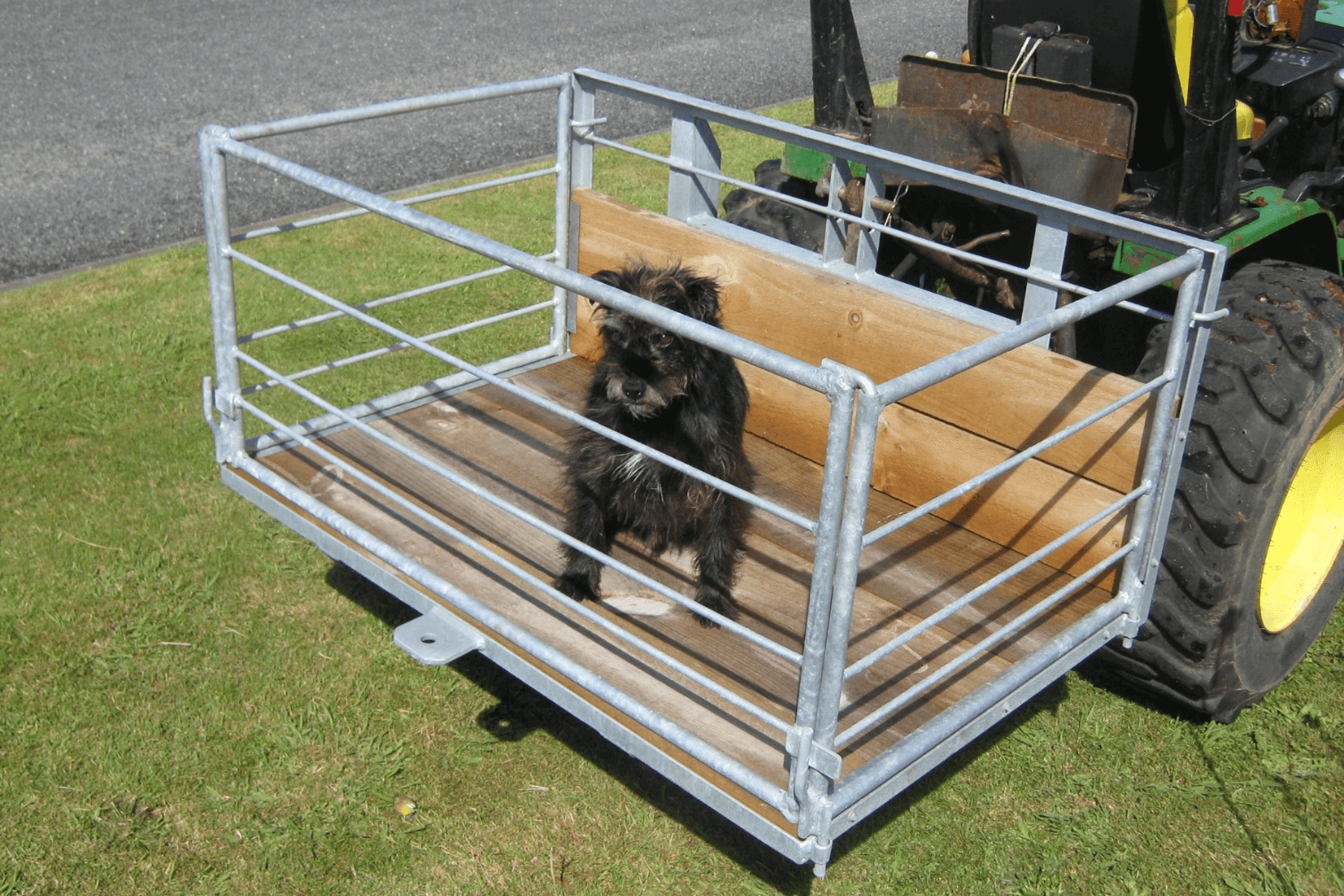

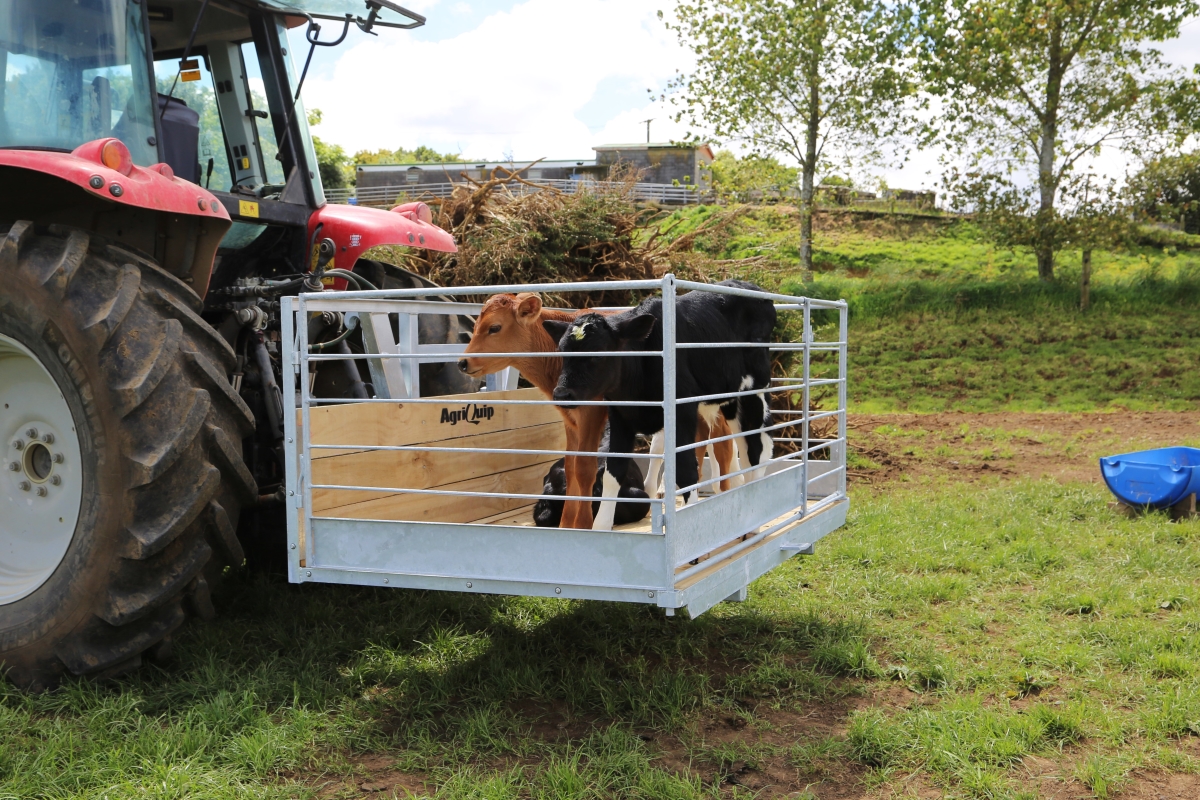

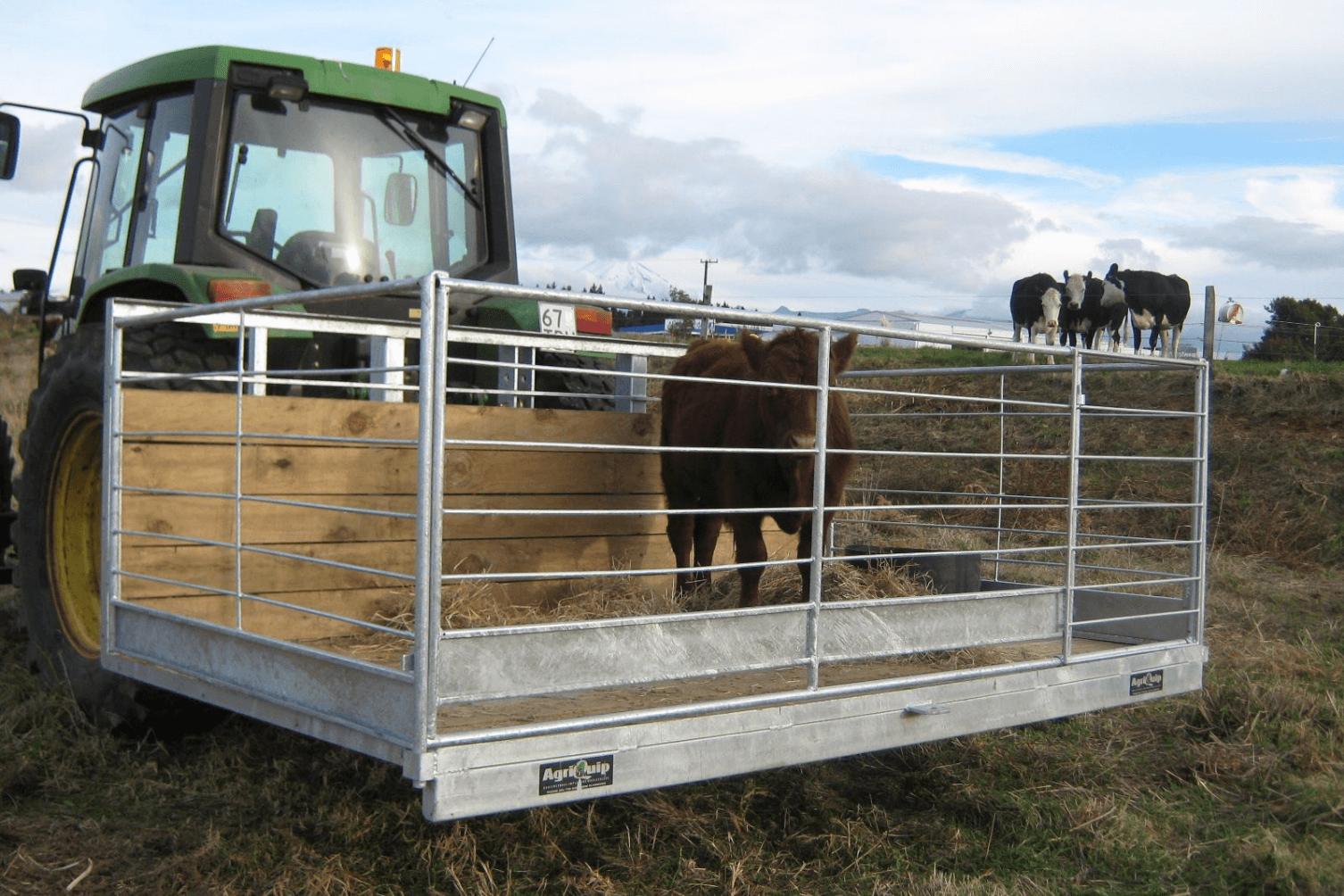

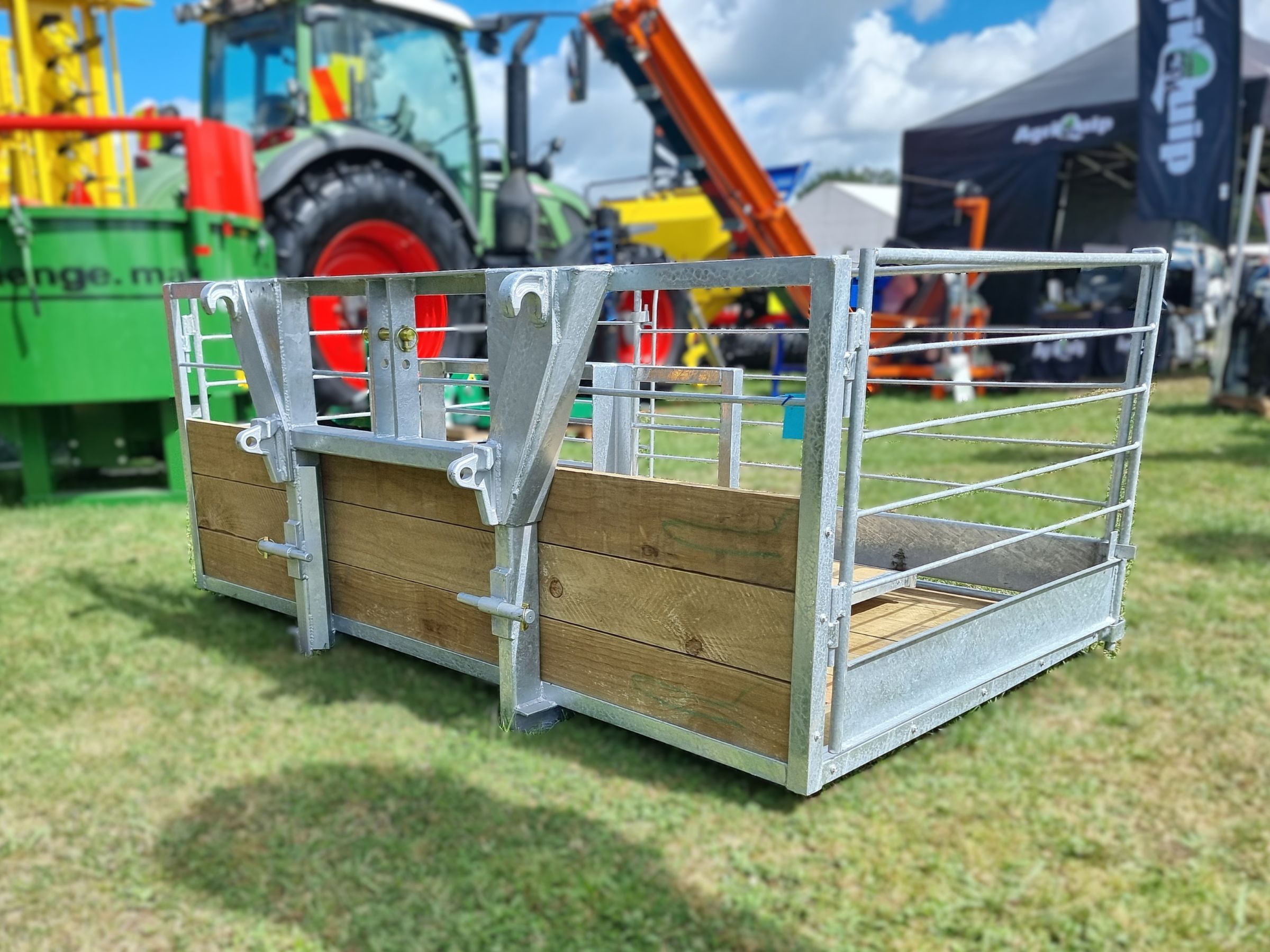

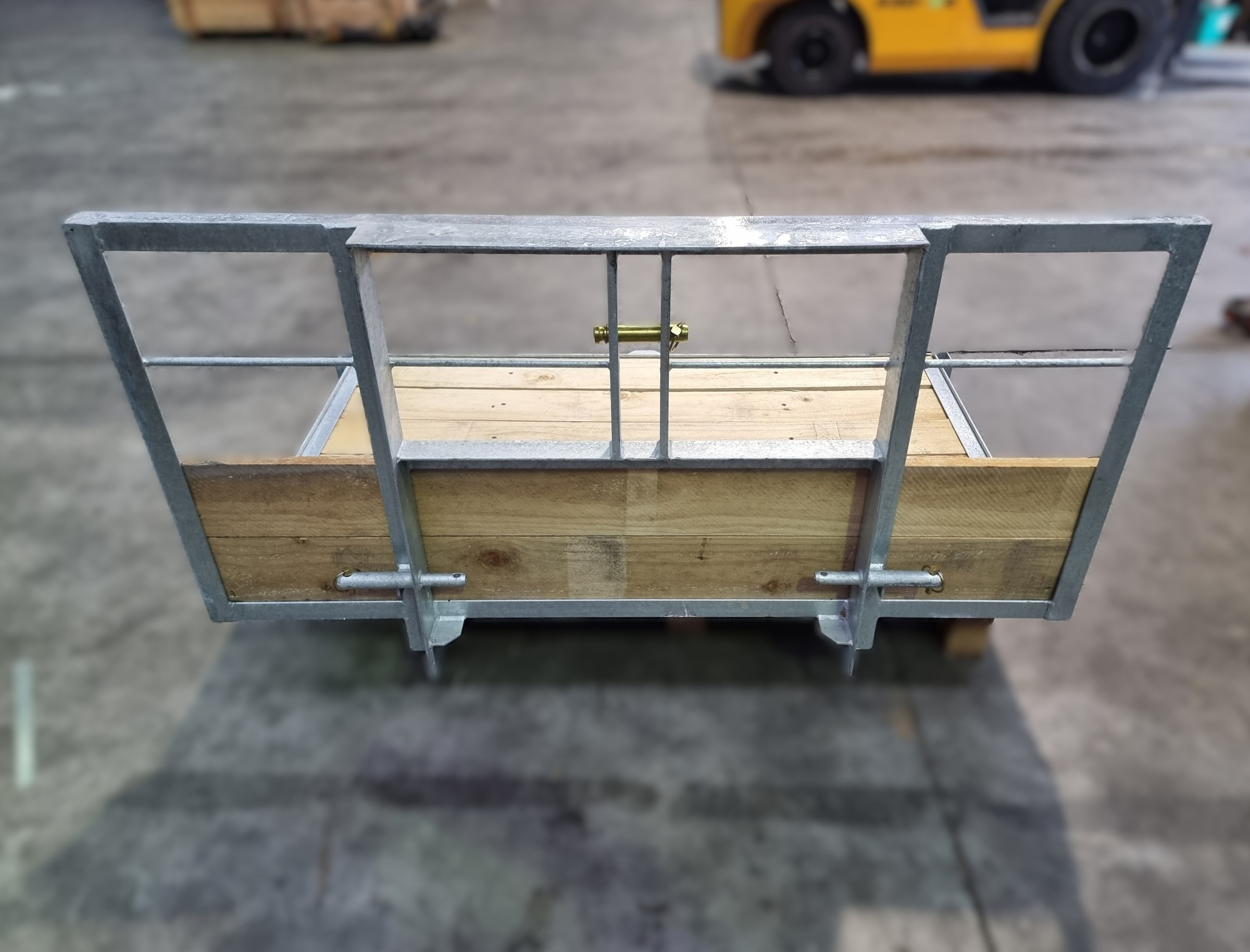

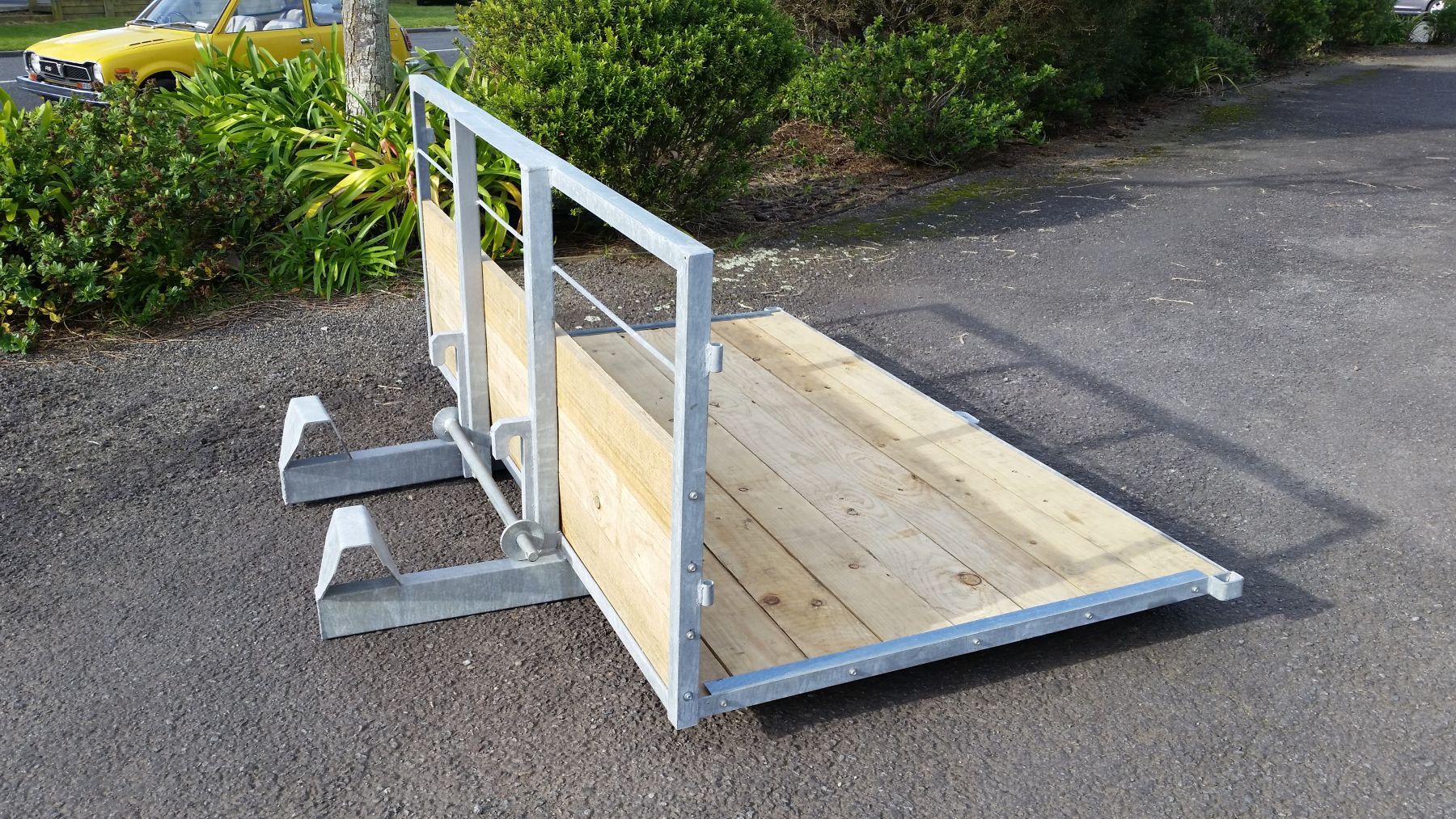

PHOTO GALLERY

(click photo to enlarge)





DOWNLOADS

Transport Tray Brochure (944 kb)
