BALFOR

Firewood Conveyors & Elevators

Move split firewood directly from your saw, splitter or processor into a trailer, bin or stockpile. Balfor NT conveyors reduce double handling and help keep the processing area clear so production can keep moving.

The current range spans 5.5 to 8.7 metres, with narrow and wide belt versions and tractor-hydraulic, electric and selected petrol-drive configurations.

Move More Firewood With Less Handling

Modular Replaceable Belt

The sectional PVC belt is made from replaceable modules. If one area is torn or damaged, replace only the affected sections rather than the complete belt.

5.5–8.7 Metre Lengths

Choose the reach and discharge height that suits trailers, bins, stockpiles and commercial processing setups.

Two Belt Widths

Approximately 260 mm or 360 mm usable belt width options to suit different firewood sizes and throughput requirements.

Multiple Drive Options

Choose tractor hydraulics, single-phase electric or three-phase electric, with petrol drive available on the 5.5 m and 6.5 m models.

Choose the Conveyor to Suit Your Setup

The Balfor NT range is available in four lengths, two belt widths and multiple drive options. Rather than treating each length as a completely different machine, choose the reach you need, then match the belt width and power source to your firewood operation.



BALFOR NT CONVEYOR RANGE

One Conveyor Range. Multiple Configurations.

Choose from 5.5 m, 6.5 m, 7.6 m or 8.7 m conveyor lengths depending on the reach and discharge height you need.

Then select either the approximately 260 mm or 360 mm usable belt width, and match the drive system to your setup with tractor hydraulics, single-phase electric, three-phase electric, or petrol on the 5.5 m and 6.5 m models.

This means you can configure the conveyor around how you actually work — whether you are loading trailers and bins or building large commercial firewood stockpiles.

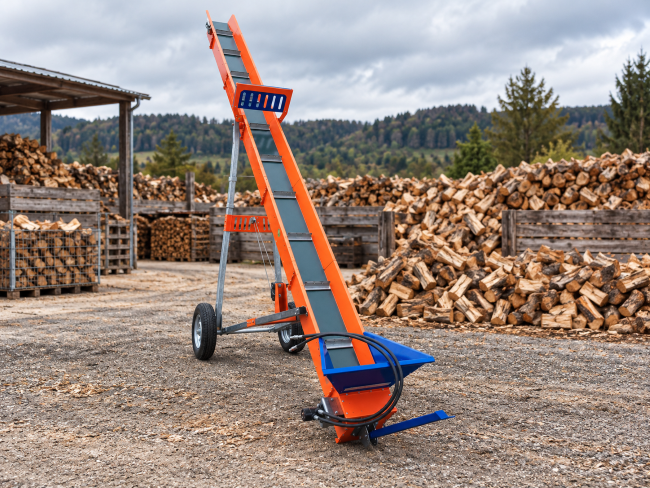

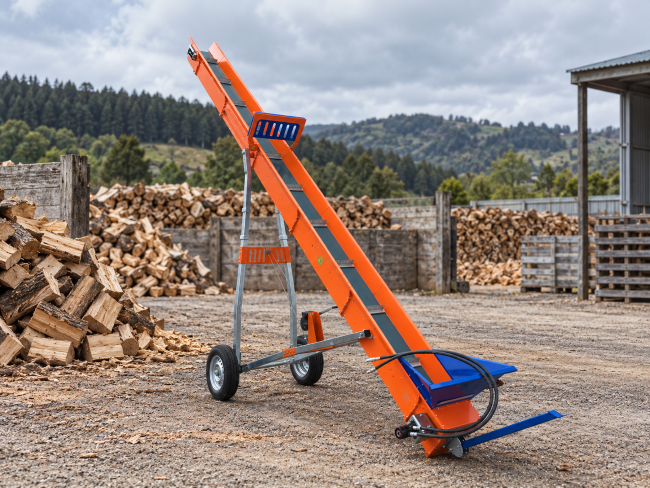

Hydraulic firewood elevator NZ 650px Balfor conveyor elevator firewood processing experts 650px
1/3
A MAJOR BALFOR ADVANTAGE

Modular Conveyor Belt — Repair Only What Is Damaged

Unlike a conventional one-piece conveyor belt, the Balfor NT uses a sectional modular PVC belt. If part of the belt is torn, ripped or damaged, you do not need to replace the entire belt.

Individual damaged sections can be replaced on their own, helping reduce repair cost, parts waste and downtime over the life of the conveyor.

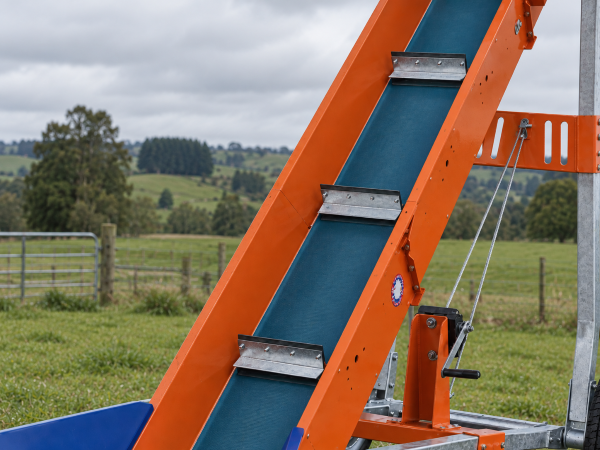

Close-up of modular replaceable belt on Balfor firewood conveyor

Balfor NT Conveyor Range at a Glance

Specification NT 5.5 NT 6.5 NT 7.6 NT 8.7
Conveyor Length 5.5 m 6.5 m 7.6 m 8.7 m
Working Height Approx. 2.9–4.0 m Approx. 3.4–4.5 m Approx. 3.8–4.9 m Approx. 4.0–5.3 m
Belt Width Options 260 or 360 mm 260 or 360 mm 260 or 360 mm 260 or 360 mm
Drive Options Tractor hydraulics / Single-phase electric / Three-phase electric / Petrol Tractor hydraulics / Single-phase electric / Three-phase electric / Petrol Tractor hydraulics / Single-phase electric / Three-phase electric Tractor hydraulics / Single-phase electric / Three-phase electric
Best Suited To Trailers, bins and compact setups General and commercial firewood production Larger stockpiles and processors High-volume commercial yards

NT 5.5

Conveyor Length
5.5 m
Working Height
Approx. 2.9–4.0 m
Belt Width Options
260 or 360 mm
Drive Options
Tractor hydraulics / Single-phase electric / Three-phase electric / Petrol
Best Suited To
Trailers, bins and compact setups

NT 6.5

Conveyor Length
6.5 m
Working Height
Approx. 3.4–4.5 m
Belt Width Options
260 or 360 mm
Drive Options
Tractor hydraulics / Single-phase electric / Three-phase electric / Petrol
Best Suited To
General and commercial firewood production

NT 7.6

Conveyor Length
7.6 m
Working Height
Approx. 3.8–4.9 m
Belt Width Options
260 or 360 mm
Drive Options
Tractor hydraulics / Single-phase electric / Three-phase electric
Best Suited To
Larger stockpiles and processors

NT 8.7

Conveyor Length
8.7 m
Working Height
Approx. 4.0–5.3 m
Belt Width Options
260 or 360 mm
Drive Options
Tractor hydraulics / Single-phase electric / Three-phase electric
Best Suited To
High-volume commercial yards
NT 5.5 NT 6.5 NT 7.6 NT 8.7
Conveyor Length
NT 5.5 5.5 m
NT 6.5 6.5 m
NT 7.6 7.6 m
NT 8.7 8.7 m
Working Height
NT 5.5 Approx. 2.9–4.0 m
NT 6.5 Approx. 3.4–4.5 m
NT 7.6 Approx. 3.8–4.9 m
NT 8.7 Approx. 4.0–5.3 m
Belt Width Options
NT 5.5 260 or 360 mm
NT 6.5 260 or 360 mm
NT 7.6 260 or 360 mm
NT 8.7 260 or 360 mm
Drive Options
NT 5.5 Tractor hydraulics / Single-phase electric / Three-phase electric / Petrol
NT 6.5 Tractor hydraulics / Single-phase electric / Three-phase electric / Petrol
NT 7.6 Tractor hydraulics / Single-phase electric / Three-phase electric
NT 8.7 Tractor hydraulics / Single-phase electric / Three-phase electric
Best Suited To
NT 5.5 Trailers, bins and compact setups
NT 6.5 General and commercial firewood production
NT 7.6 Larger stockpiles and processors
NT 8.7 High-volume commercial yards
Measures and weights are approx. and non-binding.

Ideal with Log Saws & Log Splitters

Balfor conveyors are particularly useful behind saw benches and log splitters, where they move finished firewood directly into trailers, bins or stockpiles and reduce repeated manual handling.
