50.4
- Pulling Capacity
- 4 tonne
- Cable
- 70 m × 10 mm
- Cable Speed
- 0.80 m/s
- Minimum Tractor Power
- 25 hp
- Weight
- 245 kg
BALFOR
Forestry Winches
Get timber out of steep, wet or restricted country without taking the tractor right to the log. Balfor Legionar 3-point linkage forestry winches provide controlled timber extraction for farmers, forestry operators and contractors.
The current range covers 4 to 9 tonne pulling capacity, with mechanical, reduced-speed and electrohydraulic models to suit everything from farm firewood recovery through to regular professional forestry work.
Request a call back
Why Use a Forestry Winch?
Choose from 4, 5, 6, 7 and 9 tonne pulling capacities to match your tractor, timber size and terrain.
Model-dependent cable lengths from approximately 70 to 105 metres let you reach timber without taking the tractor right to the log.
Simple mechanical models suit farm and occasional forestry work, while H-series electrohydraulic machines are built for regular professional use.
Legionar winches mount to the tractor's 3-point linkage, keeping the setup compact, transportable and easy to move between jobs.
Selected electrohydraulic models can be equipped with professional wireless remote control for safer and more efficient timber extraction.
Choose the Right Balfor Legionar Winch
Rather than choosing by model number alone, start with the pulling capacity you need, then consider tractor size, terrain, cable speed and whether you want mechanical or electrohydraulic control.
BALFOR LEGIONAR RANGE
One Winch Range. Different Levels of Capacity & Control.
The Legionar range covers 4 to 9 tonne pulling capacity, with cable lengths from approximately 70 to 105 metres and tractor requirements starting from around 25 hp.
Mechanical models suit straightforward farm and firewood work, while reduced-speed and electrohydraulic models give more control for heavier timber, steeper country and regular forestry use.
Tell us your tractor model, typical timber size and terrain and we can help narrow down the most suitable winch.
CHOOSING THE RIGHT WINCH
Match the Winch to the Work
4–5 tonne: a good starting point for farm forestry, firewood recovery and lighter extraction work.
6 tonne: more pulling capacity for heavier timber, steeper terrain and more regular use.
7–9 tonne electrohydraulic: aimed at higher-volume and professional forestry work where remote control and easier operation become more valuable.
Important: tractor weight and stability matter just as much as horsepower. We can help match the winch to your tractor and terrain.
Legionar Forestry Winch Specifications
Mechanical & Reduced-Speed Models
Mechanical Legionar models cover straightforward farm forestry through to heavier 6-tonne extraction work. R models use a slower cable speed for more progressive load movement.
| Specification | 50.4 | 60.5 | 60.5 R | 70.6 | 70.6 R |
|---|---|---|---|---|---|
| Pulling Capacity | 4 tonne | 5 tonne | 5 tonne | 6 tonne | 6 tonne |
| Cable | 70 m × 10 mm | 90 m × 10 mm | 90 m × 10 mm | 90 m × 11 mm | 90 m × 11 mm |
| Cable Speed | 0.80 m/s | 0.90 m/s | 0.60 m/s | 0.90 m/s | 0.60 m/s |
| Minimum Tractor Power | 25 hp | 35 hp | 35 hp | 50 hp | 50 hp |
| Weight | 245 kg | 300 kg | 316 kg | 340 kg | 356 kg |
60.5
- Pulling Capacity
- 5 tonne
- Cable
- 90 m × 10 mm
- Cable Speed
- 0.90 m/s
- Minimum Tractor Power
- 35 hp
- Weight
- 300 kg
60.5 R
- Pulling Capacity
- 5 tonne
- Cable
- 90 m × 10 mm
- Cable Speed
- 0.60 m/s
- Minimum Tractor Power
- 35 hp
- Weight
- 316 kg
70.6
- Pulling Capacity
- 6 tonne
- Cable
- 90 m × 11 mm
- Cable Speed
- 0.90 m/s
- Minimum Tractor Power
- 50 hp
- Weight
- 340 kg
70.6 R
- Pulling Capacity
- 6 tonne
- Cable
- 90 m × 11 mm
- Cable Speed
- 0.60 m/s
- Minimum Tractor Power
- 50 hp
- Weight
- 356 kg
Electrohydraulic H Series
H-series winches are designed for more regular and professional forestry work, with electrohydraulic control and remote-control capability on selected configurations.
| Specification | 70.6 H | 80.7 H | 110.9 H |
|---|---|---|---|
| Pulling Capacity | 6 tonne | 7 tonne | 9 tonne |
| Cable | 90 m × 10 mm | 100 m × 11 mm | 105 m × 12 mm |
| Cable Speed | 0.90 m/s | 0.60 m/s | 0.60 m/s |
| Minimum Tractor Power | 50 hp | 60 hp | 75 hp |
| Weight | 345 kg | 520 kg | 562 kg |
70.6 H
- Pulling Capacity
- 6 tonne
- Cable
- 90 m × 10 mm
- Cable Speed
- 0.90 m/s
- Minimum Tractor Power
- 50 hp
- Weight
- 345 kg
80.7 H
- Pulling Capacity
- 7 tonne
- Cable
- 100 m × 11 mm
- Cable Speed
- 0.60 m/s
- Minimum Tractor Power
- 60 hp
- Weight
- 520 kg
110.9 H
- Pulling Capacity
- 9 tonne
- Cable
- 105 m × 12 mm
- Cable Speed
- 0.60 m/s
- Minimum Tractor Power
- 75 hp
- Weight
- 562 kg
Legionar 50.4
Legionar 60.5
Legionar 60.5 R
Legionar 70.6
Legionar 70.6 R
Legionar 70.6 H
Legionar 80.7 H
Legionar 110.9 H
Pulling Capacity
Legionar 50.4
4 tonne
Legionar 60.5
5 tonne
Legionar 60.5 R
5 tonne
Legionar 70.6
6 tonne
Legionar 70.6 R
6 tonne
Legionar 70.6 H
6 tonne
Legionar 80.7 H
7 tonne
Legionar 110.9 H
9 tonne
Cable
Legionar 50.4
70 m × 10 mm
Legionar 60.5
90 m × 10 mm
Legionar 60.5 R
90 m × 10 mm
Legionar 70.6
90 m × 11 mm
Legionar 70.6 R
90 m × 11 mm
Legionar 70.6 H
90 m × 10 mm
Legionar 80.7 H
100 m × 11 mm
Legionar 110.9 H
105 m × 12 mm
Cable Speed
Legionar 50.4
0.80 m/s
Legionar 60.5
0.90 m/s
Legionar 60.5 R
0.60 m/s
Legionar 70.6
0.90 m/s
Legionar 70.6 R
0.60 m/s
Legionar 70.6 H
0.90 m/s
Legionar 80.7 H
0.60 m/s
Legionar 110.9 H
0.60 m/s
Minimum Tractor Power
Legionar 50.4
25 hp
Legionar 60.5
35 hp
Legionar 60.5 R
35 hp
Legionar 70.6
50 hp
Legionar 70.6 R
50 hp
Legionar 70.6 H
50 hp
Legionar 80.7 H
60 hp
Legionar 110.9 H
75 hp
Weight
Legionar 50.4
245 kg
Legionar 60.5
300 kg
Legionar 60.5 R
316 kg
Legionar 70.6
340 kg
Legionar 70.6 R
356 kg
Legionar 70.6 H
345 kg
Legionar 80.7 H
520 kg
Legionar 110.9 H
562 kg
Measures and weights are approx. and non-binding.

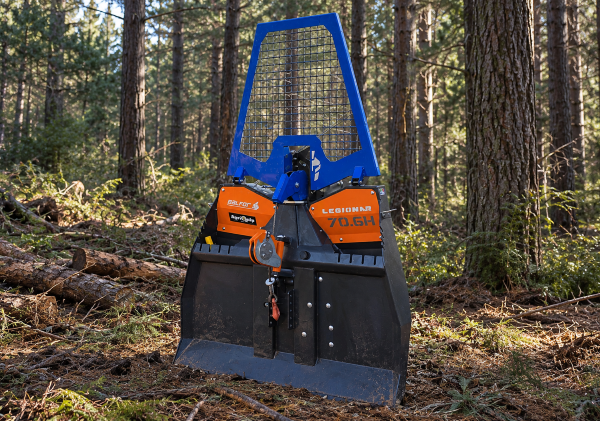

Built for Timber Extraction
Balfor Legionar winches use a wide rear blade, long steel cable and purpose-built forestry layout to bring logs back to accessible ground while keeping the tractor in a more practical working position.
Need help choosing? Send us your tractor model, timber size and an indication of the terrain and we can recommend a suitable setup.
