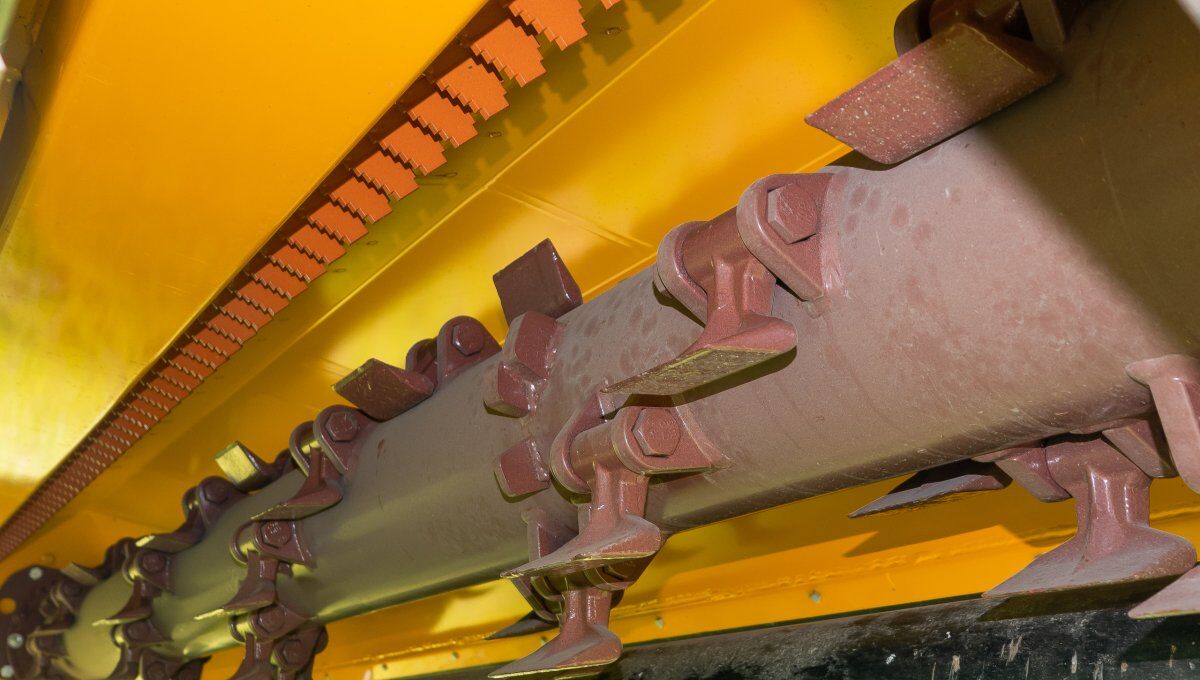

Cut down heavy grass, thick vegetation, and brush with ease thanks to our range of flail mowers. Unlike traditional rotary mowers that use a spinning blade, a flail mower uses a series of small, individual blades (called flails) that are attached to a rotating drum. Cutting vegetation on impact enables users to manage and maintain large areas of land and diverse vegetation types with the same attachment.

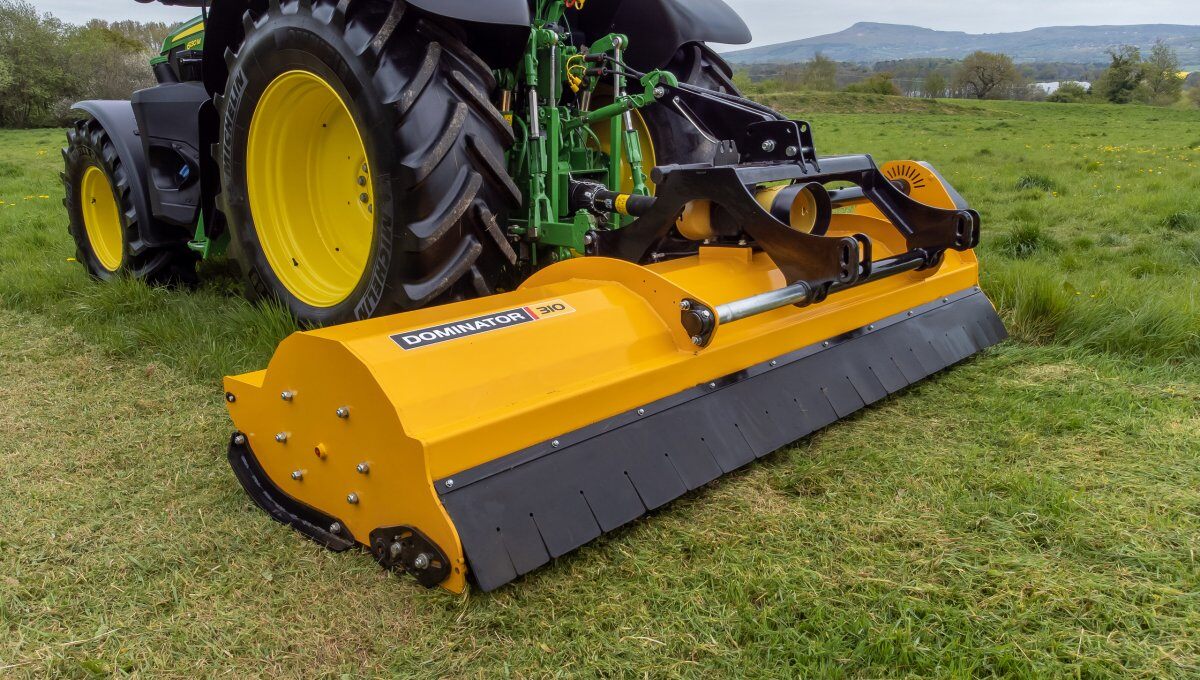

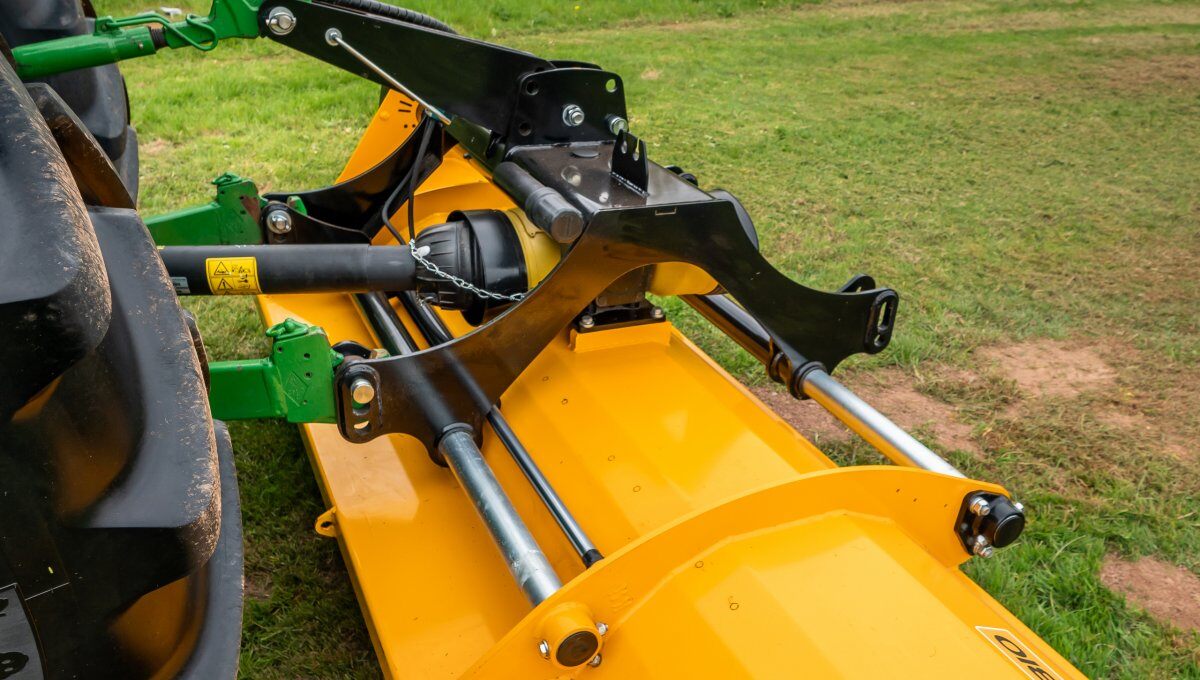

McConnel’s professional combi (front and rear) heavy-duty multipurpose flail mower, ideal for mulching large quantities of crop residues at high working speed and in all working conditions. Suitable for mulching material up to 6 cm in diameter on agricultural, communal or abandoned areas.
Magnum Euro Open 230Magnum Euro Open 250Magnum Euro Open 280
Working Width
Magnum Euro Open 2302.50m
Magnum Euro Open 2502.80m
Magnum Euro Open 2803.10m
HP requirement
Magnum Euro Open 23065
Magnum Euro Open 25075
Magnum Euro Open 28090
Weight
Magnum Euro Open 230971kg
Magnum Euro Open 2501,023kg
Magnum Euro Open 2801,093kg
Attachment
Magnum Euro Open 2303-point linkage
Magnum Euro Open 2503-point linkage
Magnum Euro Open 2803-point linkage
Cutting height
Magnum Euro Open 23025mm - 100mm
Magnum Euro Open 25025mm - 100mm
Magnum Euro Open 28025mm - 100mm
PTO speed
Magnum Euro Open 2301000rpm
Magnum Euro Open 2501000rpm
Magnum Euro Open 2801000rpm
Protection
Magnum Euro Open 230Overrun clutch
Magnum Euro Open 250Overrun clutch
Magnum Euro Open 280Overrun clutch
Number of flails
Magnum Euro Open 23028
Magnum Euro Open 25032
Magnum Euro Open 28036
Innovative Z-link mower

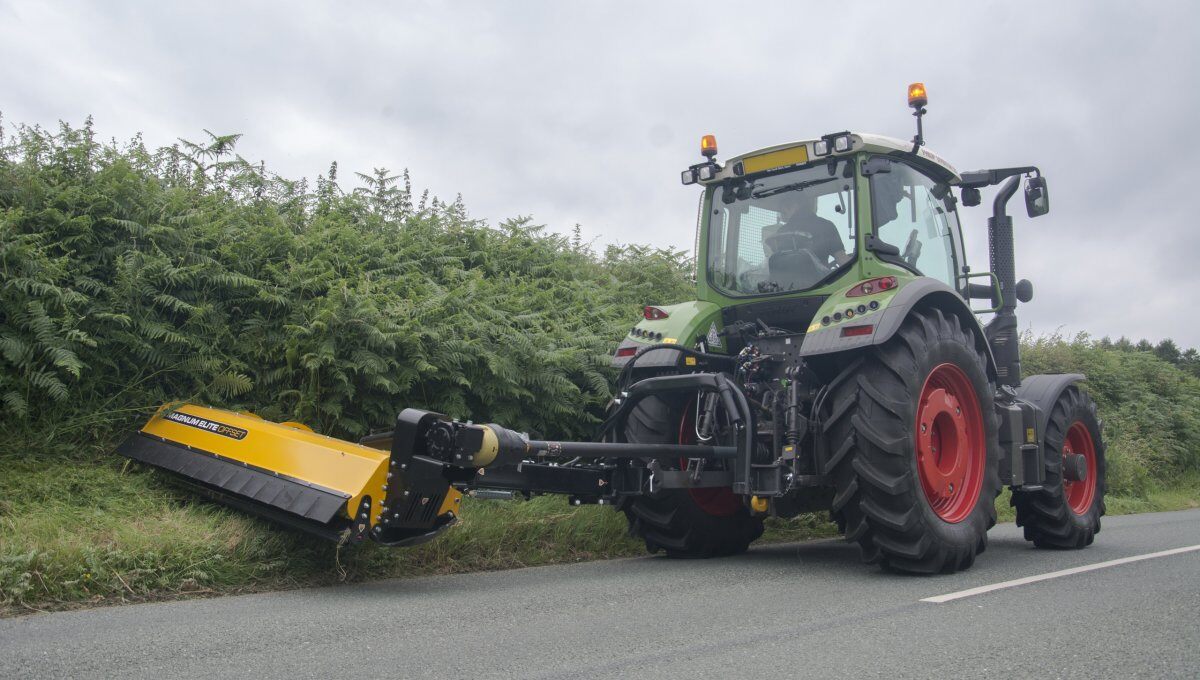

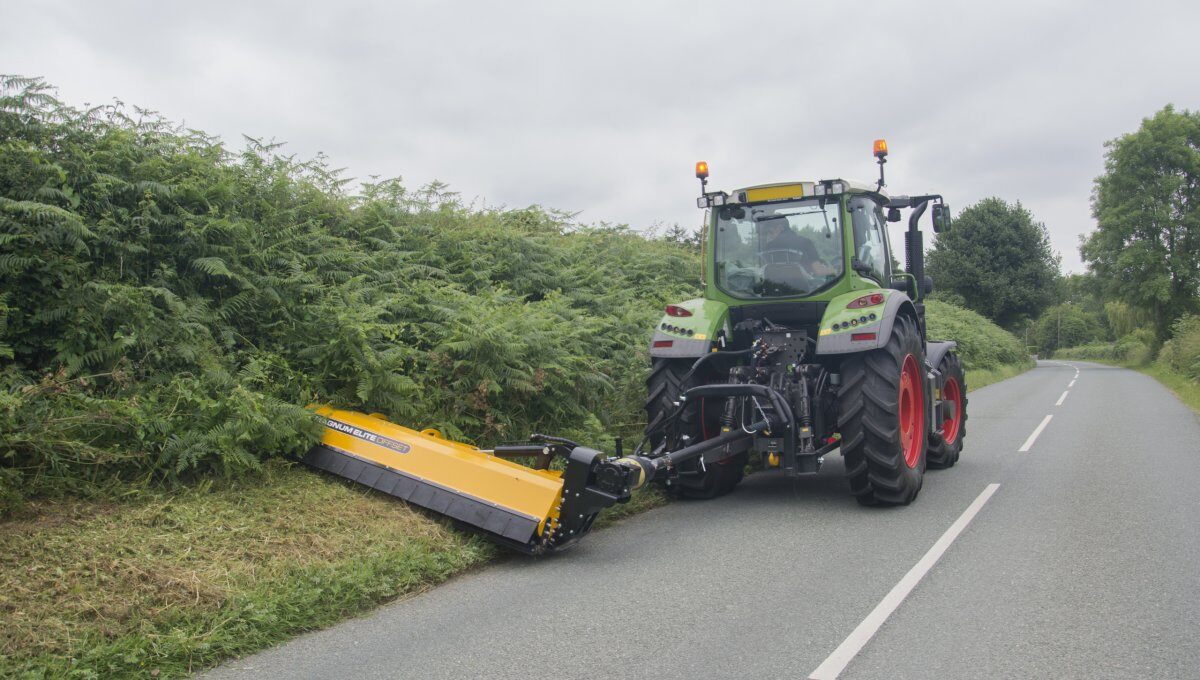

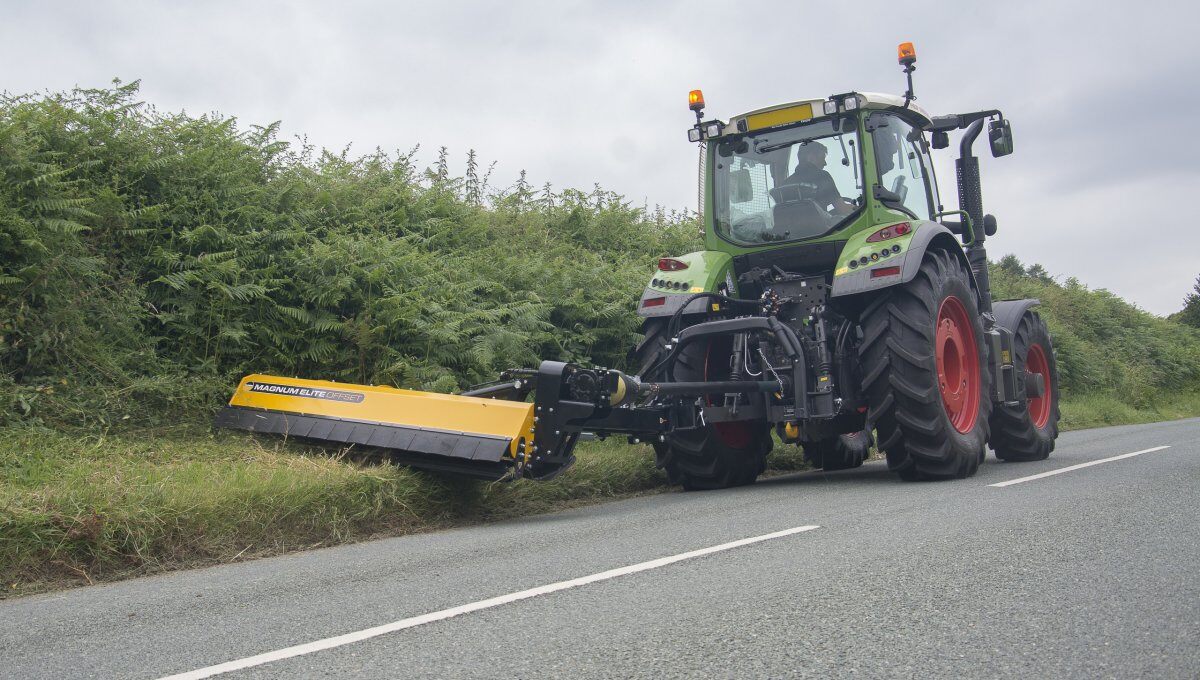

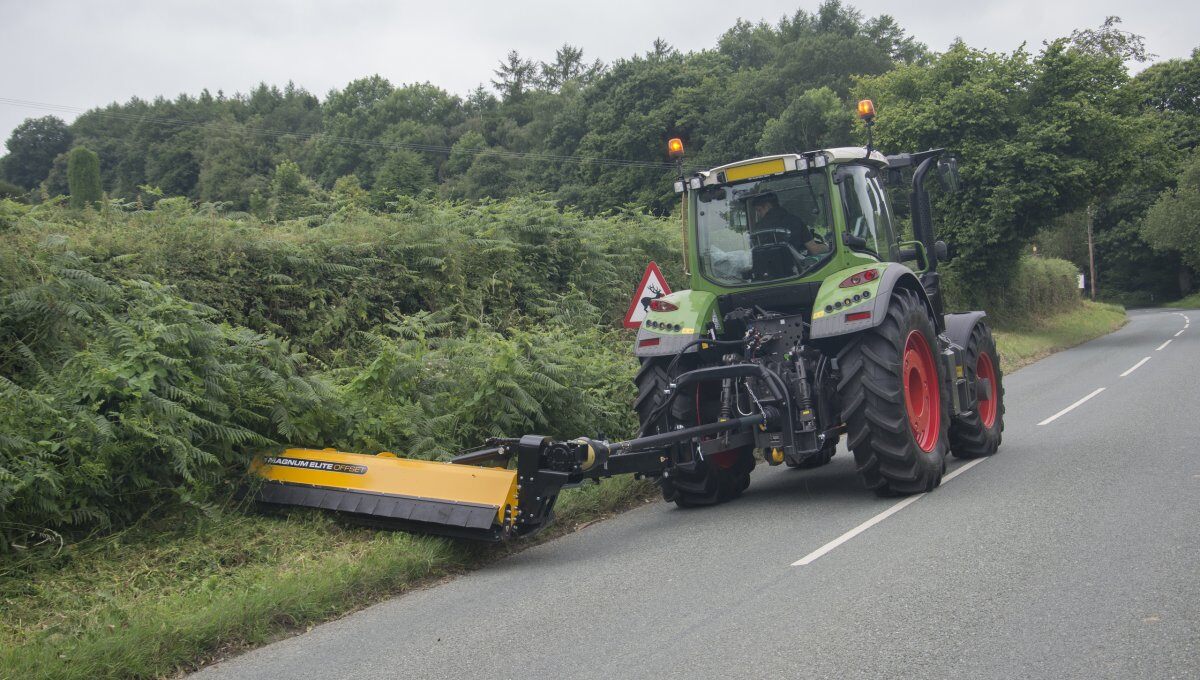

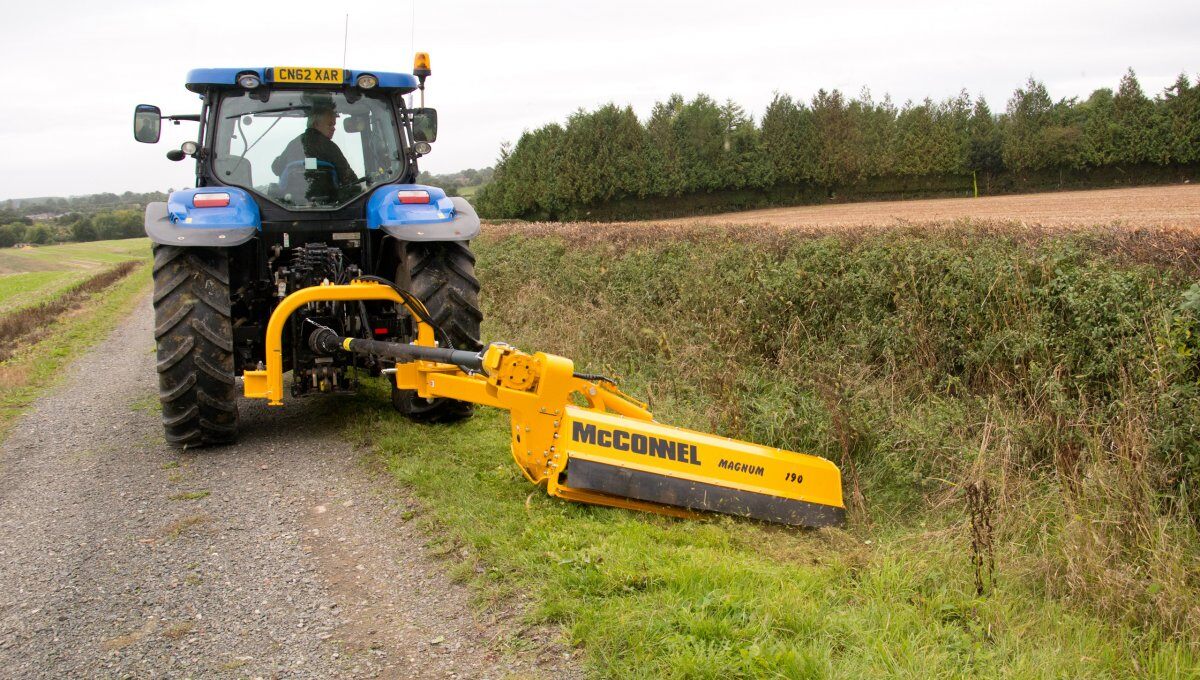

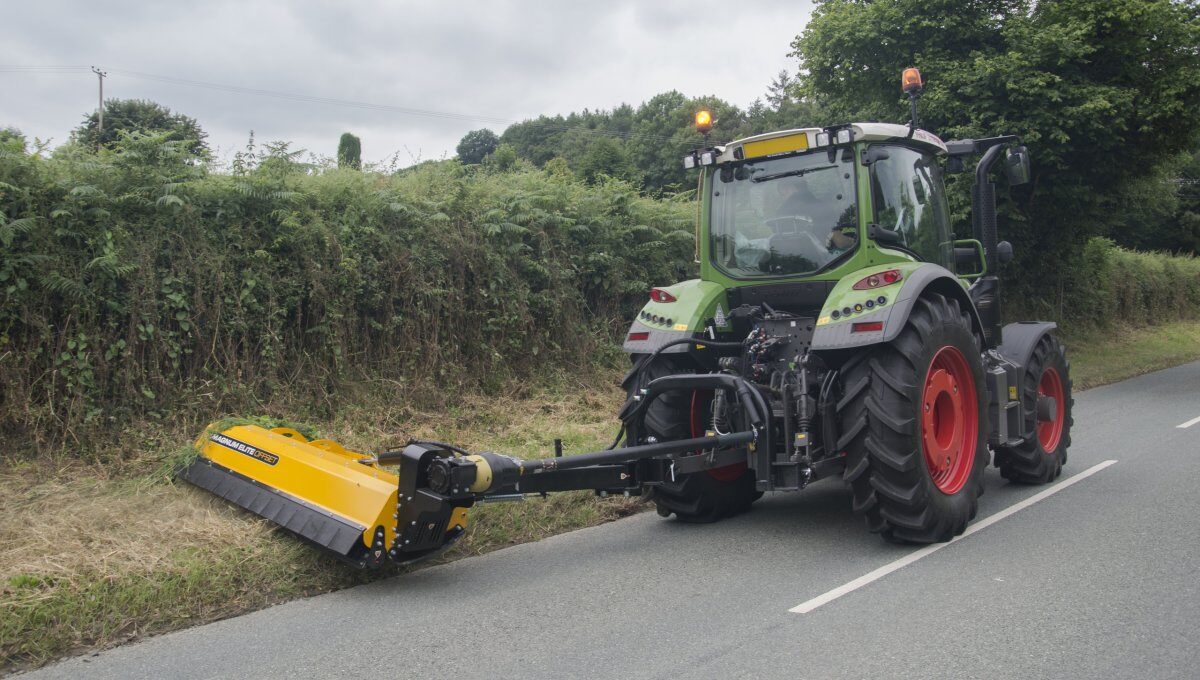

McConnel Magnum Elite Offset
The Magnum Elite Offset is productive and versatile, ideal for cost-effective verge and embankment mowing, and is even capable of trimming hedges.
Available in three different working widths from 1.62m to 2.27m, the Magnum Elite Offset offers 155 degrees of lateral movement, and a floating linkage system that allows it to follow the contours of the ground.
Magnum Elite Offset 160Magnum Elite Offset 190Magnum Elite Offset 225
Working Width
Magnum Elite Offset 1601.62m
Magnum Elite Offset 1901.92m
Magnum Elite Offset 2252.27m
HP requirement
Magnum Elite Offset 16050
Magnum Elite Offset 19070
Magnum Elite Offset 22580
Weight
Magnum Elite Offset 160659kg
Magnum Elite Offset 190746kg
Magnum Elite Offset 225824kg
Attachment
Magnum Elite Offset 1603-point linkage
Magnum Elite Offset 1903-point linkage
Magnum Elite Offset 2253-point linkage
Cutting height
Magnum Elite Offset 16030mm - 80mm
Magnum Elite Offset 19030mm - 80mm
Magnum Elite Offset 22530mm - 80mm
Cutting capacity
Magnum Elite Offset 16050mm
Magnum Elite Offset 19050mm
Magnum Elite Offset 22550mm
PTO speed
Magnum Elite Offset 160540rpm
Magnum Elite Offset 190540rpm
Magnum Elite Offset 225540rpm
Protection
Magnum Elite Offset 160Slip clutch
Magnum Elite Offset 190Slip clutch
Magnum Elite Offset 225Slip clutch
Number of flails
Magnum Elite Offset 16020
Magnum Elite Offset 19024
Magnum Elite Offset 22528
Hydraulic Adjustment Range
Magnum Elite Offset 16090° up, 65° down
Magnum Elite Offset 19090° up, 65° down
Magnum Elite Offset 22590° up, 65° down
Robust Flail Mower

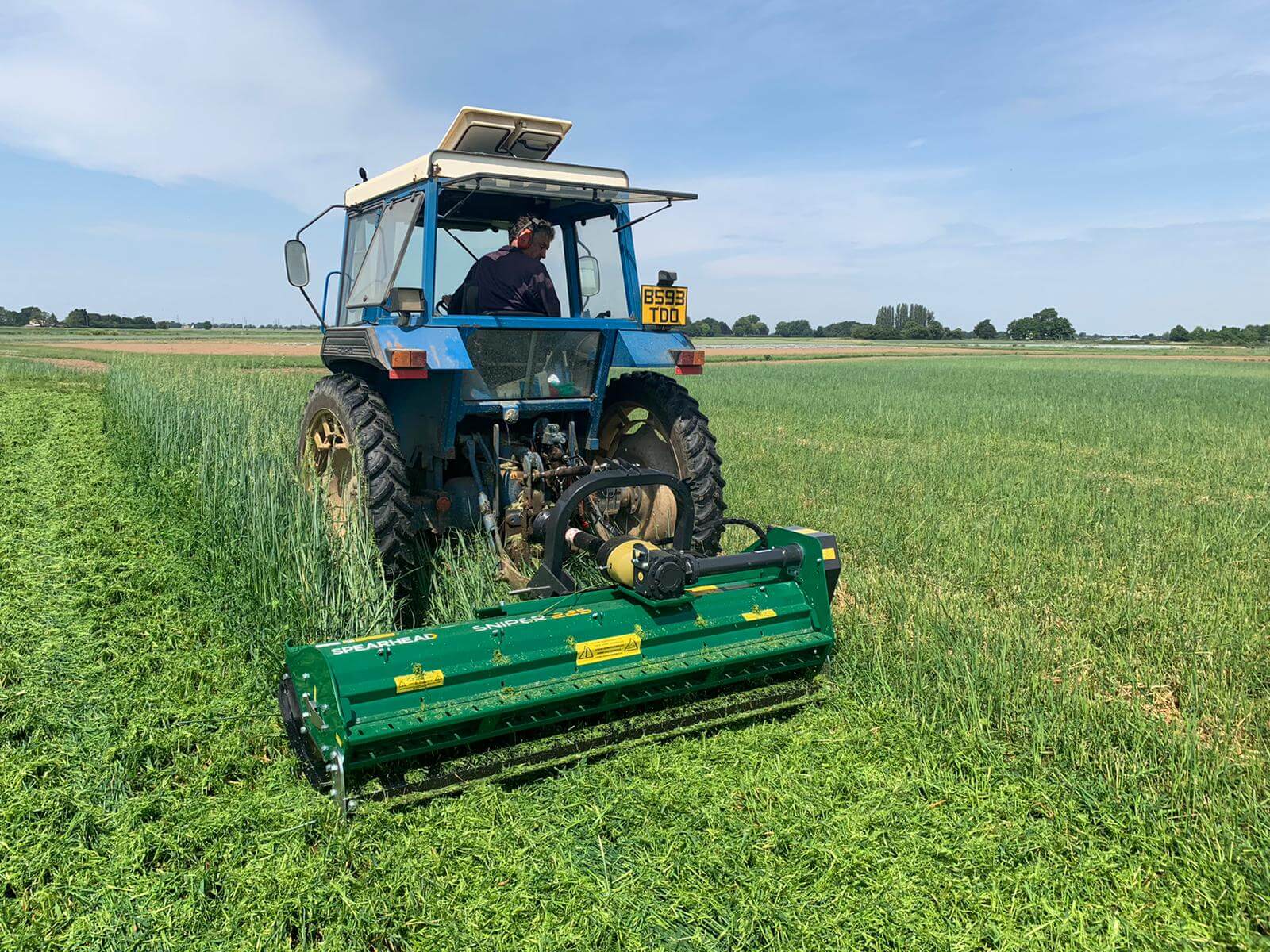

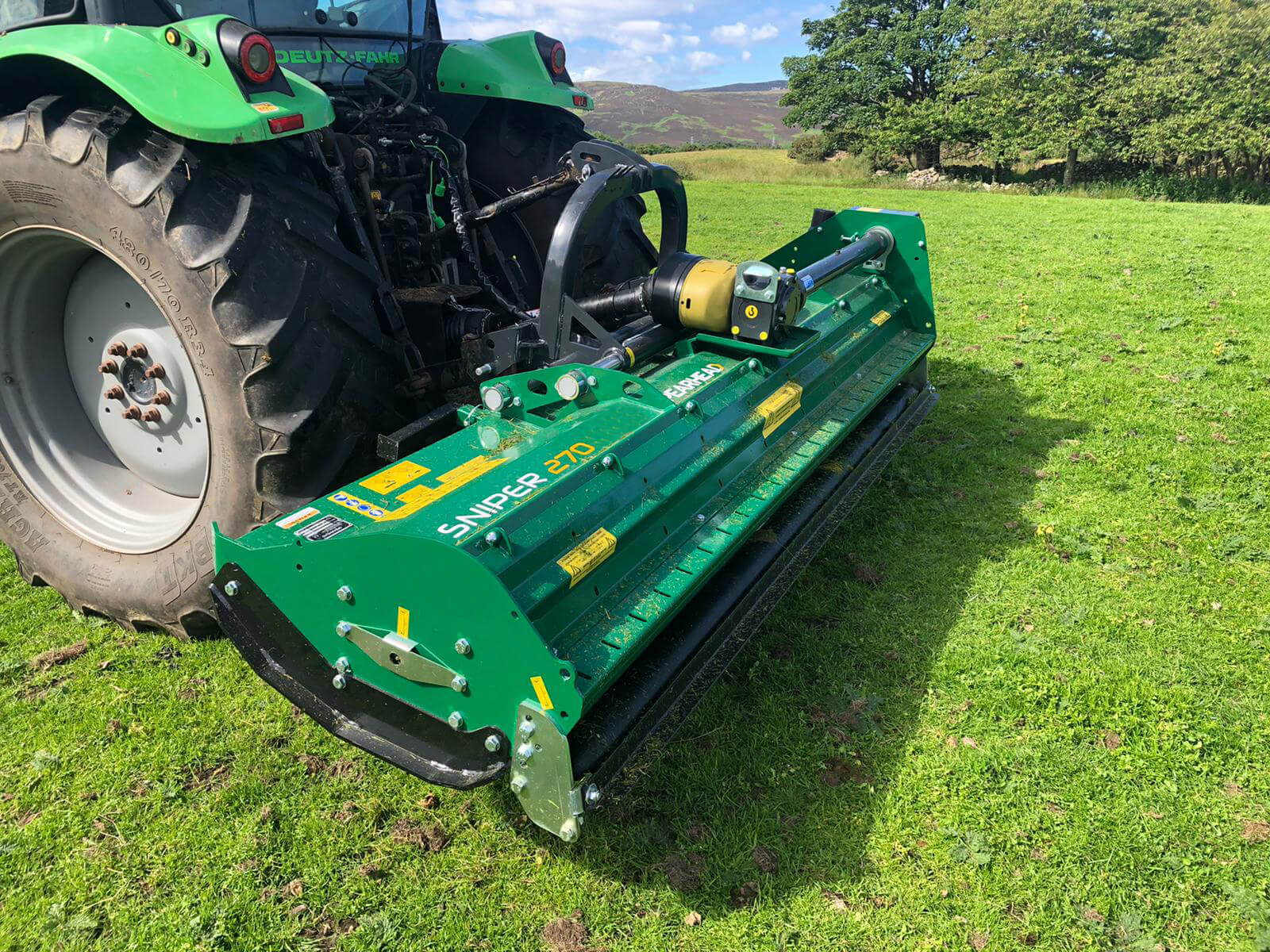

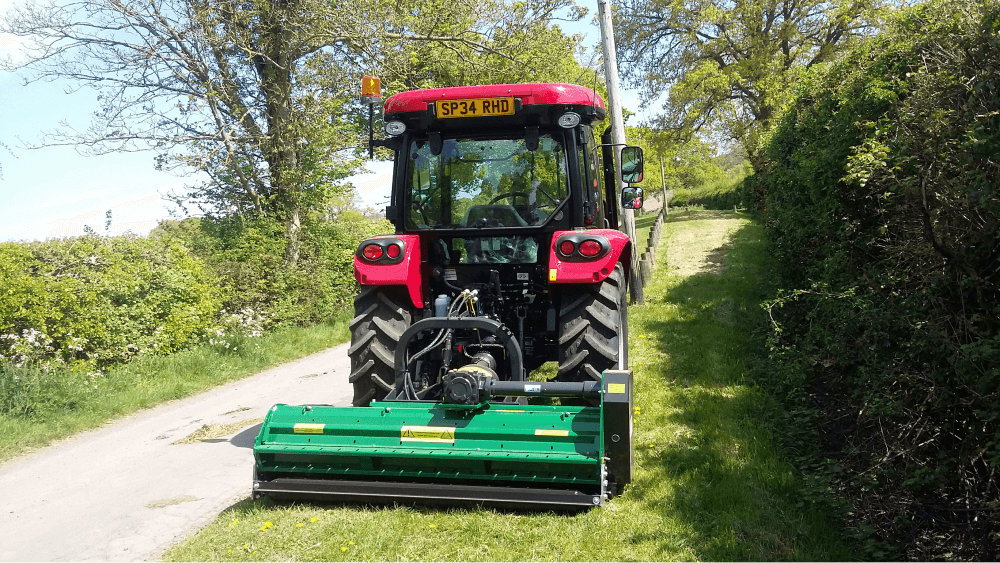

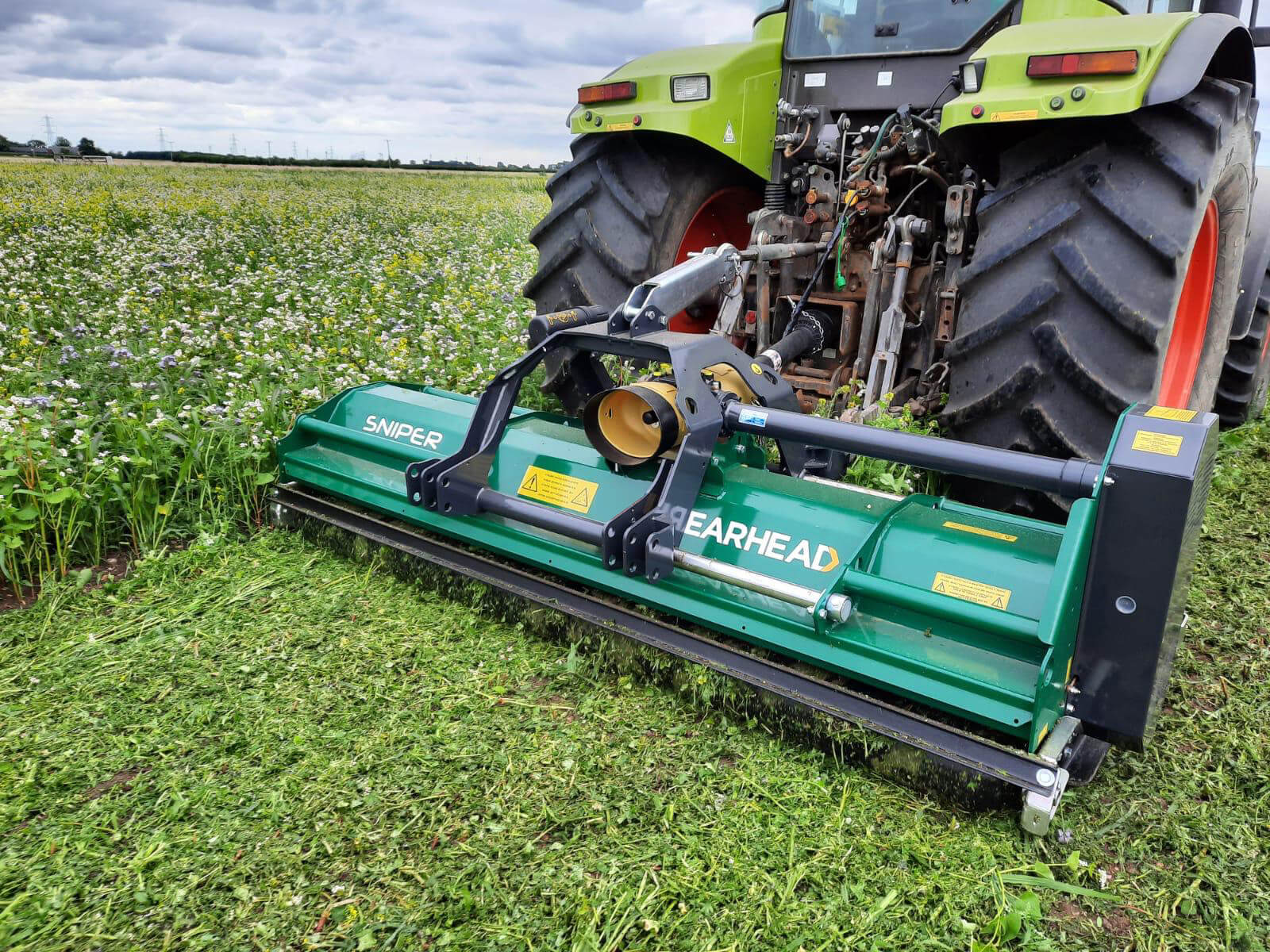

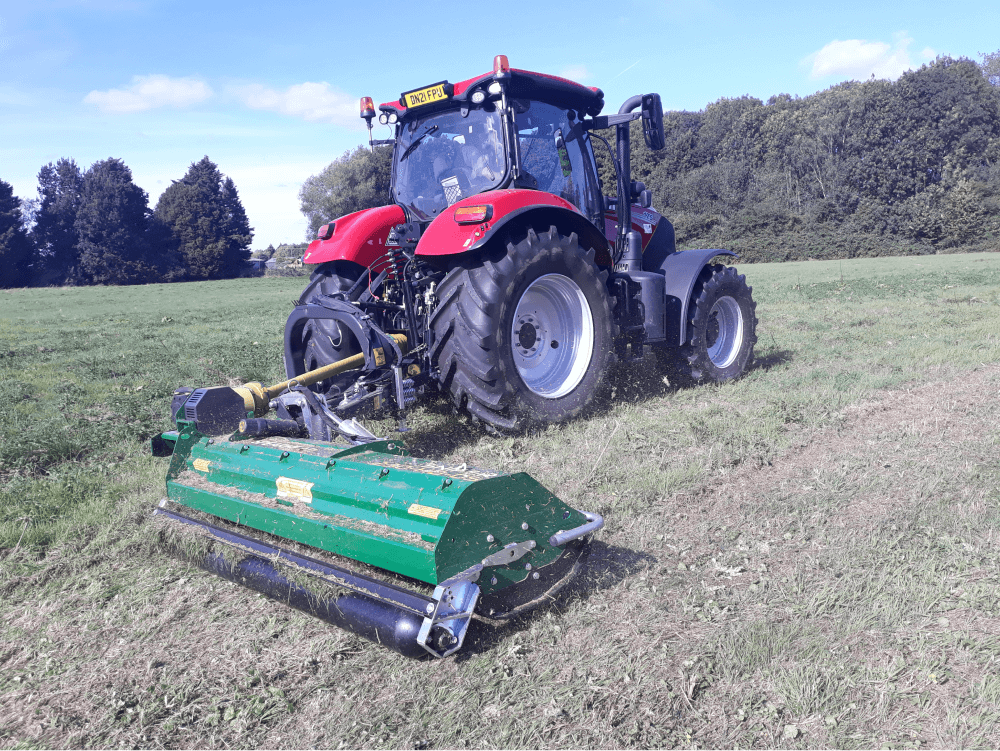

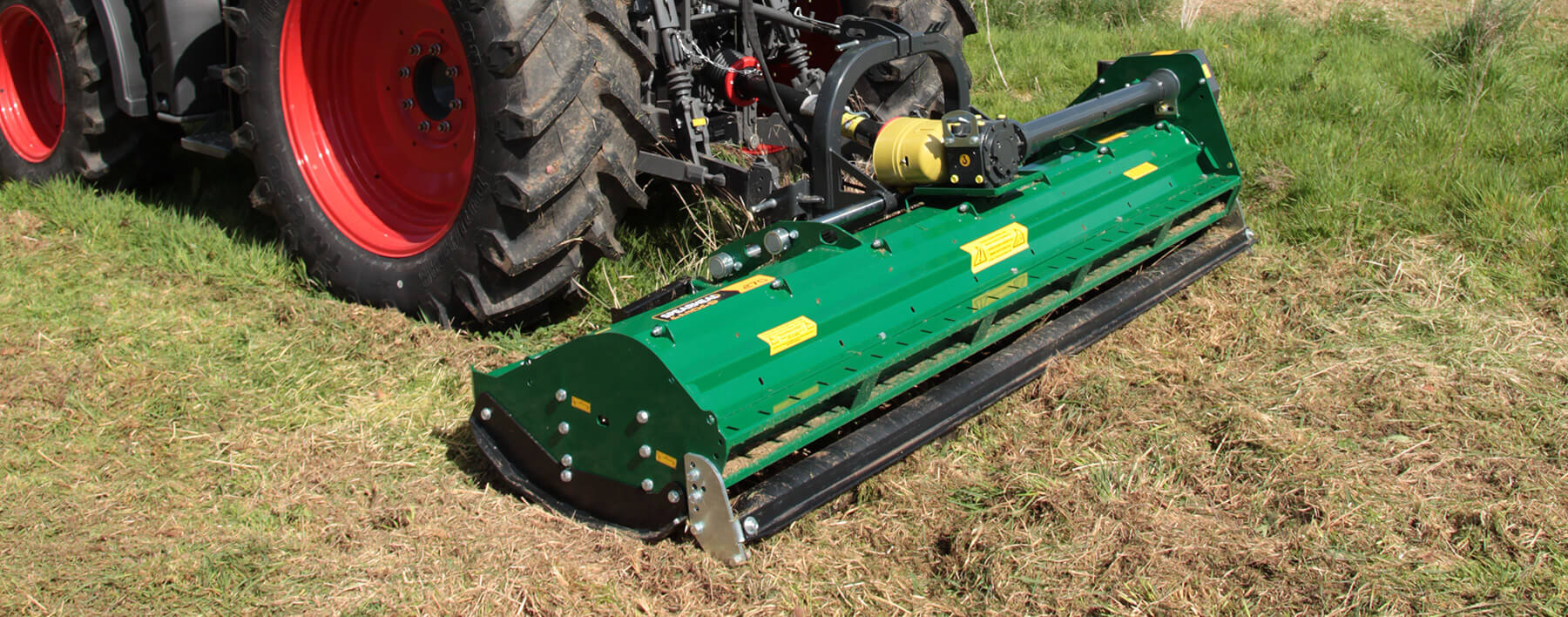

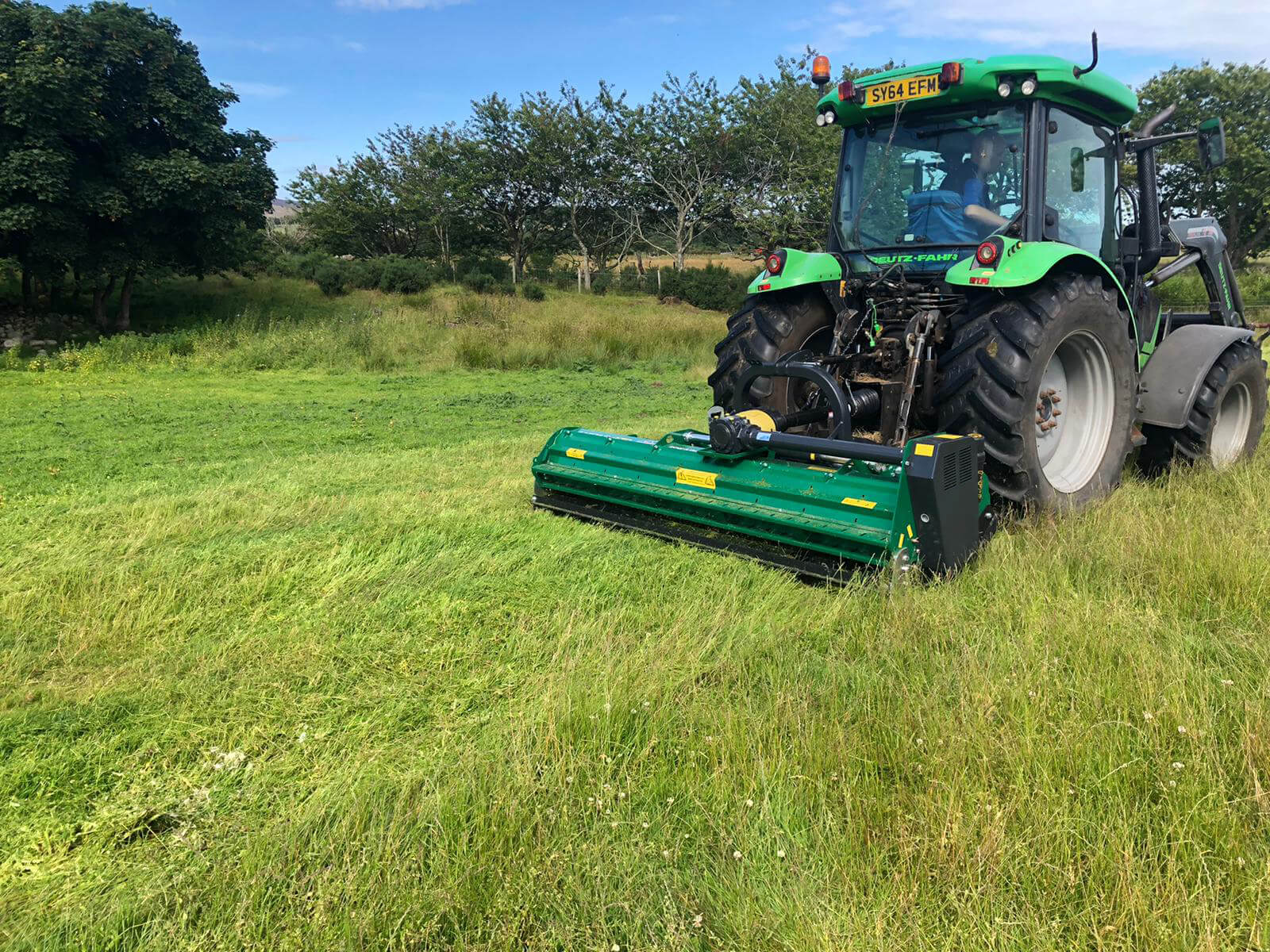

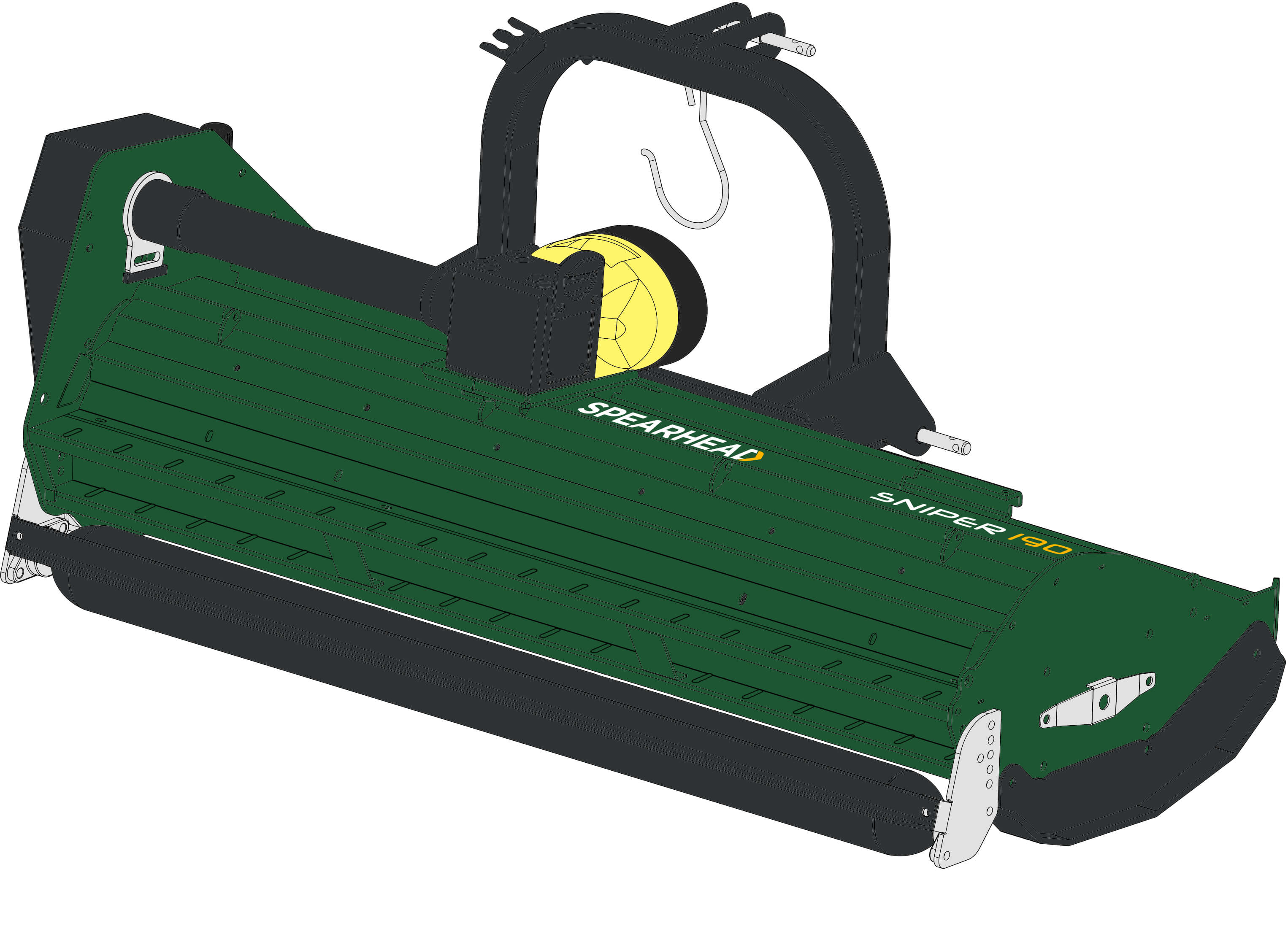

Spearhead Sniper

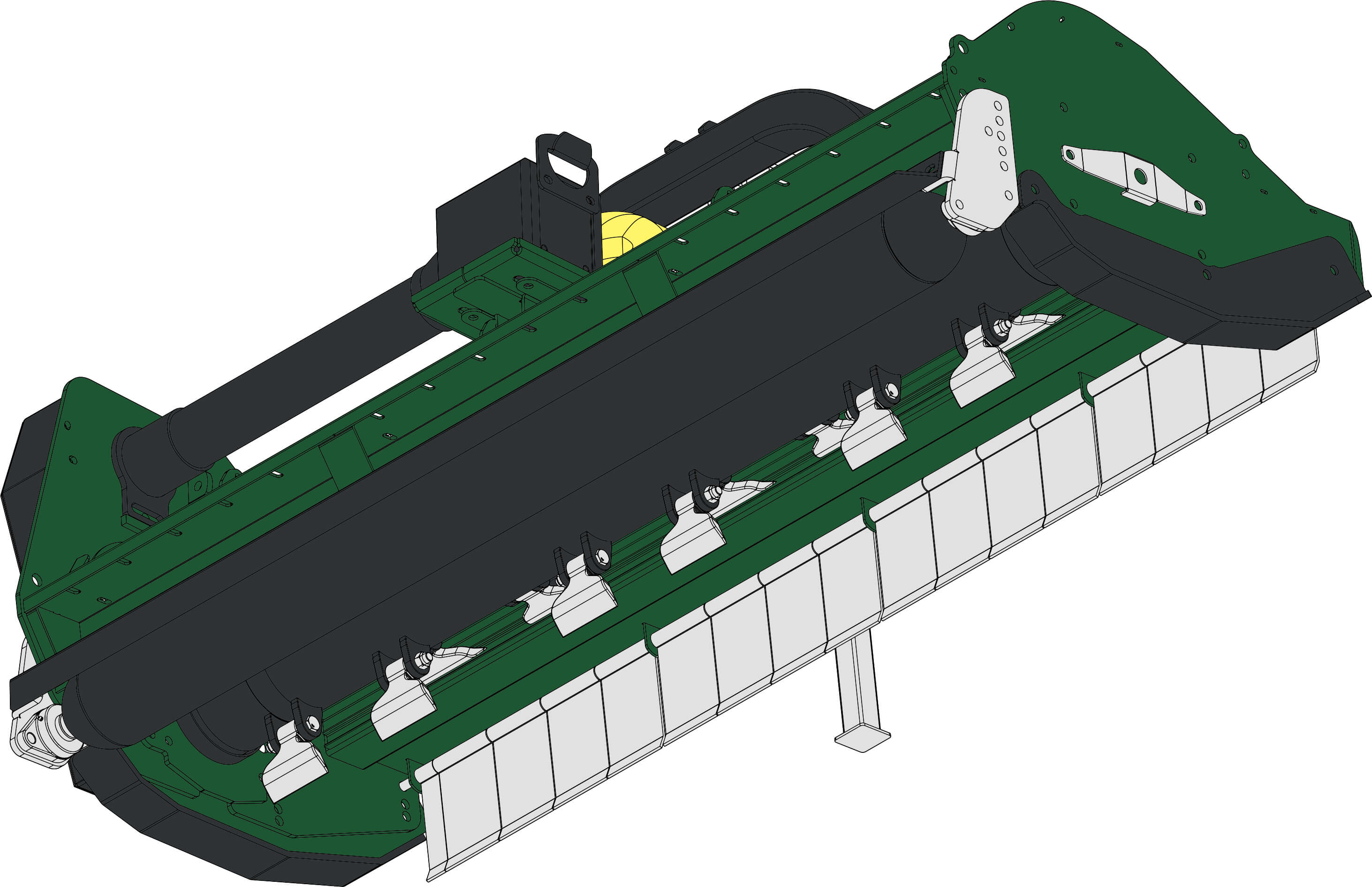

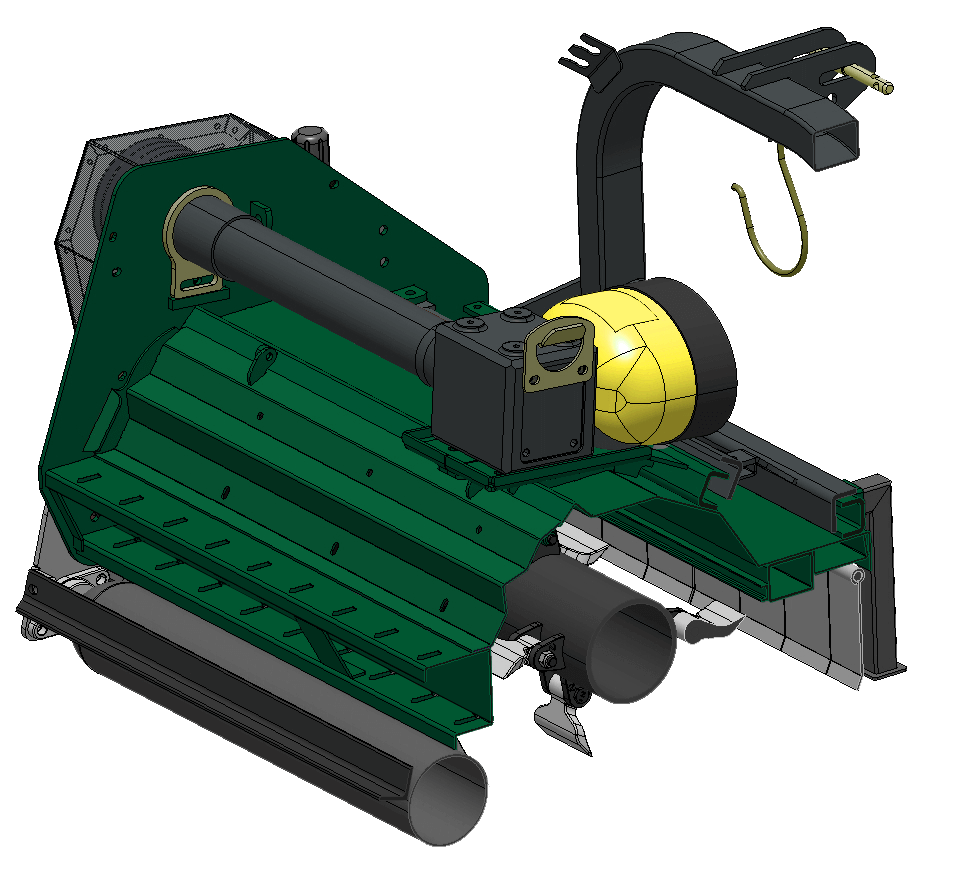

This robust machine features heavy duty hammer flails fitted on an electronically balanced rotor mounted on enclosed, self-aligning bearings. Belt drive gives reliable power transmission and a 140mm full width adjustable, self-cleaning rear roller with scraper will ensure a quality cut and well distributed finish.

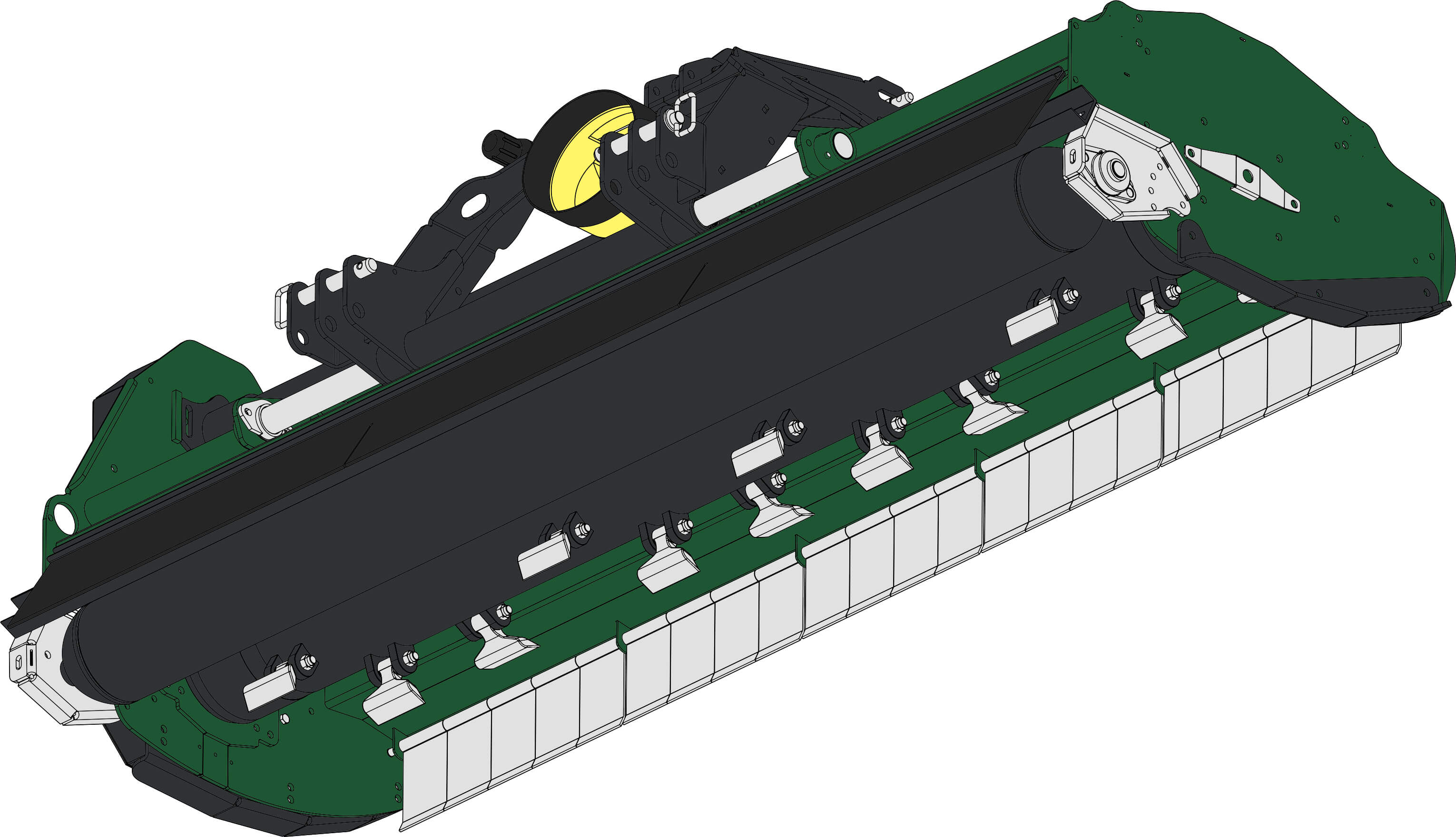

This robust machine features heavy duty hammer flails fitted in a double helical pattern on an electronically balanced rotor mounted on enclosed, self-aligning bearings. Belt drive gives reliable power transmission and a 194mm full width self-cleaning rear roller with scraper and rubber flap will ensure a quality cut and well distributed finish.
With 540/1000rpm adaptibility by reversing drive pulleys
Category 1/2 Headstock
With floating clevis top link suitable for front or rear mounting
Heavy Duty Gearbox
With integrated enclosed connecting shaft
Full Width Rear Roller
With full width steel front protection flaps
Hydraulic Offset
400mm wide
Heavy Duty Hammer Flails
To cut up to 60mm of material

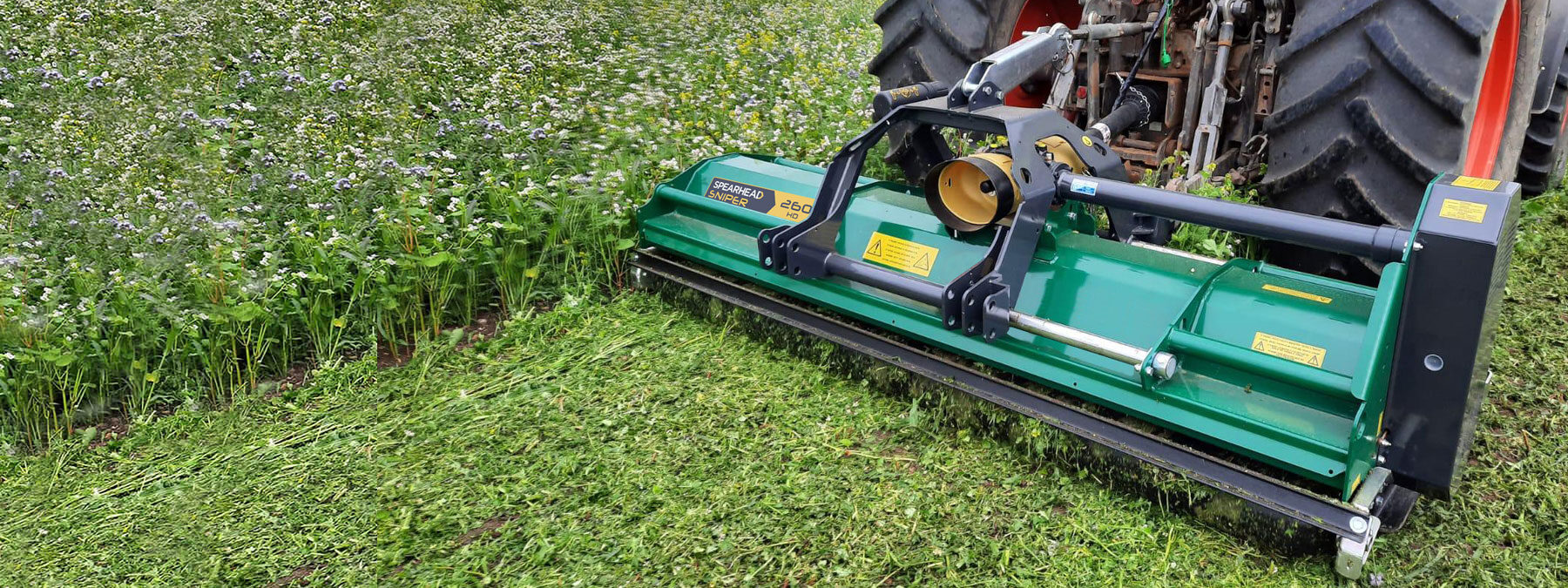

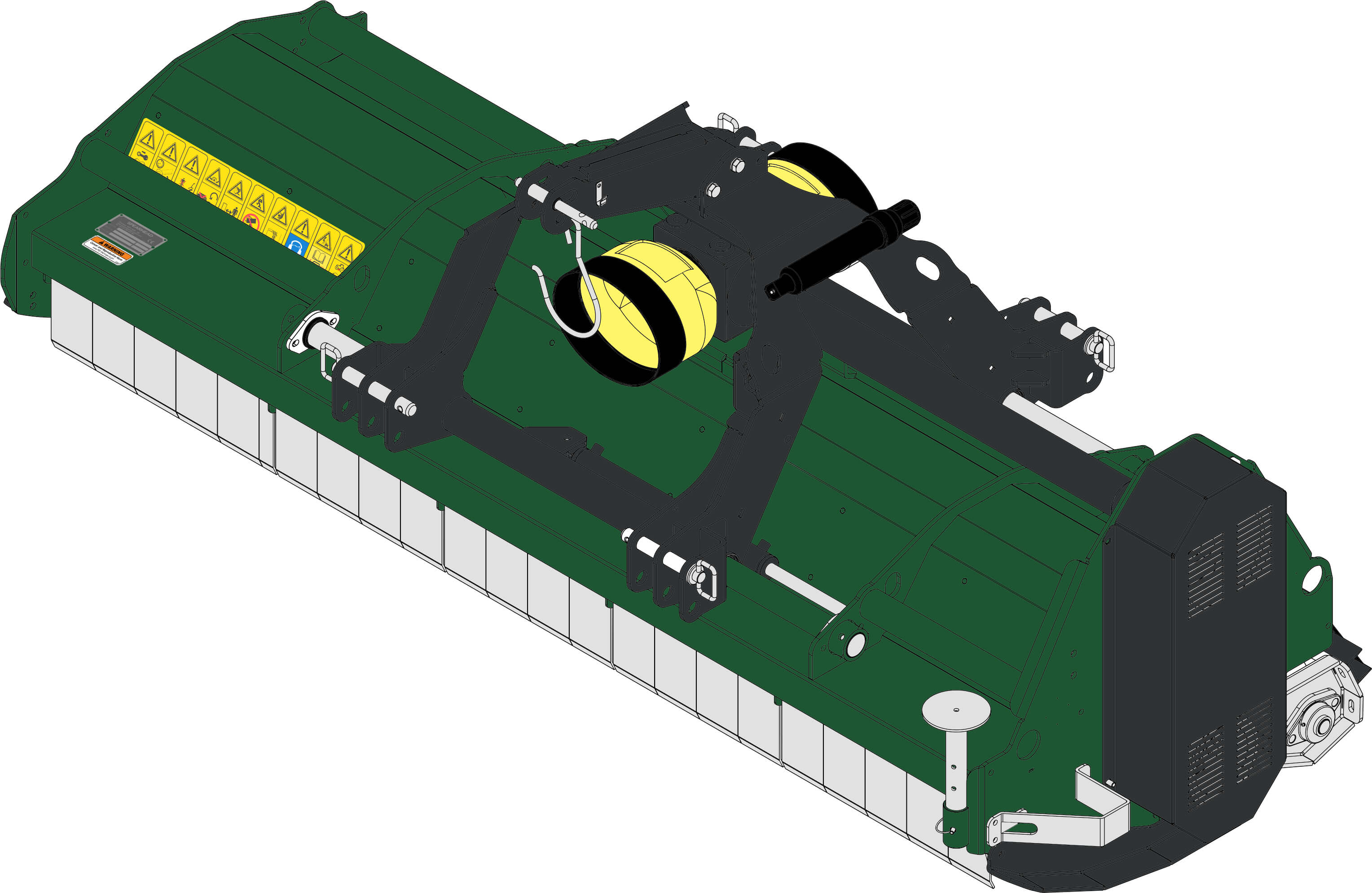

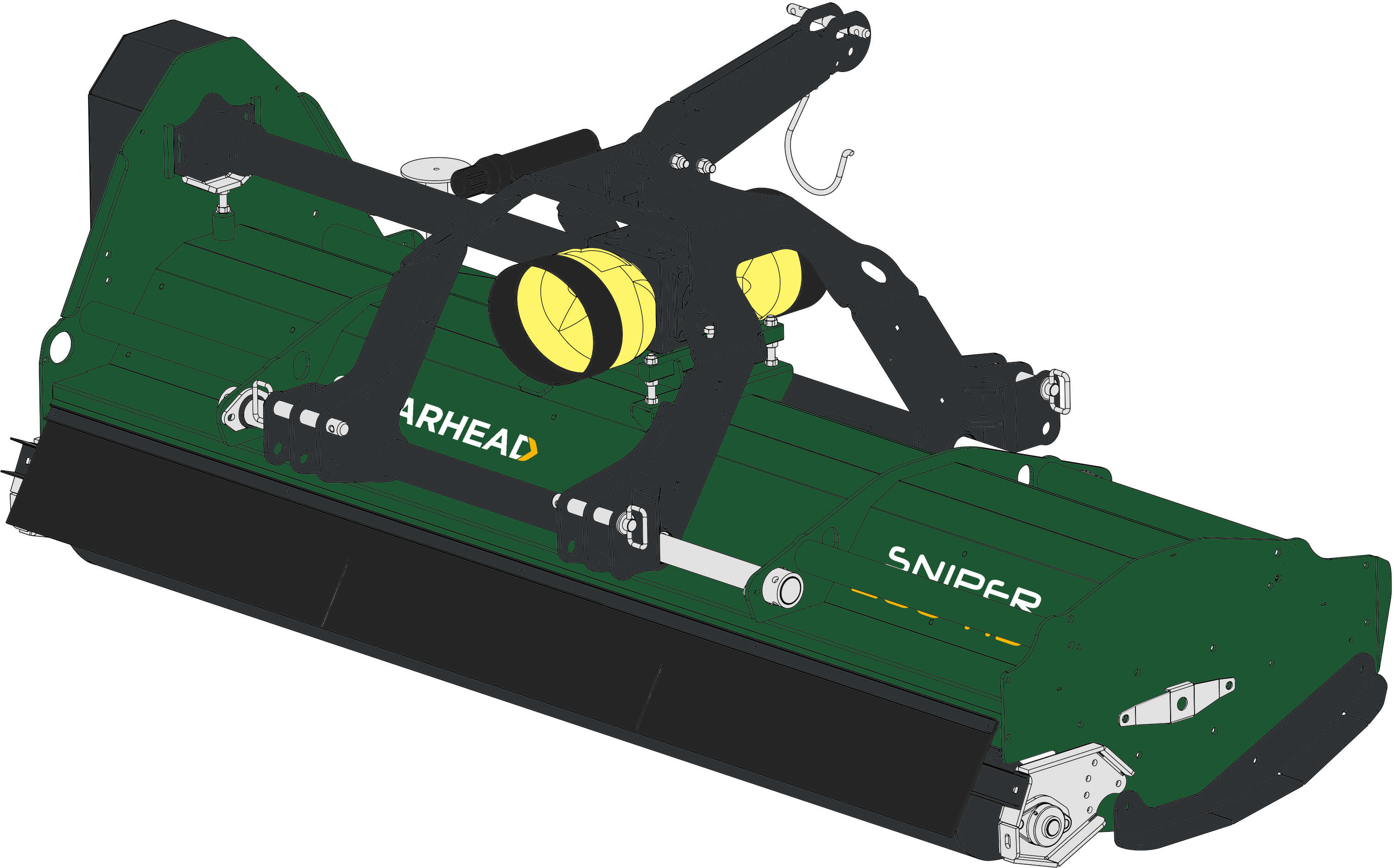

Spearhead Sniper HD Specifications
Sniper 240 HDSniper 260 HDSniper 280 HDSniper 300 HD
Working width
Sniper 240 HD2.40m
Sniper 260 HD2.60m
Sniper 280 HD2.80m
Sniper 300 HD3.00m
HP requirement
Sniper 240 HD80
Sniper 260 HD90
Sniper 280 HD90
Sniper 300 HD100
Weight
Sniper 240 HD905kg
Sniper 260 HD935kg
Sniper 280 HD990kg
Sniper 300 HD1025kg
Cutting height
Sniper 240 HD35mm - 110mm
Sniper 260 HD35mm - 110mm
Sniper 280 HD35mm - 110mm
Sniper 300 HD35mm - 110mm
Cutting capacity
Sniper 240 HD60mm
Sniper 260 HD60mm
Sniper 280 HD60mm
Sniper 300 HD60mm
PTO speed
Sniper 240 HD540 / 1000rpm
Sniper 260 HD540 / 1000rpm
Sniper 280 HD540 / 1000rpm
Sniper 300 HD540 / 1000rpm
Belt quantity
Sniper 240 HD5
Sniper 260 HD6
Sniper 280 HD6
Sniper 300 HD6
Working width
Sniper 240 HD32
Sniper 260 HD32
Sniper 280 HD36
Sniper 300 HD40
Flexible offset abilities

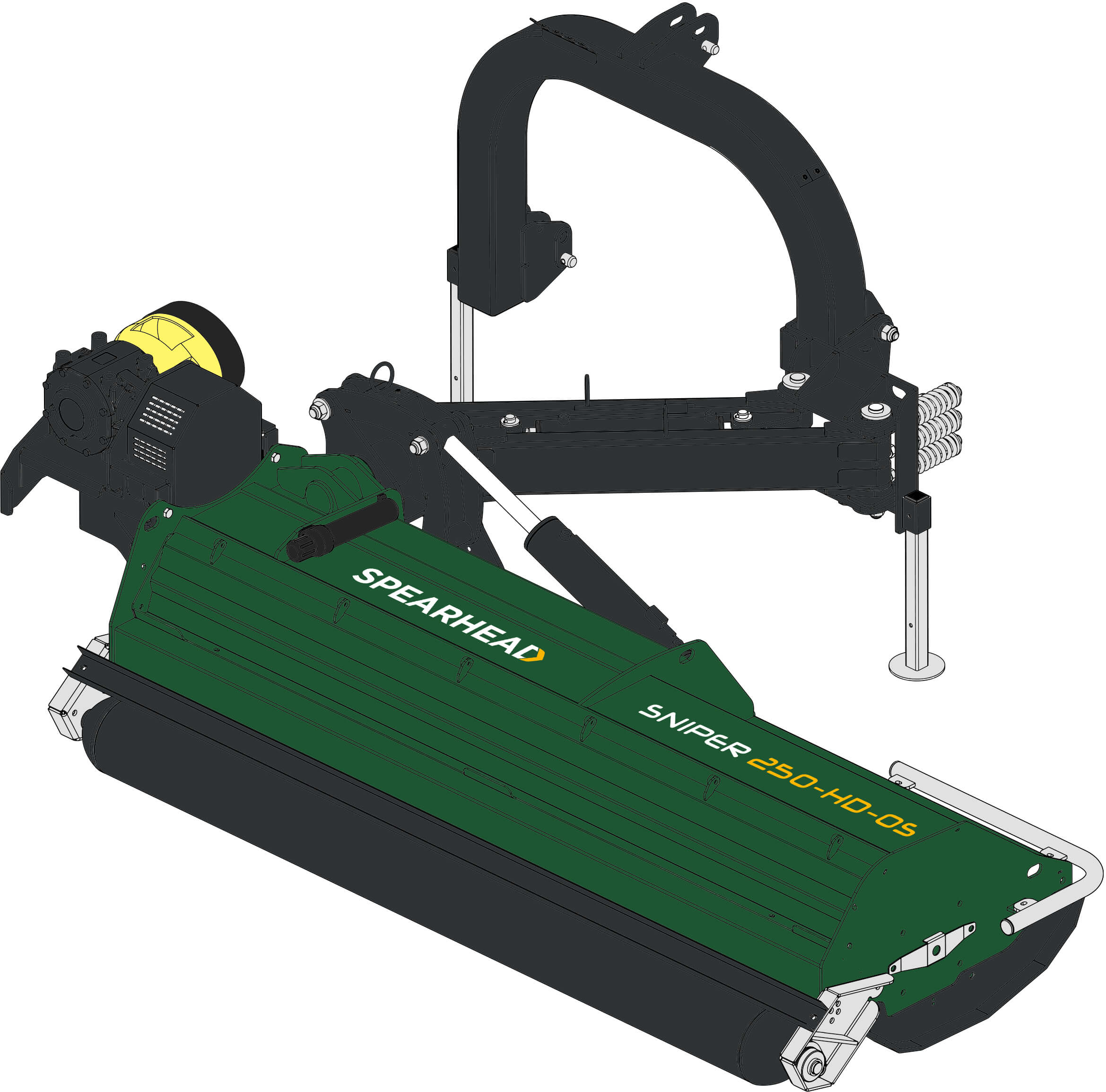

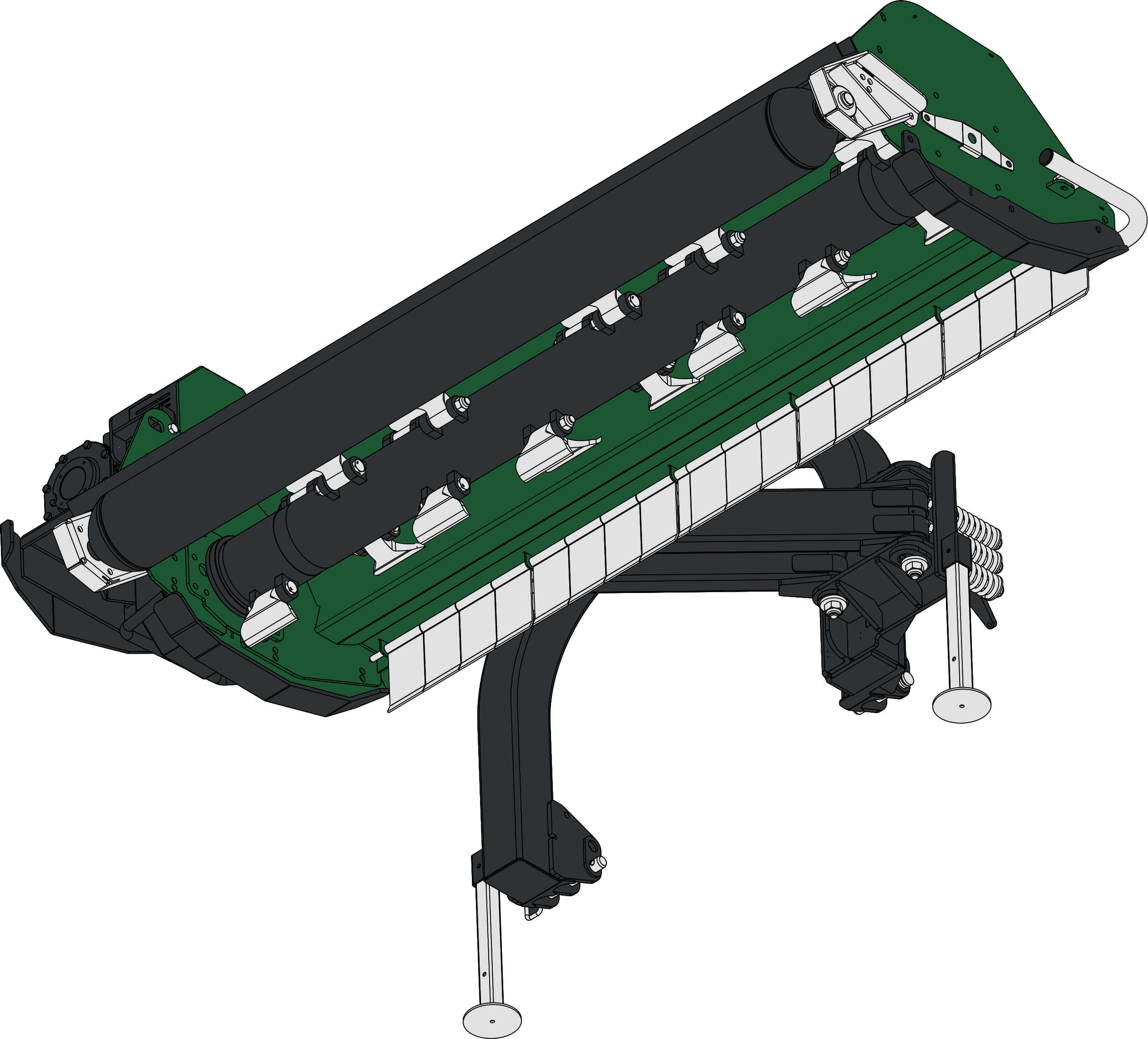

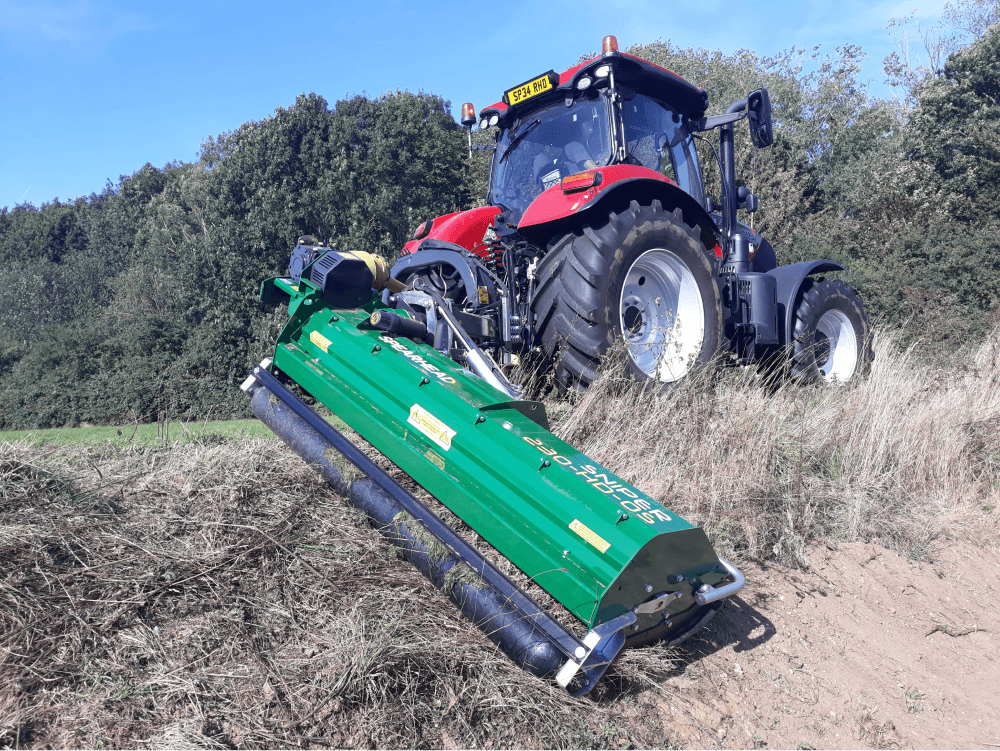

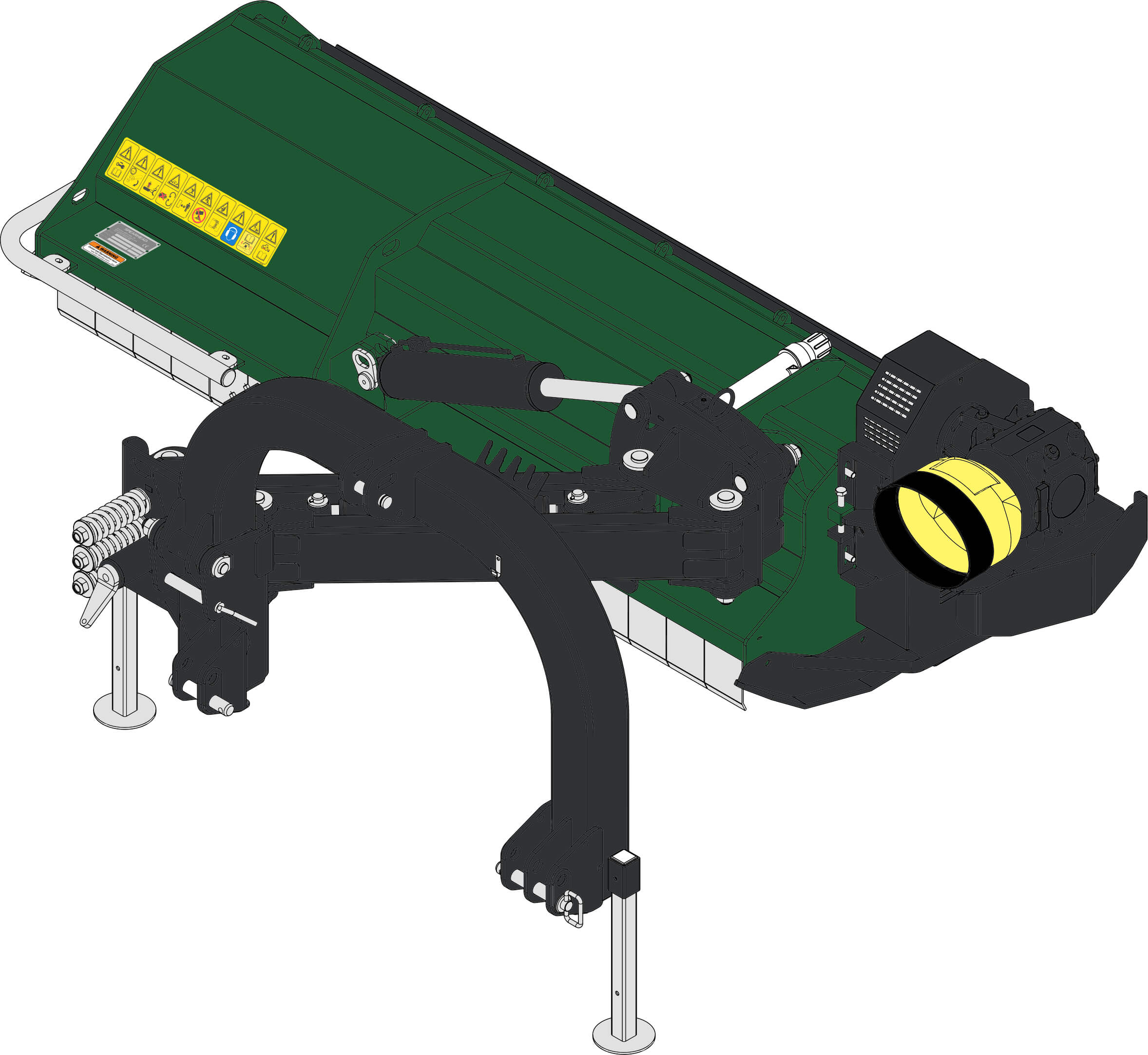

Spearhead Sniper HD Offset

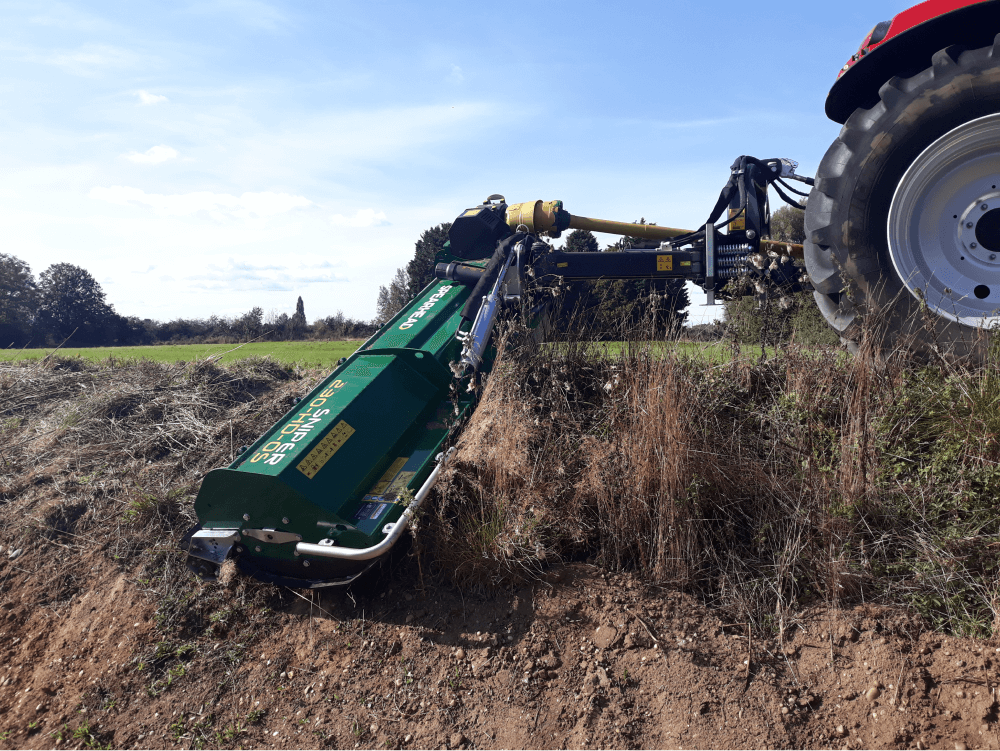

The Sniper HD Offset flail mower is designed for intense verge and embankment use giving a high quality and consistent cut in material up to 80mm. It is the perfect choice for maintenance of places such as waterways, highways and heavy, overgrown scrub areas.

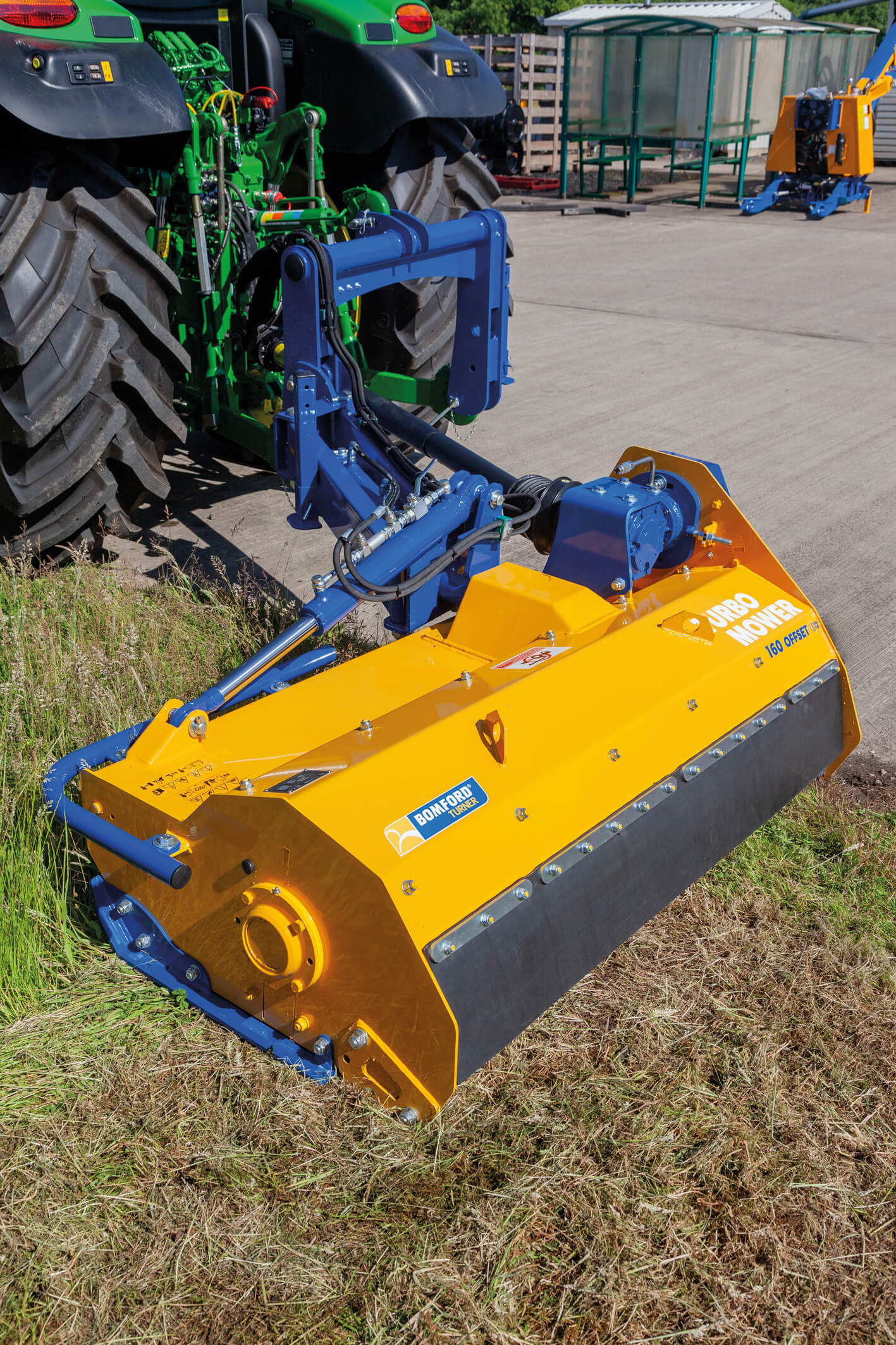

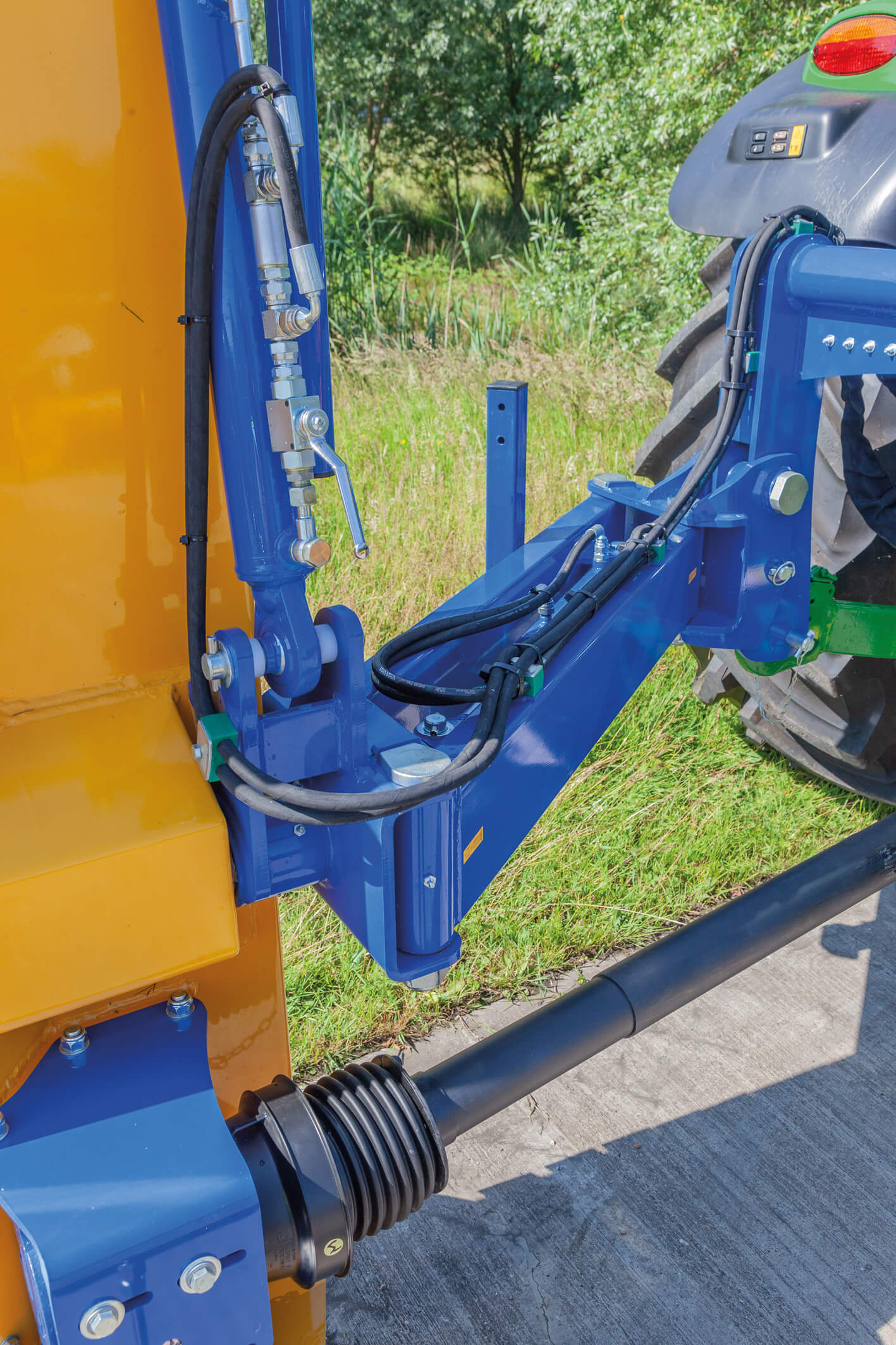

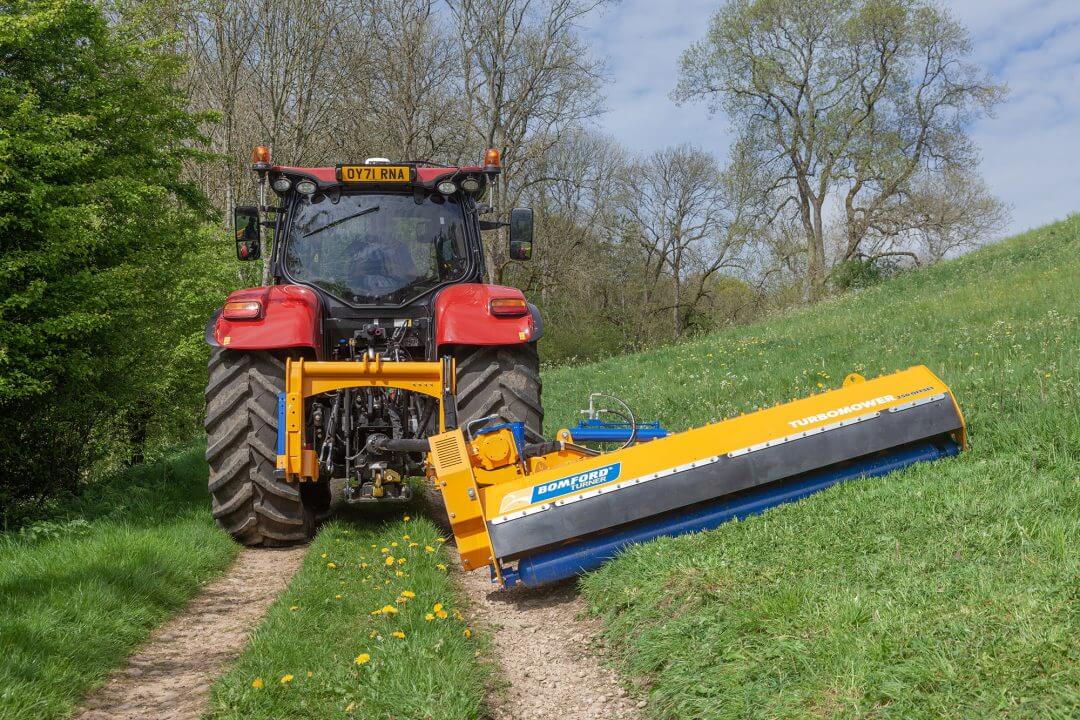

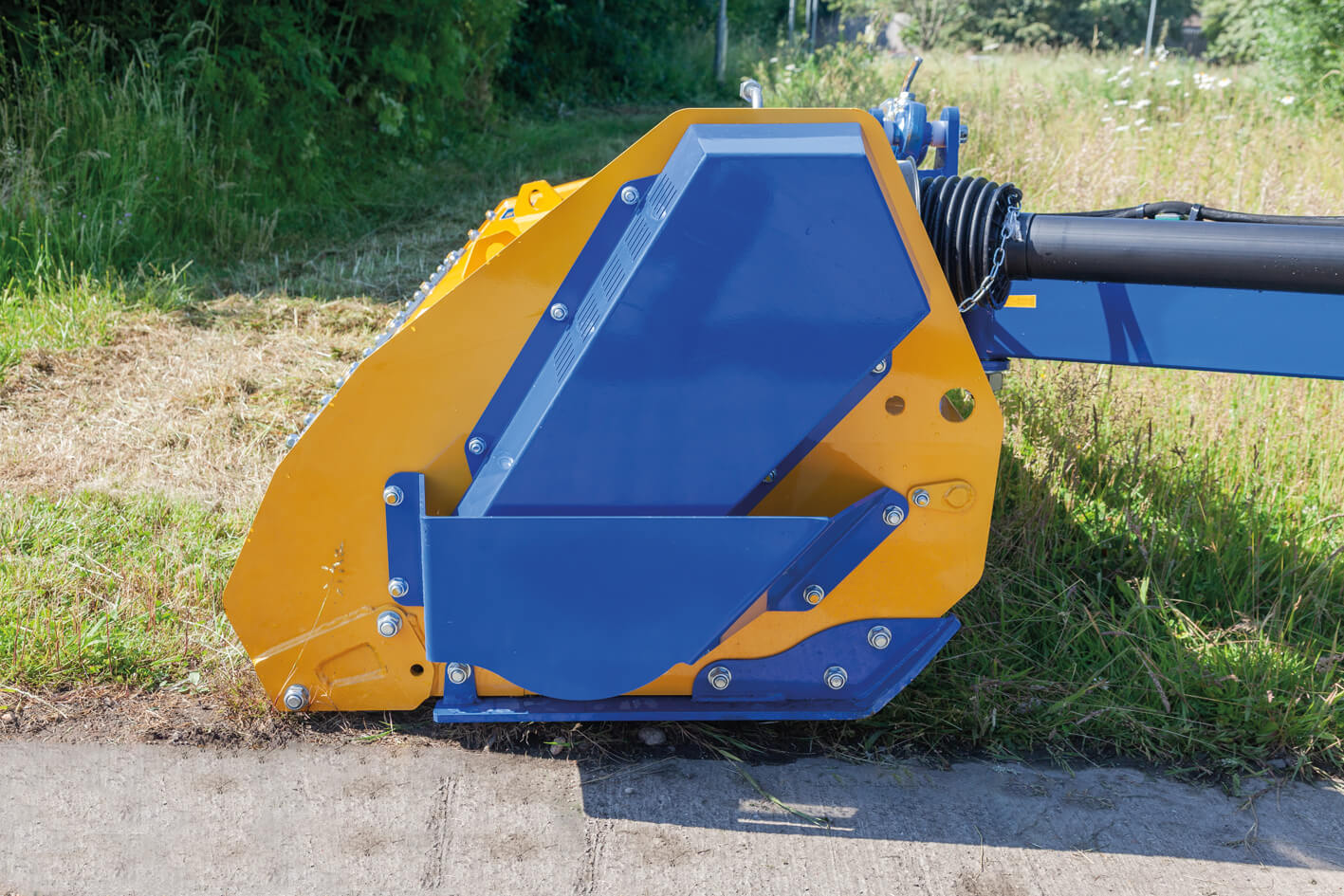

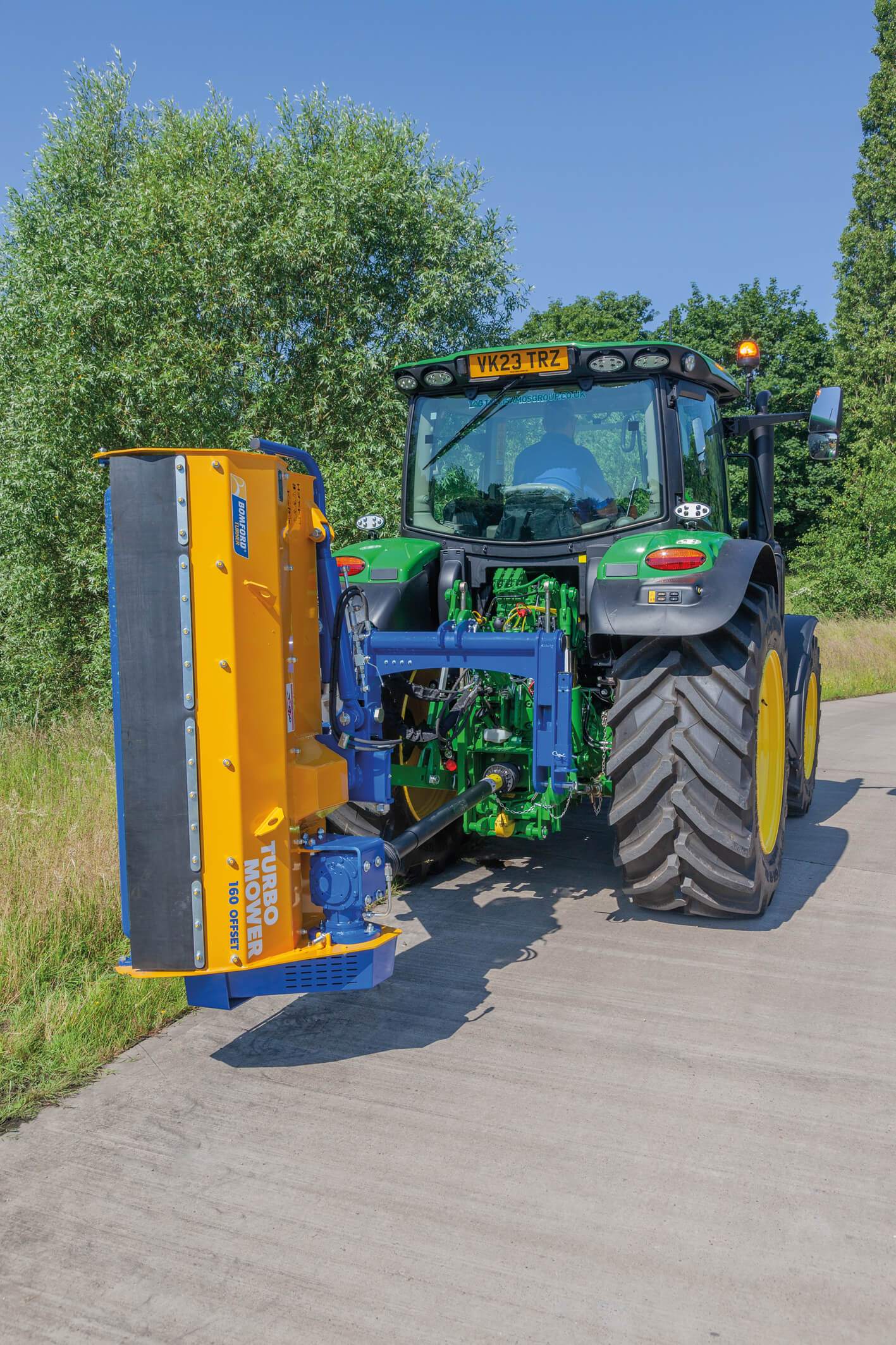

A well designed and constructed range, the Turbo Mower Offset is built with durability and ease-of-use in mind – a low maintenance machine that is simple to operate.
