SP500PG
SPREADMASTER

SP Spreader Series

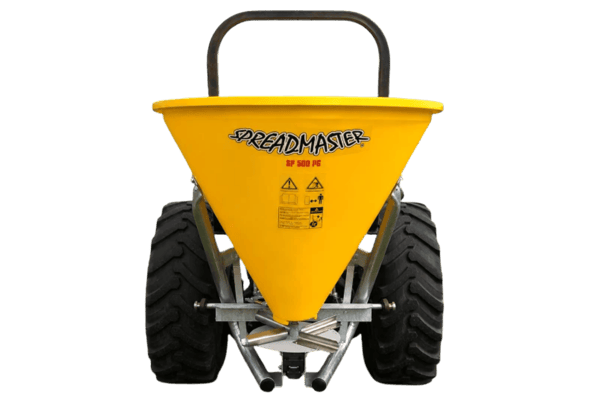

A high-quality European-built spreader designed for Kiwi lifestyle blocks and compact tractors. Featuring a galvanised frame and hopper or plastic hopper (SP500PG only), the 3 point linkage mounted spreader is easy to use with a range from 150L to 350L and with optional extras available.

SP Series Features

High-quality components and design

Designed and manufactured in Italy.

4 adjustable fins

Stainless Steel Disc with 4 adjustable fins.

Strong and durable

Galvanised frames and a 1-year warranty.

Rigid gearbox

Heavy duty Italian gearbox.

6-14m spreading width

Easy setting of the application rate.

SP500PG Fertiliser Spreader
SP500PG Fert Spinner Spreader
SP Single Spinner Fert Spreader 3-point linkage (2)
SP Single Spinner Fert Spreader 3-point linkage (1)
SP Single Spinner Fert Spreader 3-point linkage (2)
SP Single Spinner Fert Spreader 3-point linkage (1)
SP Single Spinner Fert Spreader 3-point linkage (4)
SP Single Spinner Fert Spreader 3-point linkage (3)

SP Series Spreader Specifications

SP150 SP500 SP500GG SP500PG
Spreading width m
SP150 6-14 m*
SP500 6-14 m*
SP500GG 6-14 m*
SP500PG 6-14 m*
Hopper volume (approx) L
SP150 149 Litres
SP500 350 Litres
SP500GG 350 Litres
SP500PG 350 Litres
Payload kg
SP150 180 kg
SP500 480 kg
SP500GG 480 kg
SP500PG 480 kg
Loading height m
SP150 0.89 m
SP500 1.15 m
SP500GG 1.15 m
SP500PG 1.18 m
Total width m
SP150 0.91 m
SP500 1.20 m
SP500GG 1.20 m
SP500PG 1.14 m
Empty weight kg
SP150 50 kg
SP500 60 kg
SP500GG 60 kg
SP500PG 57 kg
Hopper material
SP150 Steel
SP500 Steel
SP500GG Steel
SP500PG Polyethylene
Hopper finish
SP150 Galvanised
SP500 Powder Coated
SP500GG Galvanised
SP500PG N/A
*Depending on fertiliser composition

Optional Extras

Customise your SP Series spreader with options designed to improve convenience, control and versatility.

Agitator Stirrer with Wheel
20241022_111420

Agitator Stirrer for salt, sand or powder products.

Special articulated mixer inside the hopper for salt, sand or powder products.
The articulated stirrer, with its particular shape and its rotary movement, avoids compacting the material inside the hopper and directs it towards the exit mouth. Advised for salt, sand, powdered or semi-moist products.

SP Canvas cover

Hopper covering with inspection window

Stainless Side Discharge Unit SP spreader

Side discharge unit

The single side discharge chute allows fertiliser or other materials to be applied accurately alongside the crop row, reducing application rates and helping lower input costs.

Ideal for:

  • Vineyards

  • Orchards

  • Olive groves

Features & Benefits

  • Precise side application directly alongside the crop row

  • Helps reduce product usage and application costs

  • Suitable for granular, flaked, powdered and pelleted materials

  • Adjustable outlet deflector directs material exactly where it is needed

  • Heavy-duty stainless steel construction for long service life

Hydraulic Remote Operating of the Shutters

Hydraulically adjust the spreader opening and closing directly from the tractor cab for greater convenience and control.

Features & Benefits

  • Double-acting hydraulic cylinder with integrated check valve

  • Uses the standard graduated scale for accurate and repeatable settings

  • Supplied with 2.0m × ¼" hydraulic hoses and quick-release couplings

Download the Operating Instructions & Parts Manual here.
